USB Camera >> HD Black 5MP USB Digital Industry Microscope Video Camera Set + 120X C-mount Lens for LAB PCB
View Larger Image
Share your images of this product

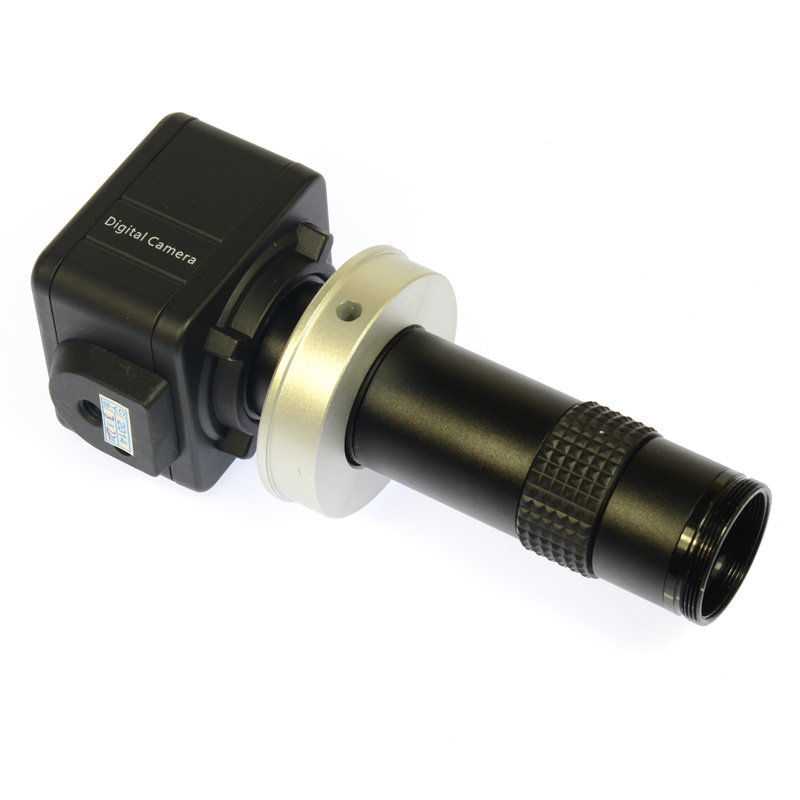

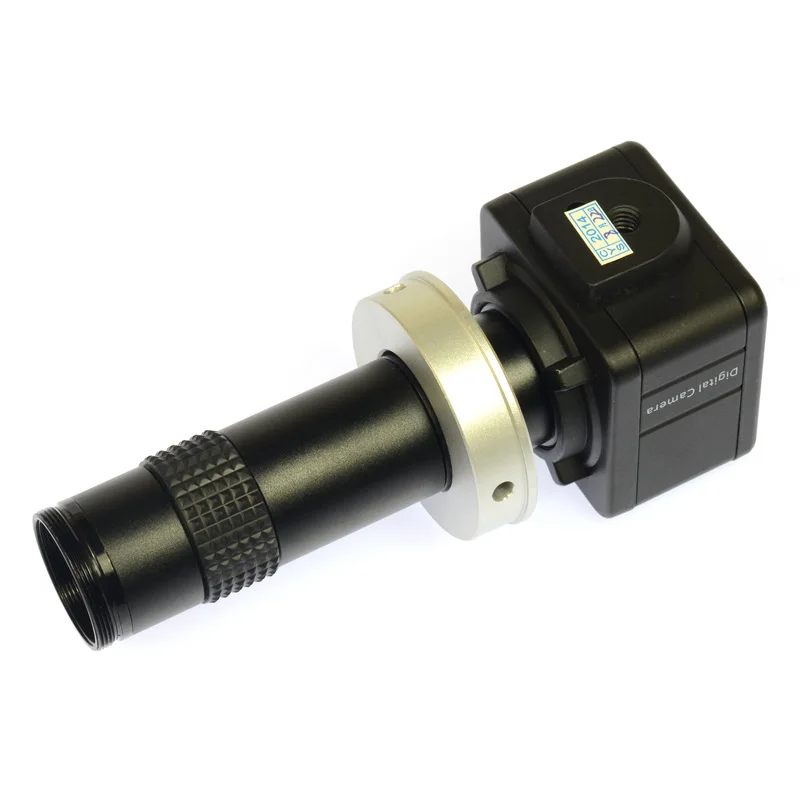

HD Black 5MP USB Digital Industry Microscope Video Camera Set + 120X C-mount Lens for LAB PCB
Price : US $ 78.75 89.99

SKU : 1801271756
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.

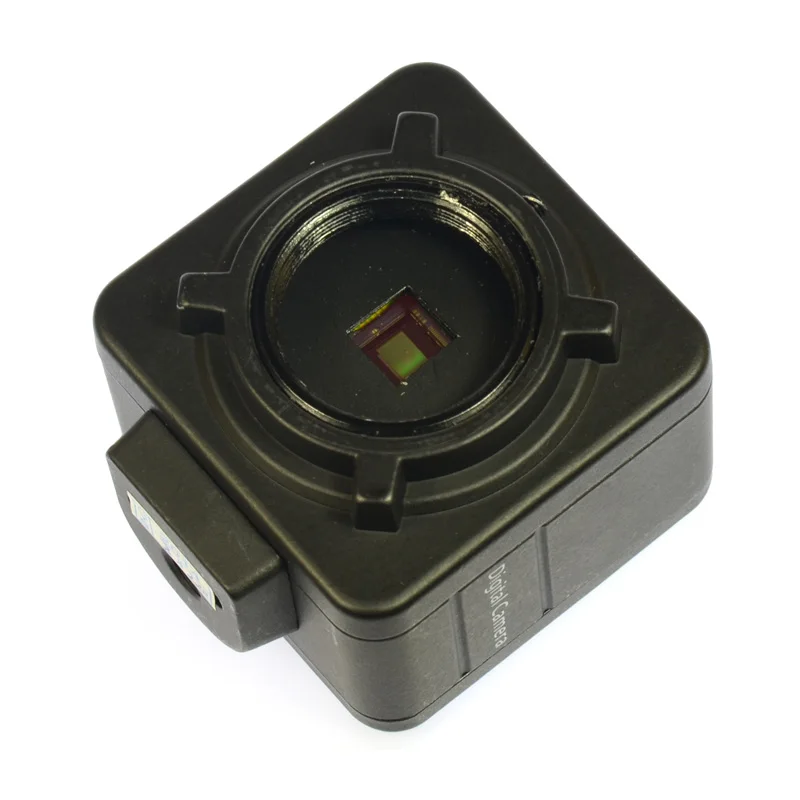

Feature:

High Quality, High Resolution, Clear Images
Big size 1/2.5 inch CMOS
Certificate:CE,FC,RoHS
Industry Cmos Camera. It can Show the live image directly on any VGA monitor or Projector.
Supply USB output ports.
We sell much to the industy factory, then the works can see the problems directly in the Monitor.


Specification:

Model: USB output
Sensor: 5.0mp,1/2.5 inch
Image equipment:CMOS
Sensor: 5.0MP
Full Resolution: 2592 x 1944
Frame rate:(MJPG) 2592 x 1944@12FPS ;2048x1536@15FPS ; 1920x1080@15FPS ;1600x1200@15FPS; 1280x720@15FPS;1280x960@15FPS;1024x768@30FPS; 800x600@30FPS;640x480@30FPS
Frame rate:(YUY2) 2592 x 1944@2FPS ;2048x1536@2FPS ; 1920x1080@4FPS ;1600x1200@4FPS; 1280x720@4FPS;1280x960@4FPS;1024x768@6FPS; 800x600@15FPS;640x480@30FPS
Pixel size: 2.2μmm x 2.2μm
Support interface: DirectShow,TWAIN,SDK,Redistributable
Programmable control:The size of the image, image photographing, exposure time, gain, GAMMA,
White Balance: Auto
Data output:16bit
Light: Auto
Electronic shutter:20-100000
White balance (dB):38.1 dB,
Color: Color
Sensitivity: 1.4V/lux-sec@550nm
Spectral response:400nm~1000nm


120X C-MOUNT Lens:

Working distance: 40mm-8700mm
Field of view: 2.4mm-36mm
zoom c-mount Lens
zoom ratios: 15:1
Magnification Power by 0.13X - 2X
Size: 110mm(L) * 28mm(DIA)
With 50mm ring adapter

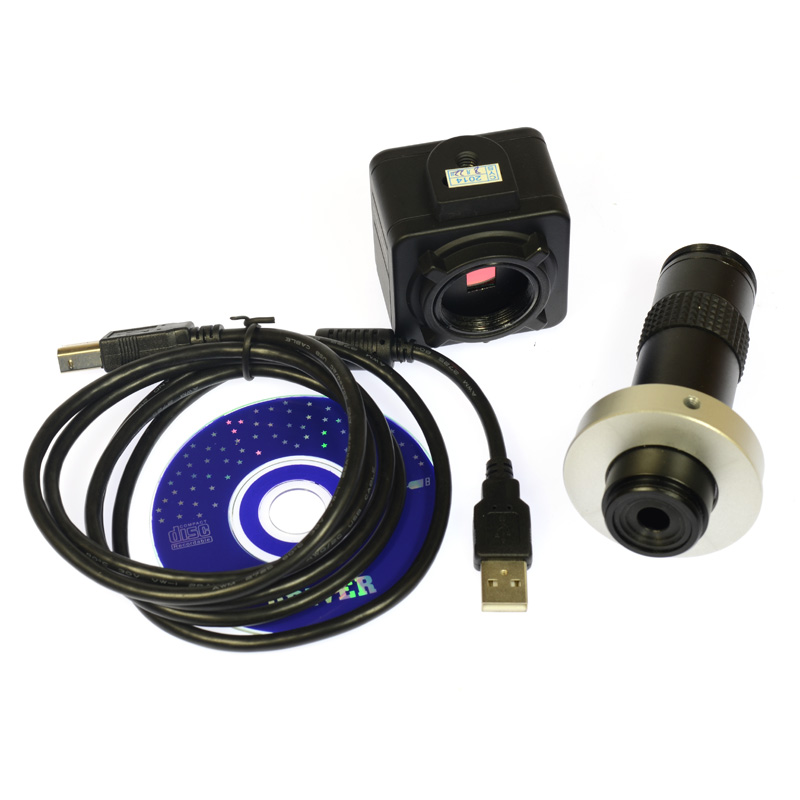

Package Including:

1 x Industry Microscope Camera
1 x 120X C-MOUNT Lens
1 x USB line







DSC_6486DSC_6490

DSC_6491DSC_6494DSC_6497

DSC_482922
