Fiber Tools >> RY-S200 TV Signal Level Meter CATV Cable Testing 46-870MHZ MER BER for both Digital & Analog Signal Measurement
View Larger Image
Share your images of this product

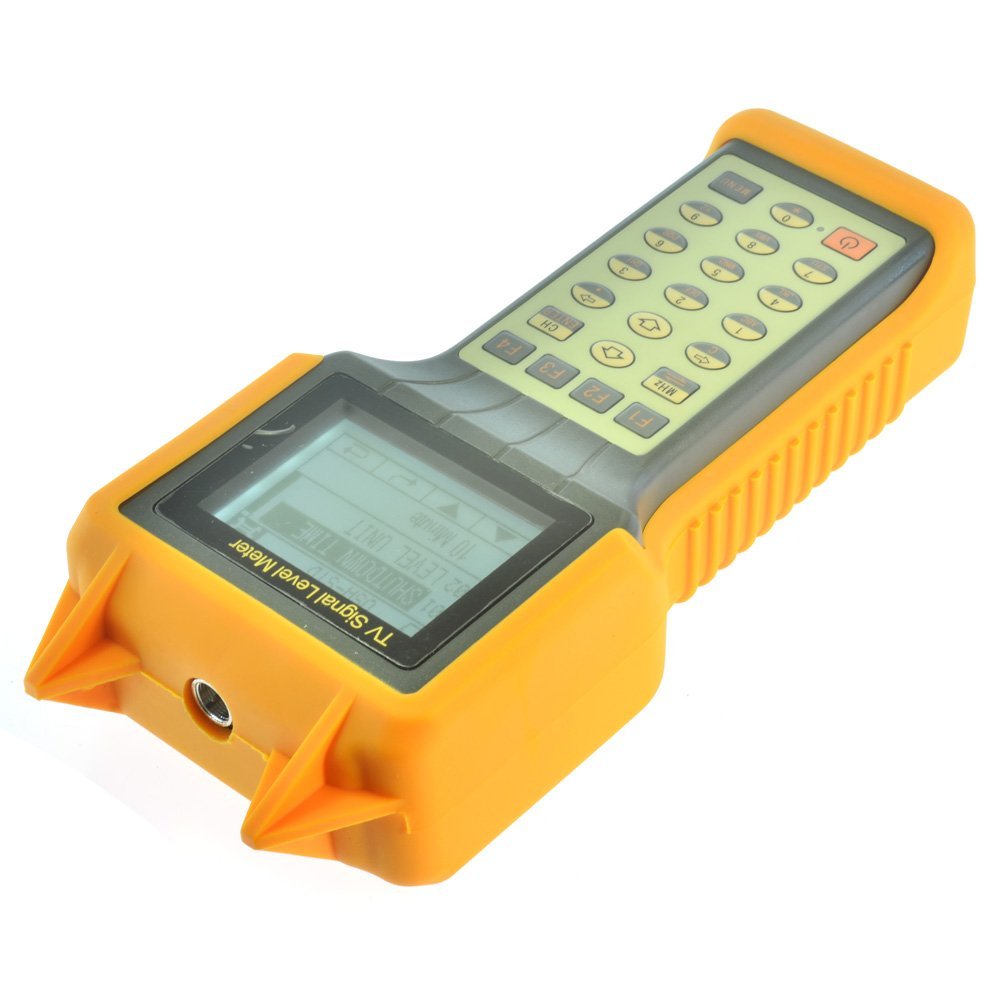

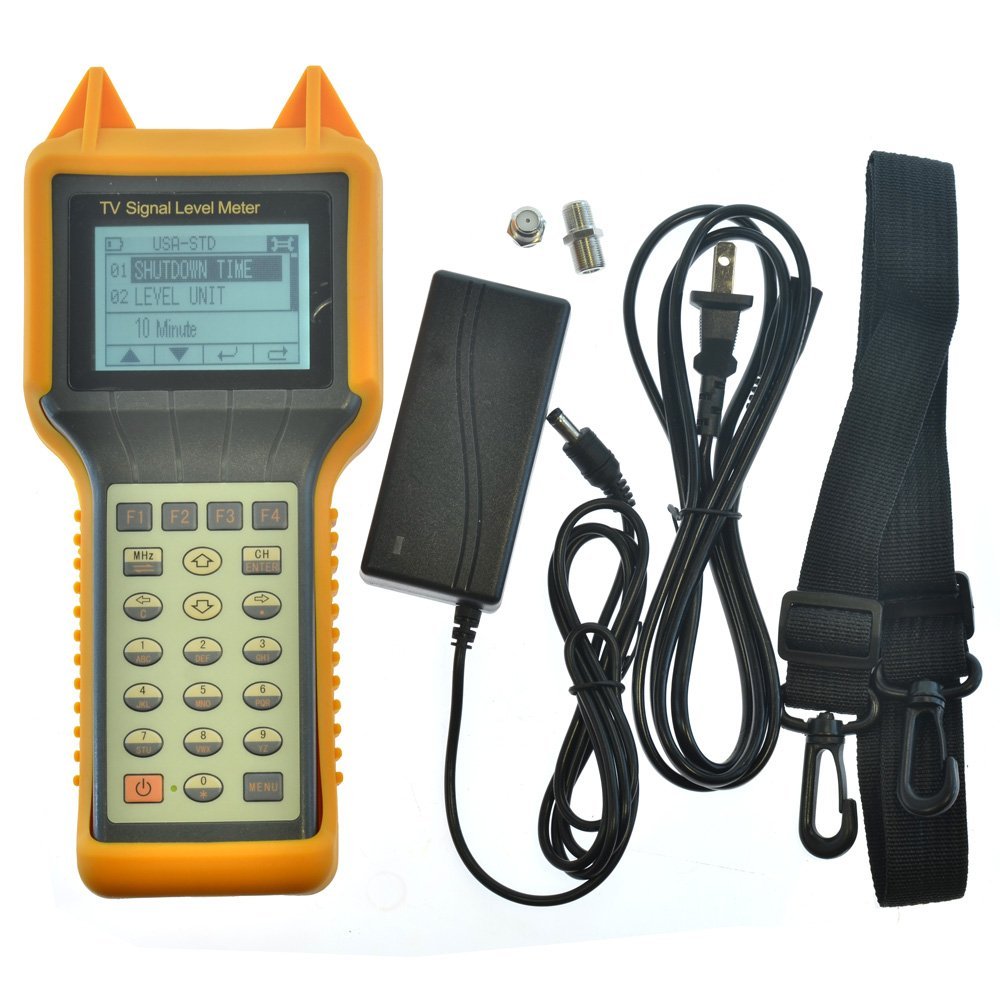

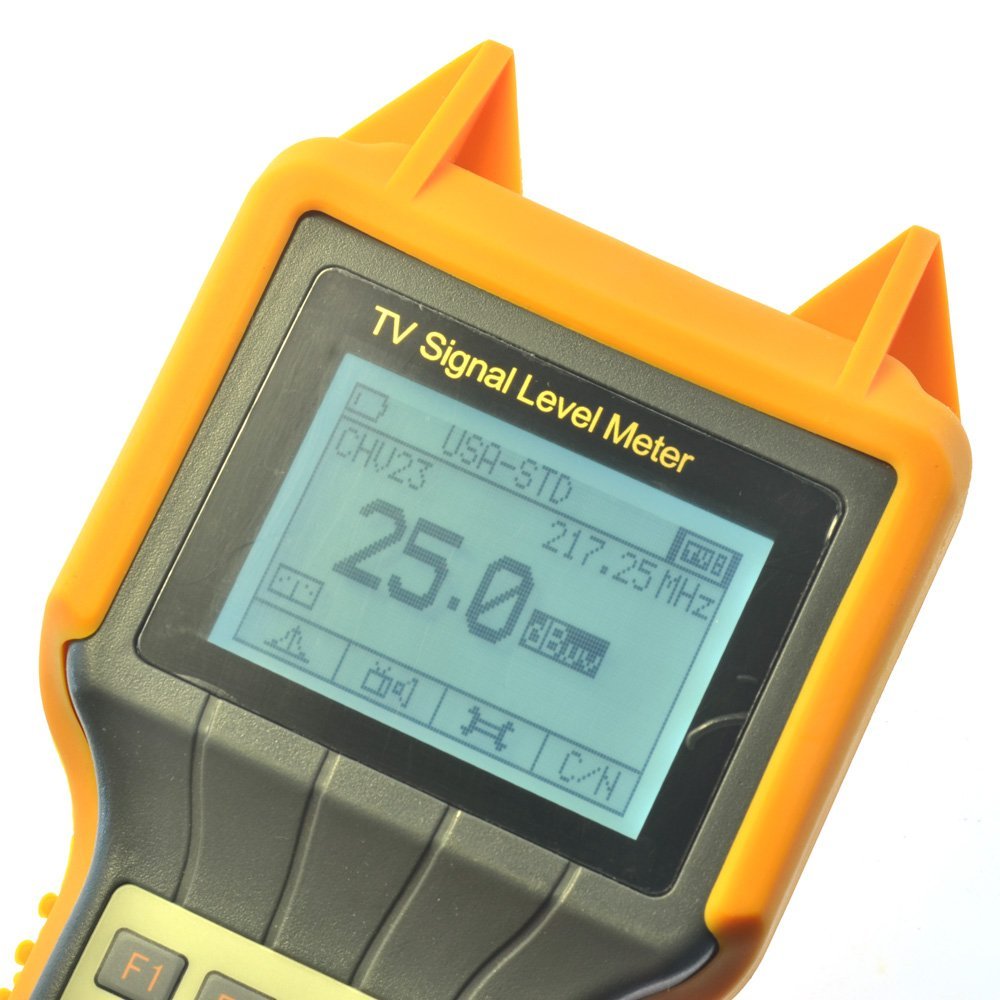

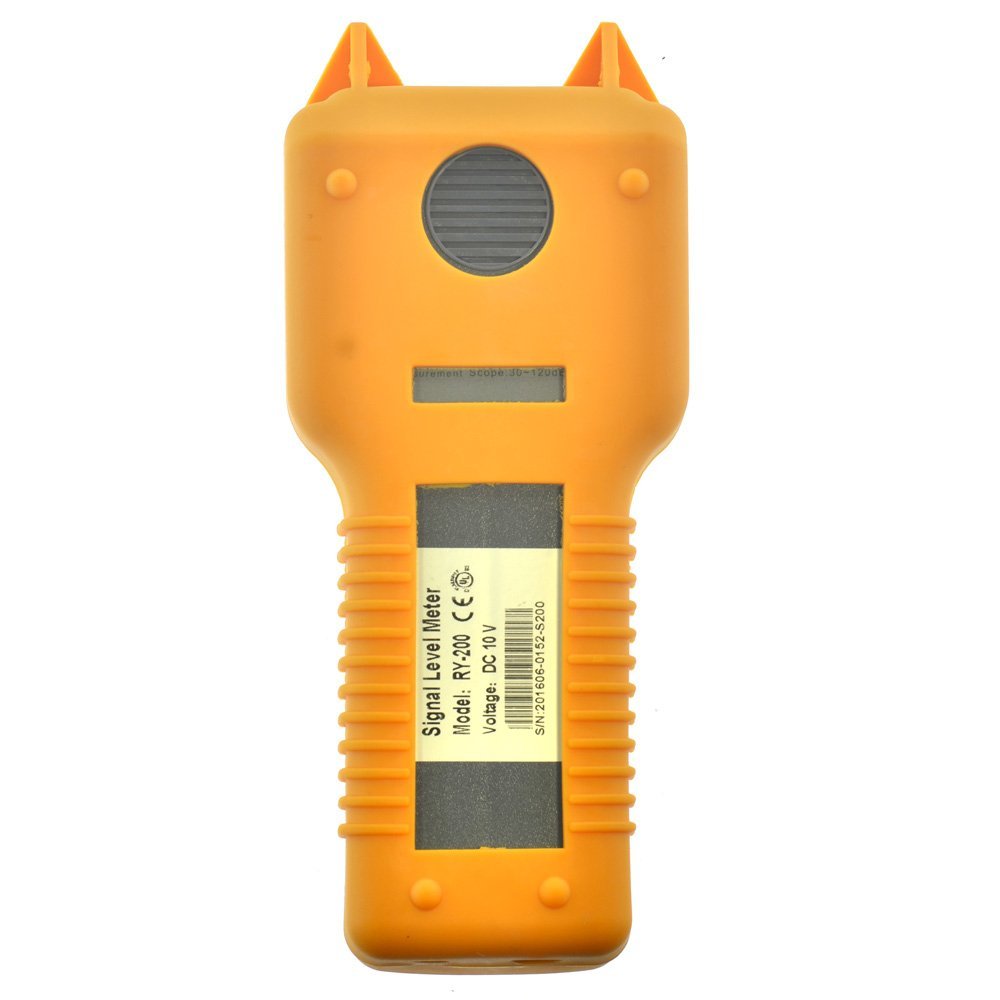

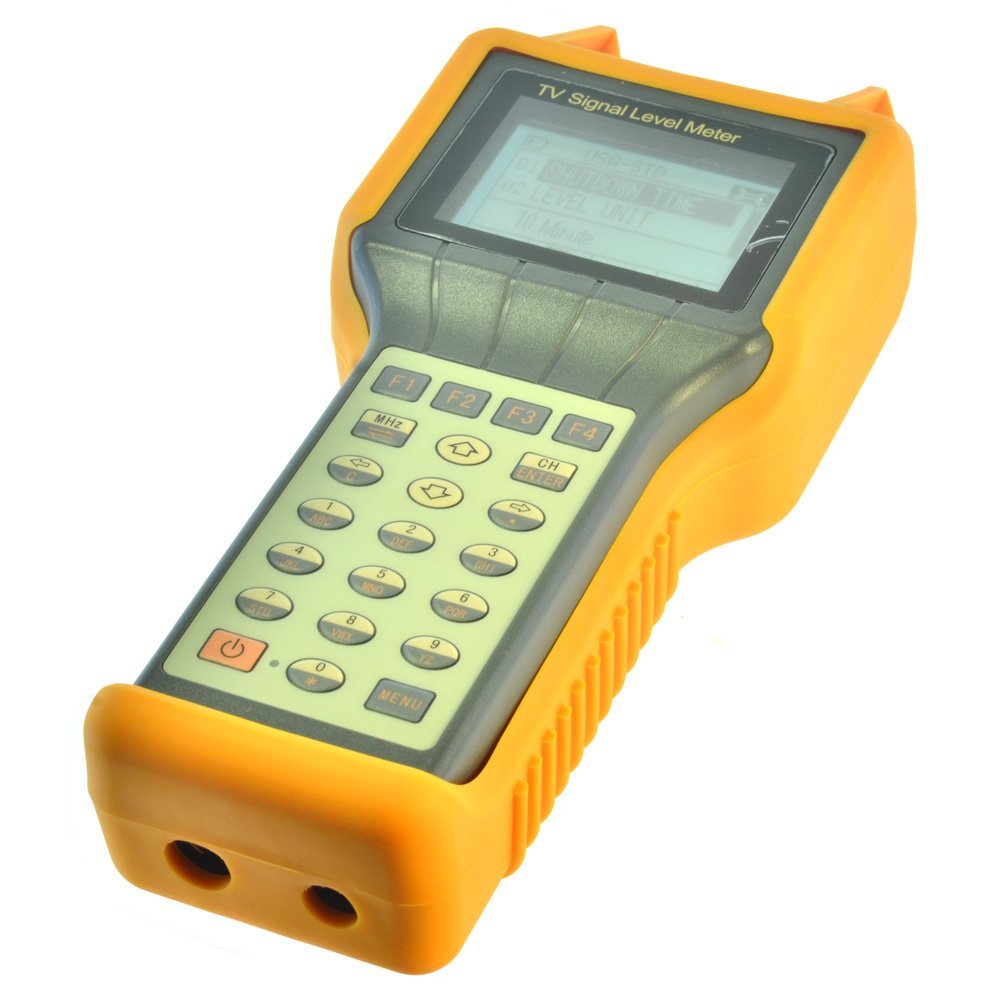

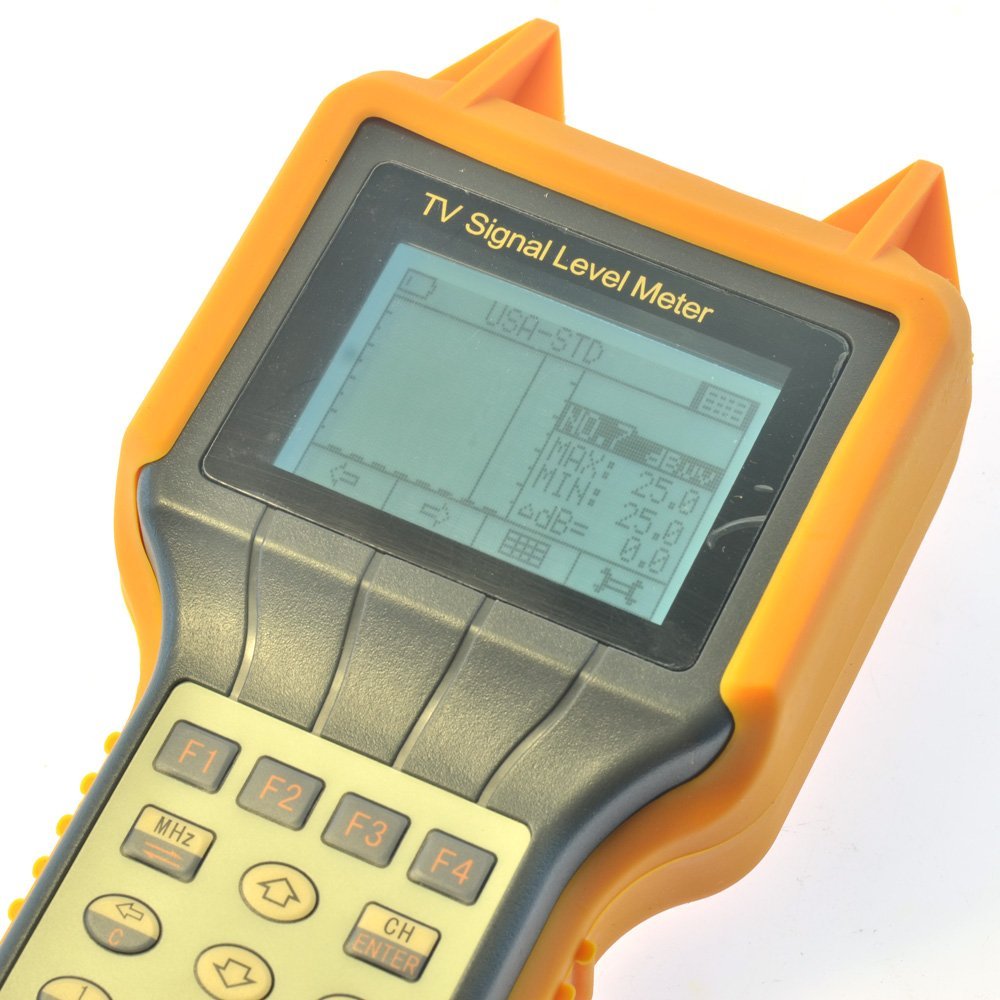

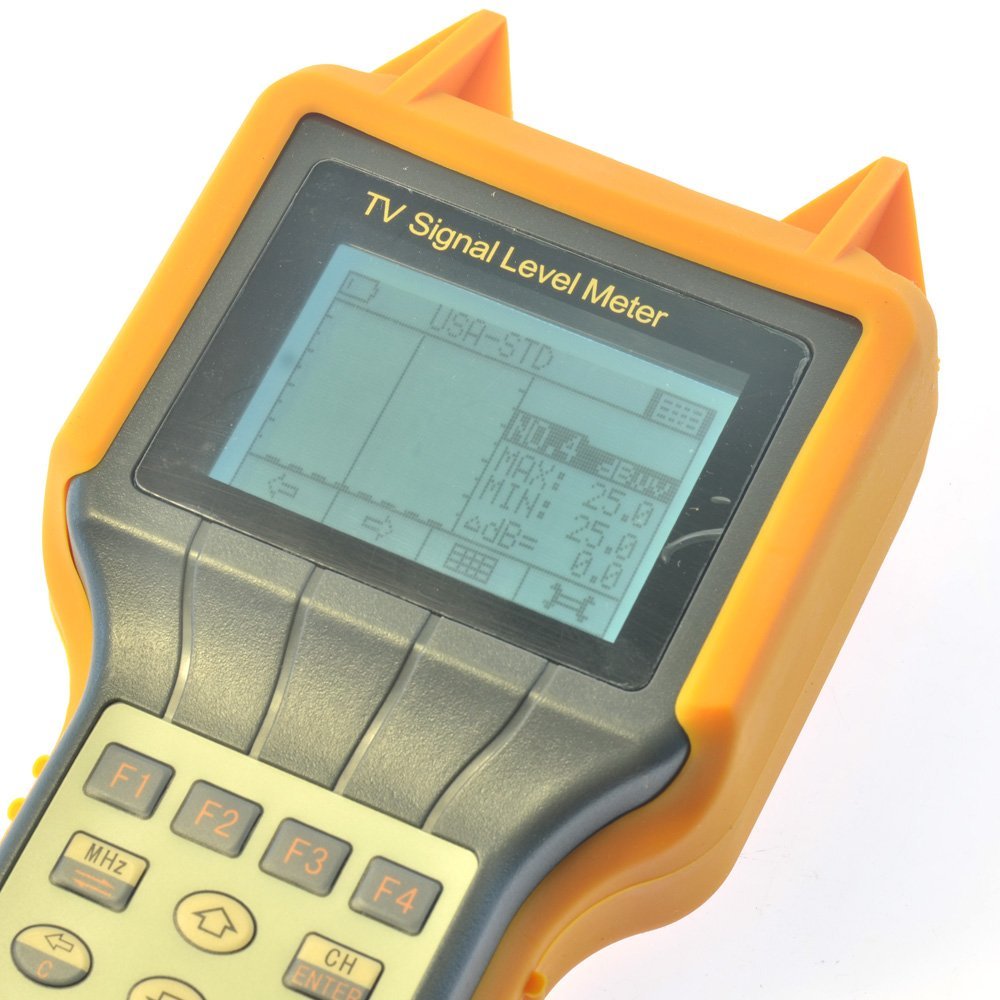

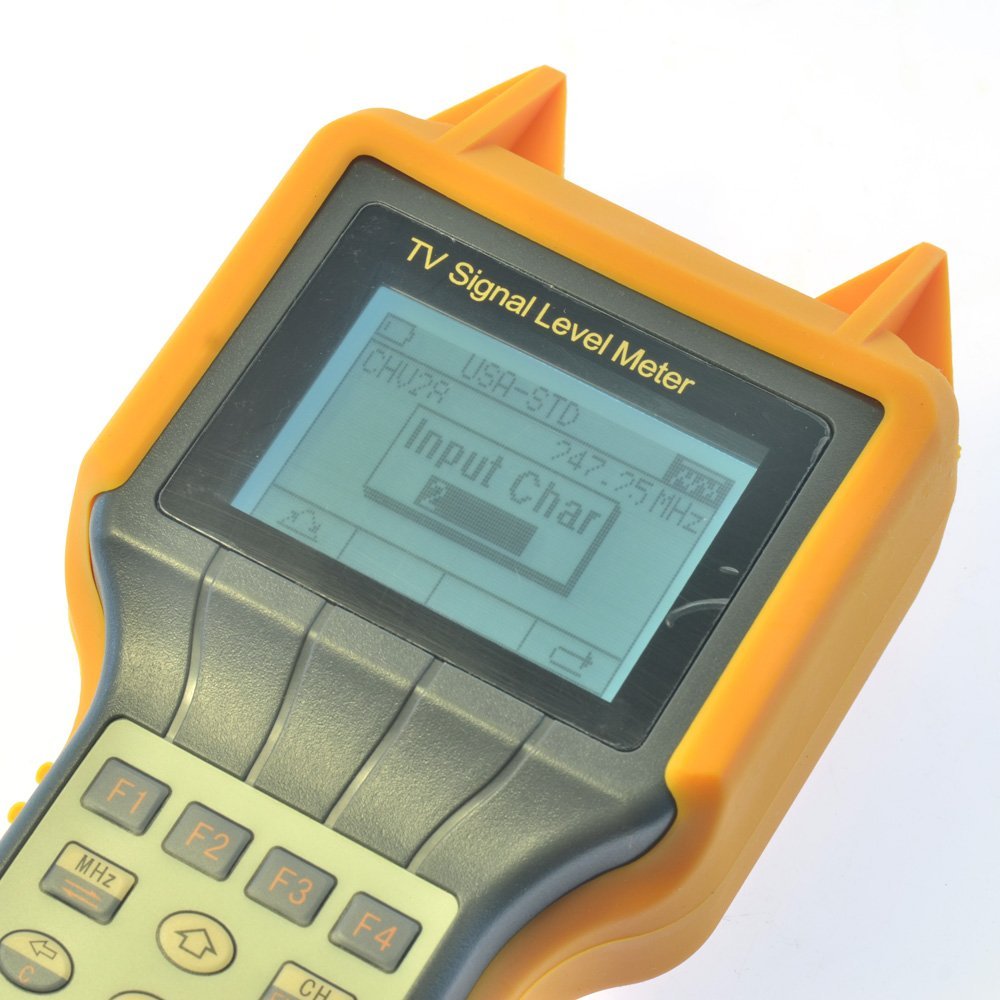

RY-S200 TV Signal Level Meter CATV Cable Testing 46-870MHZ MER BER for both Digital & Analog Signal Measurement
Price : US $ 219.99 239.99

SKU : 1804043040
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.

Features of S200/S200D Signal Level Meter:
1. A test instrument applicable for the maintenance of CATV (Analog, Digital measurement,TILT)system;
2. Compact, light-weight, easy to carry;
3. With dual-channel measurement display, it is convenient and pragmatic;
4. Able to measure MER, BER Signal Level,Channel Power,V/A,C/N,FM,Trunk Voltage
5.Channel and single frequency mode
Technical Data:
*Digital DVB
Frequency scope:47~870MHz
Modulation:DVB-C/ITU-T
Support:64QAM/256QAM(option)
Digital average power:30dBuV ~ 110dBuV
precision:+-2dB
Symbol rate:1MS/S-7 MS/S
Modulate error rate(MER):22dB ~ 39dB
Bit error rate(BER):RS 1E-3~1E-9
*Analog TV
Frequency scope:46/5~870MHz
level:20dBuV ~ 120dBuV
precision:+-1.5dB
Channel scan:150
*Power supply
battery:7.2V/1500mAH rechargeable battery
AC Supply:AC 90V-220V 50Hz-60Hz
Working time:6h
Charging time:3h
