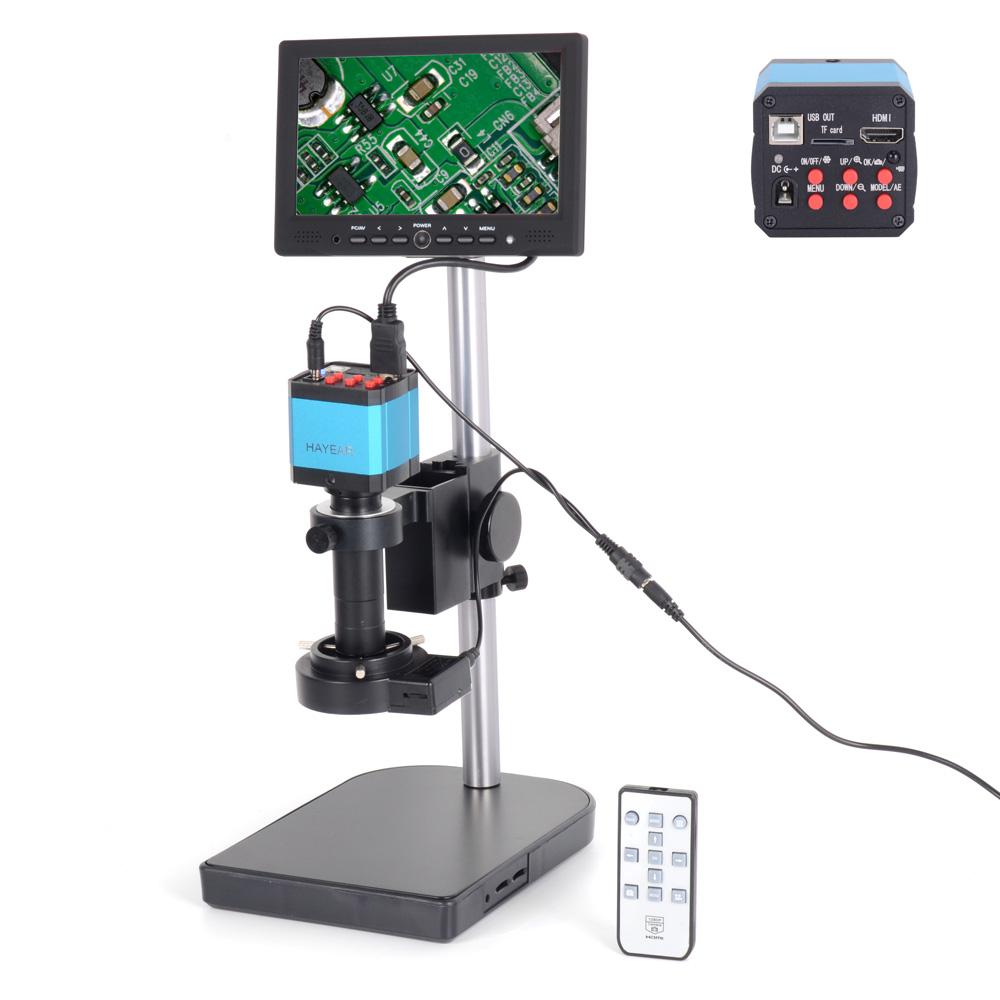

Microscope Camera Kit >> 16MP HDMI USB Digital Industry Microscope Camera 120X Zoon C-mount Lens 16GB TF Card + 7" inch HDMI LCD Monitor
View Larger Image
Share your images of this product


16MP HDMI USB Digital Industry Microscope Camera 120X Zoon C-mount Lens 16GB TF Card + 7" inch HDMI LCD Monitor
Price : US $ 227.10 289.70

SKU : 0911173621
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.

Note:

For USB output, the white balance, exposure and color adjustment are automatic. They can't be adjusted.
For HDMI output, the functions can only be adjusted while connecting with monitor. If you connect the camera with computer, the functions also can not be adjusted.



Features:

Model: Camera with HDMI USB2.0 two output

Image format: jpg
Image resolution: 4608*3456 (for TF card)  1920*1080@60FPS(for TF card)
Video format: MOV(for TF card)
Video recorder: 1920*1080 @ 60FPS (for TF Card)
USB Video resolution:1920*1080 @ 30FPS
White Balance: Auto
Light: Auto
Color: Color
Negative: Support
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Portuguese
Line: different color,5 horizontal line , 5 vertical line,any positions

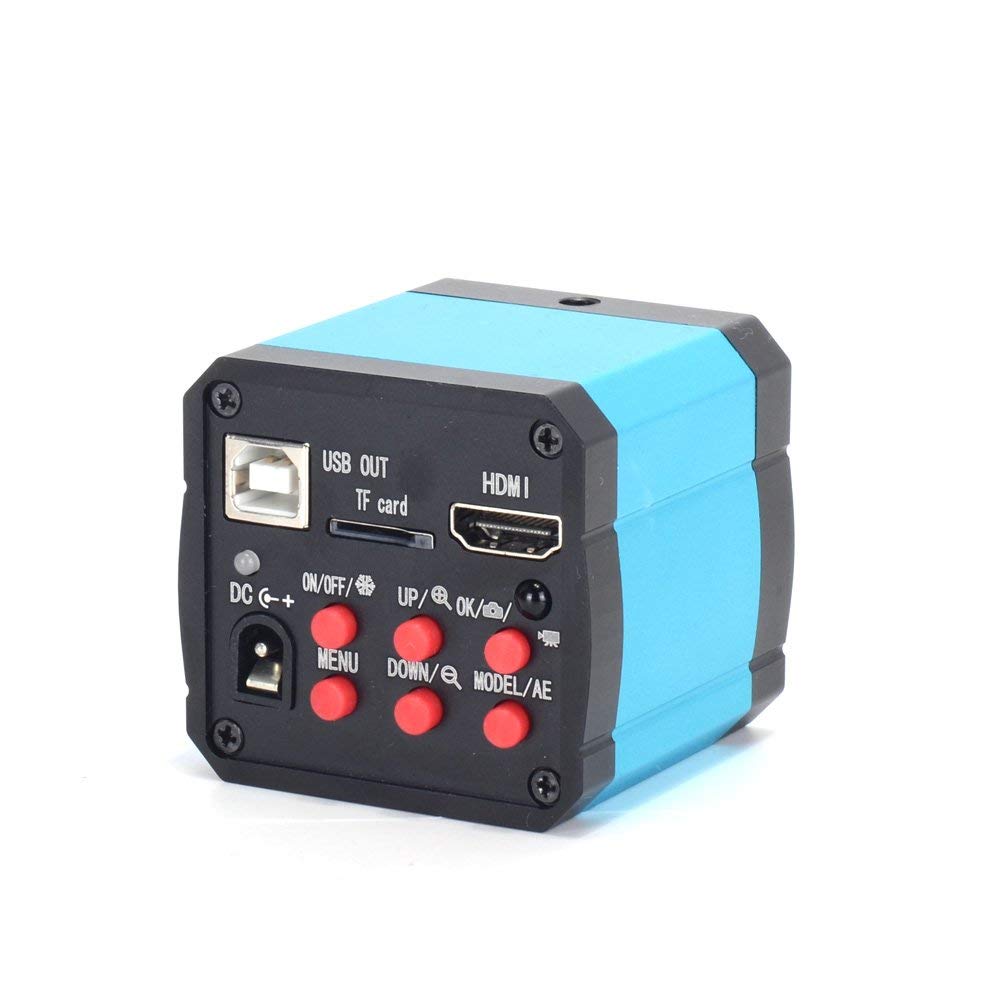

Specification:

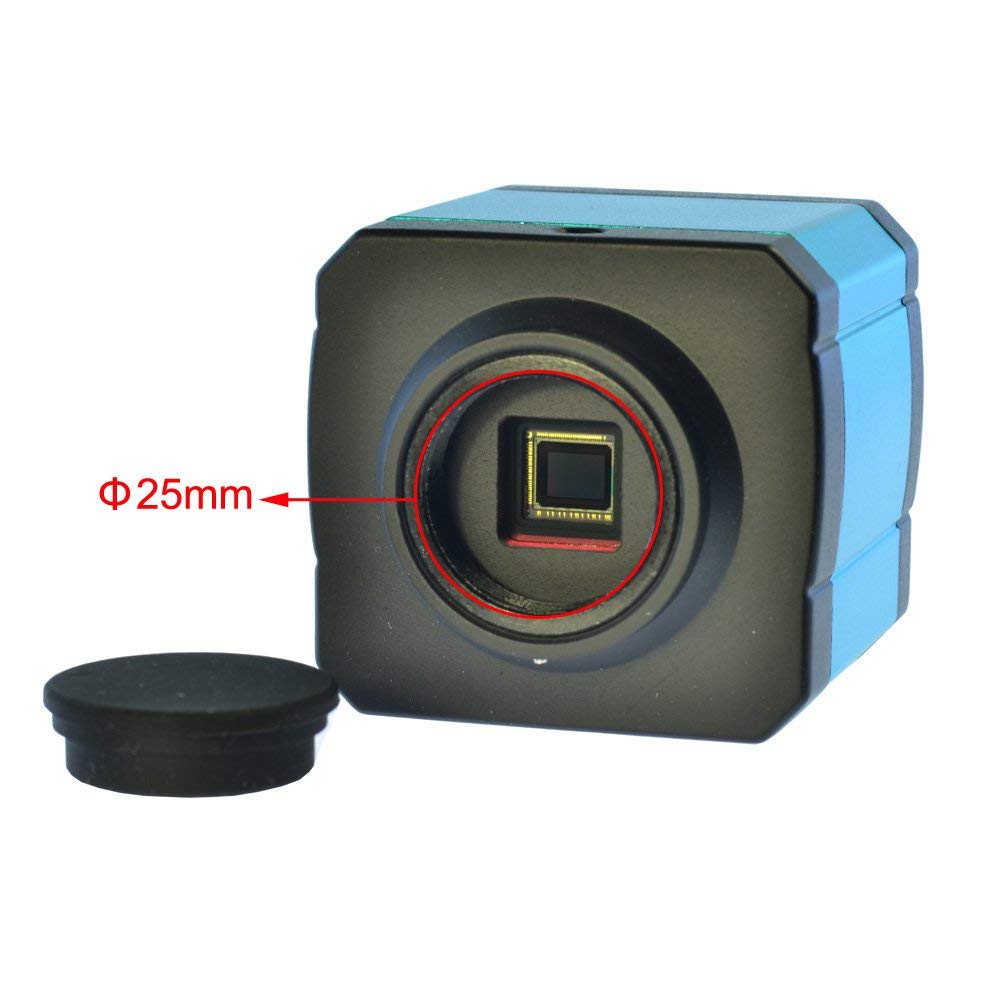

Image sensor:16 megapixel Panasonic sensor 1/2.3 inch
Effective pixel:16 megapixel
Pixel size:1.43x1.43um
Frame rate:60fps
Definition:FULL HD
Housing:metal
Lens:CS for test, custom provide
Video format: MP4, AVI
Encode: H.264 (High Profile)
Digital magnification:5 times digital zoom
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, movable
Different color,5 horizontal line , 5 vertical line,any positions
SNR:Support
TF card interface:Max 64G
HDMI interface:Standard HDMI output (Type A)
Lens:C/CS
USB interface:Standard usb2.0 interface (Type B)


7" LCD Display Monitor
Screen Size: 7 inch
Panel type: a-Si TFT-LCD
Display mode: TN
Contrast ratio: 500:1 (Typ.)
Resolution: 1024x768; 800(RGB)×480 Pixels
Active area:154.08×85.92 mm
Response time: 10/15 (Typ.)(Tr/Td) (ms)
Panel brightness: 350 cd/m2 (Typ.)

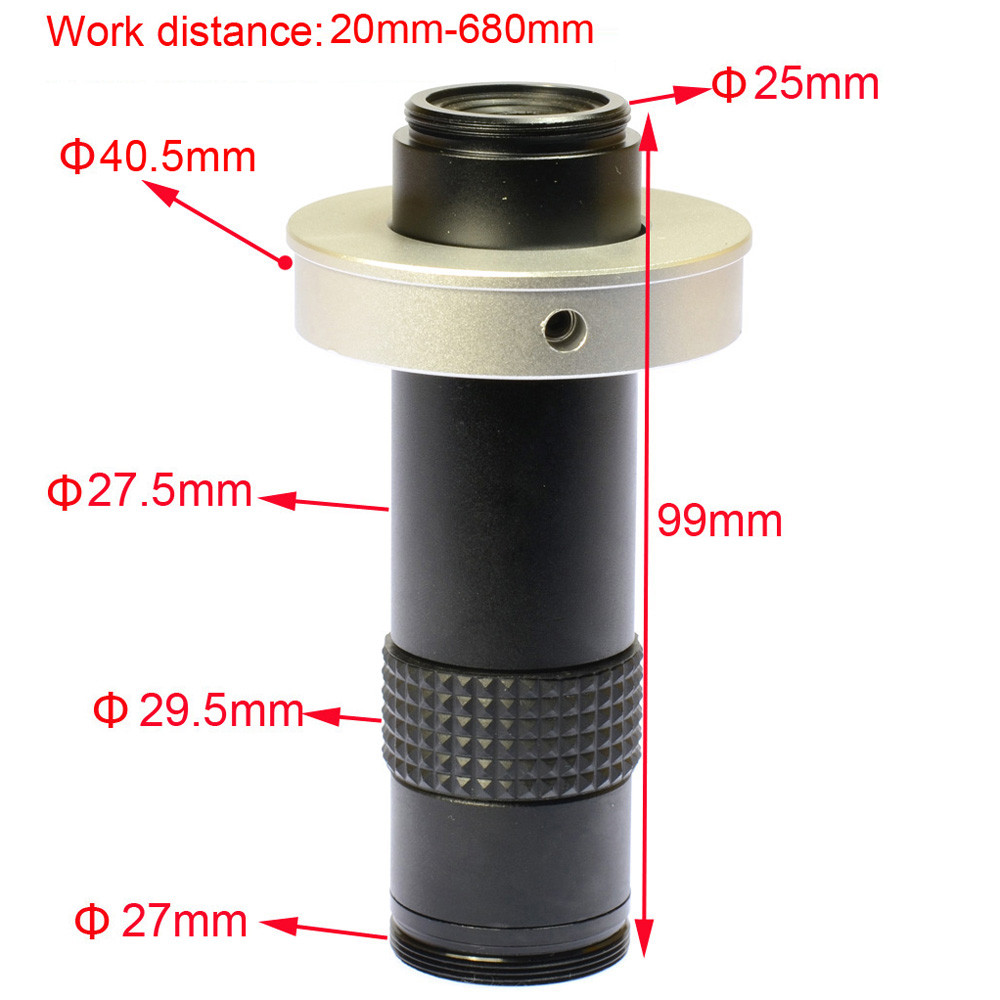

C-MOUNT Lens:
Zoom c-mount Lens
Magnification Power by 0.12 - 2X (about 8 - 120X on the display)
Work distance:25mm-680mm
Visual field :2.4mm-32mm
Size: 99mm(L) * 40mm(DIA)
Weight: 210g



40 LED Adjustable Ring Light:
Lighting direction changeable
Inside diameter of the ring light: 1.0" (27mm)
Overall outside diameter: 1.77" (45mm)
Working Distance: 27mm-580mm


Package include:
1 x Microscope Camera
2 x 12V/1A Power supply
1 x USB line
1 x Software DISC
1 x Zoom C-mount Lens

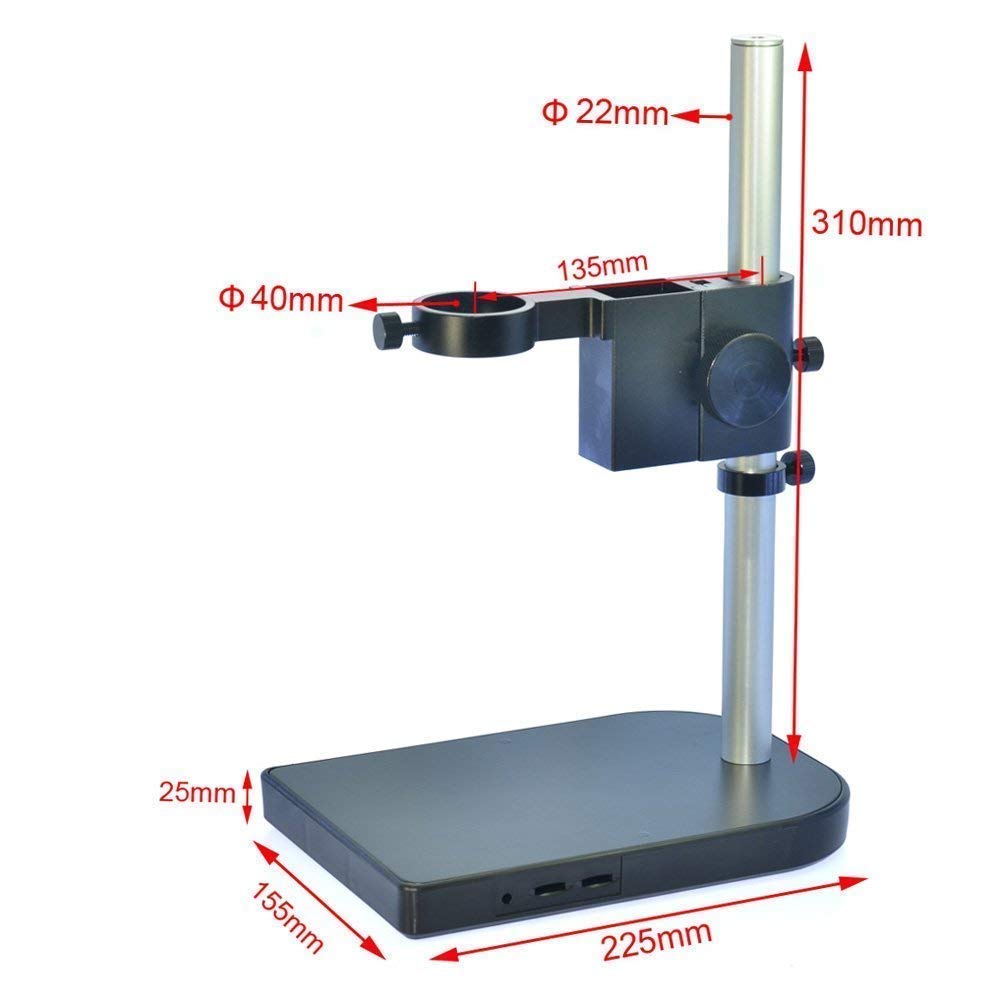

1 x Camera Stand
1 x 40-LED Ring Light withPower Adapter

1 x 7'' LCD Monitor
