Trinocular Microscope >> 7X-45X Trinocular Microscope Inspection Zoom Stereo Microscope 14MP HDMI USB Calibrate Camera +56 LED Ring Light + C adapter
View Larger Image
Share your images of this product

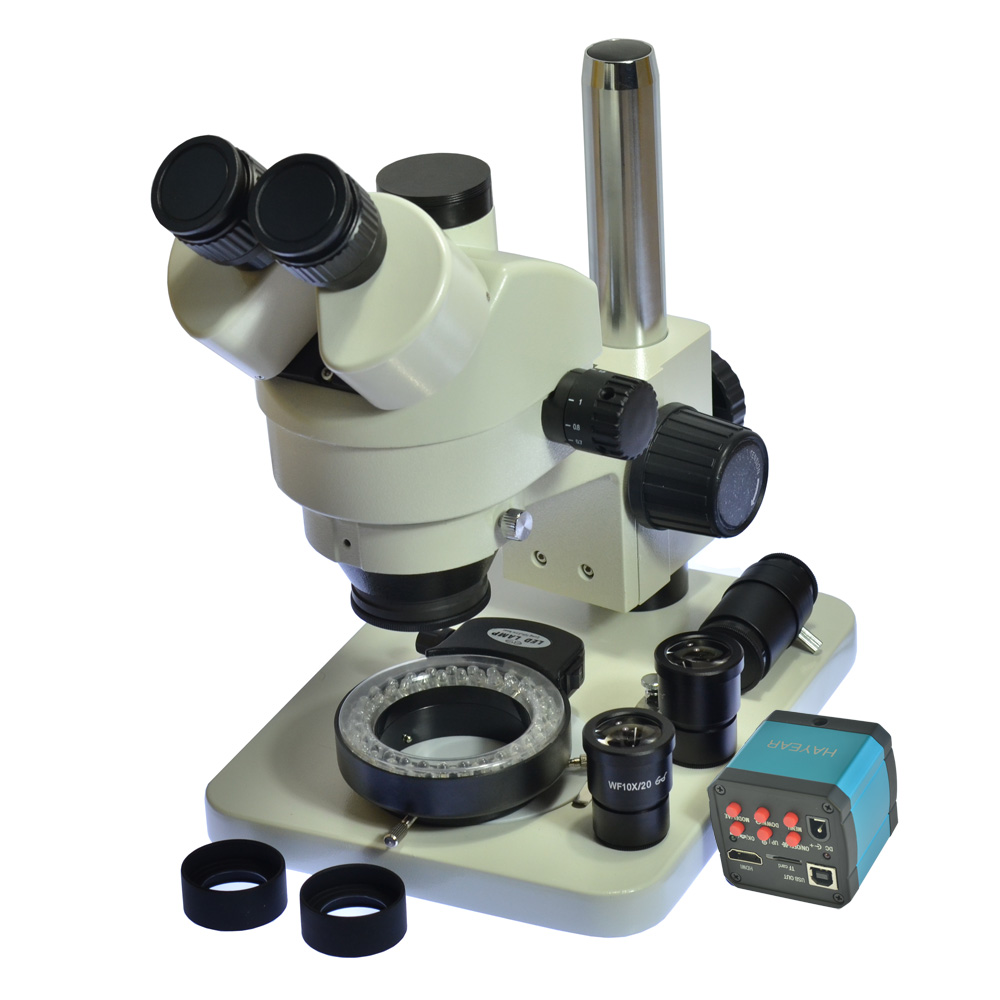

7X-45X Trinocular Microscope Inspection Zoom Stereo Microscope 14MP HDMI USB Calibrate Camera +56 LED Ring Light + C adapter
Price : US $ 379.99 399.99

SKU : 1805255959
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.

Stereo Feature:
An excellent stereo inspection microscope with intensity-adjustable 56-LED ring light
7x-45x super wide zoom magnification power
Bright cool light 56-LED illumination system
High resolution with great flatness and contrast, giving sharp and clear images
Binocular head with 45 degree inclined 360 degree swiveling eye tubes
Sharp stereo erect images with a wide field of view
Crystal clear original true color microscope images
Dual eye tubes with adjustable diopters
Large working distance
Sturdy all-metal table stand
Accurate alignment reduces eye strain for longer periods of viewing
Full optical glass elements
Precise ground glass lenses
Full metal chrome-plated mechanical components
Adjustable interpupillary distance
Rubber eye-guards included


Specification:
Head: 360 degree rotatable 45 degree inclined binocular
Eyepieces: 30mm super widefield high-eyepoint WF10X/20MM
Objective Zoom Range: 0.35X-9.0X, using the Barlow lenses
Working Distance: 4" (100mm)
Diopter Adjustment: +/- 5dp
Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
Round Plate: 3-3/4" (95mm) in diameter
Stand: 10" x 7-7/8" x 10.75" (254 x 200 x 275mm)
Illumination: 56-LED Ring Light
Power Input: 110-240V, 50-60HZ, Automatic Switching
Accessories: Paired eye-caps
Weight: 5.5kg

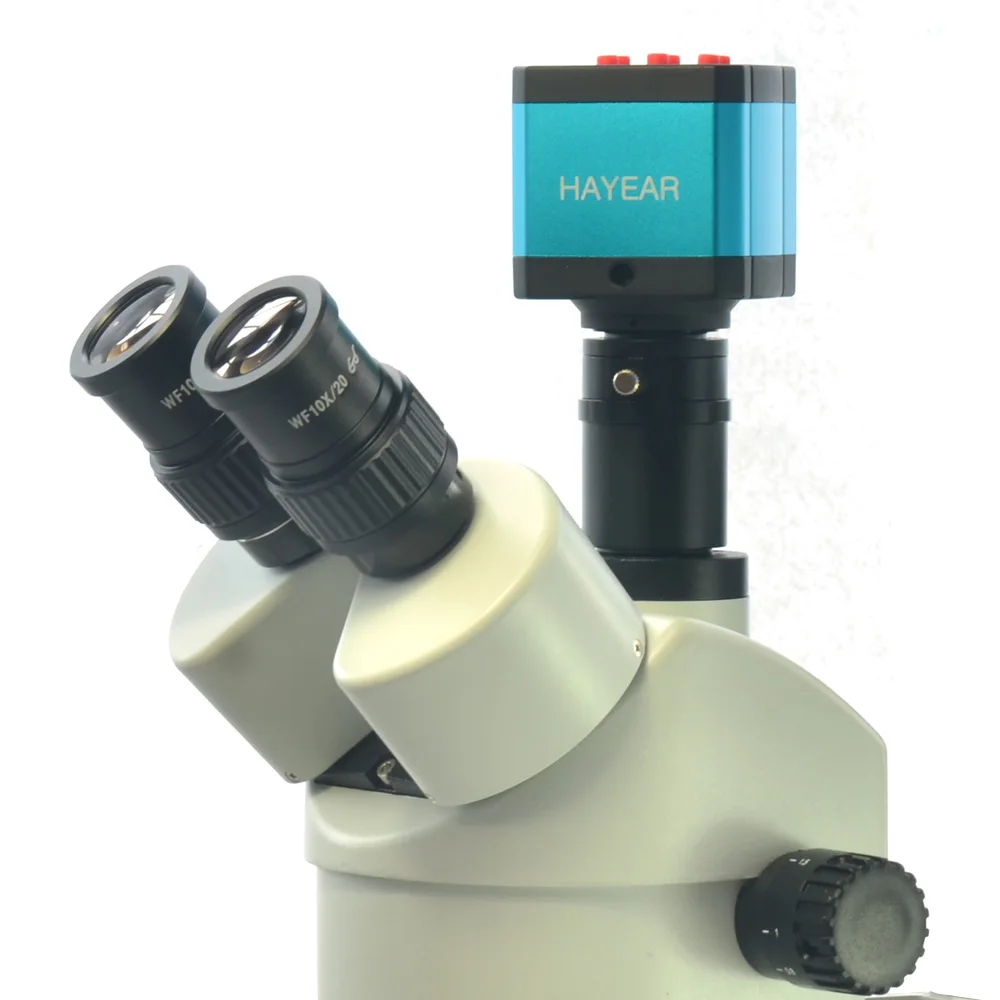

Microscope Camera:

Model: Camera with HDMI USB2.0 two output
Image format: JPG
Image resolution: 4320*3240 (for TF card) 1920 *1080 @ 30FPS(for TF card)
Video format: MOV(for TF card)
Video recorder: 1920 *1080 @ 30fps (for TF Card)
USB Video resolution: 1920 *1080 @ 30FPS
White Balance: Auto
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese
Effective pixel:14 megapixel
Pixel size:1.43x1.43um
Definition:FULL HD
Housing:metal
Lens:CS for test, custom provide
White balance:Auto/manual
Video format: AVI
Encode: H.264 (High Profile)
Digital magnification:5 times digital zoom
Brightness control:Auto/manual
Color:R/G/B adjustable
Freeze:Support
OSD:Support
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 4 pcs of transverse lines/vertical lines, movable
different color,4 horizontal line , 4 vertical line,any positions
SNR:Support
TF card interface:Max 32G
HDMI interface:Standard HDMI output (Type A)
Lens:C
OSD: English/Chinese/French/Spanish/Portuguese

USB interface:Standard usb2.0 interface (Type B)


Package including:
1 x Binocular Stereo Zoom Head
1 x Pair of Super Widefield 10X Eyepieces
1 x Microscope Camera
1 x Power Supper for Camera
1 x 56-LED Ring Light with Adapter
1 x Pillar Table Stand
1 x Focusing Rack
1 x C-mount Adapter
1 x Pair of Rubber Eye-Guards
1 x Pair of Clips
1 x Dust Cover
