Noting:
1:PC Support : Windows XP/7/8/10 system
2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.
3:When use USB connection, please make sure no TF card in the camera ,TF card storage is only for HDMI output. USB output will be storage in PC.
4:when connect the camera with computer, just plug the USB line is OK ( no need to use the power supply)


Camera Features:
Sensor: SONY IMX334
Real-time output resolution: 4K/2K/1080P
Sensor Size: 1/1.8 inch
Pixel Size: 2.0 x 2.0 μm
Image Resolution: 8528 x 4808 (41 MegaPixel)
HDMI Resolution: 3840 x 2160 @30FPS(4K); 1080P @60FPS
USB Resolution: 1920 x 1080 @30FPS, 1280 x 720 @30FPS
Image Format: JPEG
Wave Length[nm]: 400nm~1000nm
Lens Type: C/CS Mount
Storage: TF Card, Maximum support 512GB (TF card is not included)
PC Support:Windows / Mac / Linux, PC Software with Measuring Function
Image Measurement: Support HAYEAR Measurement
Language: Chinese, English, Japanese, French, German, Russian, Italian, Korean, Turkish
Output Interface: HDMI / USB Type-C 2.0 interface
HDR Function: Support HDR,Multiple exposure HDR, Digital overlap HDR
Video output interface: HDMI/USB dual interface can output image simultaneously
Timer function: Support taking pictures/video recording at specified time
Comparison on the same screen: Real-time observation and comparison of two products
White Balance: Support One-click, Auto and Manual white balance
Image Zoom: 7x digital zoom
Transverse and vertical line: Support multi-color, 5 pcs of transverse lines/vertical lines, movable Different color,5 horizontal line, 5 vertical line, any positions
Exposure: Auto/Manual, value adjustable
Encode: H.264 /H.265 (High Profile)
Video format: Video format
Input Voltage: Type-C 5V / DC 12V 1A
Size: 45×45×53mm
180X C-Mount Objective Lens:
Working distance: 100-150mm (without any barlow)
Working distance: 200-280mm (with 0.5X barlow)
Working distance: 30-50mm (with 2X barlow)
zoom c-mount Lens

0.5X C-mount adapter

zoom ratios: 6.5:1

Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)

Size: 168mm(L) * 50mm(DIA)

Weight: 450g



144 LED Ring Light:
144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm

Wide range of uses:
Scientific research, education (teaching, demonstration and academic exchanges)
Digital laboratory, medical research
Industrial visual (PCB examination, IC quality control)
Medical treatment (pathological observation)
Food (microbial colony observation and counting)
Aerospace

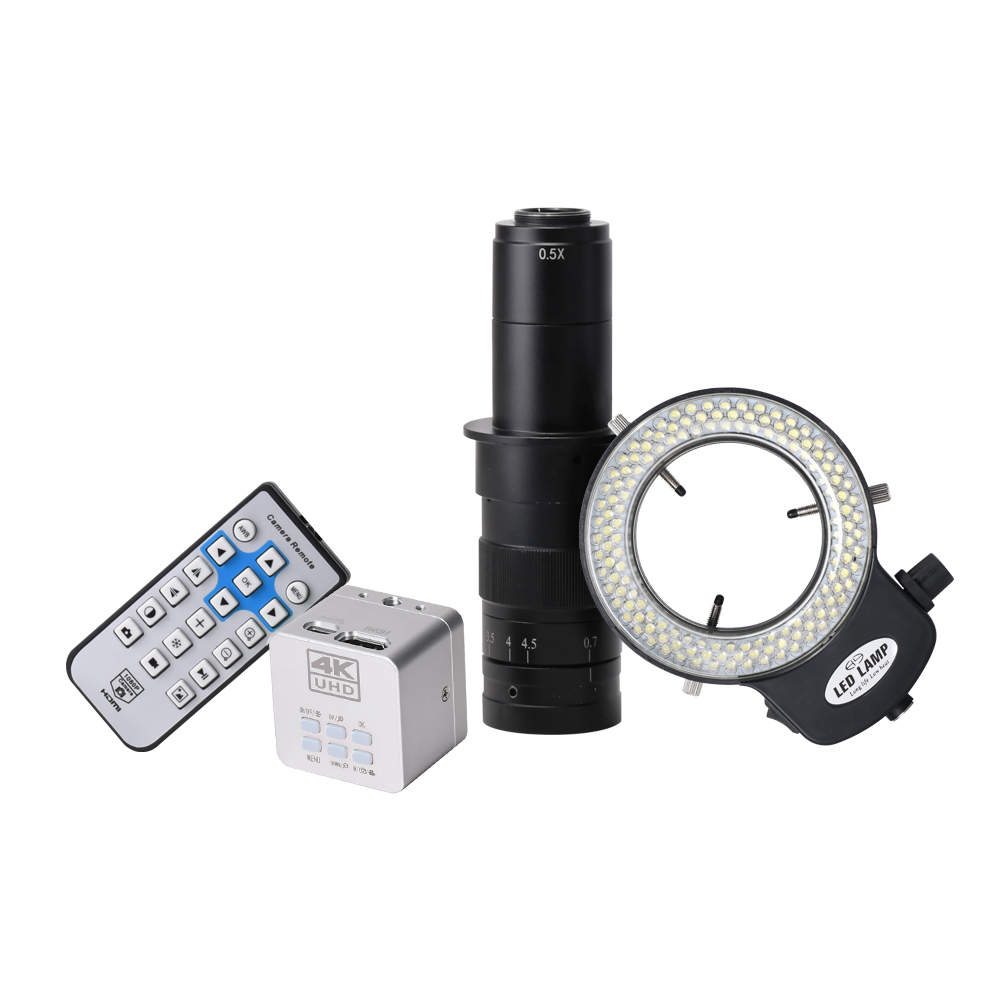

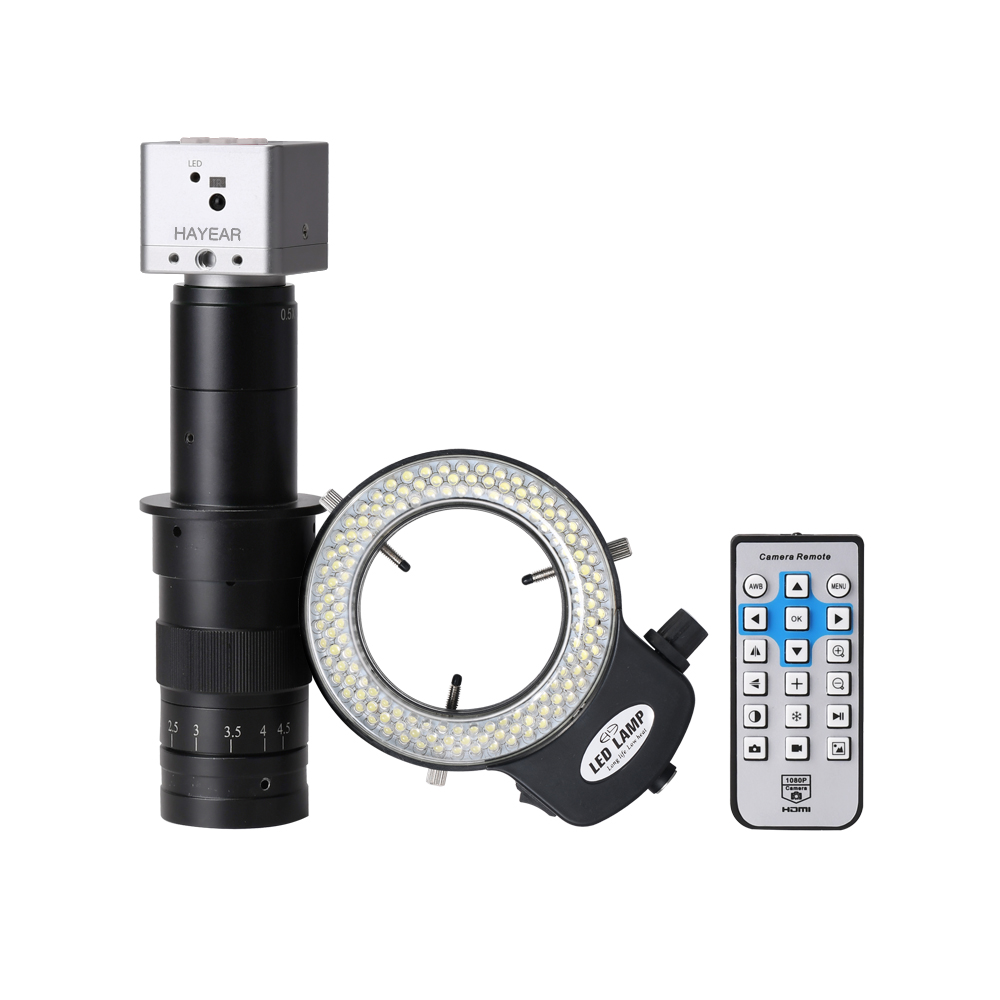

Package including:
1 x 4K Microscope Camera
1 x Power adapter (EU/US/AU/UK optional)
1 x Type-C cable
1 x Software (Online download)
1 x Remote Control
1 x 180X Lens (for Full kit option)
1 x 144 LED Light (for Full kit option)
