HDMI Camera >> 14MP TV HDMI USB Industry Digital C-mount Microscope Camera TF Card + 100x C-mount Lens USB Microscopes for Win7/Win8/Win10
View Larger Image
Share your images of this product

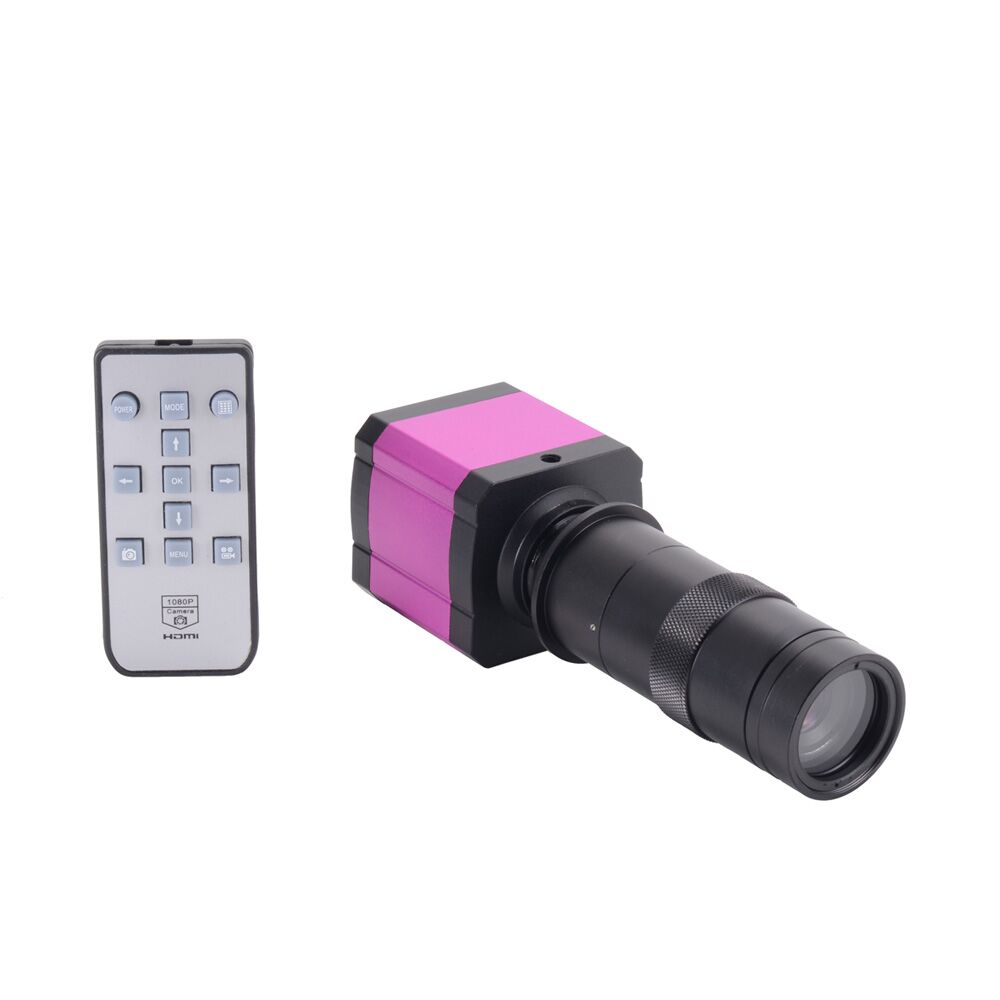

14MP TV HDMI USB Industry Digital C-mount Microscope Camera TF Card + 100x C-mount Lens USB Microscopes for Win7/Win8/Win10
Price : US $ 148.98 169.99

SKU : 1801230844
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.
Noting:

1: For USB output, the white balance, exposure and color adjustment are automatic. They can't be adjusted.

2: For HDMI output, the functions can only be adjusted while connecting with monitor. If you connect the camera with computer, the functions also can not be adjusted.

3: TF card storage is only for HDMI output. USB output will be storaged in PC.


Features:

Image sensor

14 megapixel Panasonic sensor 1/2.3 inch

Effective pixel

14 megapixel

Pixel size

1.43*1.43um

Frame rate

60FPS

Definition

HD

Housing

metal

Lens

CS for test, custom provide

White balance

Auto/manual

Digital magnification

5 times digital zoom

Brightness control

Auto/manual

Color

R/G/B adjustable

Freeze

Support

OSD

Support

Film and record

Support

Cross cursor

Support multi-color, size adjustable

Transverse and vertical line

Support multi-color, 4 pcs of transverse lines/vertical lines, movable

SNR

Support

TF card interface

Max 32G

HDMI interface

Standard HDMI output (Type A)

Lens

C

USB interface

Standard usb2.0 interface (Type B)

It build in digital crosshairs and color control, add line in the pictures, freeze

Supply USB2.0,HDMI HD video,Two output ports

Specification:
Model: Camera with HDMI USB2.0 two output
Image format: jpg
Image resolution: 4320*3240 (for TF card) 1920*1080@60FPS(for TF card)
Video format: MOV(for TF card)
Video recorder:
  1920*1080@60FPS (for TF Card)
USB Video resolution: 1920 *1080 @ 30FPS
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese

Line: different color,4 horizontal line , 4 vertical line,any positions


C-MOUNT Lens:
zoom c-mount Lens
Magnification Power by 0.12 - 2X (about 8 - 100X on the display)
Work distance:55mm-130mm
Visual field :2.4mm-32mm
Size: 115mm(L) * 40mm(DIA)

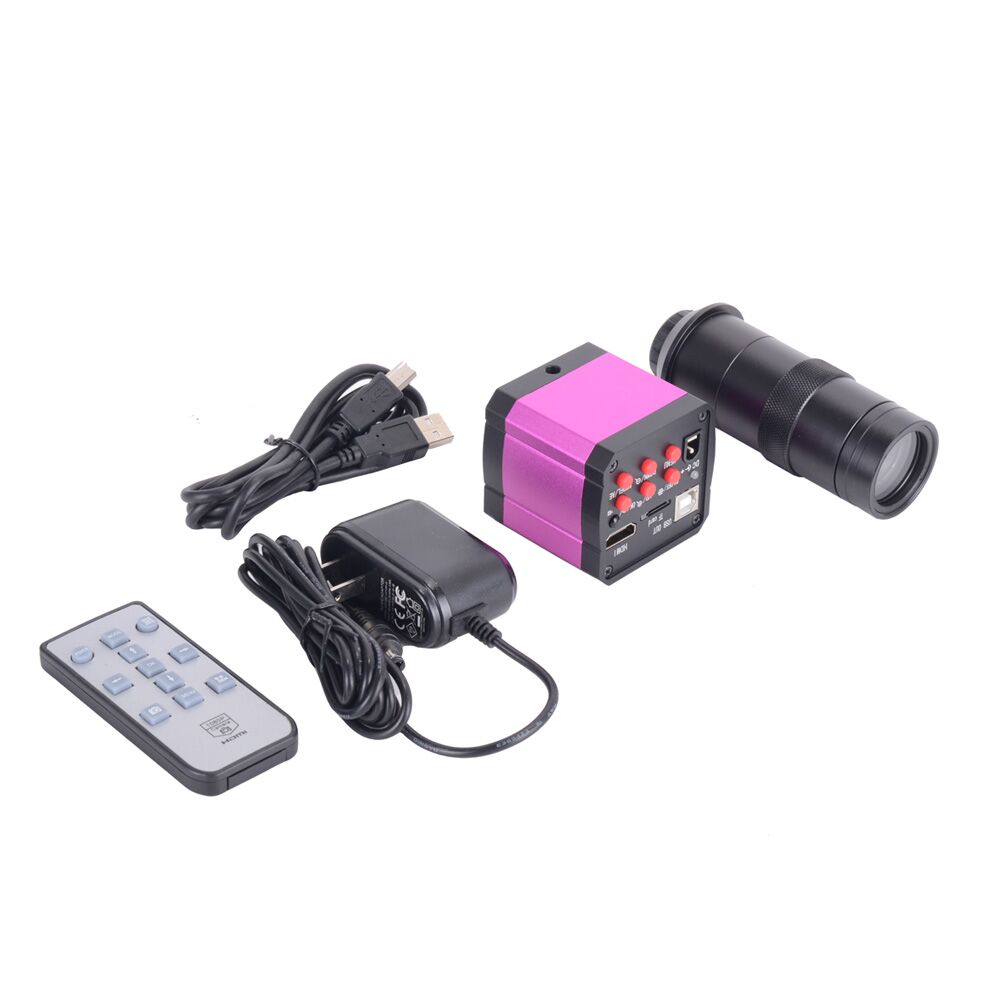

Package Including:
1 x Microscope Camera
1 x 12V Power Supply
1 x Software DISC

1 x 100X Lens

1 x USB Line
