2023 New Upgraded Microscope Camera set 150X C-Mount Lens HDMI USB Electronic Industrial Camera for Phone Repair Soldering
Camera
Model ：HY-1090
Sensor：16 Megapixel SONY IMX sensor
Pixel Size ：2.0 × 2.0μm
Sensor Size ：1/2.8 inch
Video Output Interface： HDMI / USB (HD Interface)
Resolution： 1920x1080@60FPS（HDMI）
Monitor size： 10.1 inches
USB Output ：1920x1080@30FPS(USB)
Video Ratio ： Support 16:9, 4:3 Mode
Picture Resolution ： 4608 x 3456
Frame Rate： 30@FPS
Color： R/G/B support manual adjustment
Cross line ： 5 horizontal/vertical line, Color & size of line can be adjust, cross line with scale
Zoom ： 7X digital zoom
Magnifier Function： Support magnifying in same screen
Sensitivity Level： Middle(can be used with extra light source)
Interface for Lens： Standard C/CS Interface
Dynamic Range： 40dB
PC Systems ： Support Windows XP/7/8/10, with measurement software(gift)
Picture Format： JPEG
Language ：CN, EN, JP, FR, DE, RU, IT, KR, TUR
Working Voltage ： 12V/1A
Spectral Response (Wavelength) ： 400nm~700nm (Strong)
White Balance ： Manual/Auto
SNR ： 45dB
Mirror Image： Support Up/Down, Right/Left
Black & White Mode Support
Storage ：TF Card, Maximum support 256GB
Working Temperature： -40°C~70°C

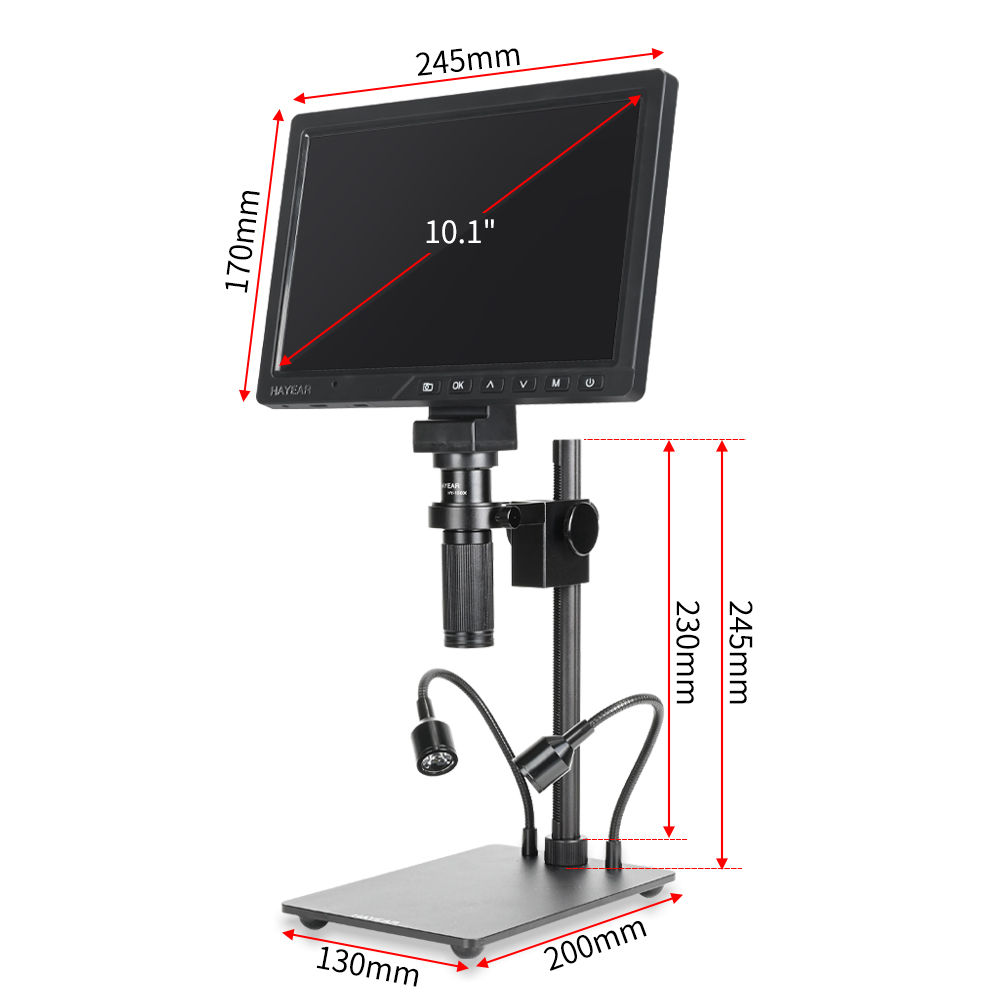

New Stand size :130mm*200mm*245mm
Bracket DIA:50mm
Lens
HY-150x
150X Objective Lens:
Working distance: 10mm-55mm
Field of view: 3.1mm-66mm
zoom c-mount Lens
zoom ratios: 5:1
Magnification Power by 0.11X - 2X
Size: 100mm(L) * 28mm(DIA)

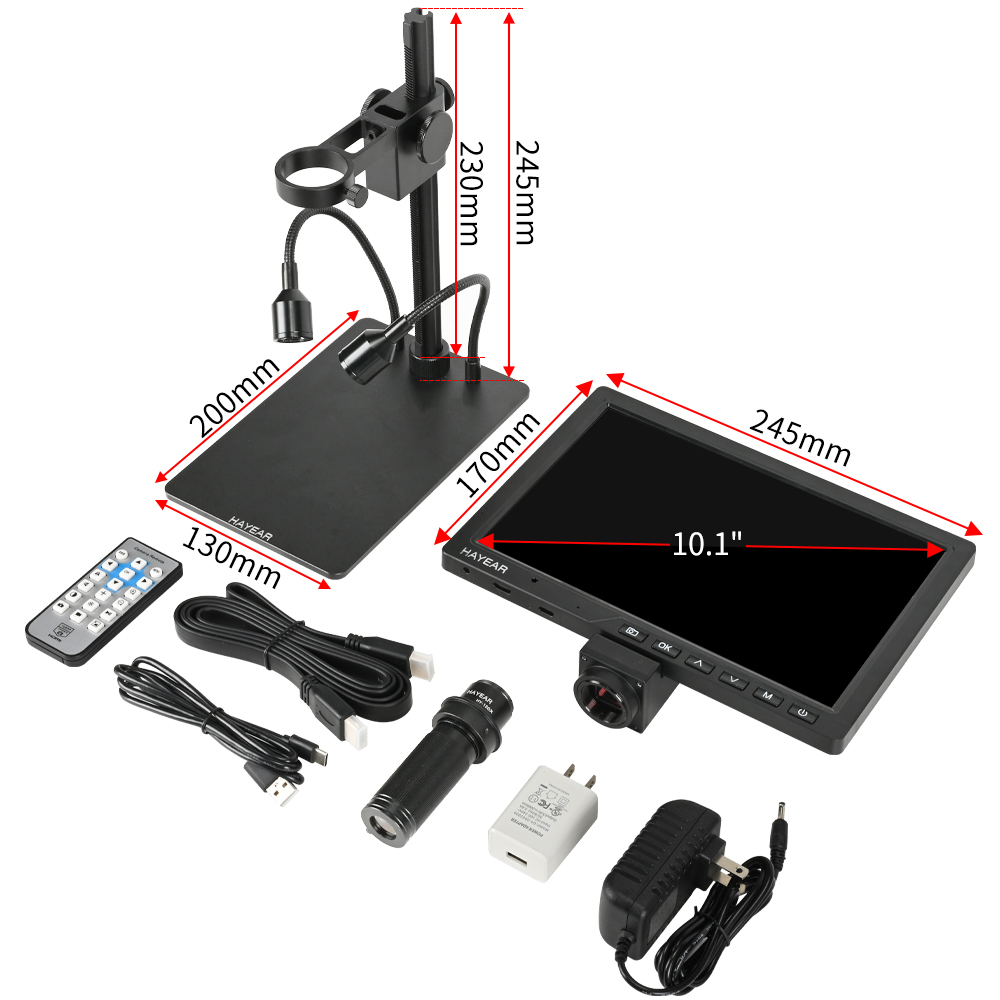

Package including:
1 x16MP Microscope Camera
1 x Power supply
1 x USB line
1 x Remote Control
1 x 150X C-Mount Objective Lens
1 x Stand
|
Microscope Lens
