HDMI Camera Set >> 16MP HDMI Microscope Camera For Industry Lab PCB USB Output TF Card Video Recorder + C-mount Lens + 144LED Light + Stand
View Larger Image
Share your images of this product

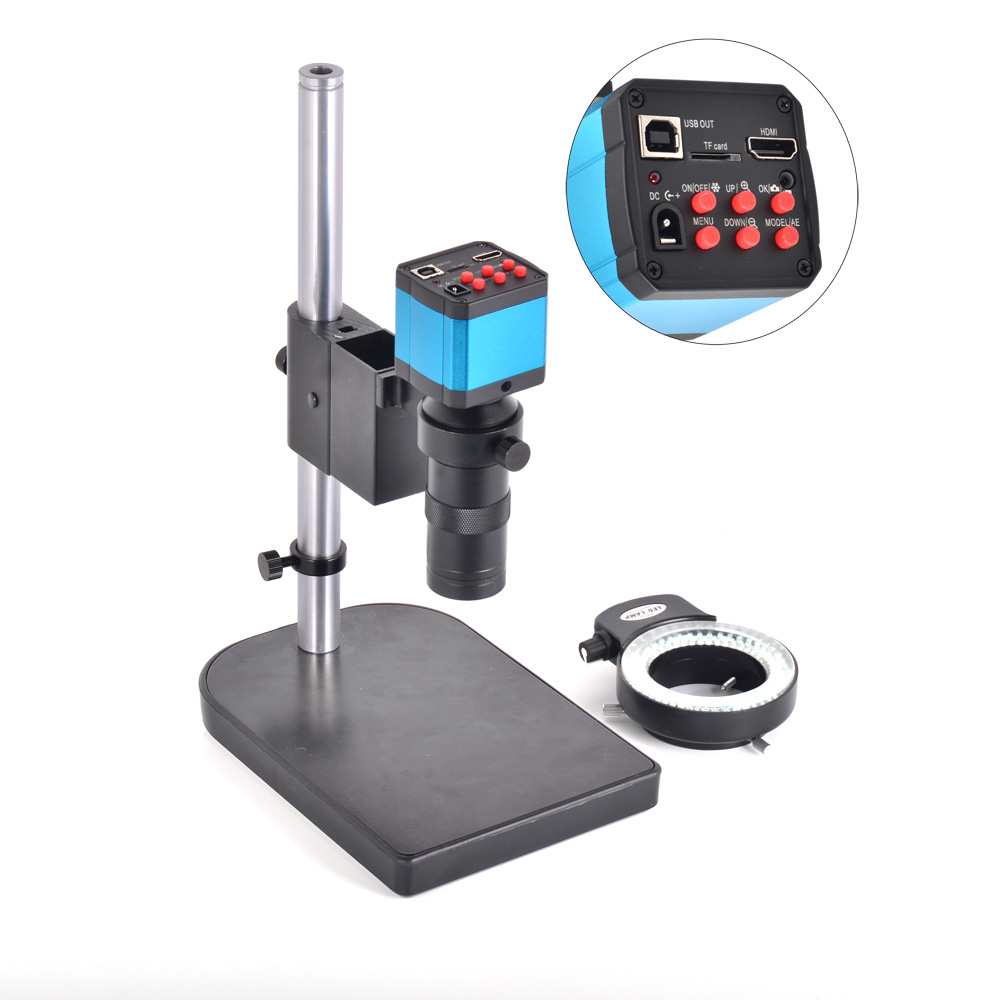

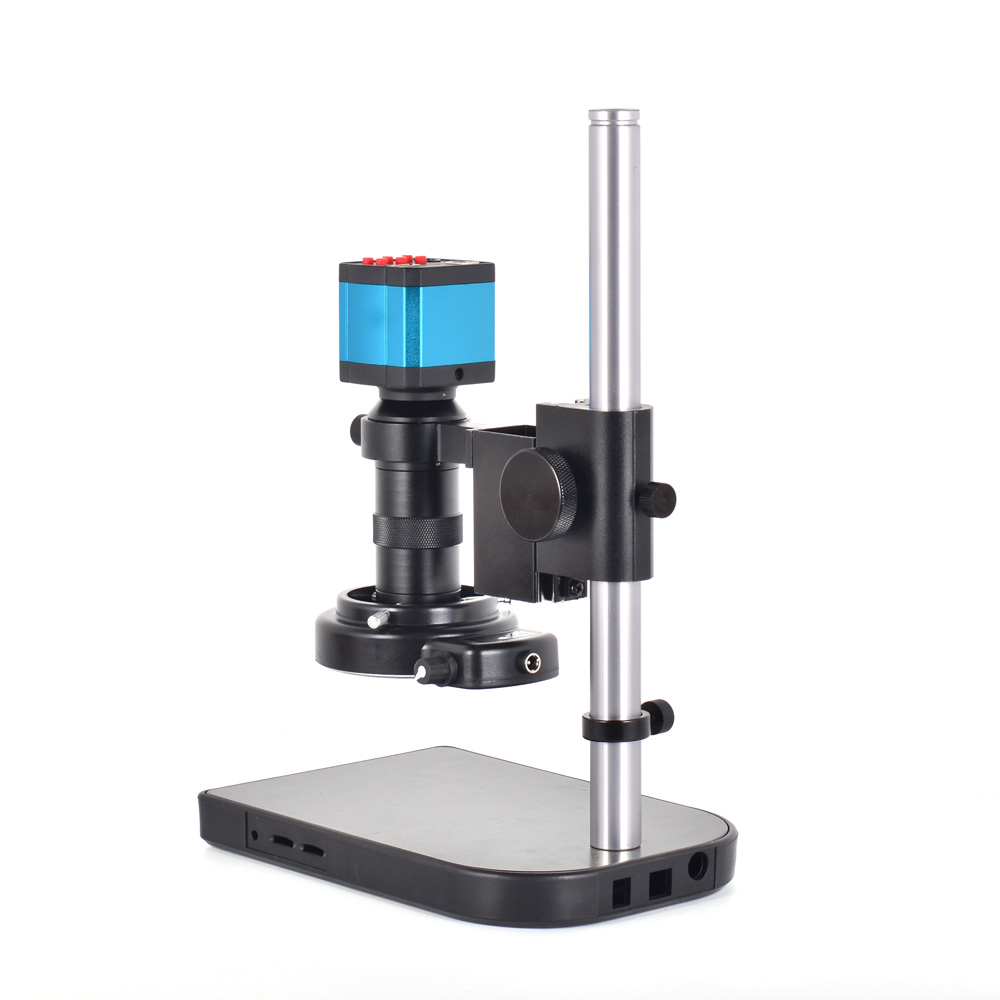

16MP HDMI Microscope Camera For Industry Lab PCB USB Output TF Card Video Recorder + C-mount Lens + 144LED Light + Stand
Price : US $ 179.32 213.62

SKU : 1801264342
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.
Note:

For USB output, the white balance, exposure and color adjustment are automatic. They can't be adjusted.
For HDMI output, the functions can only be adjusted while connecting with monitor. If you connect the camera with computer, the functions also can not be adjusted.


Features:

Model: Camera with HDMI USB2.0 two output

Image format: jpg
Image resolution: 4608*3456 (for TF card)  1920*1080@60FPS(for TF card)
Video format: MOV(for TF card)
Video recorder: 1920*1080 @ 60FPS (for TF Card)
USB Video resolution:1920*1080 @ 30FPS
White Balance: Auto
Light: Auto
Color: Color
Negative: Support
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Portuguese
Line: different color,5 horizontal line , 5 vertical line,any positions

Specification:

Image sensor:16 megapixel Panasonic sensor 1/2.3 inch
Effective pixel:16 megapixel
Pixel size:1.43x1.43um
Frame rate:60fps
Definition:FULL HD
Housing:metal
Lens:CS for test, custom provide
Video format: MP4, AVI
Encode: H.264 (High Profile)
Digital magnification:5 times digital zoom
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, movable
Different color,5 horizontal line , 5 vertical line,any positions
SNR:Support
TF card interface:Max 64G
HDMI interface:Standard HDMI output (Type A)
Lens:C/CS
USB interface:Standard usb2.0 interface (Type B)


C-MOUNT Lens:
Zoom c-mount Lens
Magnification Power by 0.12 - 2X (about 8 - 100X on the display)
Work distance:55mm-130mm
Visual field :2.4mm-32mm
Size: 115mm(L) * 40mm(DIA)
Weight: 210g

144 LED Adjustable Compact Microscope Ring Light:
Provides intense and focused shadow-free illumination
144 bright white LED bulbs
Lighting direction changeable
Variable intensity control
Intense and focused shadow-free illumination
100,000 hours of life
Power input: 100-240V, 50-60HZ, auto switching
Inside diameter of the ring light: 1.0" (27mm)
Overall outside diameter: 1.77" (45mm)
Working Distance: 27mm-45mm

NOTED!!!
TF card storage is only for HDMI output. USB output will be storaged in PC.


Package include:
1 x Microscope Camera
2 x 12V/1A Power supply
1 x USB line
1 x Software DISC
1 x Zoom C-mount Lens
1 x Camera Stand
1 x 144-LED Ring Light withPower Adapter

DSC_9101DSC_9097



DSC_5033DSC_5023



DSC_5649DSC_5652DSC_7247DSC_4859

DSC_9108DSC_9109DSC_9110
