Note:
For USB output, the white balance, exposure and color adjustment are automatic. They can't be adjusted.
For HDMI output, the functions can only be adjusted while connecting
with monitor. If you connect the camera with computer, the functions
also can not be adjusted.
Features:
Model: Camera with HDMI USB2.0 two output
Image format: jpg
Image resolution: 4608*3456 (for TF card) 1920*1080@60FPS(for TF card)
Video format: MOV(for TF card)
Video recorder: 1920*1080 @ 60FPS (for TF Card)
USB Video resolution:1920*1080 @ 30FPS
White Balance: Auto
Light: Auto
Color: Color
Negative: Support
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Portuguese
Line: different color,5 horizontal line , 5 vertical line,any positions
Specification:

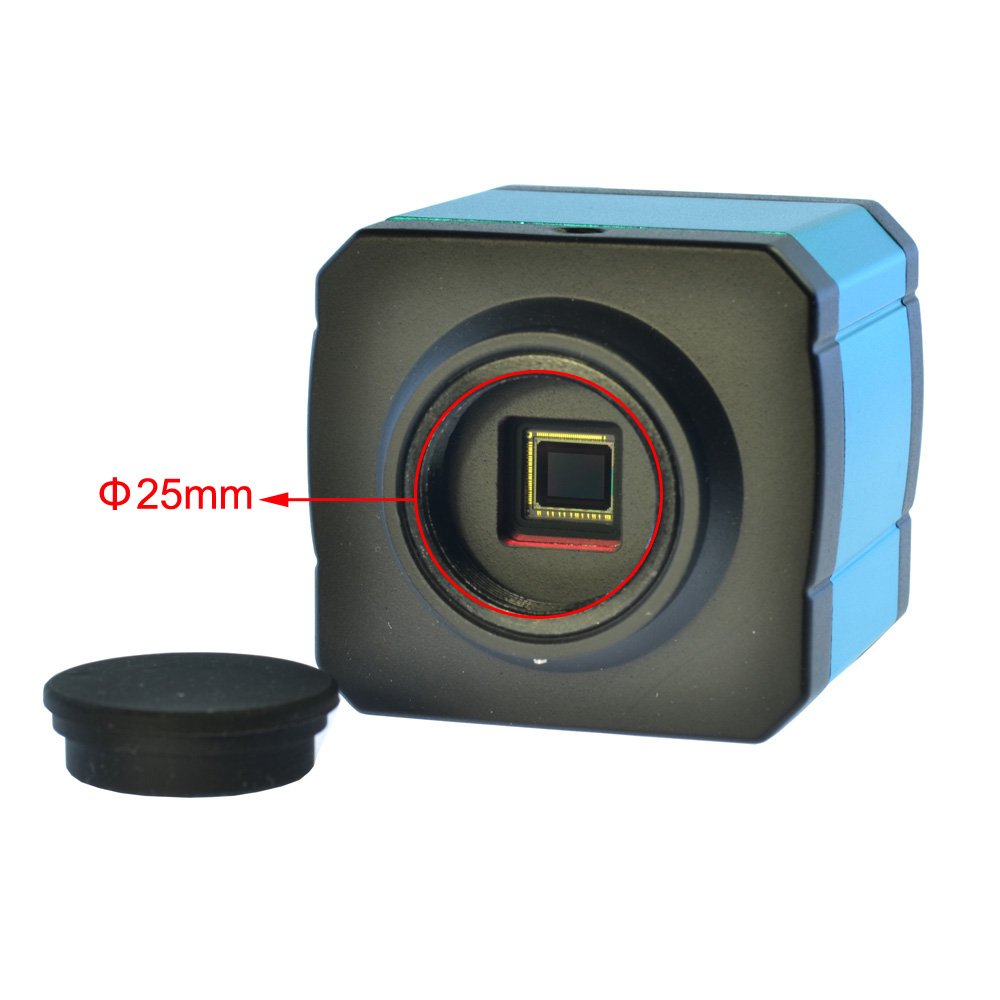

Image sensor:16 megapixel Panasonic sensor 1/2.3 inch
Effective pixel:16 megapixel
Pixel size:1.43x1.43um
Frame rate:60fps
Definition:FULL HD
Housing:metal
Lens:CS for test, custom provide
Video format: MP4, AVI
Encode: H.264 (High Profile)
Digital magnification:5 times digital zoom
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, movable
Different color,5 horizontal line , 5 vertical line,any positions
SNR:Support
TF card interface:Max 64G

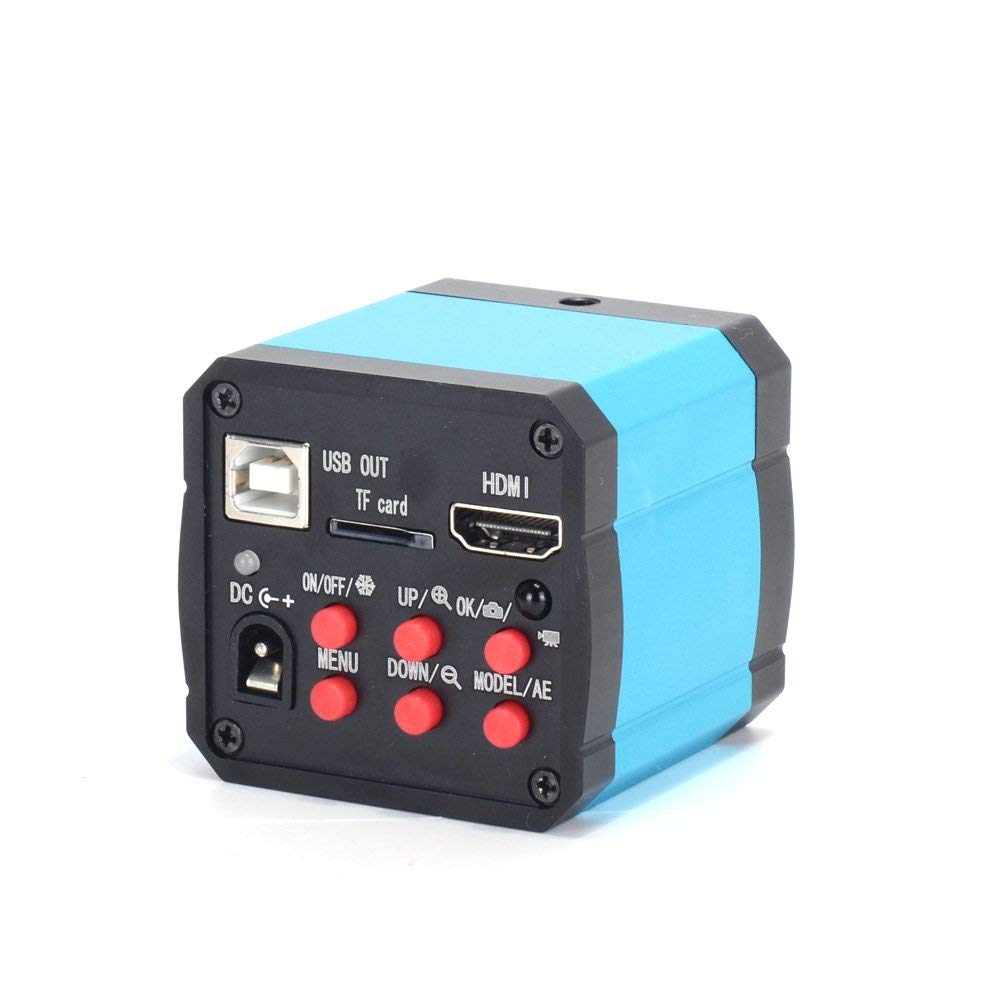

HDMI interface:Standard HDMI output (Type A)
Lens:C/CS
USB interface:Standard usb2.0 interface (Type B)
NOTED!!! TF card storage is only for HDMI output. USB output will be storaged in PC.

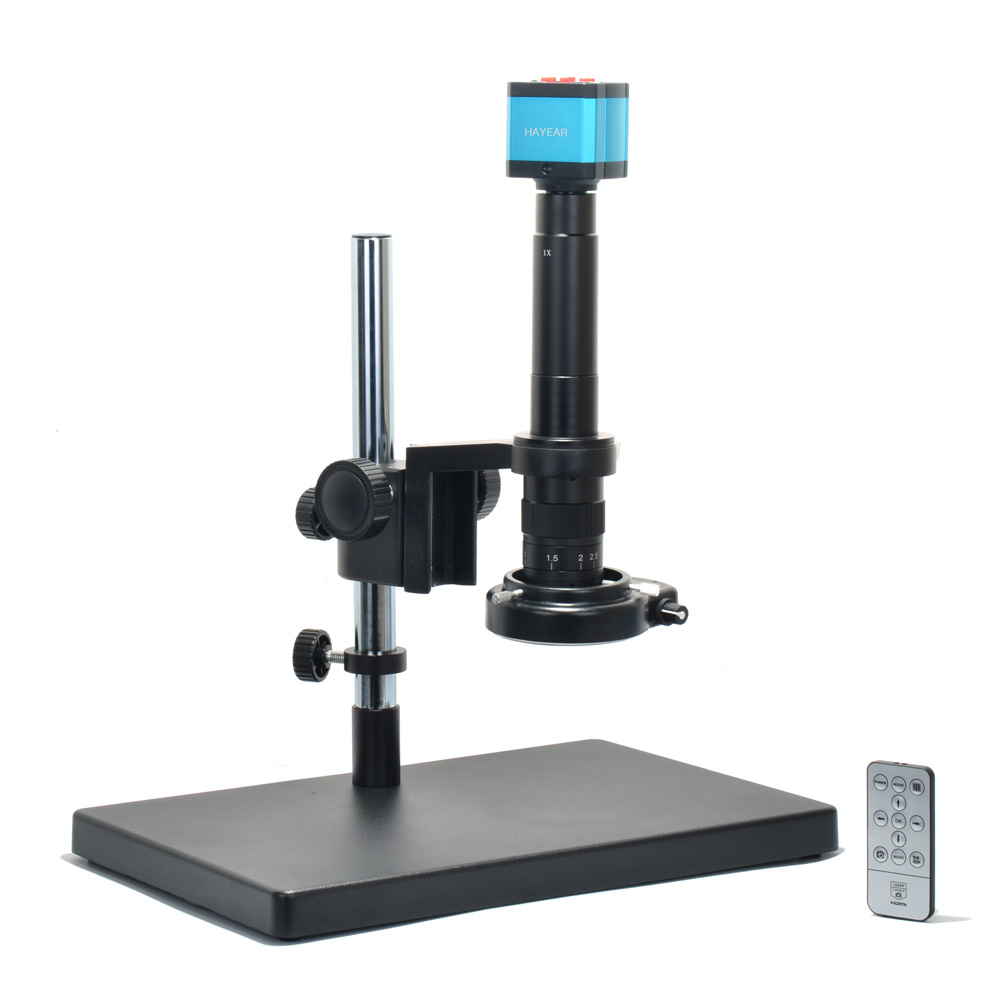

Stereo Table Stand Feature:
Need a Sturdy Boom Stand for reduced Vibration and Optimal Versatility? This stand provides what is needed!
Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
Steel Gears on Focusing Holder.
Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mm
Weight: 2.6kg

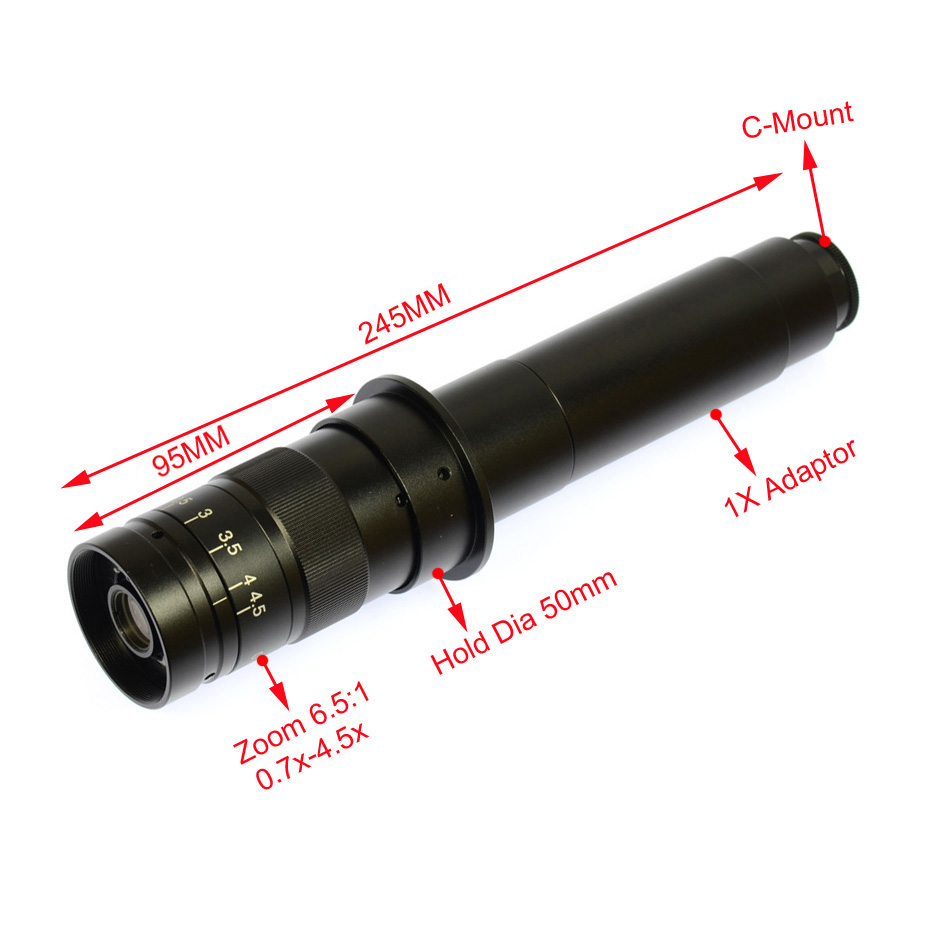

C-MOUNT Lens:
Working distance: 95mm
Zoom c-mount Lens
1.0X C-mount adapter
Zoom ratios:
Objective Magnification Power by 0.7 - 4.5X(about 10 - 300X on the display)
Size: 24.5mm(L) * 50mm(DIA)
Weight: 630g

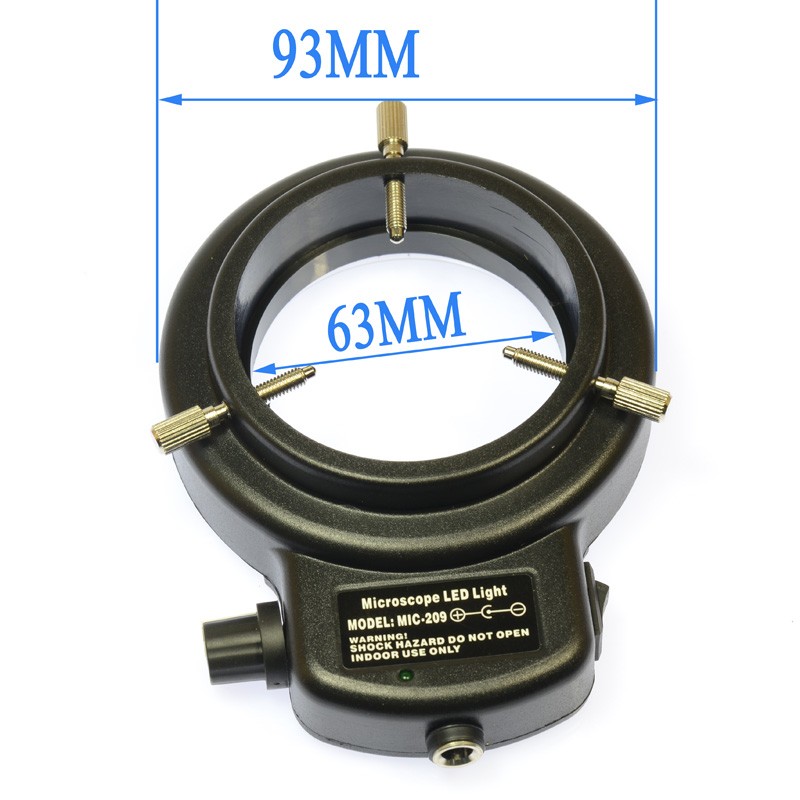

144 Bulbs Microscope LED Ring Light:
144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm

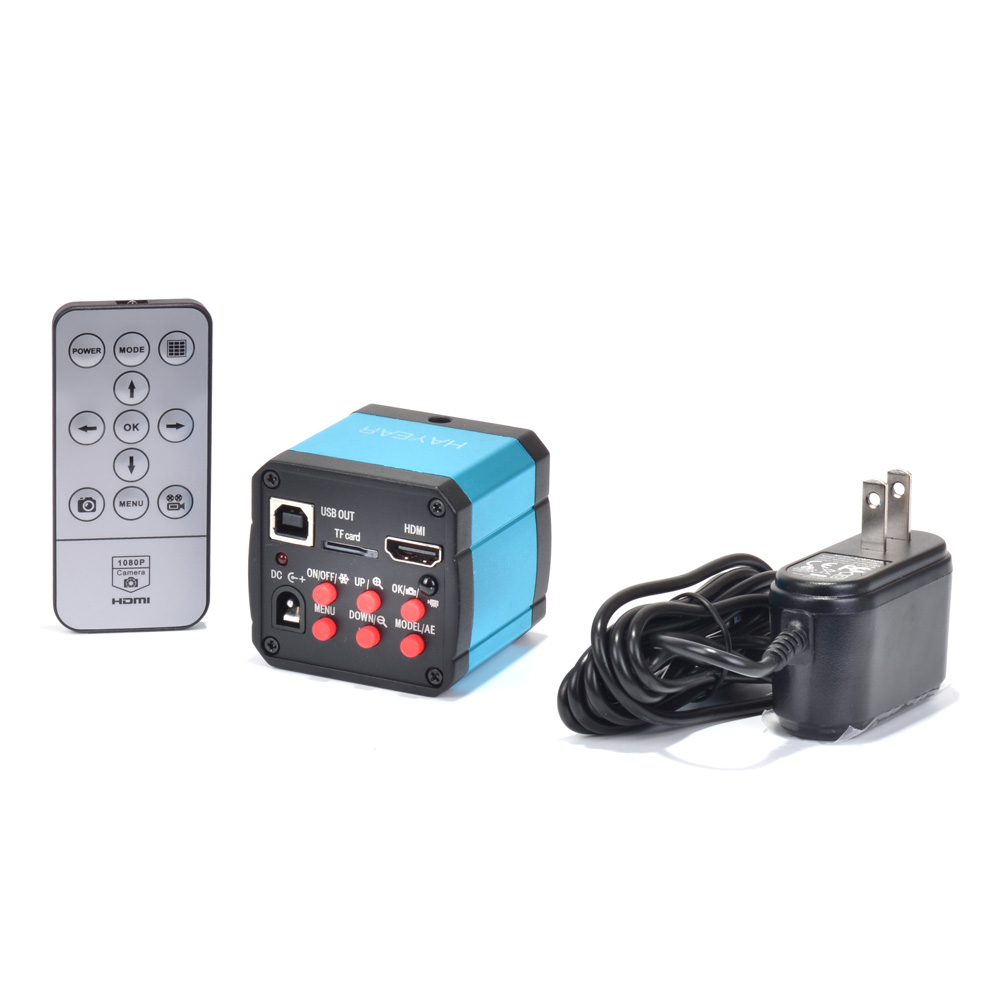

Package Content:
1 x Microscope Camera
1 x 300X C-MOUNT Lens
2 x 12V Power supply
1 x USB line
1 x Software DISC
1 x LED Ring light
1 x Digital Microscope Table Stand
Microscope Lens
