HD 14MP HDMI Industry Microscope Camera 3.5X-90X! 50/50 Split Simul-Focal Microscope Double Boom Stand Trinocular Stereo Zoom
Price : US $ 639.99 799.99

SKU : 1801261146
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.

Note:

For USB output, the white balance, exposure and color adjustment are automatic. They can't be adjusted.
For HDMI output, the functions can only be adjusted while connecting with monitor. If you connect the camera with computer, the functions also can not be adjusted.


Features:
3.5X-90X Extremely Large Zoom Magnification Power
Simul-Focal Optical System Allows Simultaneous Observation Through Both the Eyepieces and the Trinocular Port
Have well-focused, clear images on your PC or video Screen AND through the microscope eyepieces at the same time.
No need to switch between the trinocular port and the eyepiece
No need to re-focus the microscope after each "switch"
Trinocular Design for High Quality Photo, USB PC and CCD Video Imaging
Upright Tube for USB Digital Camera, Video Camcorder or CCD Camera
High Resolution with Great Flatness and Contrast
Erect Stereo Sharp Images Over a SUPER Widefield of View
Accurate Alignment Ensuring Fatigue-Free Long Time Viewing
Crystal Clear Original True Color Images
45° Inclined Trinocular Head with SUPER Widefield High-Eyepoint Eyepieces
30mm SUPER Widefield Eyepieces (see the difference in the above picture)
Both Ocular-Tubes with Adjustable Diopter
Adjustable Interpupillary Distance
Full Optical Glass Elements
Precise Ground Glass Lenses
8" (200mm) Extremely Large Working Distance

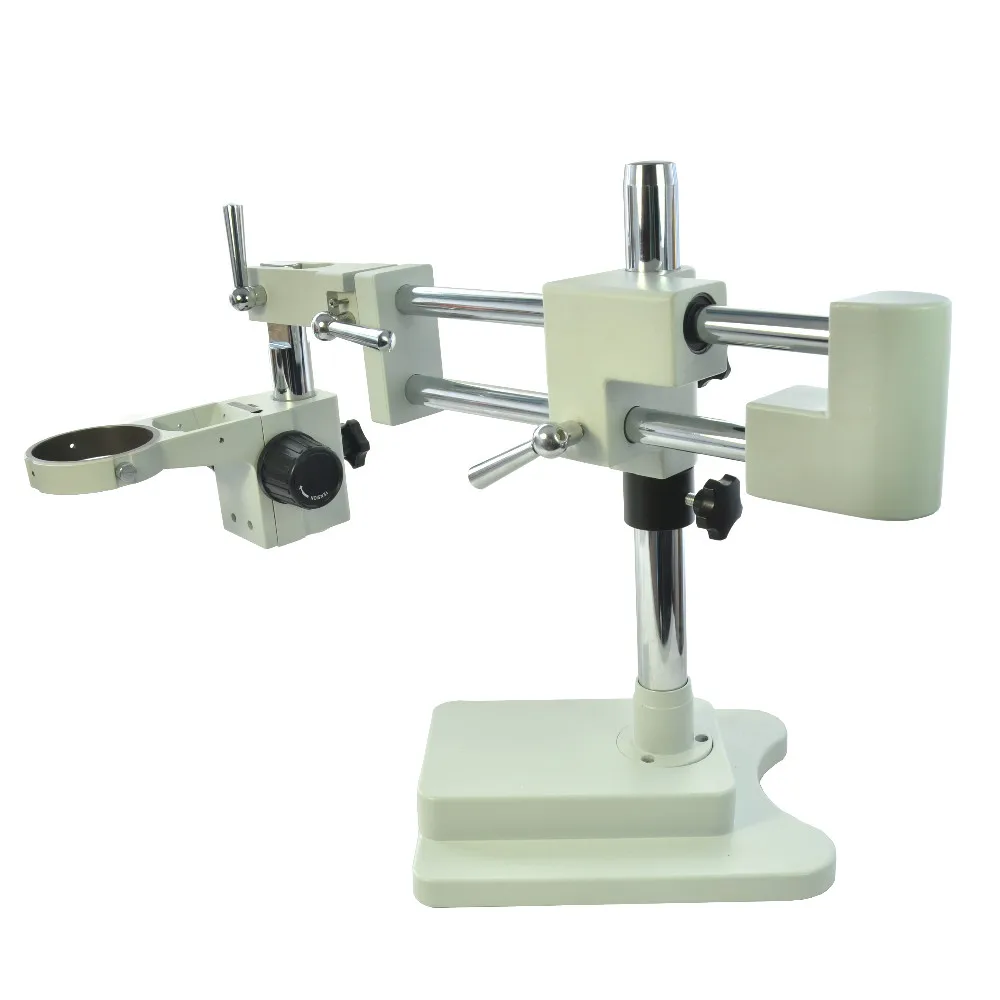

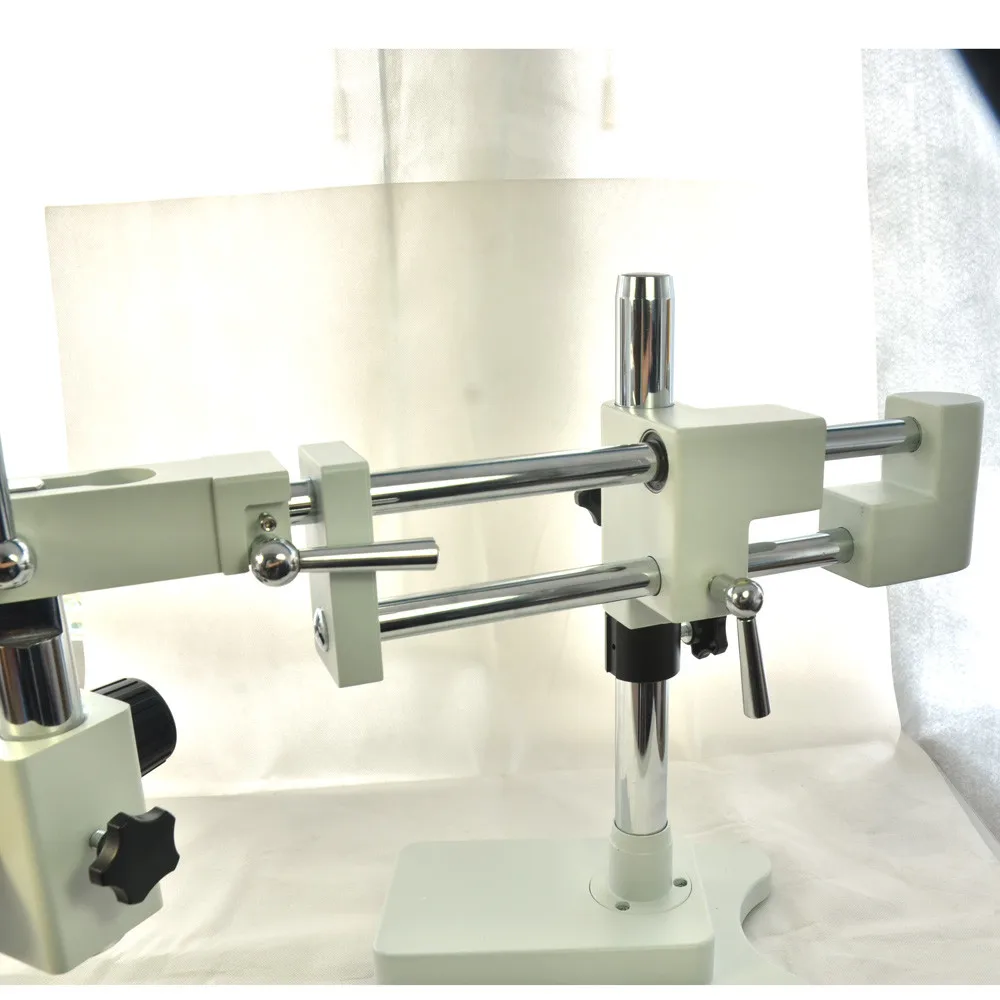

Versatile Boom Stand Covering Large Working Area
Double-Arm Design for 3-Degree Freedom
Able to Place Microscope Head Toward to Any Direction
Heavy-Duty Cast Steel Stand Finished with Stain Resistant Enamel
Rugged Solid Cast Steel Base
30mm SUPER Widefield Eyepieces Included
0.5X and 2.0X Barlow Lens  Included
Rubber Eye-Guards Included


Specification:

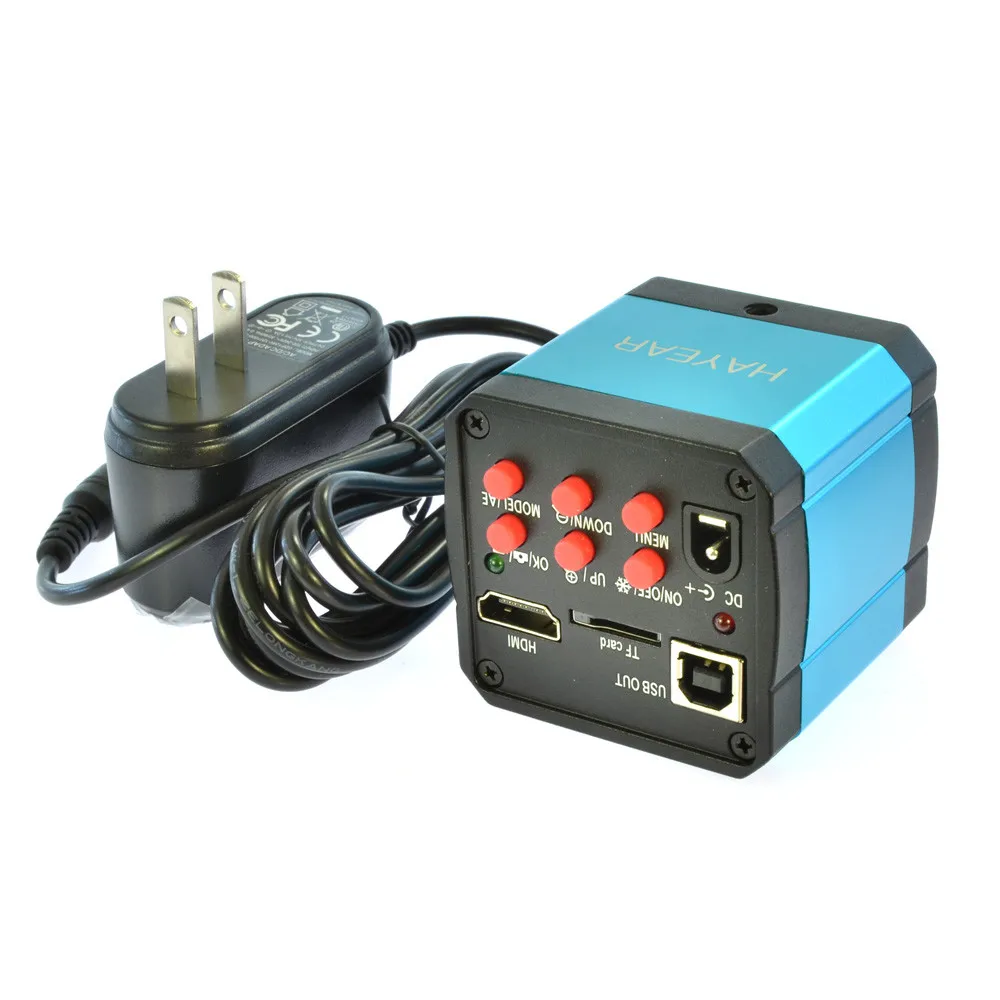

Model: Camera with HDMI USB2.0 two output
Image format: jpg
Image resolution: 4320*3240 (for TF card) 1920*1080@60FPS(for TF card)
Video format: MOV(for TF card)
Video recorder:
 1920*1080@60FPS(for TF Card)
USB Video resolution: 1920*1080 @ 30FPS
White Balance: Auto
Light: Auto
Color: Color
Negative: Support
Mirror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese
Line: different color,4 horizontal line , 4 vertical line,any positions


Specification:
Head: 45° inclined 360° swiveling trinocular
Eyepiece: 30mm super widefield high-eyepoint WF10X/20
Auxiliary Objective: 0.5X & 2.0X
Objective: 0.35-9.0X
Zoom Range: 26:1
Diopter Adjustment: ±5dp
Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
Field of View: 2-1/2" (65mm) in diameter
Working Distance: 8" (200mm)
Boom Stand: 20" double-arm (overall length: 30"), 17" high pillar, 10-1/4"x8-1/4"x2-0" solid cast steel base


Packing List:

1 x Microscope Camera
1 x Trinocular Stereo Zoom Head SZ45TR
1 x Pair of Super Widefield High-Eyepoint WF10X Eyepieces
1 x 2.0X Barlow Lens
1 x 0.5X Barlow Lens
1 x Double-Arm Boom Stand
1 x Focus Rack
1 x USB Cable
1 x Pair of Eye-Guards
1 x User's Manual

1 x 144 Led Light

1 x C Adapter

DSC_5514

DSC_3834DSC_5504DSC_1087

DSC_48101DSC_4811DSC_7506DSC_9850DSC_4813DSC_55141
