HDMI Camera Set >> 1080P HDMI Digital Industry Video Microscope Camera Set+Big Stand Universal bracket +180X C-MOUNT Lens+144 LED Light
View Larger Image
Share your images of this product

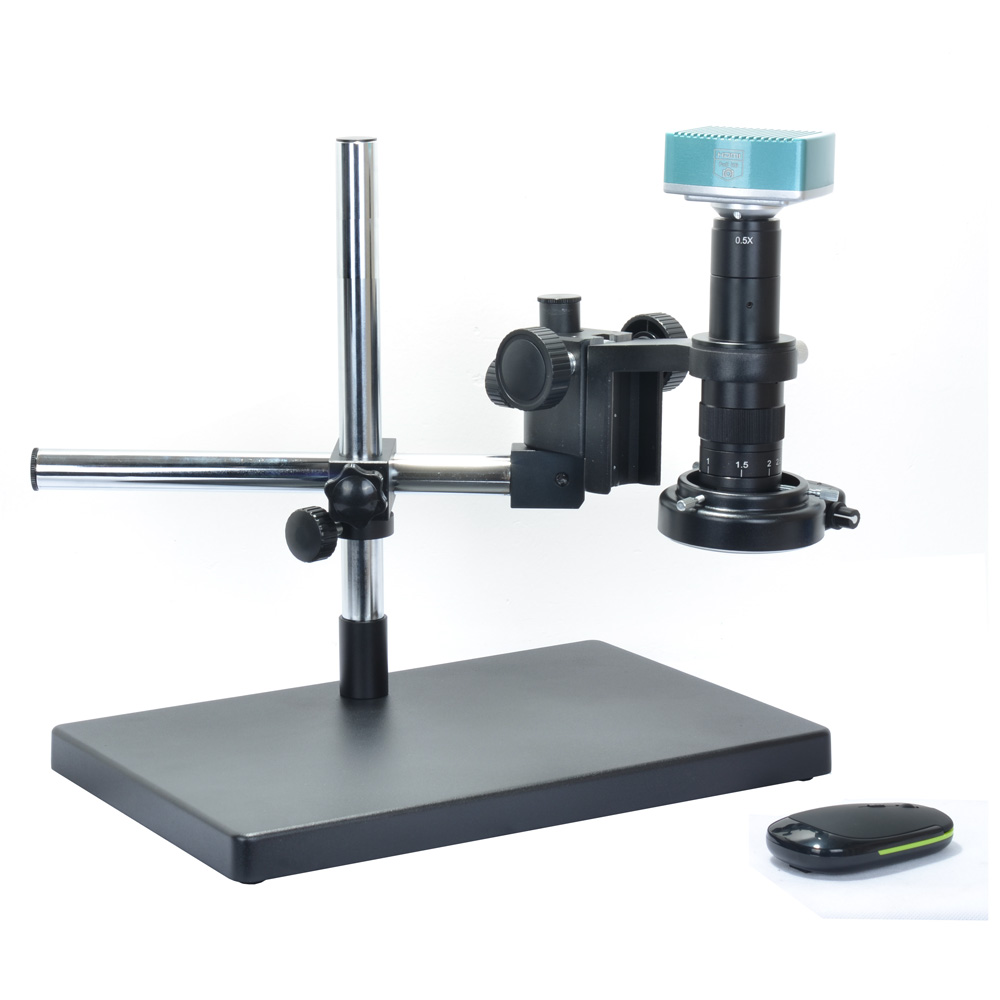

1080P HDMI Digital Industry Video Microscope Camera Set+Big Stand Universal bracket +180X C-MOUNT Lens+144 LED Light
Price : US $ 438.85 498.73

SKU : 1801261245
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.
Noted!!!
When use USB connection, please make sure no SD card in the camera.
Otherwise computer might define the camera as USB disk,  can't find it as new device.


Features:


 High Quality, High Resolution, Clear Images
1080P HDMI output
SD Card Video Recorder
1920x1080 FULL HD Panasonic Image sensor
1/2.86 inch sensor
1920x1080 pixels
The pixel size is 2.75x2.75um
High Speed which can up to 60FPS
All metal shell
Certificate:CE,FC,RoHS
Industry CMOS Camera. It can Show the live image directly on any HDMI monitor or Projector.

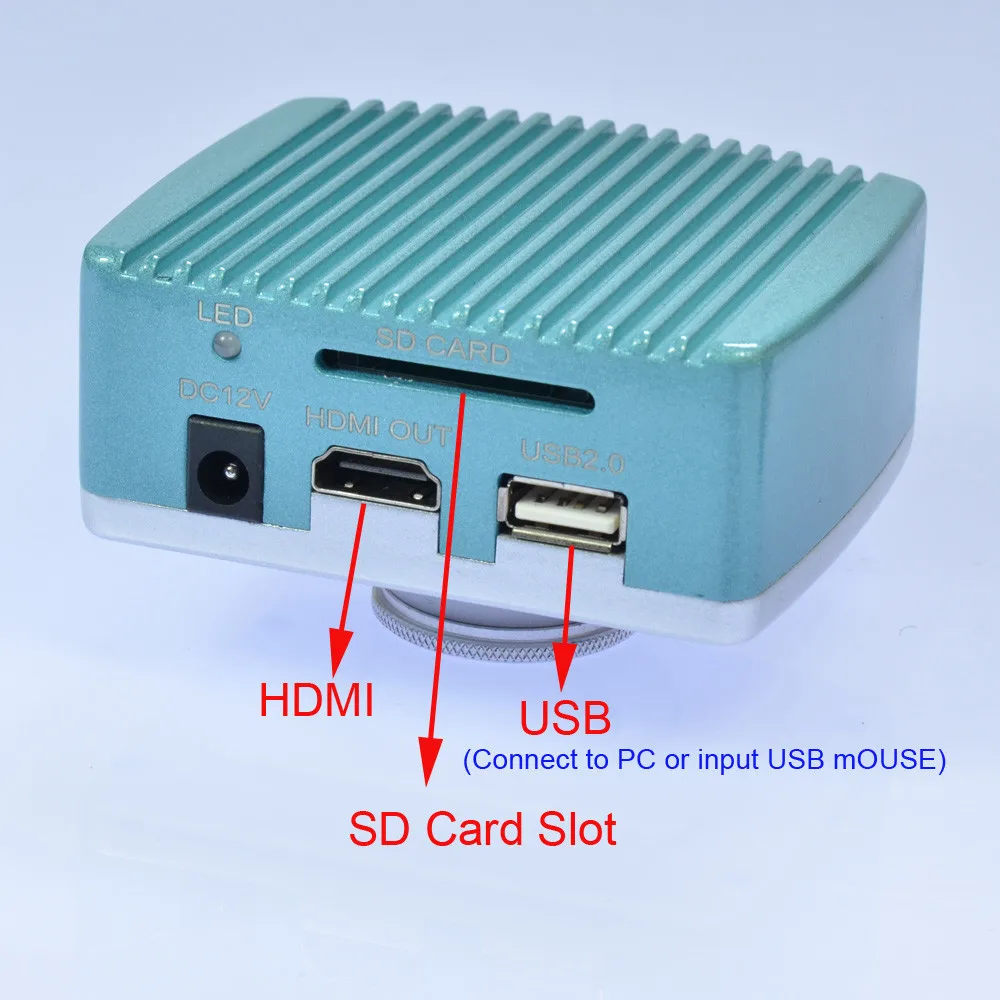

Supply HDMI and USB output ports.



Specification:

 Image sensor: 1920x1080 FULL HD Panasonic Sensor
Frame rate: 29fps(USB Output)
Pixel size: 2.75*2.75um
Frame rate: 60fps
Definition: Full HD
Housing: Standard iron/ Alloy
Lens mounting: C mount/ CS mount
White balance: Auto/ manual
Digital magnification: 10 times zoom in or zoom out
Brightness control: Auto/ manual
Color: R/ G/ B adjustable
Freeze: Support
OSD: UI design, mouse control
Edge enhancement: Support
Film and video: Support
Cross cursor: Support, multi-color, size adjustable
Transverse and vertical line: 4pcs of transverse line/vertical line, movable and size adjustable
Image contrast: Support
Wide dynamic: Support
Digital dynamic: Support
HDMI interface: Standard HDMI output
USB interface: Standard USB2.0 output

25FPS@1920x1080 pixels, HDMI output

60FPS@1080 x 720, 30FPS@1920*1080, USB output




C-MOUNT Lens:



Working distance: 100-150mm

zoom c-mount Lens

0.5X C-mount adapter

zoom ratios: 6.5:1

Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)

Size: 180mm(L) * 50mm(DIA)

Weight: 450g



144 Bulbs Microscope LED Ring Light:



144 bright white LED bulbs

100,000 hours of life

Intense and focused shadow-free illumination

The brightness of 0-100%Adjustable,high brightness

Variable intensity control

Power input: 100-240V, 50-60HZ

Suit for the dia of the lens: 30mm-63mm


Camera Table Stand

      Need a Sturdy Boom Stand for reduced Vibration and Optimal Versatility? This stand provides what is needed!
    This stand has a dual arm system with a counterweight on the opposite end of arm to counter the weight of your microscope head. This gives more stability compared with a common type of boom stand.
    The multi-axis rotation feature allows this boom stand to locate your microscope head to most any position or angle. This can be a greatly needed tool when you have a hard-to-see location such as inspecting and searching for cracks on the solder of a circuit board.
    We provide the boom stand only. This is not a complete system. A microscope head with optics is needed. You provide the head. We have several types of adapters to fit a variety of microscope heads. Contact us for details about your specific requirements so we can assist with a smooth fit.
    Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
    Steel Gears on Focusing Holder.
    Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mm
    Item size: see the 4th picture
    Weight: about 4kg

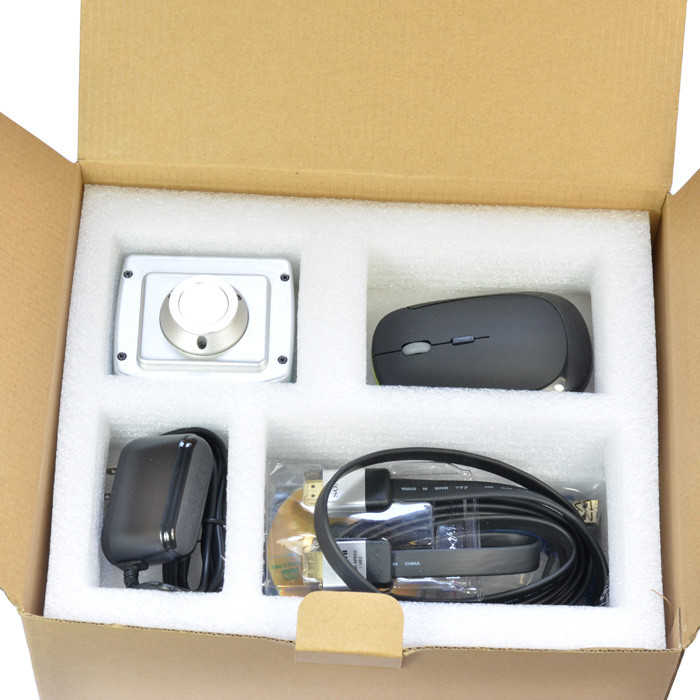

Packing including:

1 x Industry Microscope Camera
1 x 180X C-mount Lens
1 x Big Stand Universal bracket Stand Holder
1 x 144-LED Ring Light with Power Adapter
1 x USB Cable
1 x Wireless USB Mouse
1 x Power supply(100-240V)
DSC_38272







DSC_1369 DSC_1370 DSC_1375
DSC_8412DSC_7506
DSC_48481
HDMI_Microscope_Camera_DSC_7297 HDMI_Microscope_Camera_DSC_7298 HDMI_Microscope_Camera_DSC_7304 HDMI_Microscope_Camera_DSC_7305 HDMI_Microscope_Camera_DSC_7306 HDMI_Microscope_Camera_DSC_7307 HDMI_Microscope_Camera_DSC_7308
