USB Camera >> 5.0MP USB Microscope Camera+C-mount Lens+Dual Arm Rotatable Boom Microscope Table Stand for Industry Lab USB Output Video Record
View Larger Image
Share your images of this product


5.0MP USB Microscope Camera+C-mount Lens+Dual Arm Rotatable Boom Microscope Table Stand for Industry Lab USB Output Video Record
Price : US $ 99.59 113.99

SKU : 1801271704
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.

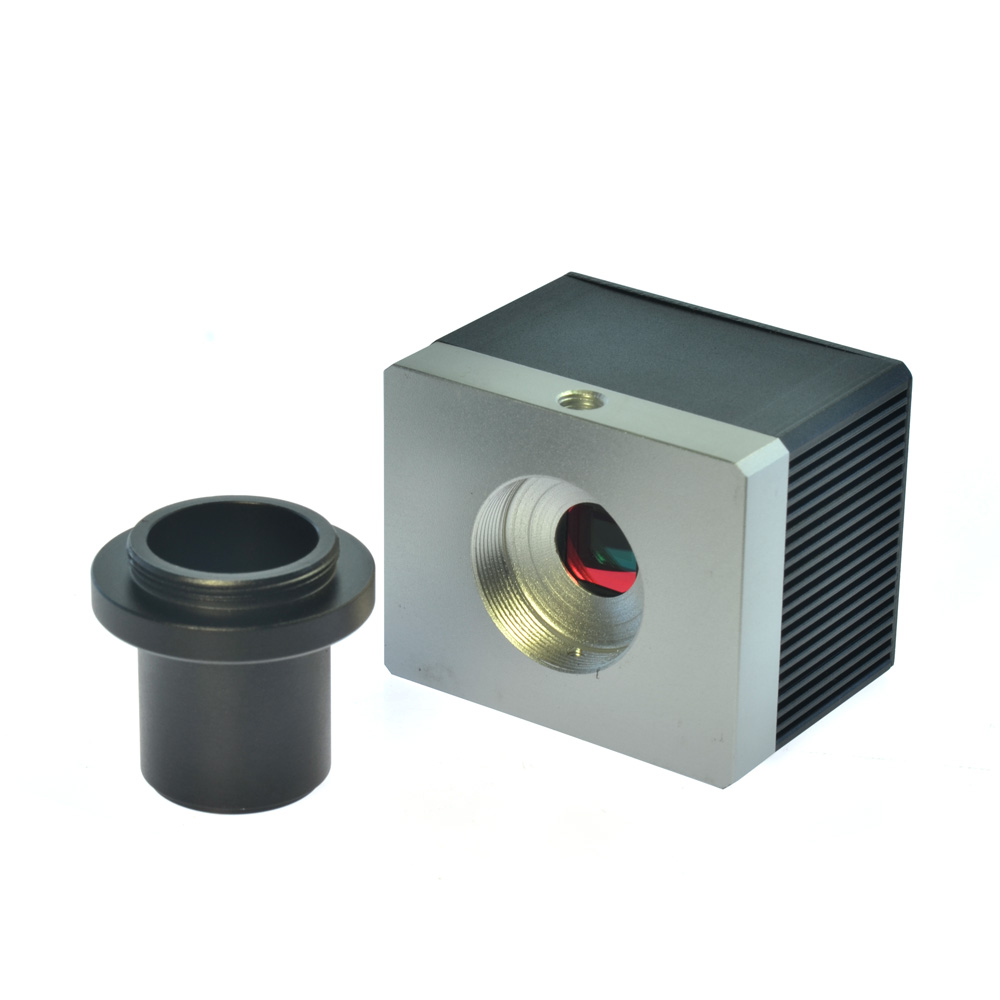

Feature:

High Quality, High Resolution, Clear Images
Big size 1/2.5 inch CMOS
Certificate:CE,FC,RoHS
Industry Cmos Camera. It can Show the live image directly on any VGA monitor or Projector.
Supply USB output ports.
We sell much to the industy factory, then the works can see the problems directly in the Monitor.

Specification:

Model: USB Output
Sensor: 5.0mp,1/2.5 inch
Full Resolution: 2592x1944 (UXGA)
Frame rate: @1920x1080:30FPS; @2592x1944:15FPS- 60HZ
White Balance: Auto
Light: Auto
Color: Color

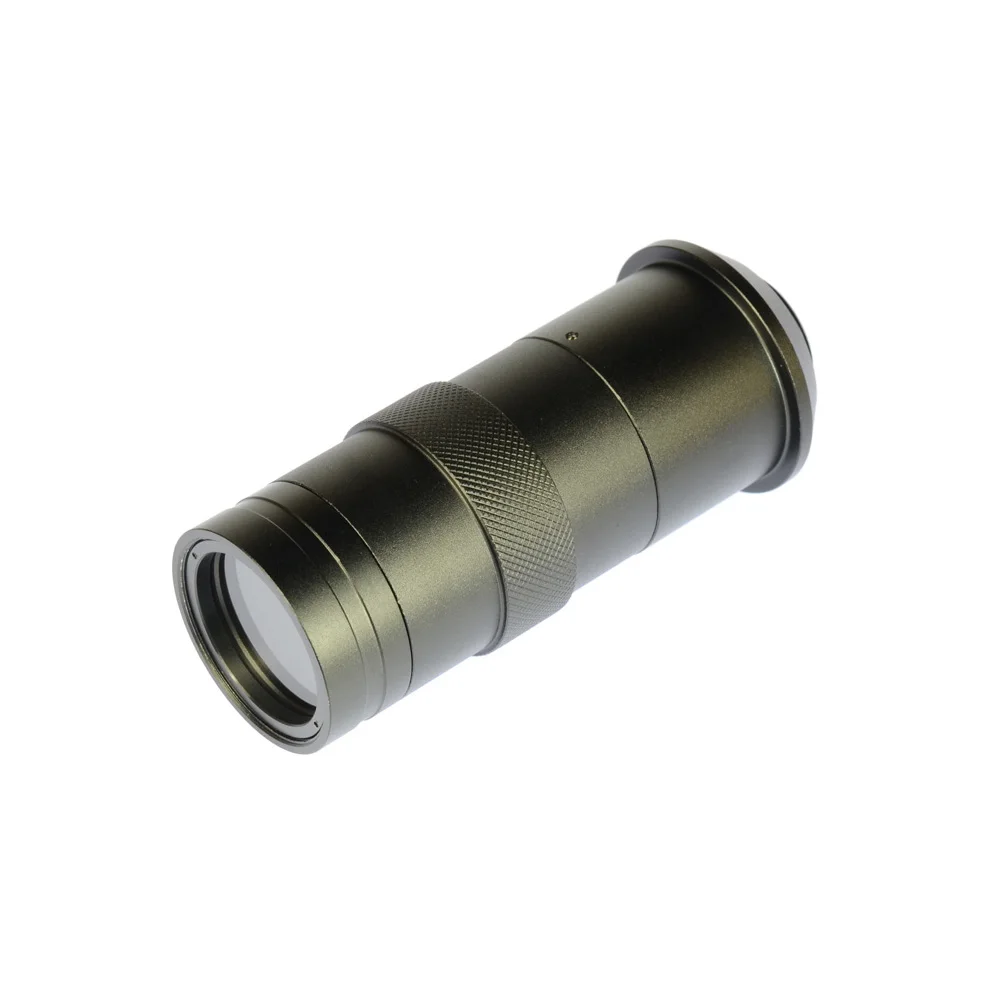

C-MOUNT Lens:

Zoom c-mount Lens
Magnification Power by 0.12 - 2X (about 8 - 100X on the display)
Work distance:55mm-130mm
Visual field :2.4mm-32mm
Size: 115mm(L) x 40mm(DIA)
Weight: 210g

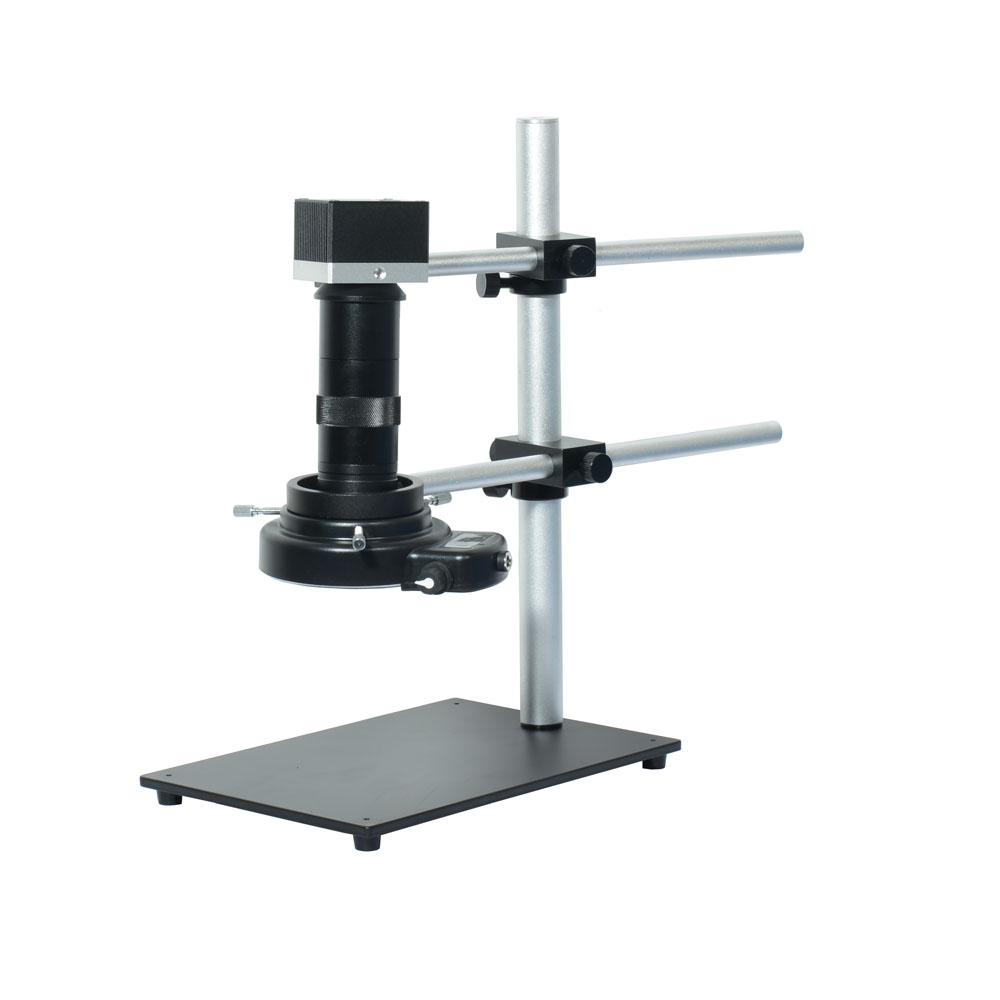

Table Stand:

Need a Sturdy Boom Stand for reduced Vibration and Optimal Versatility? This stand provides what is needed!
This stand has a dual arm system with a counterweight on the opposite end of arm to counter the weight of your microscope head. This gives more stability compared with a common type of boom stand.
The multi-axis rotation feature allows this boom stand to locate your microscope head to most any position or angle. This can be a greatly needed tool when you have a hard-to-see location such as inspecting and searching for cracks on the solder of a circuit board.
We provide the boom stand only. This is not a complete system. A microscope head with optics is needed. You provide the head. We have several types of adapters to fit a variety of microscope heads. Contact us for details about your specific requirements so we can assist with a smooth fit.
Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
Steel Gears on Focusing Holder.
Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mm
Item size: see the 3th picture
Weight: 5kg



144 LED Light:

144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm


Package Including:

1 x Industry Microscope Camera
1 x 100X C-MOUNT Lens
1 x LED Power adapter
1 x USB Cable
1 x 144 LED Ring light
1 x Dual Arm Microscope Table Stand
