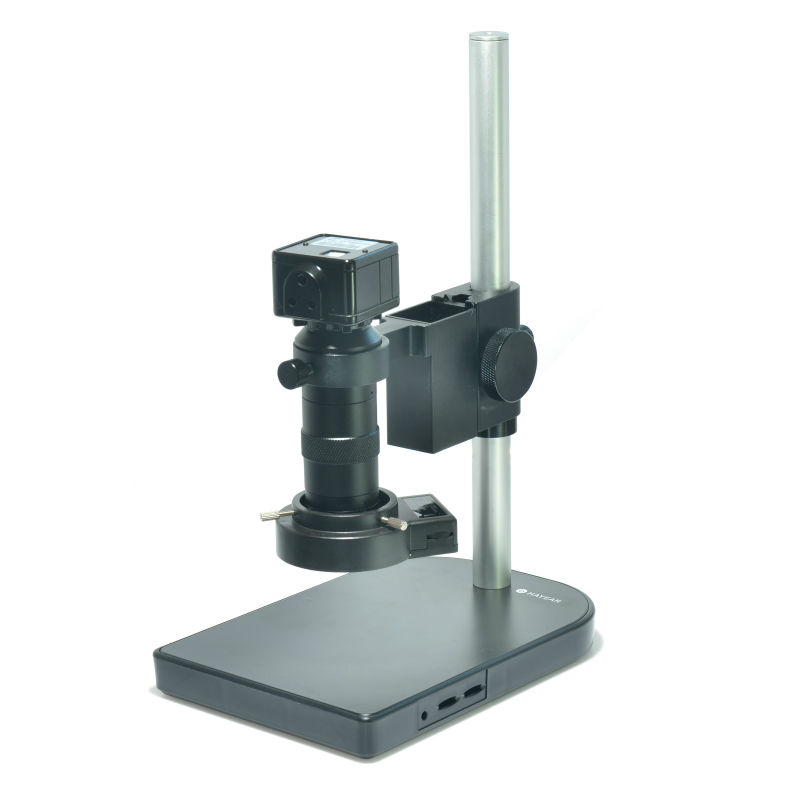

2.0MP USB Microscope Camera Industrial Microscopes USB Camera 100X Zoom Lens Table Stand Calibrator Measurement Camera
Price : US $ 97.61 179.99

SKU : 1801274324
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.

Feature:

High Quality, High Resolution, Clear Images
Certificate:CE,FC,RoHS

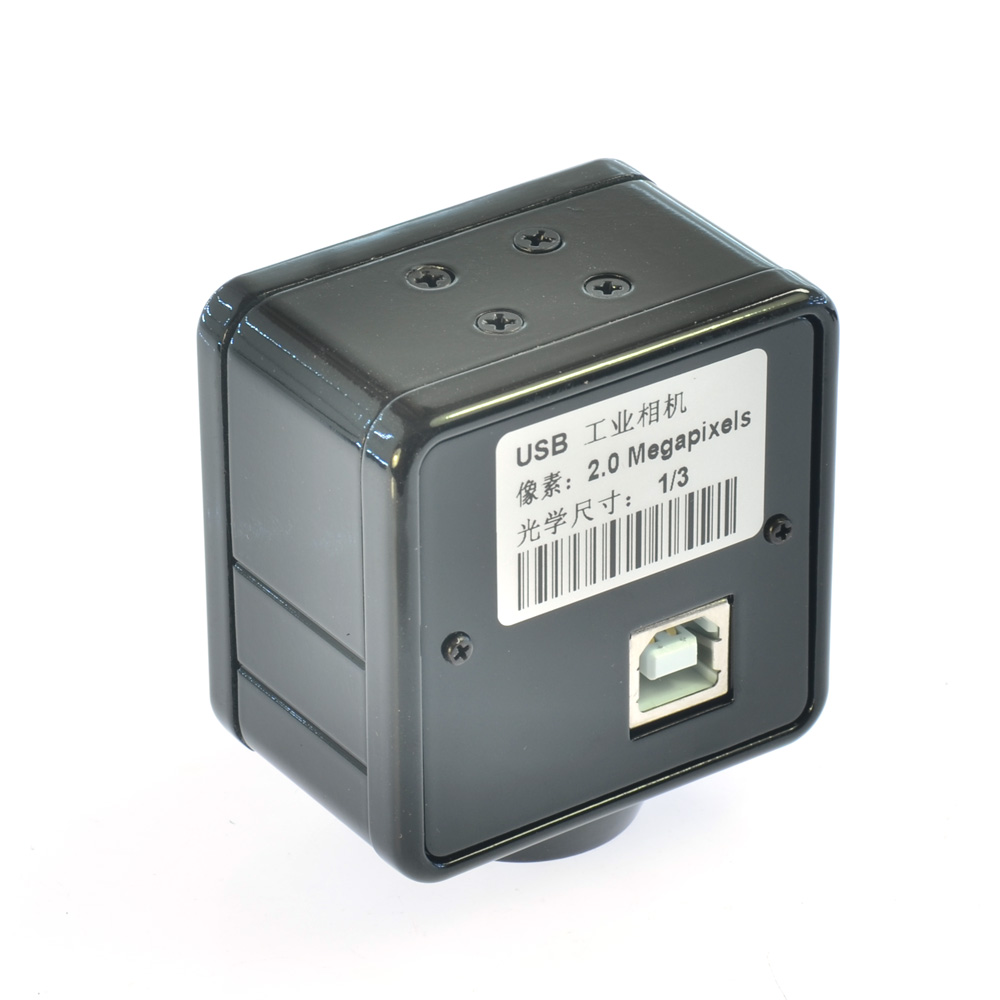

Industry Cmos Camera. It can Show the live image directly on any VGA monitor or Projector.
Supply USB output ports.
We sell much to the industy factory, then the works can see the problems directly in the Monitor.

Specification:

Model: USB output
Sensor: 2.0mp,1/2.5 inch
Full Resolution:1600X1200 @5FPS; 1280x1024 @15FPS
Frame rate: 640x480/1280x1024/1600x1200-@15 - 60HZ
White Balance: Auto
Light: Auto
Data output:16bit
Electronic shutter:20-100000
White balance (dB):38.1 dB,
Color: Color
Sensitivity: 1.4V/lux-sec@550nm
Spectral response:400nm~1000nm



C-MOUNT Lens:

Zoom c-mount Lens
Magnification Power by 0.12 - 2X (about 8 - 100X on the display)
Work distance:55mm-130mm
Visual field :2.4mm-32mm
Size: 115mm(L) x 40mm(DIA)
Weight: 210g


Microscope Lens Table Stand

With Dual Ring:4.3cm(dia) ,2.3cm(dia)
Large table stand for stereo microscopes
29cm microscope high pillar
Diameter of big ring: 40mm
Size: 31.5cm(L) x 22.5cm(W)x15.5cm(H)
Item weight: 1100g


40 Bright white LED bulbs

Lighting direction changeable
Variable intensity control
Intense and focused shadow-free illumination
100,000 hours of life
Power input: 100-240V, 50-60HZ, auto switching
Inside diameter of the ring light: 1.0" (27mm)
Overall outside diameter: 1.77" (45mm)
Working Distance: 27mm-45mm

LED Lamp Chip(Cool White)


Package include:
1 x Industry Microscope Camera
1 x 100X C-MOUNT Lens
1 x LED Power adapter
1 x USB Cable
1 x 40 LED Ring light
1 x Microscope Table Stand

USB_Microscope_Camera_DSC_8550DSC_7893

DSC_0685DSC_76641321160925
