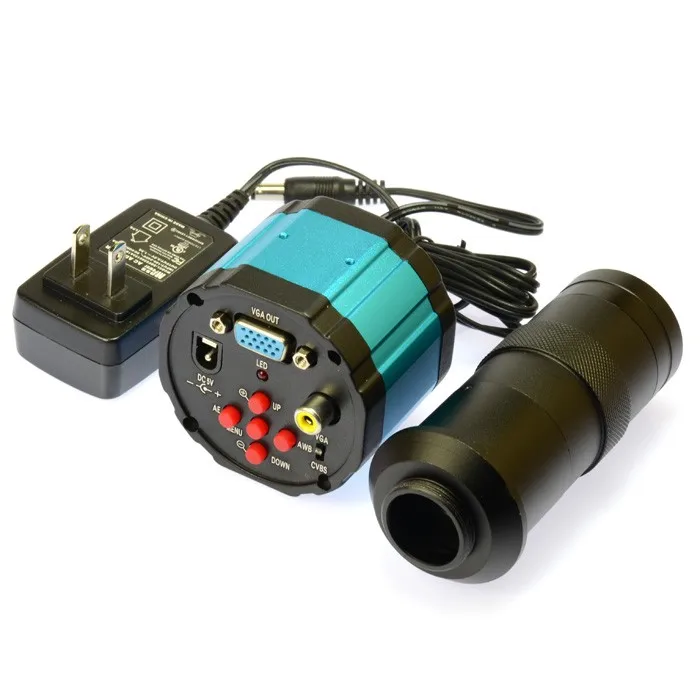

HD 2.0MP VGA AV Industrial Microscope Camera 100X Zoom C-mount Lens Video Recorder 144 LED adjustable Light

Features:

mage sensor	2.0Megapixel 1/3 inch
Effective pixel	1600x1200
Frame rate	20FPS
Definition	Max over 800 line(Horizontal)
Housing	Standard iron housing or custom
Lens	CS for test, custom provide
White balance	Auto/manual
Brightness control	Auto
Color	Color/grayscale
Freeze	Support
OSD	English/Chinese
Image digital zoom	Support 10 times digital zoom
Image contrast	Support static and dynamic pictures 1/2 screen contrast
Transverse and vertical line	Support multi-color, 2 pcs of transverse lines/vertical lines, moveable
Digital SNR	Support
Edge enhancement	Support
Contrast	Support
Color scale	Support
Cross cursor	Support multi-color

VGA(RGB)	720P/1024x768/1280x1024/1366x768/1600X1200@HZ
AV interface	Cvbs output NTSC and pal format

Specification:

Model: Camera with VGA AV output

Sensor: 2.0MP

Full Resolution: 1920X1080 (UXGA)

VGA output: 800X600 60Hz,1024X768 60Hz,1280X1024 60Hz,1366x768 60Hz,1440x900 60Hz, 1600X1200 60Hz

White Balance: Auto

Lens Mount: CS

Power input: DC5V 1A

C-MOUNT Lens:

zoom c-mount Lens

Magnification Power by 0.12 - 2X (about 8 - 100X on the display)

Work distance:55mm-130mm

Visual field :2.4mm-32mm

Size: 115mm(L) x 40mm(DIA)

Weight: 210g

144 LED bulbs :

144 bright white LED bulbs

100,000 hours of life

Intense and focused shadow-free illumination

The brightness of 0-100%Adjustable,high brightness

Variable intensity control

Power input: 100-240V, 50-60HZ

Suit for the dia of the lens: 30mm-63mm

Color: white/black, if you want to have the faverate color, please leave us a message.

Output intensity: 35000LUX

Colour range: 6500K

LED Lamp Chip(Cool White)

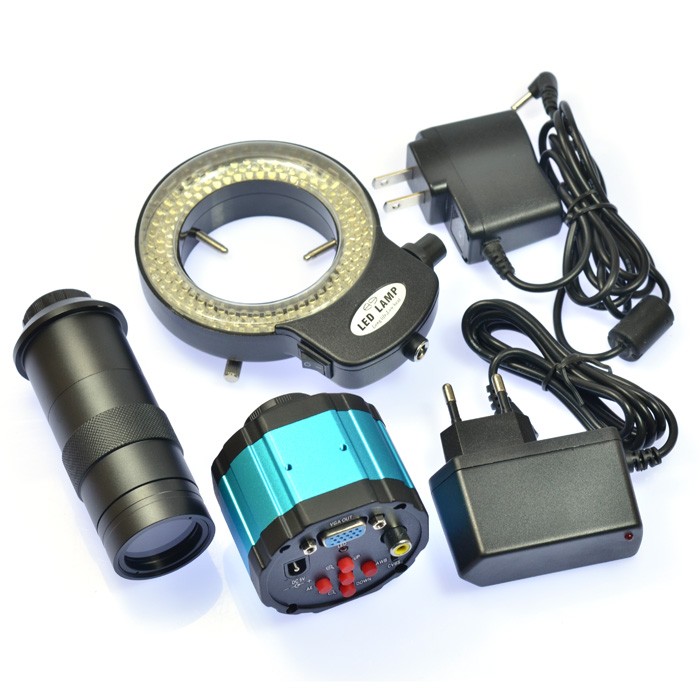

Package incluede:

1 x Microscope Camera Body

1 x 100V-240V power supply

1 x 144-LED Ring Light

1 x LED Power Adapter

1 x 100X Industry Zoom C-mount Lens
