VGA Camera >> 1080P VGA AV USB 3 in1 Digital Industry Microscope Camera Set+Big Stand Universal bracket +180X Zoom C-MOUNT Lens+144 LED Light
View Larger Image
Share your images of this product

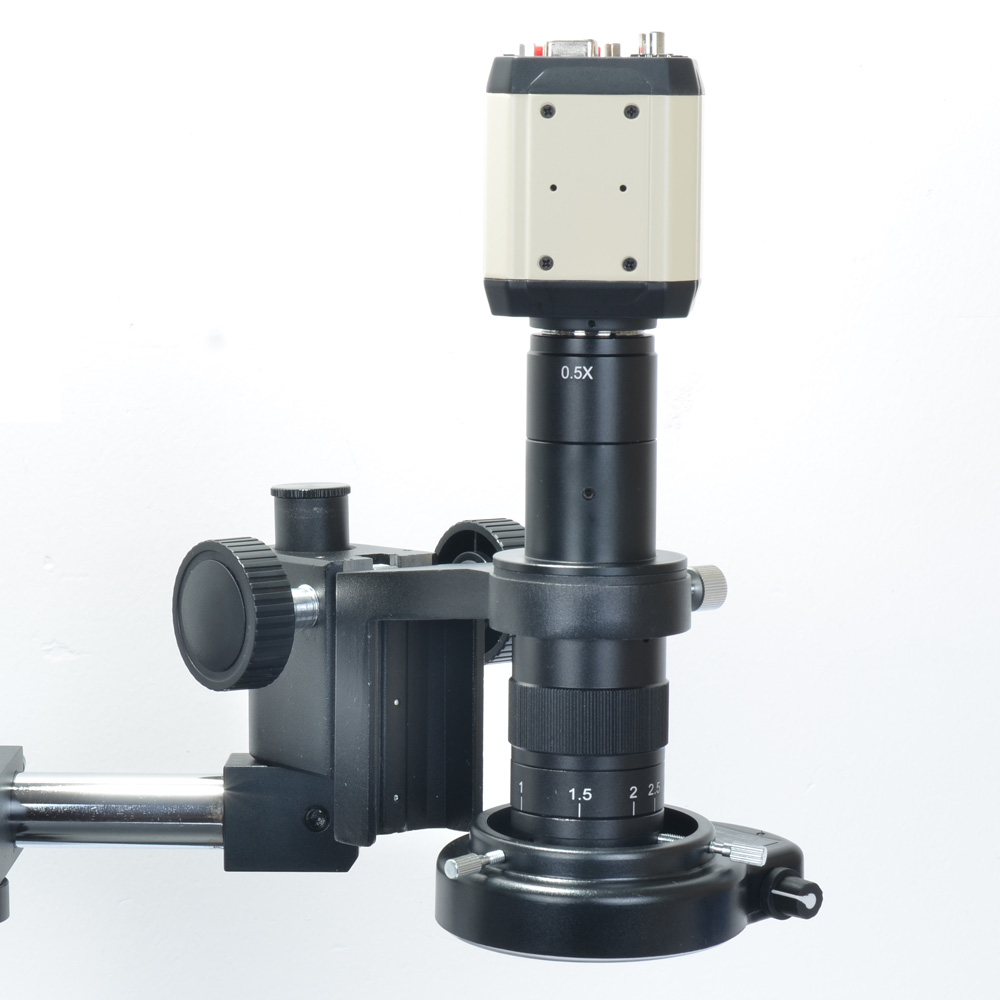

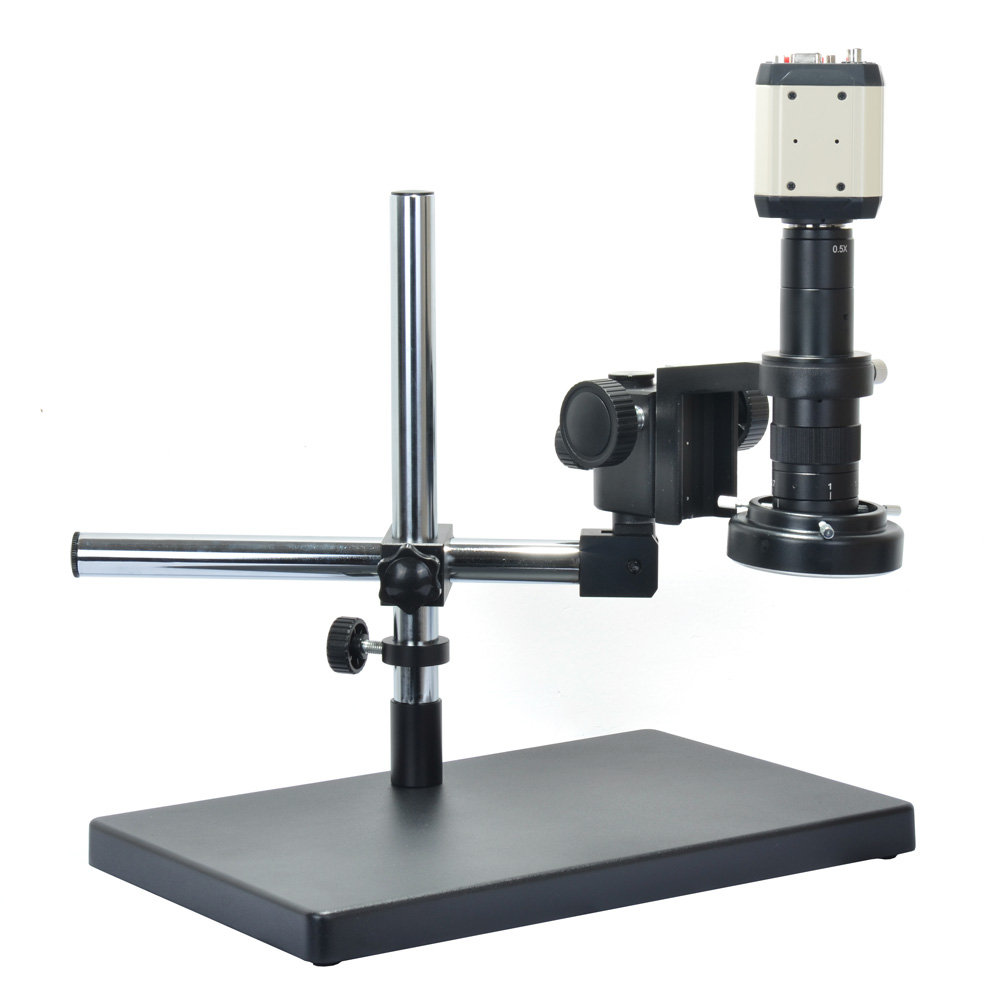

1080P VGA AV USB 3 in1 Digital Industry Microscope Camera Set+Big Stand Universal bracket +180X Zoom C-MOUNT Lens+144 LED Light
Price : US $ 229.99 279.99

SKU : 1801275240
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.
Feature:

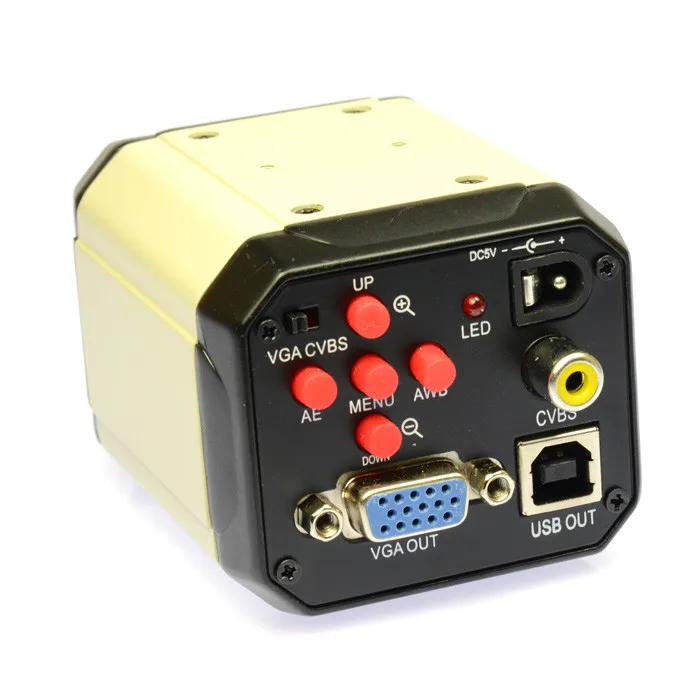

 Model: Camera with VGA AV USB2.0 three output
Sensor: 2.0mp,1/3 inch
Full Resolution: 1600X1200 (UXGA)
800 lines Definition
Frame rate: 10-15fps (USB2.0)
720P/1024x768/1280x1024/1366x768@60HZ
White Balance: Auto
Light: Auto
Color: Color/B&W
Negative: Support
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese
Picture compare: Captured picture dynamic video 1/2 screen compare
Contrast: Support
Saturation: Support
Cross cursor: Support,different color
Line: different color,2 horizontal line
2 vertical line,any positions
Digital Noise reducer: Support
VGA(RGB): 720P/1024x768/1280x1024/1366x768@60HZ
USB2.0




C-MOUNT Lens:

Working distance: 95mm
zoom c-mount Lens
0.5X C-mount adapter
zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 180mm(L) * 50mm(DIA)
Weight: 500g



144 Bulbs Microscope LED Ring Light:

 144 bright white LED bulbs

100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm

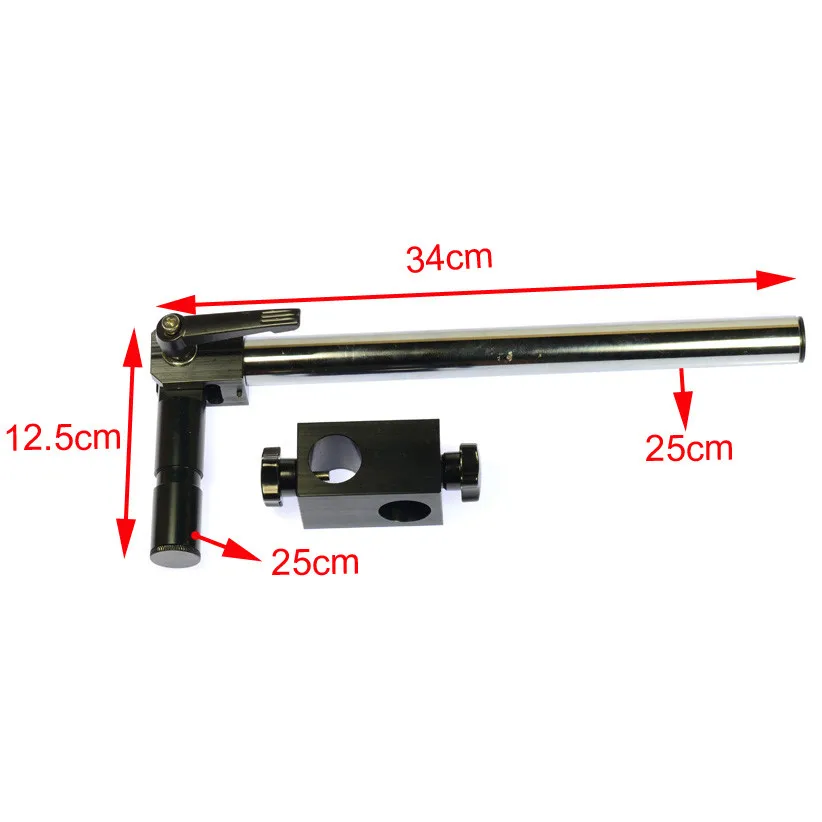

Camera Table Stand:
  Need a Sturdy Boom Stand for reduced Vibration and Optimal Versatility? This stand provides what is needed!
This stand has a dual arm system with a counterweight on the opposite end of arm to counter the weight of your microscope head. This gives more stability compared with a common type of boom stand.
The multi-axis rotation feature allows this boom stand to locate your microscope head to most any position or angle. This can be a greatly needed tool when you have a hard-to-see location such as inspecting and searching for cracks on the solder of a circuit board.
We provide the boom stand only. This is not a complete system. A microscope head with optics is needed. You provide the head. We have several types of adapters to fit a variety of microscope heads. Contact us for details about your specific requirements so we can assist with a smooth fit.
Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
Steel Gears on Focusing Holder.
Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50m
Item size: see the 5th picture
Weight: about 4kg


Package including:
1 x Industry Microscope Camera
1 x 180X C-mount Lens
1 x Big Stand Universal bracket Stand Holder
1 x 144-LED Ring Light with Power Adapter
1 x USB Cable
1 x VGA Cable
1 x Power supply(100-240V)




DSC_3886DSC_3815DSC_4797DSC_0810DSC_8412DSC_7506DSC_48481
DSC_8381
