BNC Camera >> 800TVL BNC Digital Industrial Microscope Camera 1/3 "CCD Digital Microscope Camera Support BNC Color Video Output
View Larger Image
Share your images of this product

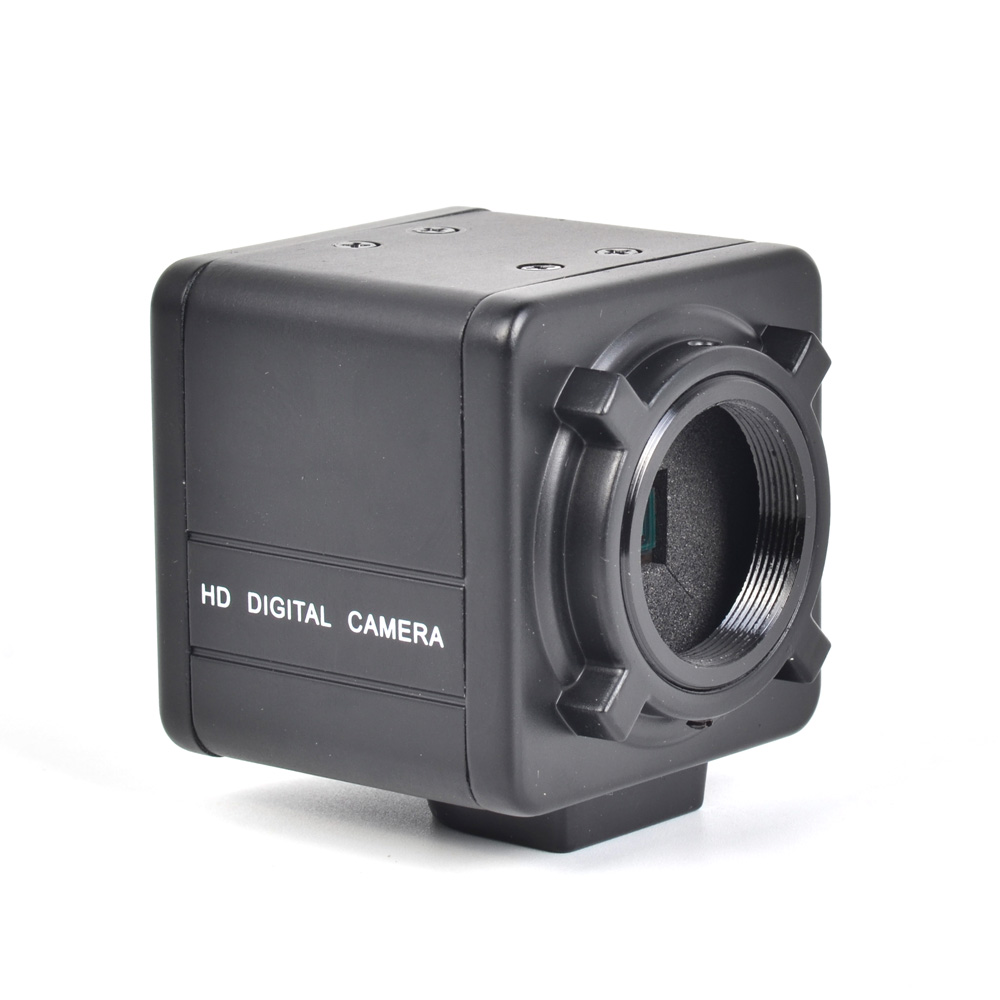

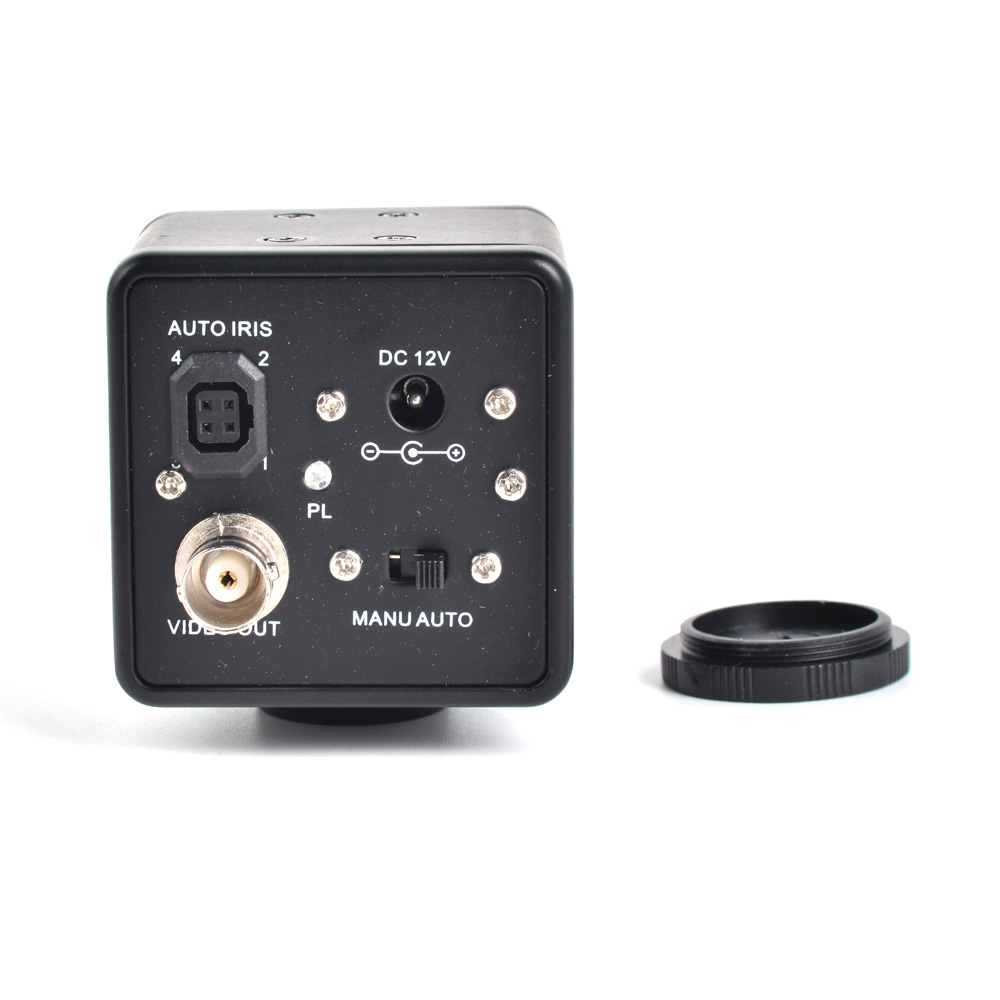

800TVL BNC Digital Industrial Microscope Camera 1/3 "CCD Digital Microscope Camera Support BNC Color Video Output
Price : US $ 37.92 49.99

SKU : 1801292756
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.

Features:

High Quality, High Resolution, Clear Images
Auto IRIS
800 Llines Definition (PAL)
With C-Mount to CS-Mount adapter
Industry CCD Camera. It can Show the live image directly on any BNC monitor or Projector.
We sell much to the industy factory, then the works can see the problems directly in the Monitor.


Specificaton:

White Balance: Auto
Color: Color
BNC Output
Power by DC 12V adapter
Size of camera body: 7cm x 5cm x 5cm
All metal shell

Sensor

1/3.5 V8330+FH8510      CMOS

System

PAL （Default）

NTSC （If need NTSC please leave a message）

Effective pixel

PAL：720（H）×576（V）

NTSC：720（H）×480（V）

illumination

0.01 LUX / F1.2

Resolution

800TVL

Scanning Frequency

50Hz                          60Hz

Gama

0.45

Electronic Shutter

1/50～1/100000s

1/60～1/100000s

S/N

>46dB

Video Output

1.0V p-p

Operation Humidity

-20 º C to  50 º C

Working Humidity

Relative humidity less than 95%

Power Consumption

DC12V (±10%)


Package include:

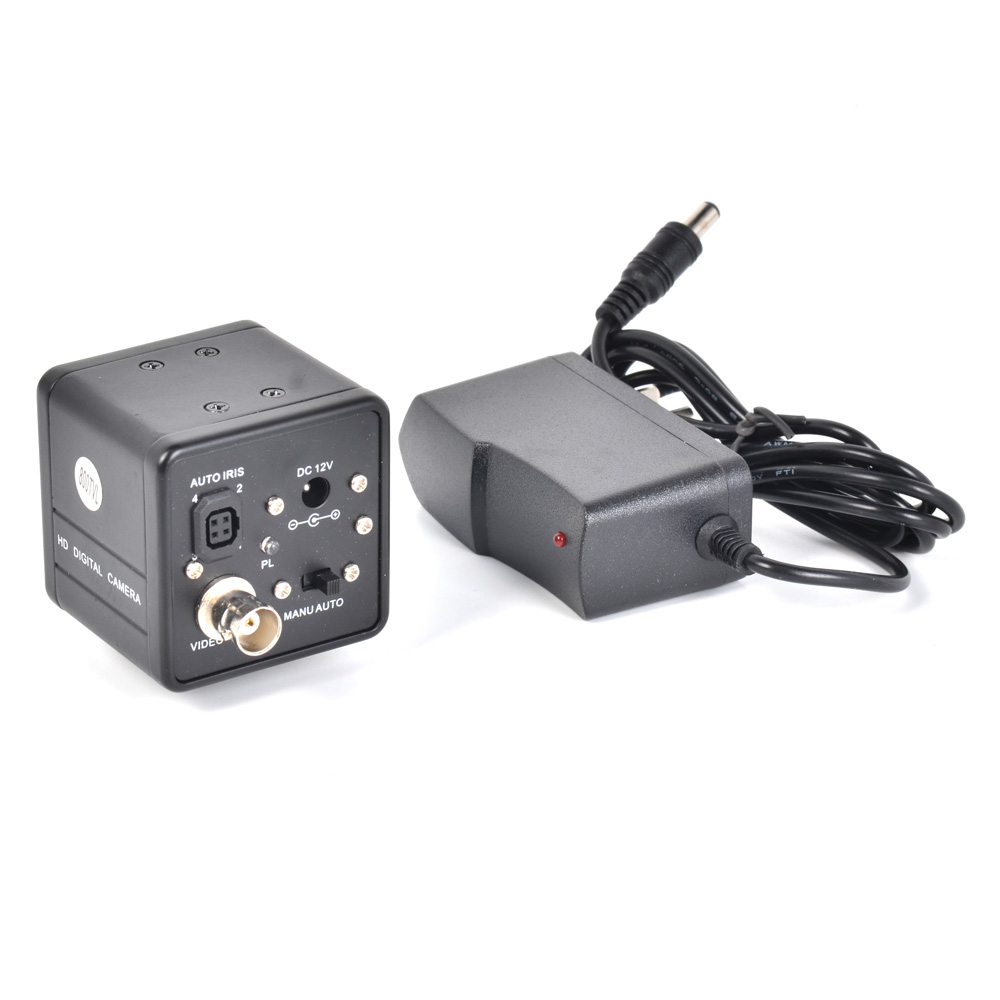

1 x Microscope Camera
1 x 100V-240V power supply for camera
