HDMI Camera >> 14MP HDMI USB Industry Microscope Camera TF Video Recorder + 180X C-mount Lens + 144 LED Light
View Larger Image
Share your images of this product


14MP HDMI USB Industry Microscope Camera TF Video Recorder + 180X C-mount Lens + 144 LED Light
Price : US $ 189.87 249.99

SKU : 1804021932
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.
Note:

For USB output, the white balance,exposure and color adjustment are automatic. They can't be adjusted.
For HDMI ouput, the functions can only be adjusted while connecting with monitor. If you connect the camera with computer, the functions also can not be adjusted.

Features:
Model: Camera with HDMI USB2.0 two output
Image format: JPG
Image resolution: 4320*3240 (for TF card) 1920*1080@60FPS(for TF card)
Video format: MOV(for TF card)
Video recorder: 1920*1080@60FPS   (for TF Card)
USB Video resolution:1920*1080 @ 30FPS
White Balance: Auto
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese
Line: different color,4 horizontal line , 4 vertical line,any positions
Specification:

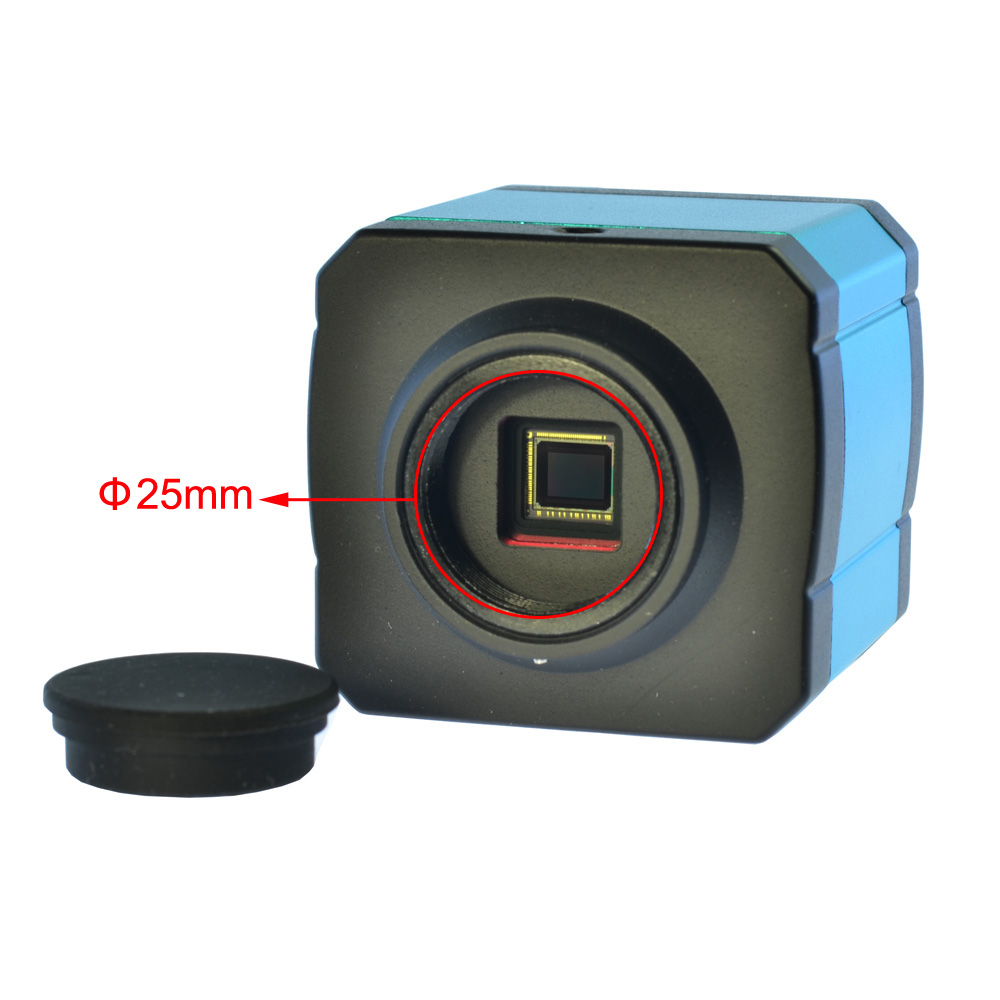

Image sensor:14 megapixel Panasonic sensor 1/2.3 inch
Effective pixel:14 megapixel
Pixel size:1.43x1.43um
Frame rate:60FPS
Definition:FULL HD
Housing:metal
Lens:CS for test, custom provide
White balance:Auto/manual
Video format: AVI
Encode: H.264 (High Profile)
Digital magnification:5 times digital zoom
Brightness control:Auto/manual
Color:R/G/B adjustable
Freeze:Support
OSD:Support
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 4 pcs of transverse lines/vertical lines, moveable
different color,4 horizontal line , 4 vertical line,any positions
SNR:Support
TF card interface:Max 32G
HDMI interface:Standard HDMI output (Type A)
Lens:C
OSD: English/Chinese/French/Spanish/Portuguese
USB interface:Standard usb2.0 interface (Type B)

C-MOUNT Lens:

Working distance: 100-150mm
zoom c-mount Lens
0.5X C-mount adapter
zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 180mm(L) * 50mm(DIA)
Weight: 450g

144 Bulbs Microscope LED Ring Light:

144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm
NOTED!!!
TF card storage is only for HDMI output. USB output will be storaged in PC.

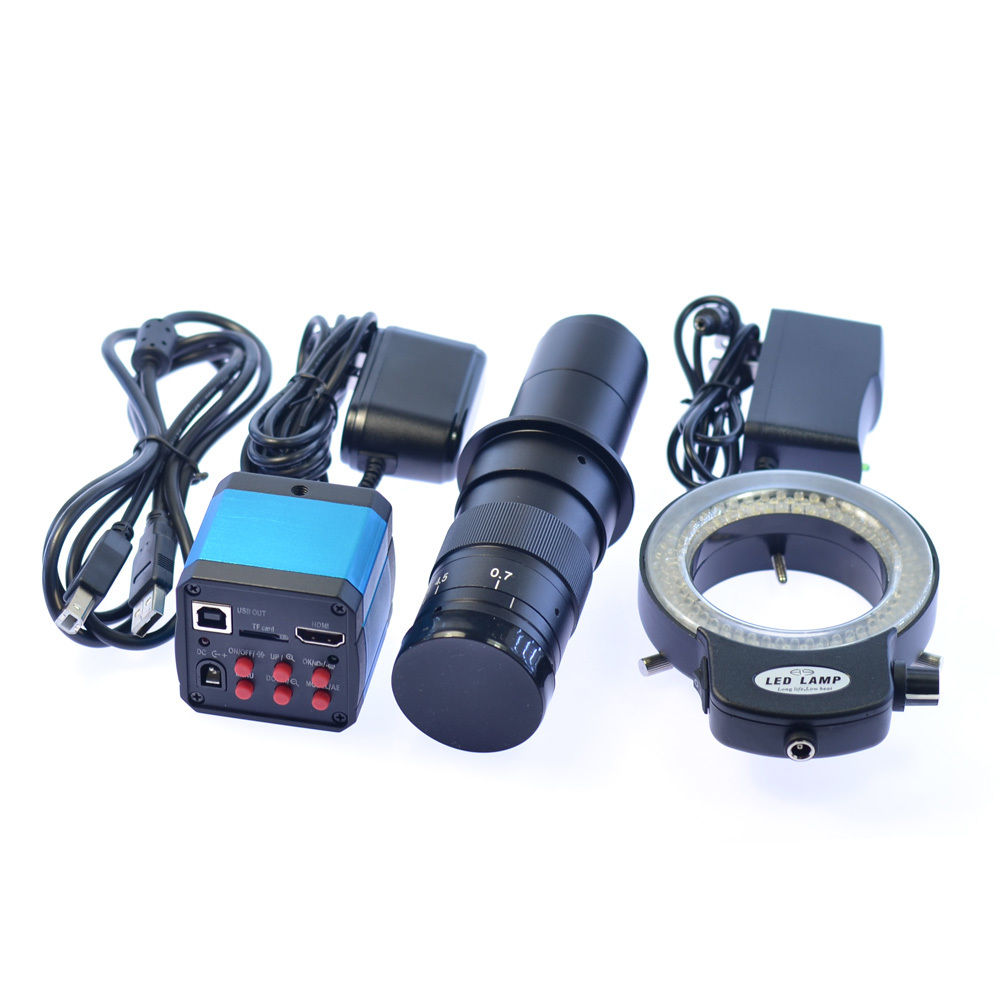

Package Content:

1 x Camera
1 x C-MOUNT Lens
2 x Power supply
1 x USB line
1 x Software DISC
1 x LED Ring light
