Note:
For USB output, the white balance,exposure and color adjustment are automatic. They can't be adjusted.
For HDMI ouput, the functions can only be adjusted while connecting
with monitor. If you connect the camera with computer, the functions
also can not be adjusted.
Feature:
|
Image sensor
|
16 megapixel Panasonic sensor 1/2.3 inch
|
|
Effective pixel
|
16 megapixel
|
|
Pixel size
|
1.43*1.43um
|
|
Frame rate
|
60FPS
|
|
Definition
|
FULL HD
|
|
Housing
|
metal
|
|
Lens
|
CS for test, custom provide
|
|
White balance
|
Auto/manual
|
|
Digital magnification
|
5 times digital zoom
|
|
Brightness control
|
Auto/manual
|
|
Color
|
R/G/B adjustable
|
|
Freeze
|
Support
|
|
OSD
|
Support
|
|
Film and record
|
Support
|
|
Cross cursor
|
Support multi-color, size adjustable
|
|
Transverse and vertical line
|
Support multi-color, 5 pcs of transverse lines/vertical lines, movable
|
|
SNR
|
Support
|
|
TF card interface
|
Max 32G
|
|
HDMI interface
|
Standard HDMI output (Type A)
|
|
Lens
|
C
|
|
USB interface
|
Standard usb2.0 interface (Type B)
|
Specification:

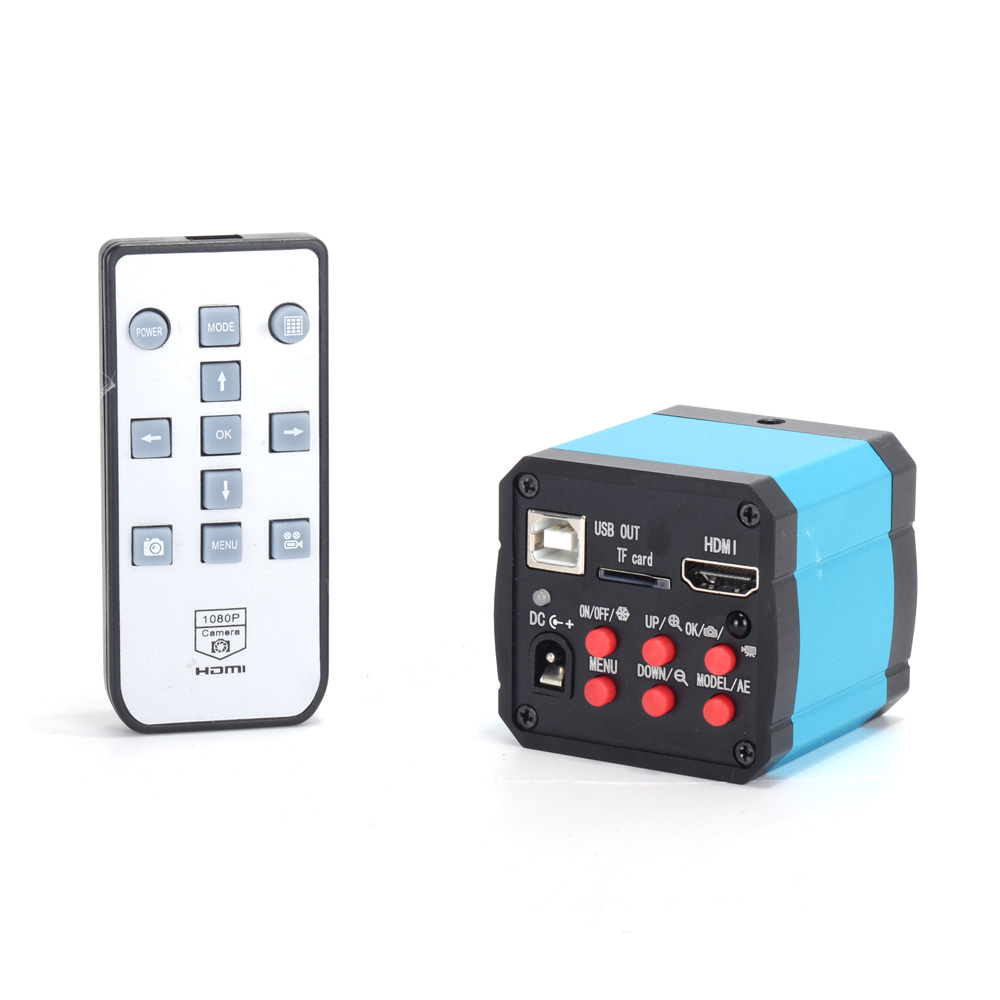

Model: Camera with HDMI USB2.0 two output
Image format: jpg,png,tiff
Image resolution: 4608*3456 (for TF card) 1920*1080@60FPS(for TF card)
Video format: MOV,MP4(for TF card)
Video recorder: 1920*1080@60FPS(for TF Card)
USB Video resolution: 1920 *1080 @ 30FPS
White Balance: Auto
Light: Auto
Color: Color
Negative: Support
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese
Line: different color,5 horizontal line , 5 vertical line,any positions
C-MOUNT Lens:
Zoom c-mount Lens
Magnification Power by 0.12 - 2X (about 8 - 100X on the display)
Work distance:55mm-130mm
Visual field :2.4mm-32mm
Size: 115mm(L) * 40mm(DIA)
Weight: 210g
The
144LED ring light is designed especially for stereo microscope, and is
an excellent companion to various kinds of microscopes and camera. It
can offer an optimum amount of lights to the microscope or camera when
additional light sources are required or there was not enough light!
Inspection and quality control is no longer a problem to view surface
defects and overcome the visibility problems related. It can also used
as light source for cameras to focus while hunting viewing in dark
places or areas.
LED Light:
144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm
NOTED!!!
TF card storage is only for HDMI output. USB output will be storaged in PC.

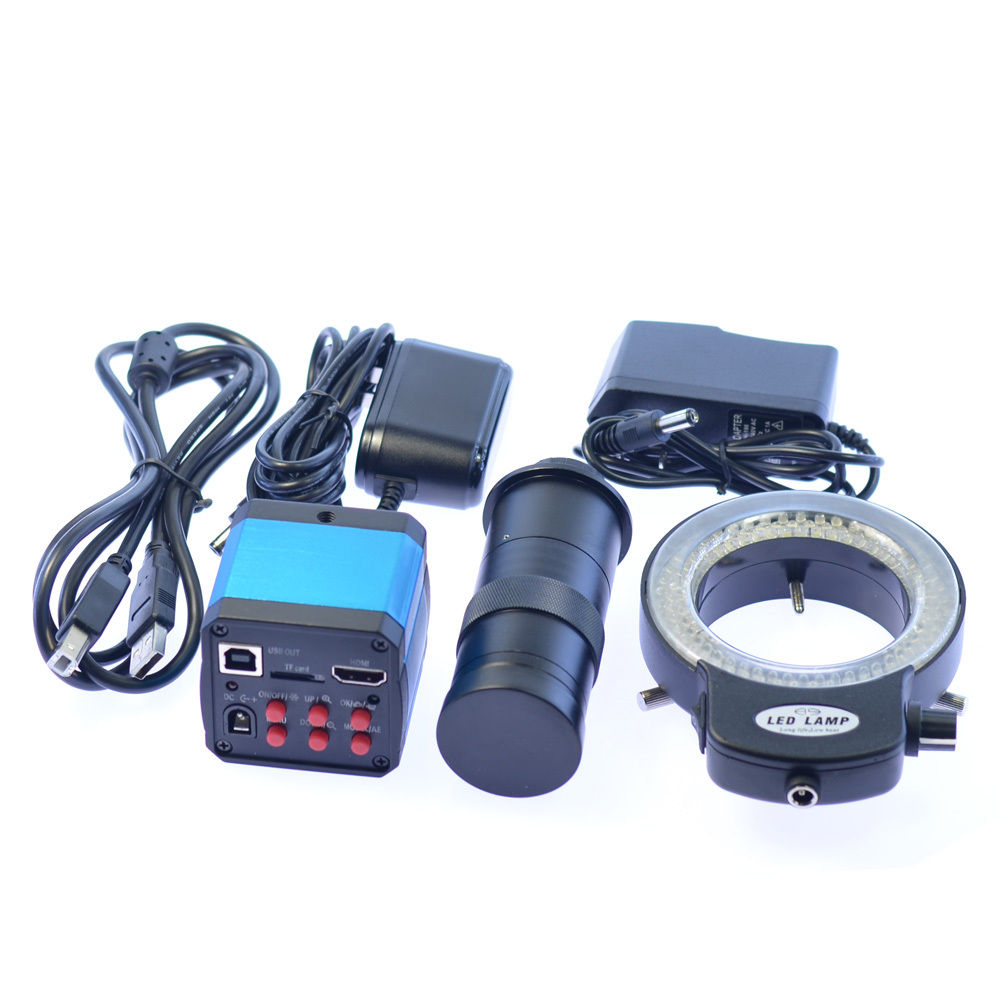

Package include:
1 x Microscope Camera
1 x 12V/1A Power supply
1 x USB line
1 x Software DISC
1 x 100X Zoom C-mount Lens
1 x LED Light with power supply
Microscope Lens
