HDMI Camera Set >> 14MP HDMI HD USB Digital Industry Video Microscope Camera Set+Big Boom Stand Universal bracket +180X C-MOUNT Lens+144 LED Light
View Larger Image
Share your images of this product


14MP HDMI HD USB Digital Industry Video Microscope Camera Set+Big Boom Stand Universal bracket +180X C-MOUNT Lens+144 LED Light
Price : US $ 258.89 358.99

SKU : 1805095219
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.


For USB output, the white balance, exposure and color adjustment are automatic. They can't be adjusted.
For HDMI output, the functions can only be adjusted while connecting with monitor. If you connect the camera with computer, the functions also can not be adjusted.


Features:

Model: Camera with HDMI USB2.0 two output
Image format: JPG
Image resolution: 4320*3240 (for TF card) 1920 *1080 @ 60FPS(for TF card)
Video format: MOV(for TF card)
Video recorder:  1920 *1080 @ 60FPS   (for TF Card)
USB Video resolution: 1920 *1080 @ 30FPS
White Balance: Auto
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese
Line: different color,5 horizontal line , 5 vertical line,any positions
Specification:
Image sensor:14 megapixel Panasonic sensor 1/2.3 inch
Effective pixel:14 megapixel
Pixel size:1.43x1.43um
Frame rate:60fps
Definition:FULL HD
Housing:metal
Lens:CS for test, custom provide
White balance:Auto/manual
Video format: AVI
Encode: H.264 (High Profile)
Digital magnification:5 times digital zoom
Brightness control:Auto/manual
Color:R/G/B adjustable
Freeze:Support
OSD:Support
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, movable
different color,5 horizontal line , 5 vertical line,any positions
SNR:Support
TF card interface:Max 64G
HDMI interface:Standard HDMI output (Type A)
Lens:C
OSD: English/Chinese/French/Spanish/Portuguese
USB interface:Standard usb2.0 interface (Type B)

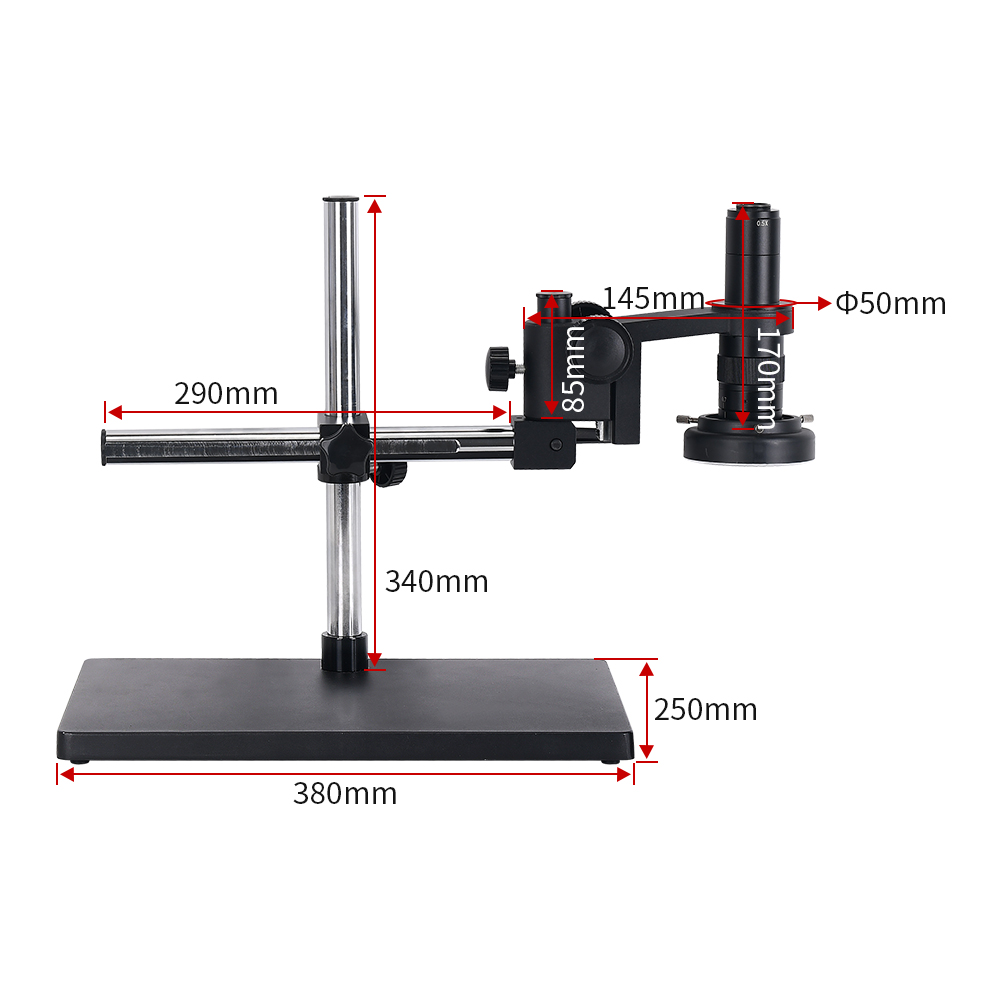

Stereo Table Stand Feature:

Need a Sturdy Boom Stand for reduced Vibration and Optimal Versatility? This stand provides what is needed!
This stand has a dual arm system with a counterweight on the opposite end of arm to counter the weight of your microscope head. This gives more stability compared with a common type of boom stand.
The multi-axis rotation feature allows this boom stand to locate your microscope head to most any position or angle. This can be a greatly needed tool when you have a hard-to-see location such as inspecting and searching for cracks on the solder of a circuit board.
We provide the boom stand only. This is not a complete system. A microscope head with optics is needed. You provide the head. We have several types of adapters to fit a variety of microscope heads. Contact us for details about your specific requirements so we can assist with a smooth fit.
Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
Steel Gears on Focusing Holder.
Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mm

Weight: 3.3kg

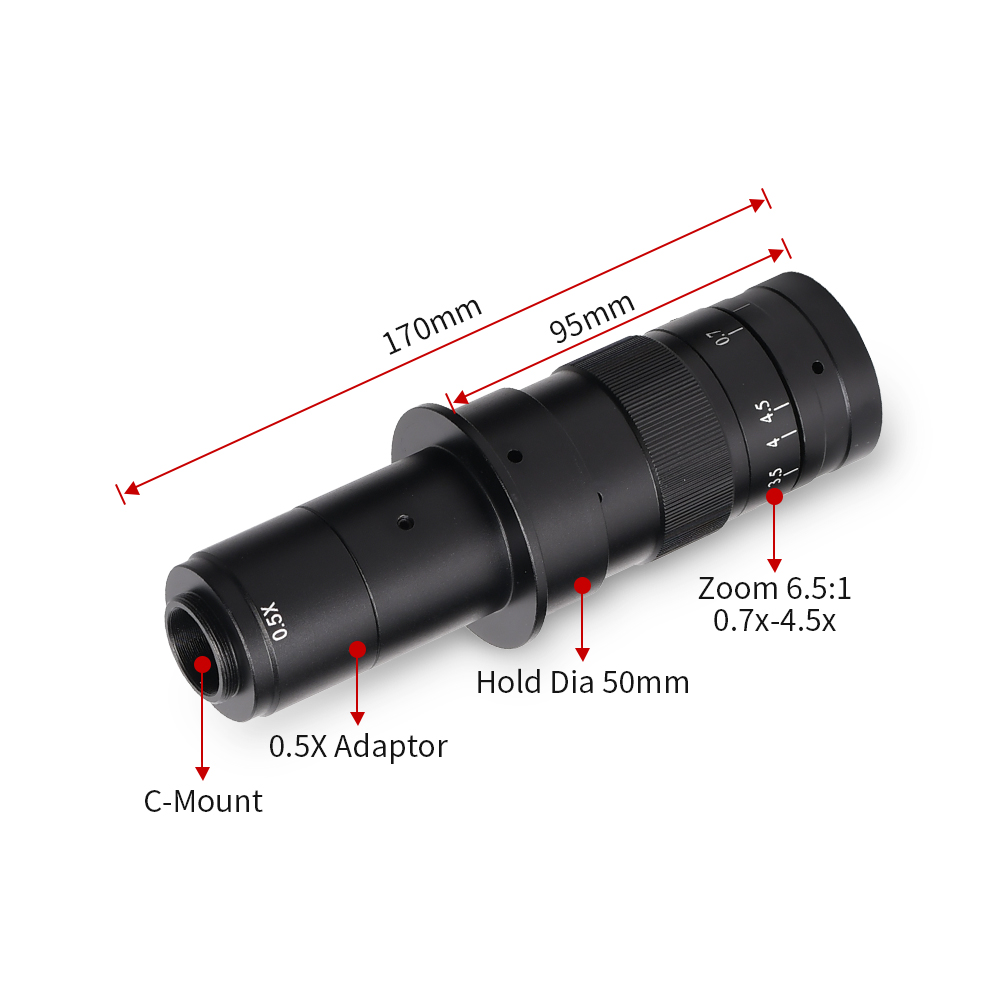

C-MOUNT Lens:

Working distance: 95- 115mm
zoom c-mount Lens
0.5X C-mount adapter
zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 180mm(L) * 50mm(DIA)

Weight: 450g


144 Bulbs Microscope LED Ring Light:

144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm
NOTED!!!

TF card storage is only for HDMI output. USB output will be storaged in PC.

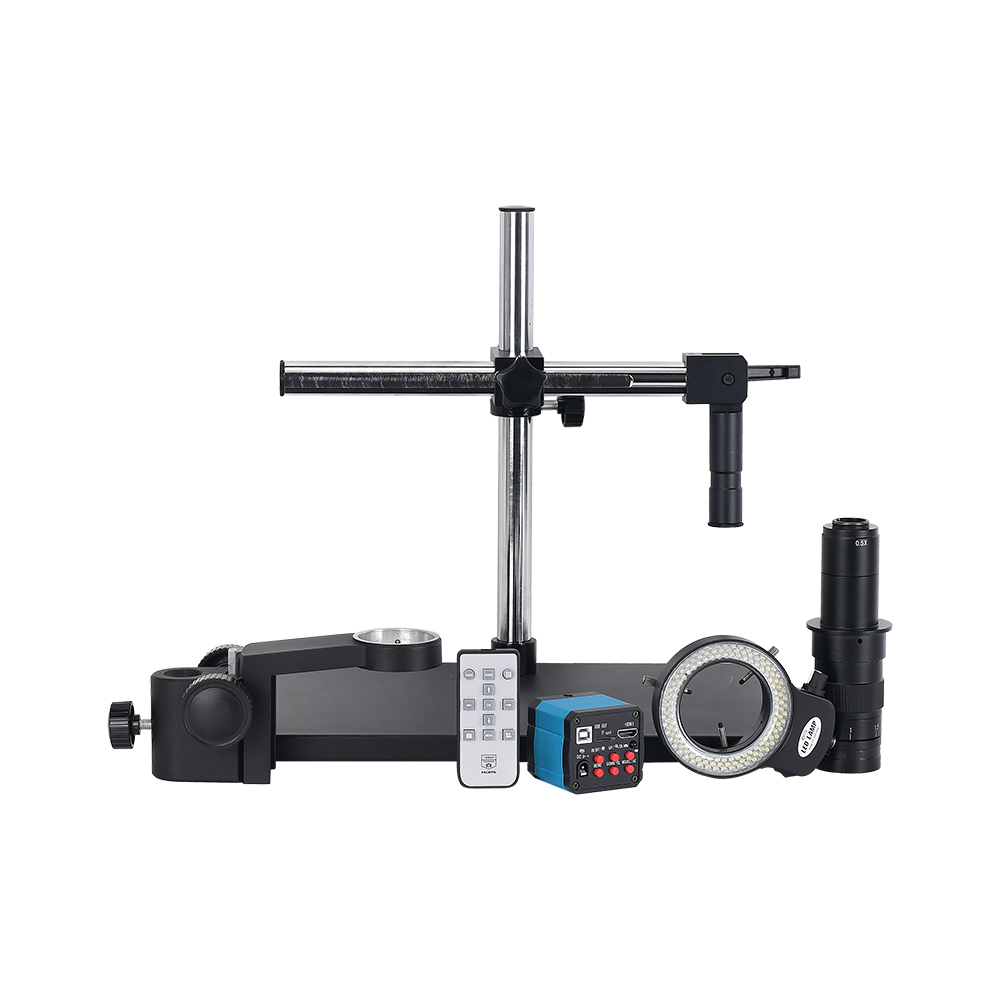

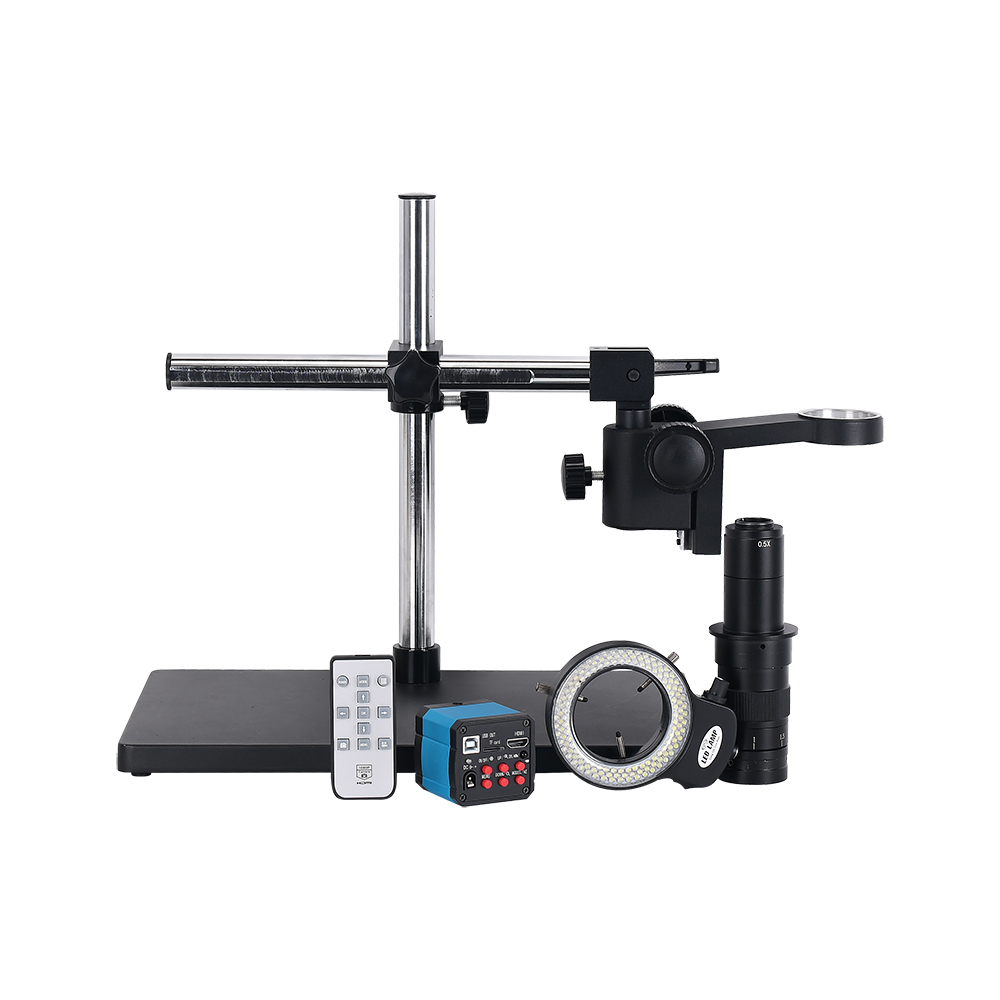

Package Content:

1 x Camera with power adapter
1 x C-MOUNT Lens
1 x USB line
1 x Software DISC
1 x LED Ring light with power adapter
1 x Digital Microscope Table Stand
