USB Camera >> 5.0MP USB2.0 CMOS Camera Industrial Digital Eyepiece Microscope Free Driver/ Measurement Software High Resolution for WIN 7/8/10 + 0.5X C Mount Eyepiece Lens + 30mm 30.5mm Adapter
View Larger Image
Share your images of this product


5.0MP USB2.0 CMOS Camera Industrial Digital Eyepiece Microscope Free Driver/ Measurement Software High Resolution for WIN 7/8/10 + 0.5X C Mount Eyepiece Lens + 30mm 30.5mm Adapter
Price : US $ 54.33 75.63

SKU : 1805255950
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.

Feature:

High Quality, High Resolution, Clear Images
Certificate:CE,FC,RoHS
Industry Cmos Camera. It can Show the live image directly on any VGA monitor or Projector.
Supply USB output ports.


Specification:

Model: USB output
Sensor: 5.0mp,1/2.5 inch
Image equipment:CMOS
Sensor: 5.0MP
Full Resolution: 2592 x 1944
Frame rate:(MJPG) 2592 x 1944@12FPS ;2048x1536@15FPS ; 1920x1080@15FPS ;1600x1200@15FPS; 1280x720@15FPS;1280x960@15FPS;1024x768@30FPS; 800x600@30FPS;640x480@30FPS
Frame rate:(YUY2) 2592 x 1944@2FPS ;2048x1536@2FPS ; 1920x1080@4FPS ;1600x1200@4FPS; 1280x720@4FPS;1280x960@4FPS;1024x768@6FPS; 800x600@15FPS;640x480@30FPS
Pixel size: 2.2μmm x 2.2μm

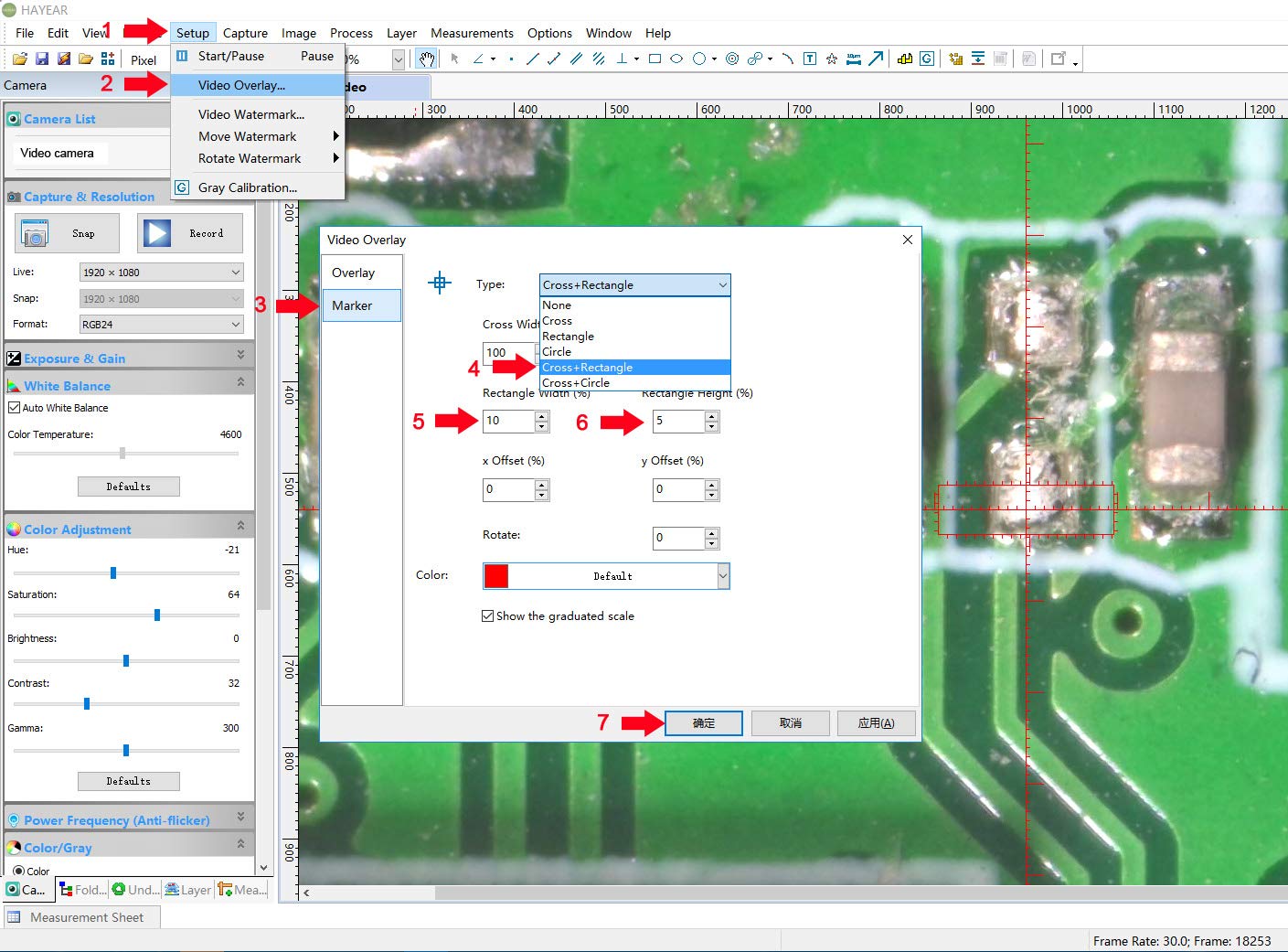

Support interface: DirectShow,TWAIN,SDK,Redistributable
Programmable control:The size of the image, image photographing, exposure time, gain, GAMMA,
White Balance: Auto
Data output:16bit
Light: Auto
Electronic shutter:20-100000
White balance (dB):38.1 dB,
Color: Color
Sensitivity: 1.4V/lux-sec@550nm
Spectral response:400nm~1000nm



Description of the adapters:


Material: Metal

C-mount threads:  32TPI-UN-2A
Built-in 0.5X reduction lens

This 0.5X C-mount adpater is for  microscope .

It can be used in all eyepiece position with 23.2mm or 30mm or 30.5mm.


Of course, it can be used in phototube and trinocular tube  with 23.2mm or 30mm or 30.5mm.


Package include:

1 x 5.0MP Microscope Camera
1 x USB line
1 x Software DISC

1 x 0.5x lens

1 x 30.0mm adapter
1 x 30.5mm adapter





产品应用范围:广泛适用于微电子、模具、精密机械、珠宝、钟表、饰品、指纹鉴别、票证识伪、印刷、手机维修、考古、生物解剖、学校示教等领域。尤为适宜观察大件物体表面微观结构 。


USB5.0 新





5.mp  双目显微镜


5.mp  双目显微镜3

5.mp  双目显微镜2

HTB1CKKlLpXXXXbLXFXXq6xXFXXX7_

1400万  双目 效果图
