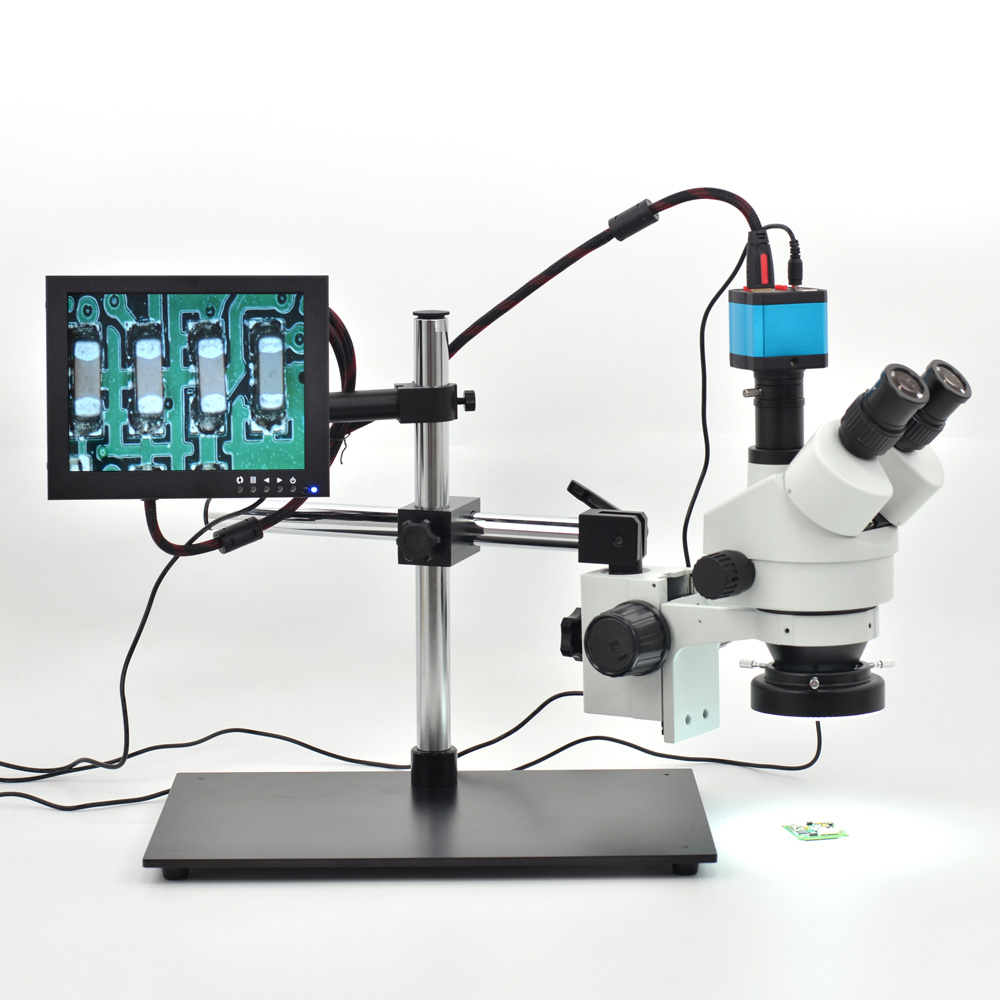

7X-45X Table Pillar Stand Zoom Magnification Binocular Stereo Microscope Inspect PCB + 14MP Microscope Camera + 8'' LCD Monitor
Price : US $ 599.99 779.99

SKU : 1806263044
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.
Noting:

For USB output, the white balance, exposure and color adjustment are automatic. They can't be adjusted.
For HDMI ouput, the functions can only be adjusted while connecting with monitor. If you connect the camera with computer, the functions also can not be adjusted.



 This stereo microscope has a 144-LED ring light that offers super widefield optics and 7X-45X zoom magnification power with a cool light illumination system. It is an ideal instrument for industrial inspection and/or biological lab applications. This microscope is perfect for gemologists, manufacturing engineers, dental lab technicians, and anyone in electronic and semiconductor industries.



Stereo Feature:

An excellent stereo inspection microscope with intensity-adjustable 144-LED ring light
7x-45x super wide zoom magnification power
Bright cool light 144-LED illumination system
High resolution with great flatness and contrast, giving sharp and clear images
Binocular head with 45 degree inclined 360 degree swiveling eye tubes
Sharp stereo erect images with a wide field of view
Crystal clear original true color microscope images
Dual eye tubes with adjustable diopters
Large working distance
Sturdy all-metal table stand
Accurate alignment reduces eye strain for longer periods of viewing
Full optical glass elements
Precise ground glass lenses
Full metal chrome-plated mechanical components
Adjustable interpupillary distance
Rubber eye-guards included


Specification:

Head: 360 degree rotatable 45 degree inclined binocular
Eyepieces: 30mm super widefield high-eyepoint WF10X/20MM
Objective Zoom Range: 0.35X-9.0X, using the Barlow lenses
Working Distance: 4" (100mm)
Diopter Adjustment: +/- 5dp
Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
Round Plate: 3-3/4" (95mm) in diameter
Stand: 375mm x 245mm x 340mm
Illumination: 144-LED Ring Light
Power Input: 110-240V, 50-60HZ, Automatic Switching
Accessories: Paired eye-caps
Weight: 5.5kg


144 Bulbs Microscope LED Ring Light:

144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm



Microscope Camera:

Model: Camera with HDMI USB2.0 two output
Image format: JPG
Image resolution: 4320*3240 (for TF card) 1920 *1080 @ 60FPS(for TF card)
Video format: MP4
Video recorder: 1920 *1080 @ 60fps (for TF Card)
USB Video resolution: 1920 *1080 @ 30FPS
White Balance: Auto
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese

Effective pixel:14 megapixel
Pixel size:1.43x1.43um
Definition:FULL HD
Housing:metal
Lens:CS for test, custom provide
White balance:Auto/manual
Video format: MP4
Encode: H.264 (High Profile)
Digital magnification:5 times digital zoom
Brightness control:Auto/manual
Color:R/G/B adjustable
Freeze:Support
OSD:Support
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, moveable
different color,5 horizontal line , 5 vertical line,any positions
SNR:Support
TF card interface:Max 64G
HDMI interface:Standard HDMI output (Type A)
Lens:C
OSD: English/Chinese/French/Spanish/Portuguese
USB interface:Standard usb2.0 interface (Type B)


NOTED!!!
TF card storage is only for HDMI output. USB output will be storaged in PC.




8" HDMI TFT LCD Color Monitor:


8 inch (1024 x 768) high resolution TFT LCD monitor
Clear image and colorful display
Support BNC input for professional security system,which can reduce signal interference to achieved a best signal state
Multi video input supported (RCA, VGA, BNC)
Support 15-pin VGA input , connect with PC (1024*768)
Suitable for CCTV monitor, PC monitor or indoor use
Built-in high quality speakers
Auto standy function with timer switch and no signal
Screen Size : 8"
Screen Resolution : 1024 x 768 pixels
Aspect Ratio : 4 : 3
Screen Brightness : 400 cd/m2
Screen Contrast : 400 : 1
Viewing Angle : 160° (H) x 160° (V)
Response Time : <= 12ms
Video Input : HDMI, AV-in, VGA, BNC
Power Supply - Input: AC 100~240V, 50~60Hz (worldwide voltage) - Output: DC 12V, 400mA
Dimensions : - approx. 195 (W) x 160 (H) x 32 (D) mm



Package Including:

1 x Binocular Stereo Zoom Head
1 x Pair of Super Widefield 10X Eyepieces
1 x Microscope Camera with Power Supply
1 x 144-LED Ring Light with Adapter (12V)
1 x 8'' LCD Monitor
1 x Big Table Stand
1 x Focusing Rack
1 x C-mount Adapter

DSC_7824DSC_7829

DSC_8806DSC_7833DSC_7899DSC_7851



DSC_1086

DSC_5033


DSC_7506
