Noting

For BGA or PCB welding repair purpose, please consider this set of microscope. It can provide longer operation distance for welding the PCB.

It is high fps, no lag off!

This is no a zooming camera, only magnifier the image by adjusting the focus of lens and the working distance to get a clear image. For tiny PCB component weldering, please consider the zooming lens camera kit.

The sample PCB is 38 x 38 mm size. Please take a reference. thank you.

Features:

High Quality, High Resolution, Clear Images

Auto IRIS

800 lines Definition (PAL)

With C-Mount to CS-Mount adapter

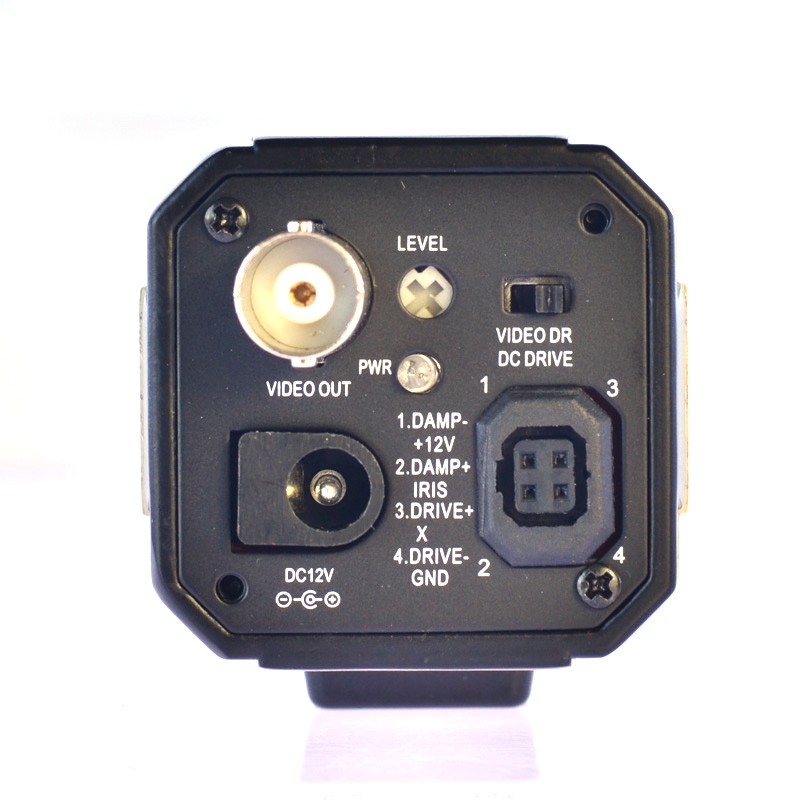

Industry CCD Camera. It can Show the live image directly on any BNC monitor or Projector.

Also it can use as CCTV Camera with zoom lens & auto iris.

Specification:

Sensor: CCD,1/3 inch

Full Resolution: 537pixels x 597pixels

800(TVL) lines Definition

White Balance: Auto

Color: Color

BNC Output

Power by DC 12V adapter

Size of camera body: 6cm x 5cm x 5cm

color: Gold

All metal shell

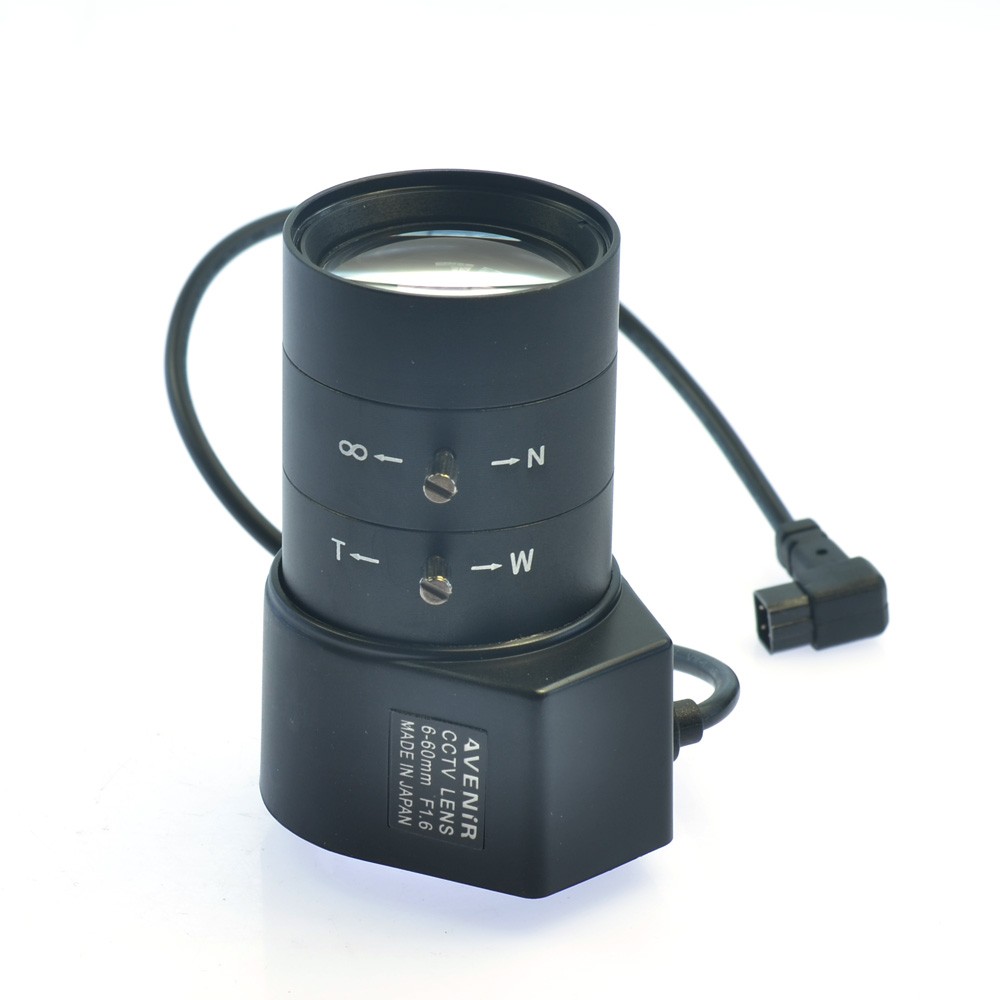

Varifocal Lens:

Auto Iris

Model: f6-60mm, DC

Aperture: F1.6

Mount: CS

Image format: 1/3 inch

F.O.V (deg): -

Mini Object Distance: 2cm

Max Object Distance: 30-50 cm

Cable connection of lens: Direct Drive Tye & Video Drive Type

7 inch TFT Color LCD Car Rear View Camera Monitor

Display Screen:

Screen Size: 7 inch

Display Component: Color TFT LCD

Screen ratio 16:9/4:3 adjustable

Resolution: 800 x 480 Pixels

Contrast Ratio: 100:1

Housing Material: ABS

Video Frequency: PAL/NTSC

Power supply: DC 12V

Working Temperature:

Work: 0 to 80 degrees C

Storage: -10 to 80 degrees C

Product Dimensions(L x W x D): 193 x 135 x 25mm

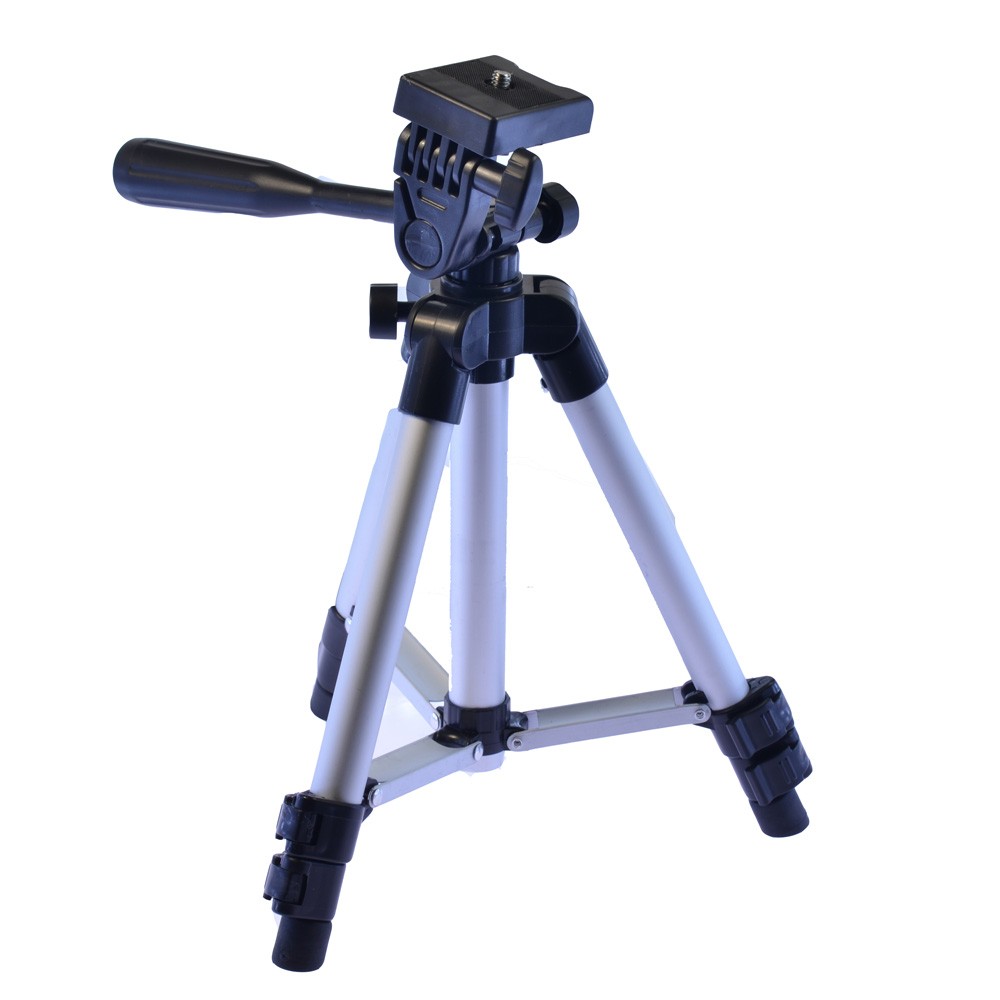

Camera Stand:

Material: aluminum & plastics

Stand Height: 27cm

Max Height: 61cm

Package include:

1 x 800TVL BNC Microscope Camera Body

1 x 6-60 mm zoom lens

1 x 12 1A power supply

1 x 1 to 2 way power cable

1 x camera stand

1 x 7 inch LCD monitor

1 x monitor stand
