USB Camera >> 5.0MP USB HD C-MOUNT Digital Industrial Microscope Camera +180X Zoom C-Mount Lens+144 LED Lights
View Larger Image
Share your images of this product

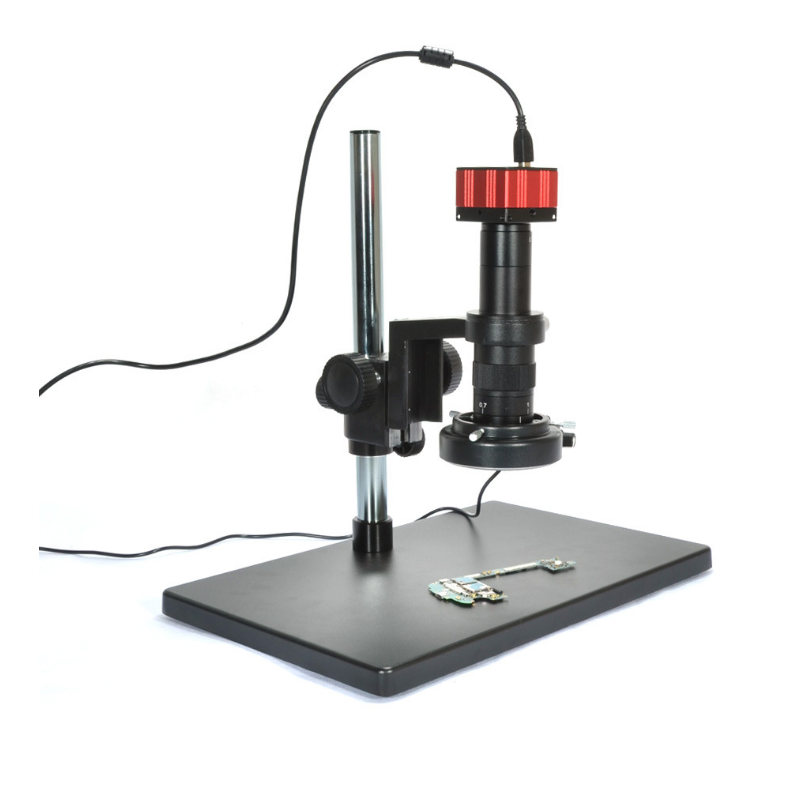

5.0MP USB HD C-MOUNT Digital Industrial Microscope Camera +180X Zoom C-Mount Lens+144 LED Lights
Price : US $ 228.00 268.00

SKU : 1810105808
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.

5.0MP Microscope Camera:

Model: USB output
Sensor: 5.0mp,1/2.5 inch
Image equipment: CMOS
Sensor: 5.0MP
Full Resolution: 2592 x 1944
Frame rate: 14fps @ 2592 x 1944 ; 124fps @640 x 480
Pixel size: 2.2μmm x 2.2μm
Support interface: DirectShow, TWAIN, SDK, Redistributable
Programmable control: The size of the image, image photographing, exposure time, gain, GAMMA,
White Balance: Auto
Data output:16bit
Light: Auto
Electronic shutter:20-100000
White balance (dB):38.1 dB,
Color: Color
Sensitivity: 1.4V/lux-sec@550nm
Spectral response:400nm~1000nm

Noting: the camera can only compatible with windows system.



C-Mount Lens:

Working distance: 95mm
zoom c-mount Lens
0.5X C-mount adapter
zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 168mm(L) * 50mm(DIA)
Weight: 500g

144 LED Lights :

144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm


Tabel Stand:

Easy Large-Size Focusing Knods on both sides of Focusing Holder.

Steel Gears on Focusing Holder

Standard Size Focusing Holder: will fit scope head with diameter of 50mm.

Weight: 2.7kg



Package Including:

1 X 5.0mp camera

1 X usb line

1 X C-Mount lens

1 X 144 led lights with power supply

1 X table stand
