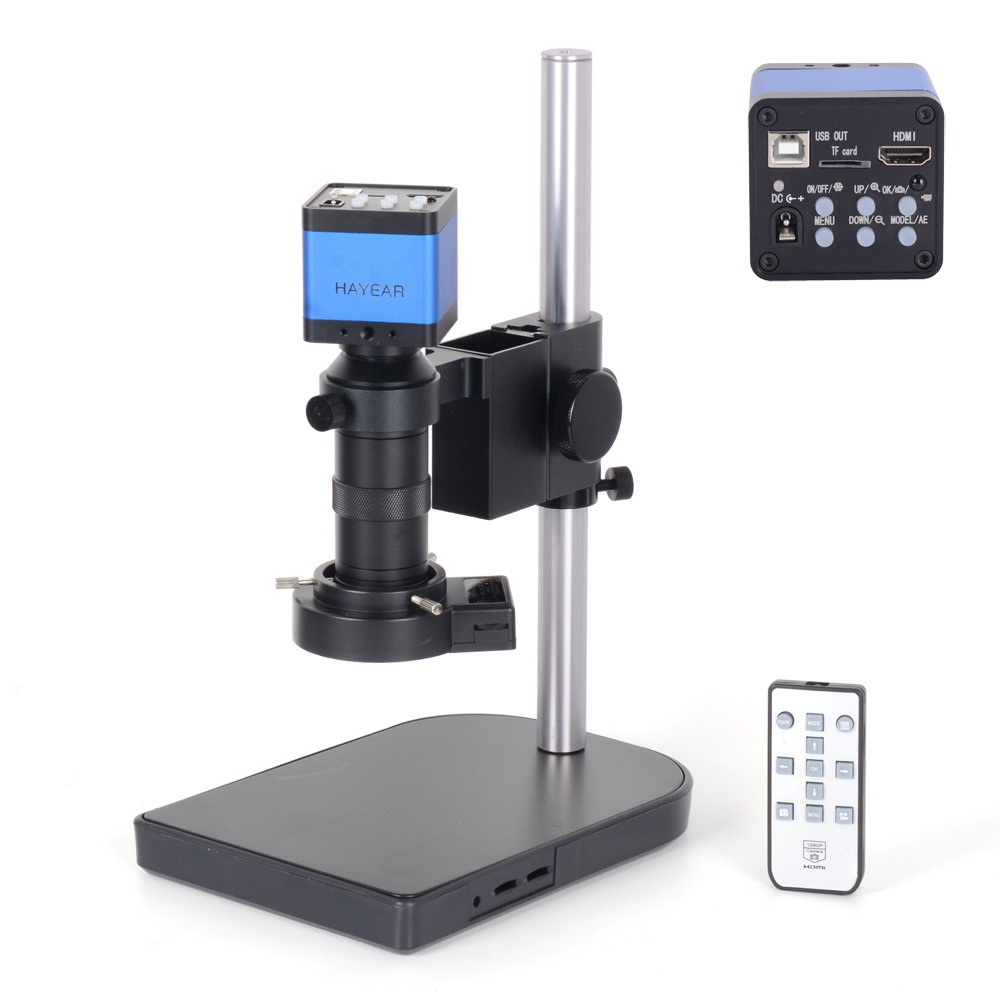

HAYEAR 16MP Full HD 1080P 60FPS HDMI USB Output Industry Microscope Video Camera 100X C-Mount Lens Video Recorder 40 LED Ring Light
Price : US $ 188.32 298.68
SKU : 1811025122
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.

Noting:1:PC Support : Windows XP/7/8/10 system

2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.


Model: Camera with HDMI USB2.0 two output
Image format: jpg
Image resolution: 4608*3456 (for TF card)
Video format: MP4
Video recorder: 1920*1080 @ 60FPS (for TF Card)
USB Video resolution: 1920*1080 @ 30FPS
White Balance: Support
Light: Auto
Color: Color
Negative: Support
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese/French/Russian/Italian/Japanese/German/Arabic
Line: different color,5 horizontal line , 5 vertical line,any positions

Image sensor:16MP CMOS sensor 1/2.3''
Effective pixel:16 megapixel
Pixel size:1.43x1.43um
Frame rate:60fps
Definition:FULL HD
Video format: MP4
Digital magnification:5 times digital zoom
Brightness control:Auto/manual
Film and record:Support

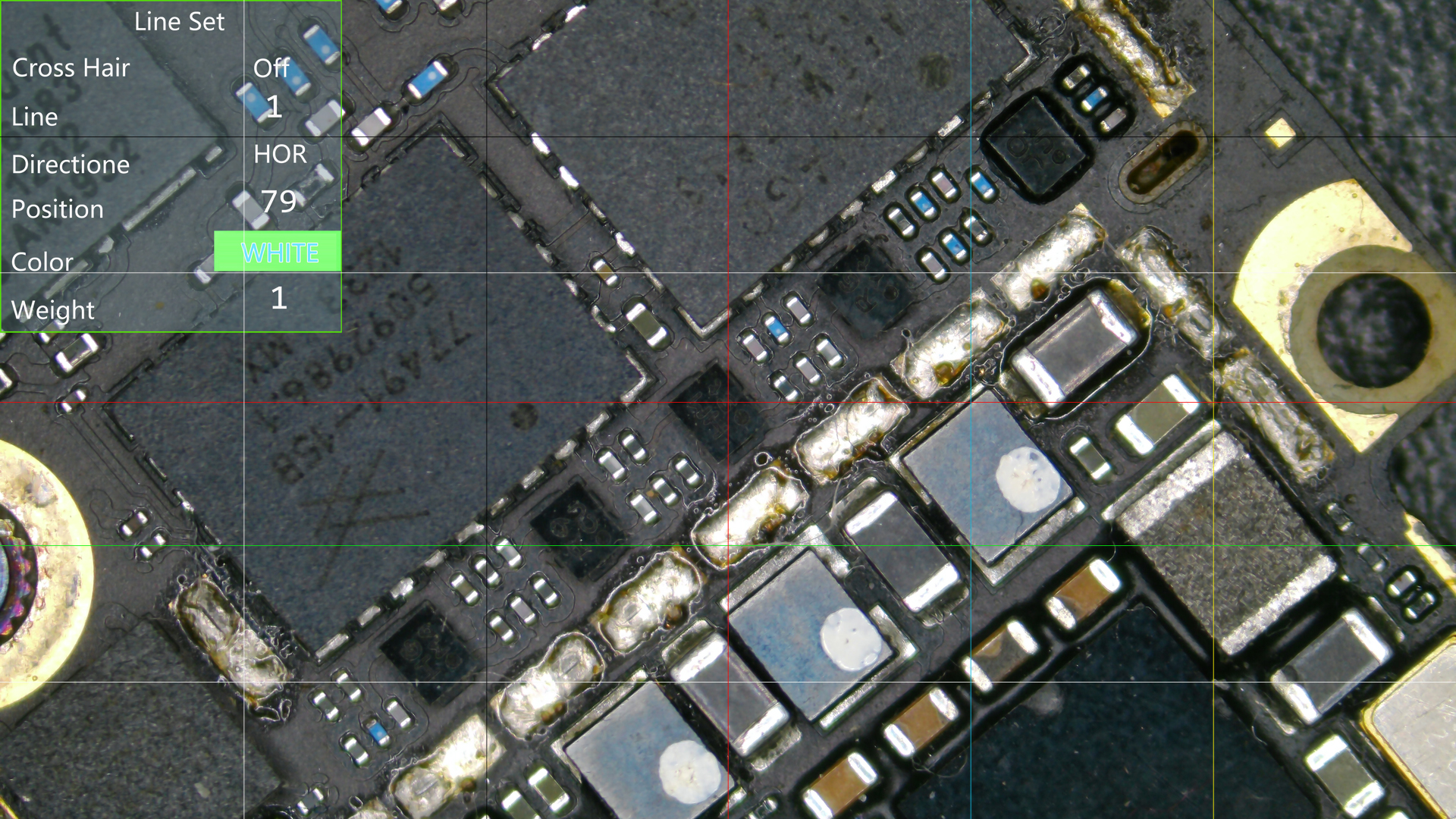

Cross cursor:Support multi-color, size adjustable
Transverse and vertical line: Support multi-color, 5 pcs of transverse lines/vertical lines, movable
Different color,5 horizontal line , 5 vertical line,any positions
Lens: C or CS
TF card interface:Max 64G
HDMI interface:Standard HDMI output (Type A)
USB interface:Standard usb2.0 interface (Type B)

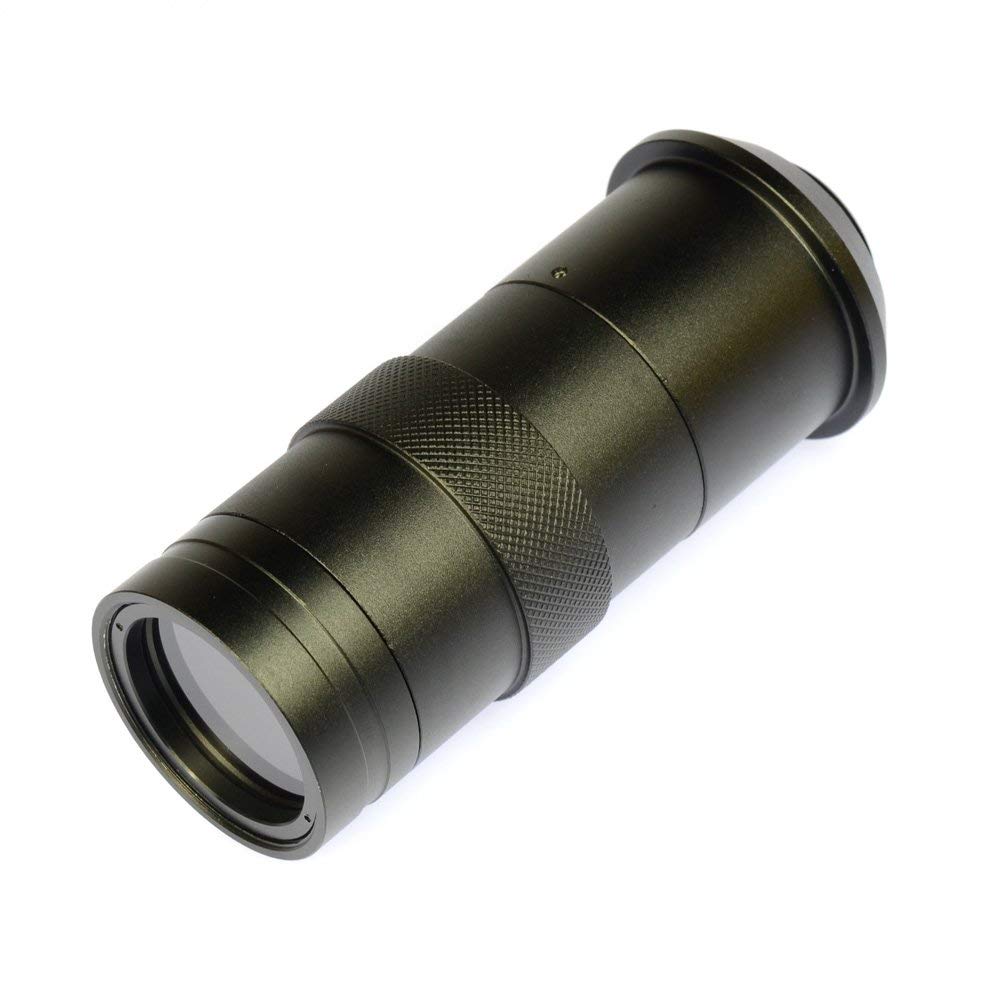

Zoom c-mount Lens

Magnification Power by 0.12 - 2X (about 8 - 100X on the display)

Work distance:55mm-200mm

Visual field :2.4mm-32mm

Size: 115mm(L) * 40mm(DIA)

40 bright white LED bulbs ,6W, Adjust Bright

100,000 hours of life

Intense and focused shadow-free illumination

Variable intensity control

Power input: 100-240V, 50-60HZ, auto switching

with Female thread M28*0.75

Suit for the dia of the lens: 16mm-46mm

Package Including:

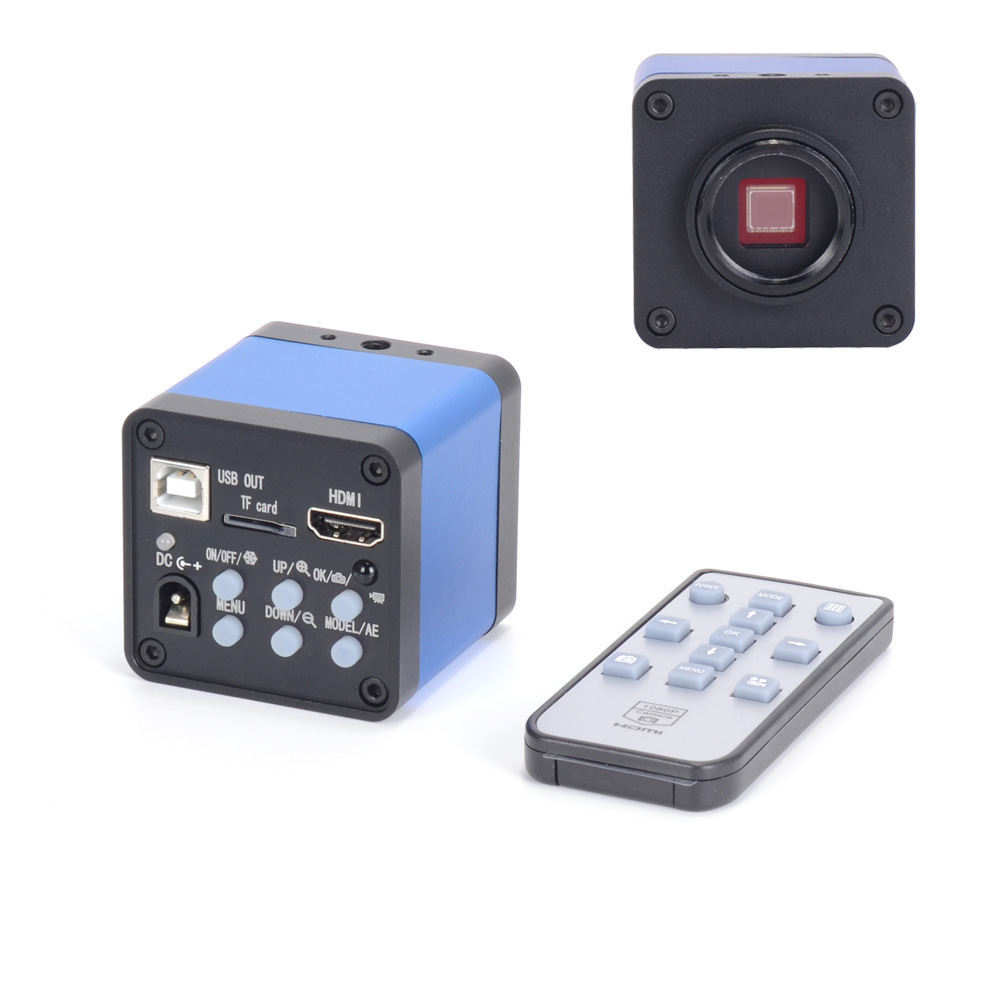

1 x Camera

1 x power supply

1 x USB line

1 x Software DISC

1 x Zoom C-mount Lens

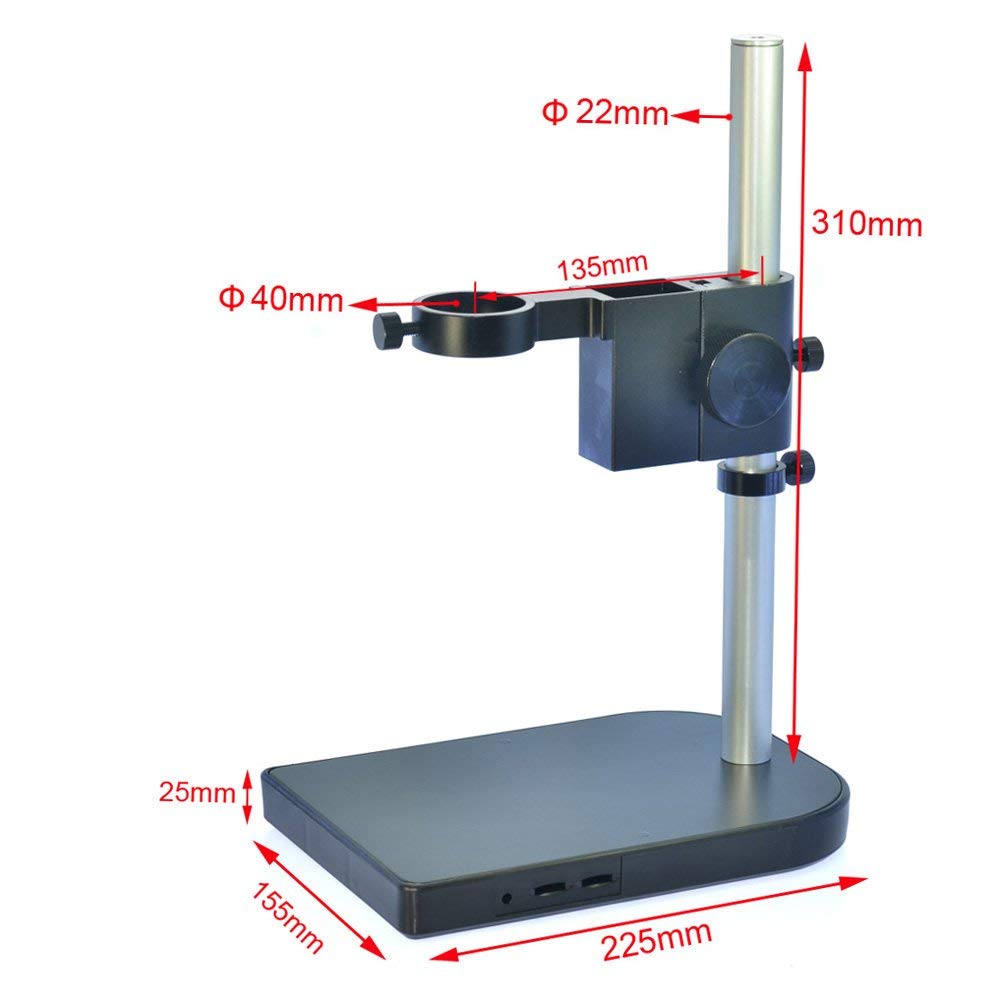

1 x Camera Stand

1 x 40-LED Ring Light with Power Adapter
