HDMI Camera Set >> Full Set 16MP Industrial Microscope Camera HDMI USB Outputs with 150X C-mount Lens
View Larger Image
Share your images of this product


Full Set 16MP Industrial Microscope Camera HDMI USB Outputs with 150X C-mount Lens
Price : US $ 218.42 258.32

SKU : 1811055058
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.

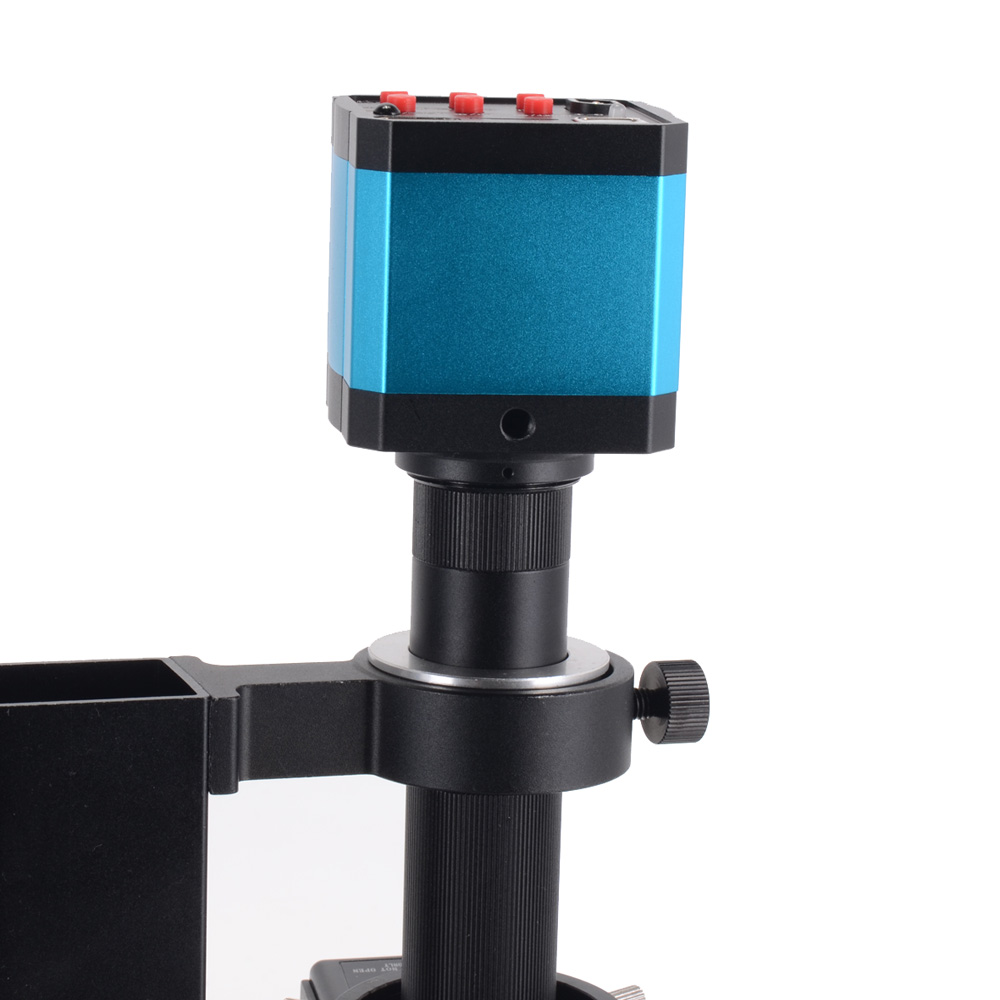

Microscope Camera:

Model: Camera with HDMI USB2.0 two output
Image format: jpg
Image resolution: 4608*3456 (for TF card)  1920*1080@60FPS(for TF card)
Video format: MOV(for TF card)
Video recorder:  1920*1080@60FPS (for TF Card)
USB Video resolution: 1920*1080 @ 30FPS
White Balance: Auto
Light: Auto
Color: Color
Negative: Support
Morror: Left/right, Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Portuguese
Line: different color,5 horizontal line , 5 vertical line, any positions

Specification:
Image sensor:16 megapixel Panasonic sensor 1/2.3 inch
Effective pixel:16 megapixel
Pixel size:1.43x1.43um
Frame rate:60FPS
Definition: FULL HD
Housing: metal
Lens: CS for test, custom provide
Video format: MP4, AVI
Encode: H.264 (High Profile)
Digital magnification:5 times digital zoom
Brightness control: Auto/manual
Color: R/G/B adjustable
Film and record: Support
Cross cursor: Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, movable
Different color,5 horizontal line , 5 vertical
line, any positions
SNR: Support
TF card interface: Max 32G
HDMI interface: Standard HDMI output (Type A)
Lens: C
USB interface: Standard usb2.0 interface (Type B)



C-mount Lens:

zoom c-mount lens

zoom ratio: 5:1

magnification: 0.11X-2X ( about 5X-150X on the 21 inch display)

visual field: 3.1mm-66mm

working distance: 55mm—680mm



40 LED light:

 40 bright white LED bulbs ,6W, Adjust Bright

100,000 hours of life

Intense and focused shadow-free illumination

Variable intensity control

Power input: 100-240V, 50-60HZ, auto switching

with Female thread M28*0.75

Suit for the dia of the lens: 16mm-46mm

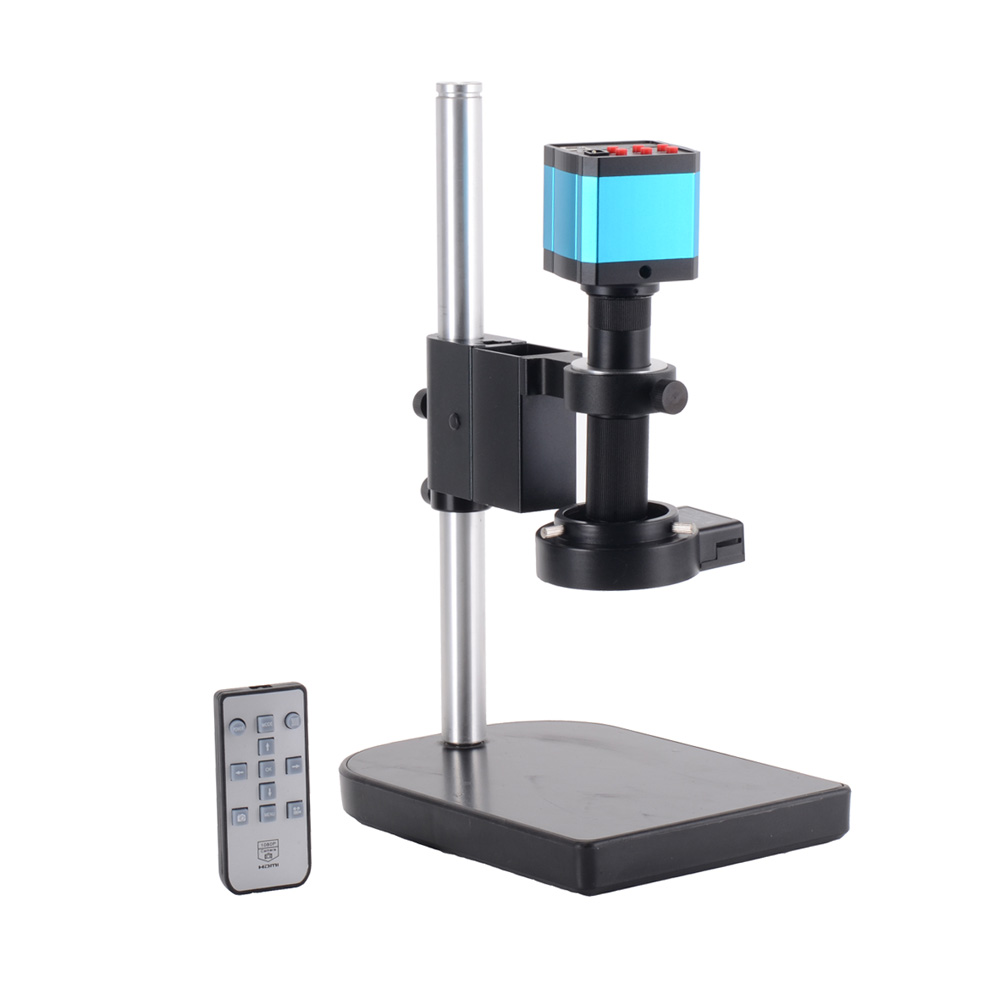

Package including:

1 x HDMI microscope camera

1 x 12V power supply

1 x remote control

1 x USB line

1 x 150 zoom c-mount lens

1 x camera stand

1 x 40 led light with power supply
