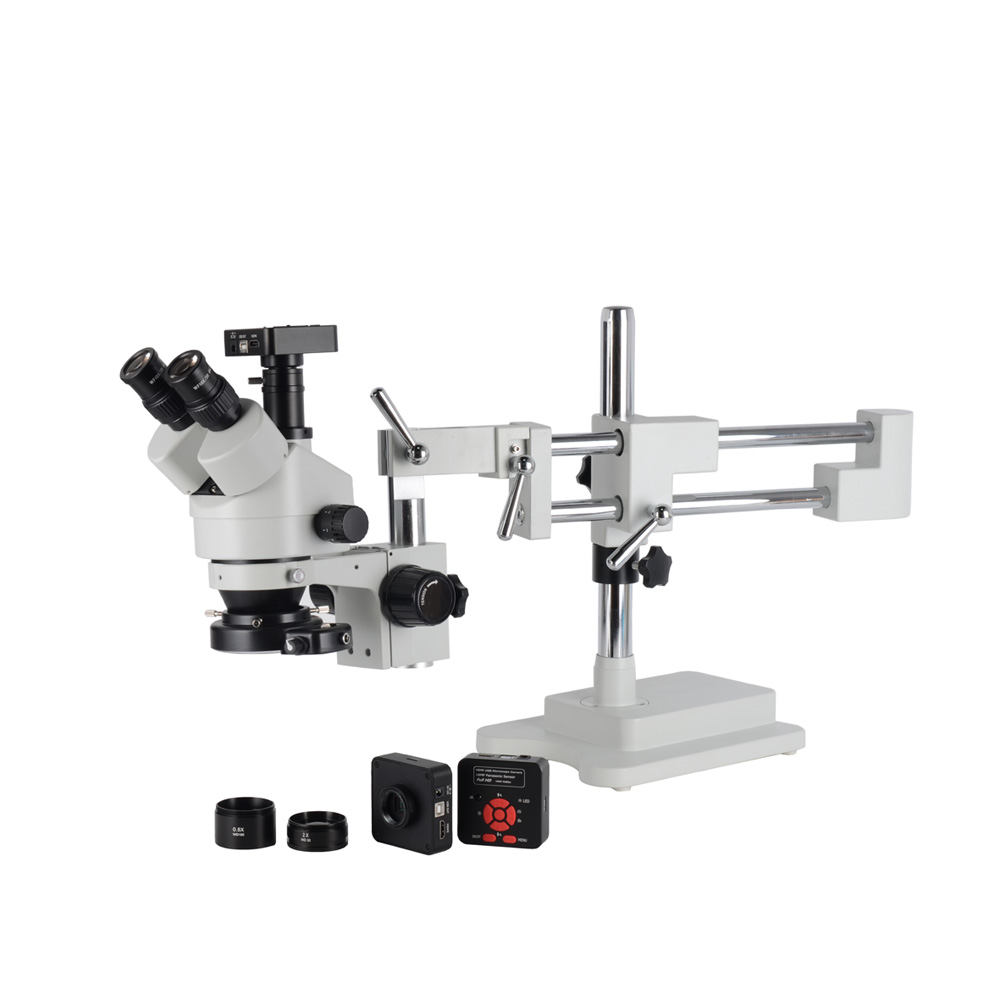

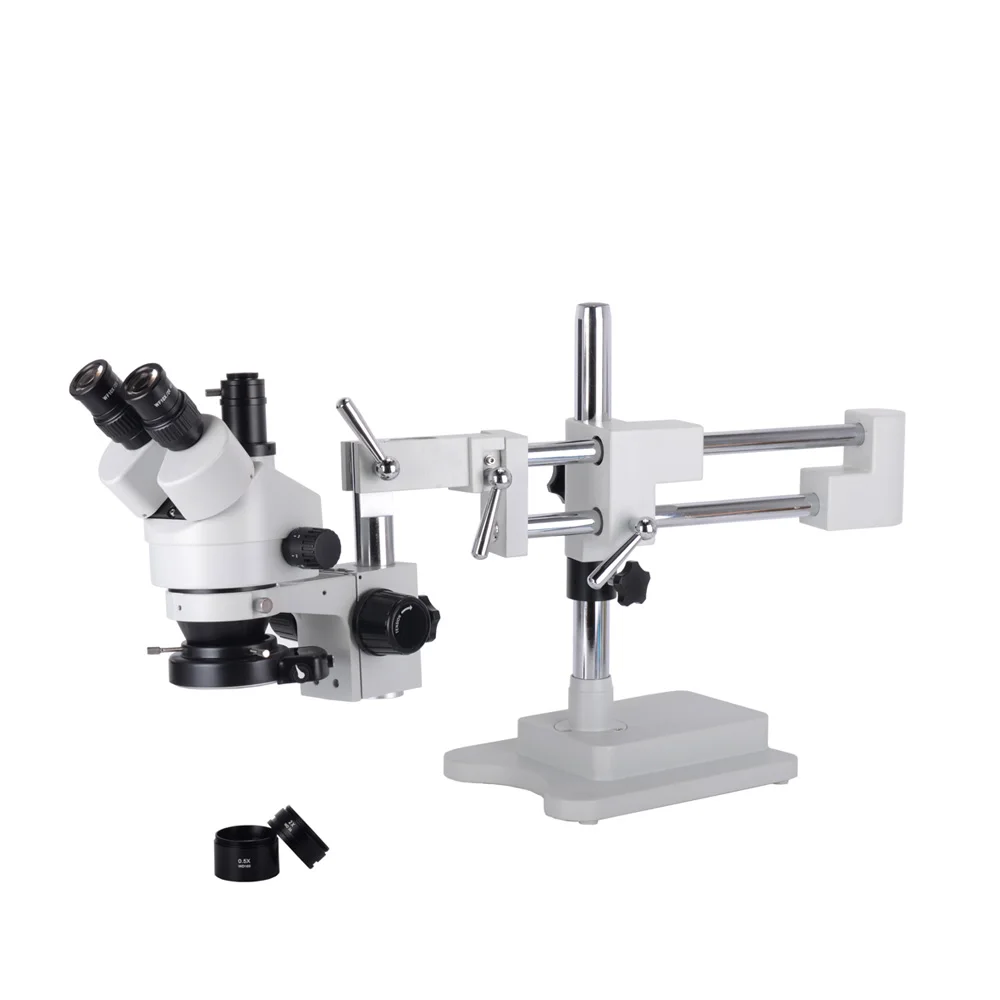

HD 16MP HDMI Industry Microscope Camera 3.5X-90X Simul-Focal Microscope Double Boom Stand Trinocular Stereo Zoom
Price : US $ 622.41 898.87
SKU : 1811055114
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.


3.5X-90X Extremely Large Zoom Magnification Power

Simul-Focal Optical System Allows Simultaneous Observation Through Both the Eyepieces and the Trinocular Port
Have well-focused, clear images on your PC or video Screen AND through the microscope eyepieces at the same time.

No need to switch between the trinocular port and the eyepiece

No need to re-focus the microscope after each "switch"

Trinocular Design for High Quality Photo, USB PC and CCD Video Imaging

Upright Tube for USB Digital Camera, Video Camcorder or CCD Camera

High Resolution with Great Flatness and Contrast

Erect Stereo Sharp Images Over a SUPER Widefield of View

Accurate Alignment Ensuring Fatigue-Free Long Time Viewing

Crystal Clear Original True Color Images

45° Inclined Trinocular Head with SUPER Widefield High-Eyepoint Eyepieces

30mm SUPER Widefield Eyepieces (see the difference in the above picture)

Both Ocular-Tubes with Adjustable Diopter

Adjustable Interpupillary Distance

Full Optical Glass Elements

Precise Ground Glass Lenses

8" (200mm) Extremely Large Working Distance

Versatile Boom Stand Covering Large Working Area

Double-Arm Design for 3-Degree Freedom

Able to Place Microscope Head Toward to Any Direction

Heavy-Duty Cast Steel Stand Finished with Stain Resistant Enamel

Rugged Solid Cast Steel Base

30mm SUPER Widefield Eyepieces Included

0.5X and 2.0X Barlow Objective Lens Included

Rubber Eye-Guards Included


Head: 45° inclined 360° swiveling trinocular

Eyepiece: 30mm super widefield high-eyepoint WF10X/20

Auxiliary Objective Lens: 0.5X & 2.0X

Objective: 0.35-9.0X

Zoom Range: 26:1

Diopter Adjustment: ±5dp

Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)

Field of View: 2-1/2" (65mm) in diameter

Working Distance: 8" (200mm)

Boom Stand: 20" double-arm (overall length: 30"), 17" high pillar, 10-1/4"x8-1/4"x2-0" solid cast steel base

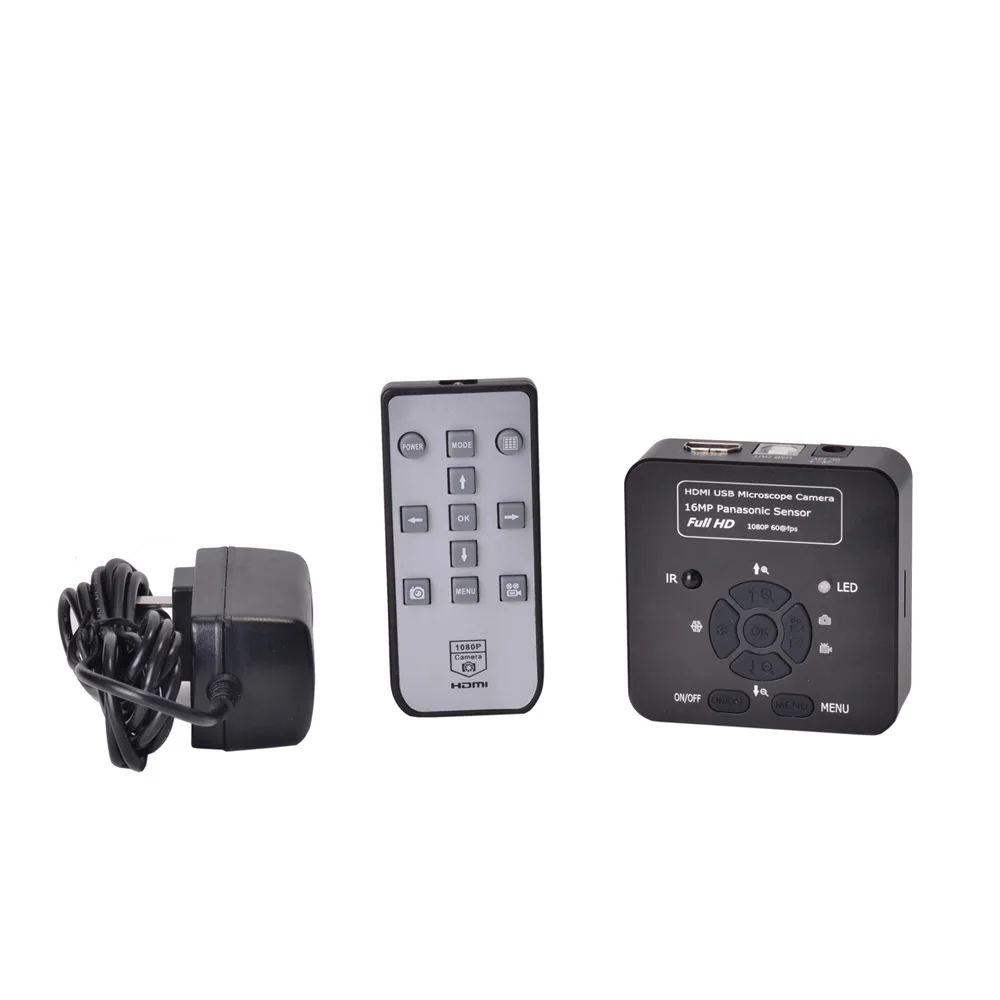

Camera Features:

Model: Camera with HDMI USB2.0 two output

Image format: jpg

Image resolution: 4608*3456 (for TF card) 1920*1080 @ 60FPS(for TF card)

Video format: MP4(for TF card)

Video recorder: 1920*1080 @ 60FPS (for TF Card)

HDMI Video resolution: 1920*1080 @ 60FPS

USB Video resolution: 1920*1080 1280*720 640*480 320*240 @ 30FPS

White Balance: Auto/Manual

Light: Auto/Manual

Exposure: Auto/Manual, value adjustable

Color: Color

Morror: Left/right,Up/Down

Freeze: Support

OSD: English/Chinese/French/Spanish/Japanese/German

Line: different color,5 horizontal line , 5 vertical line,any positions

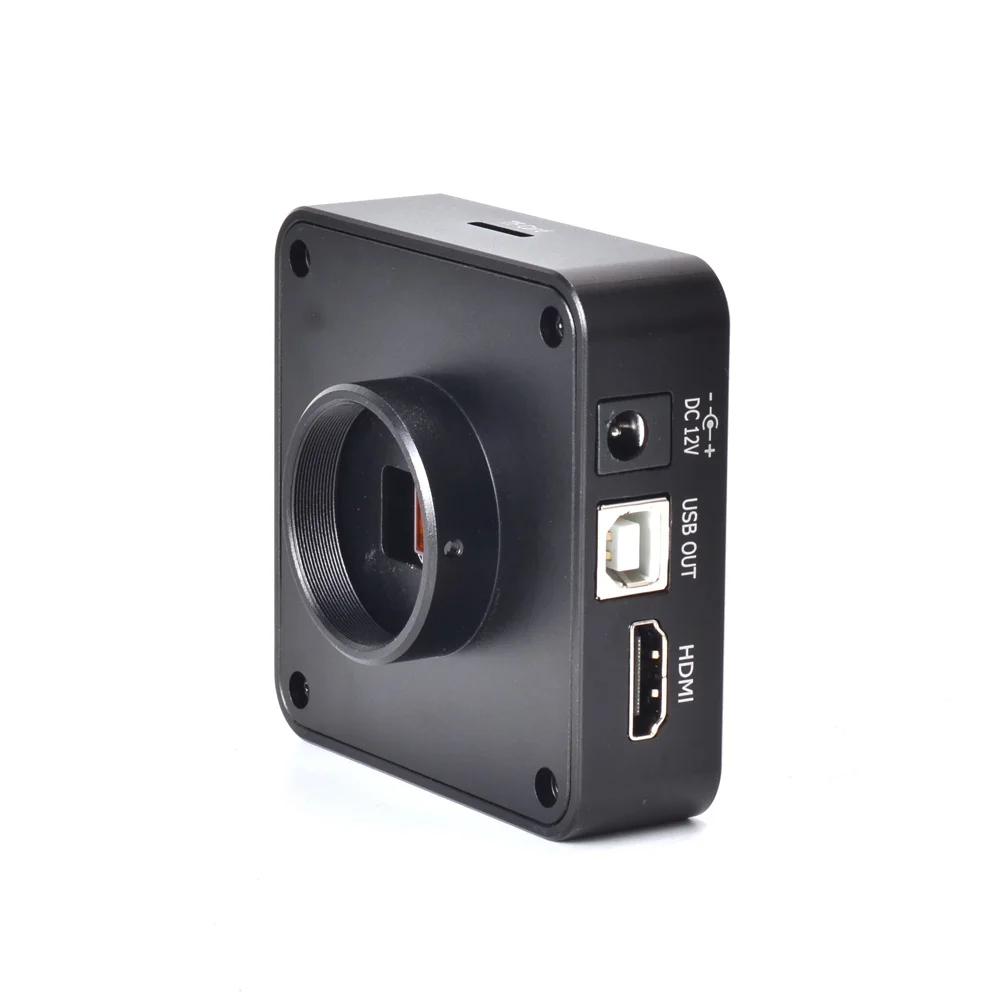

Camera Specification:

Image sensor:16 megapixel Panasonic CMOS sensor 1/2.33 inch

Effective pixel:16 megapixel

Pixel size:1.335μm × 1.335μm

Frame rate:60fps

Definition:FULL HD



Video format: MOV

Digital Zoom:Support

Brightness control:Auto/manual

Color:R/G/B adjustable

Film and record:Support

Cross cursor:Support multi-color, size adjustable

Transverse and vertical line:

Support multi-color, 5 pcs of transverse lines/vertical lines, movable

Different color,5 horizontal line , 5 vertical line,any positions

TF card interface:Max 64G

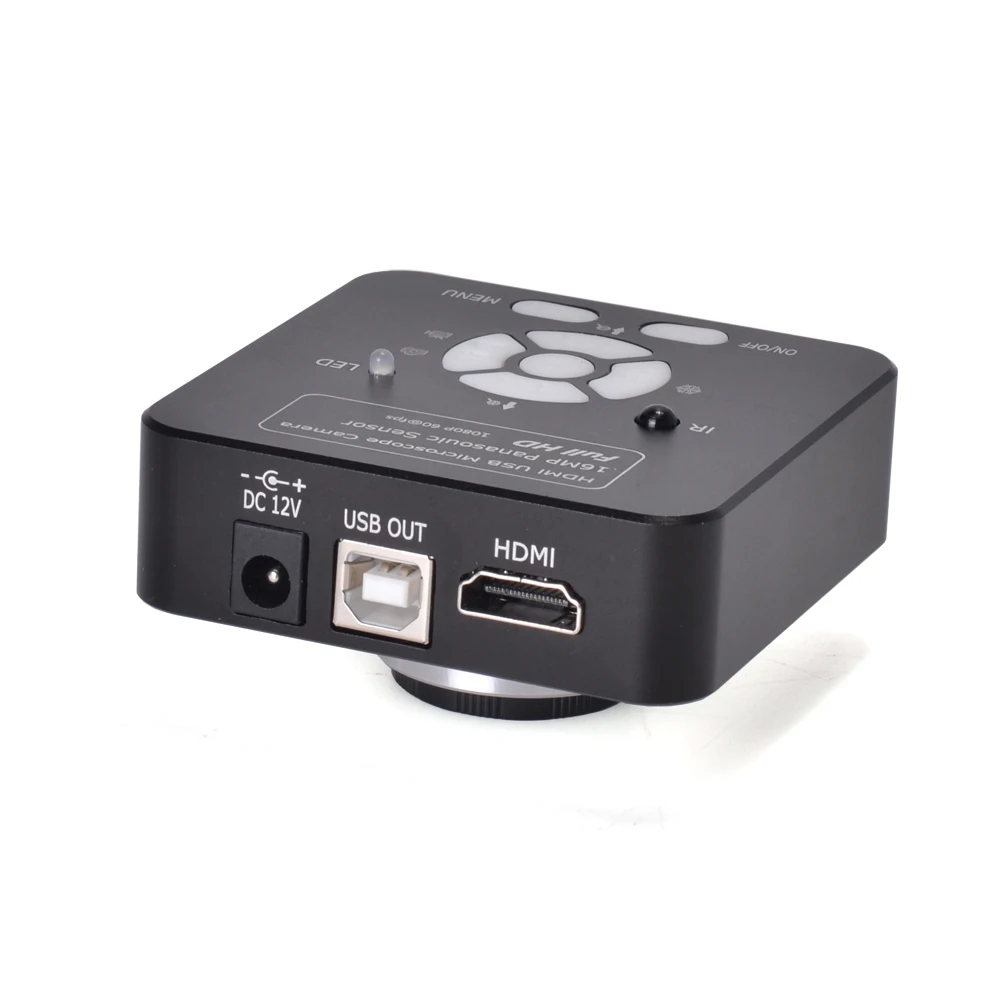

HDMI interface:Standard HDMI output (Type A)

USB interface:Standard usb2.0 interface (Type B)

Input Voltage: DC 12V



Package Including:

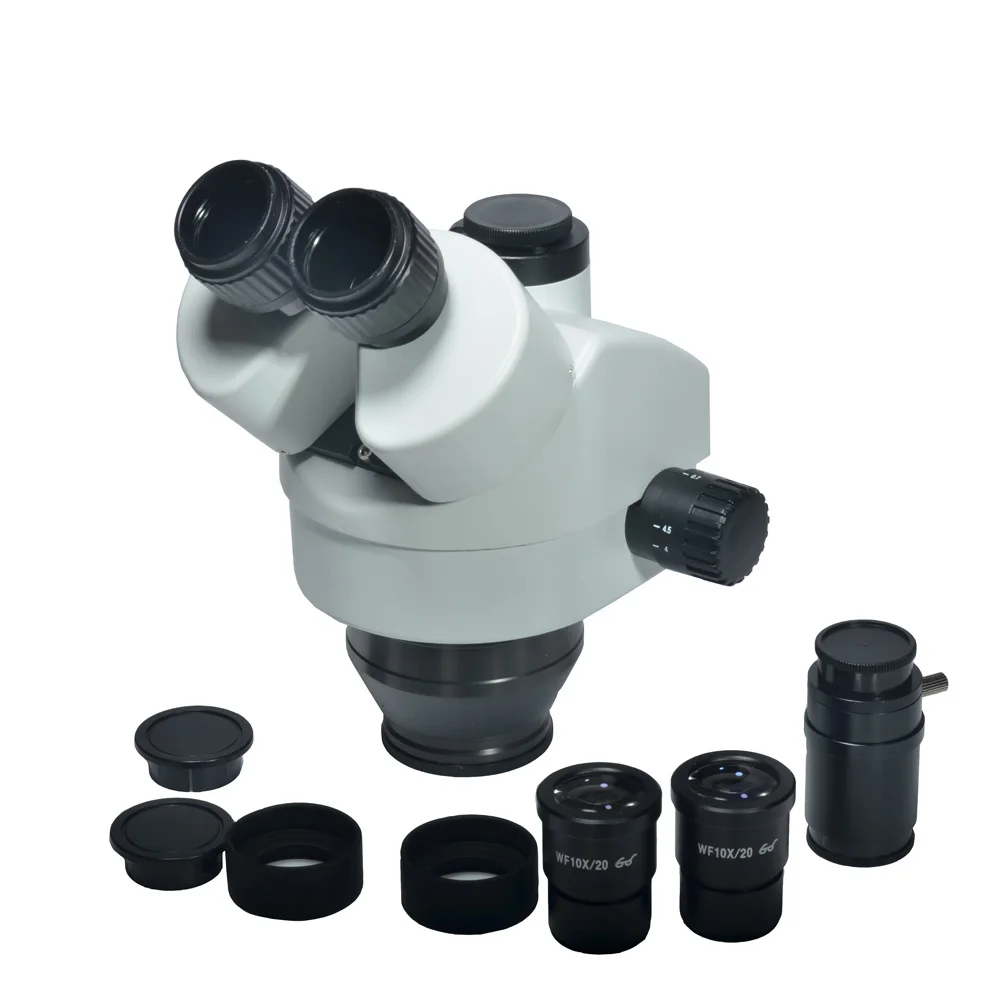

1 x Trinocular Stereo Zoom Head

1 x Pair of WF10X eyepieces

1 x Pair of eye-guards

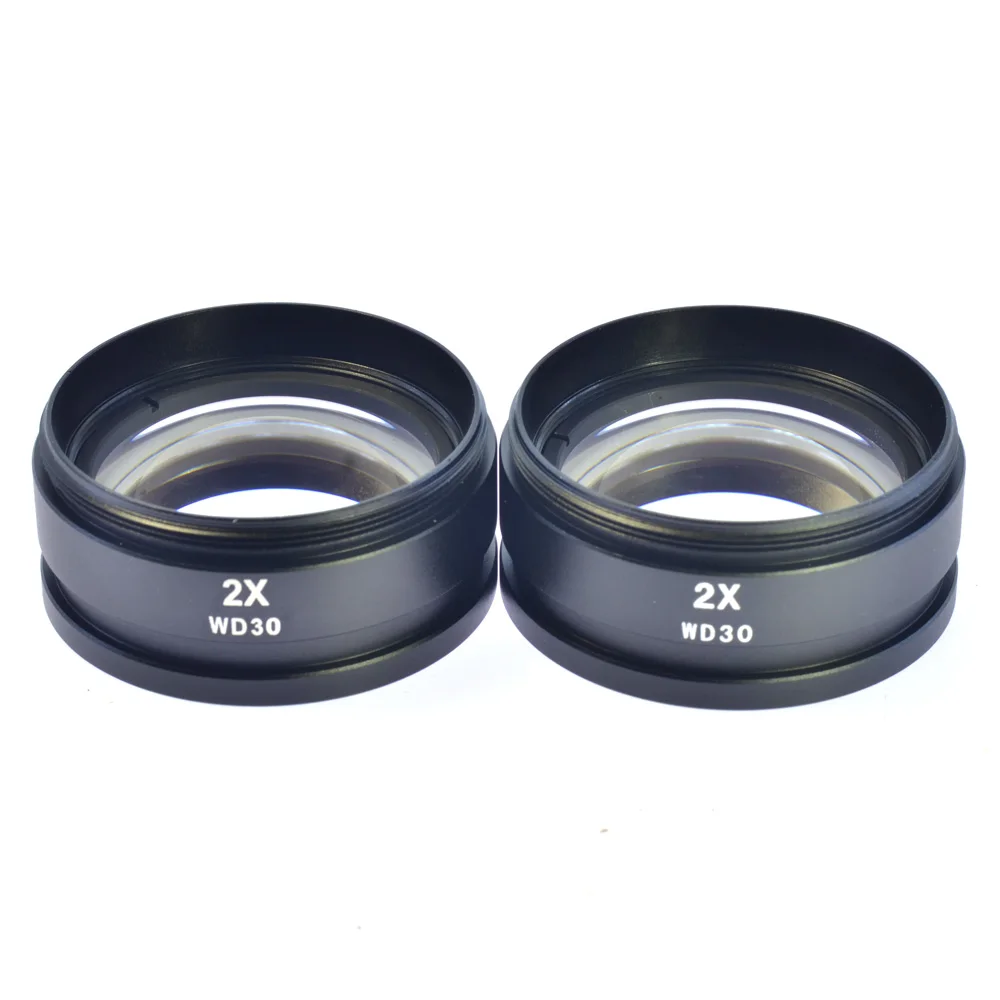

1 x 2.0X Barlow auxiliary objective lens

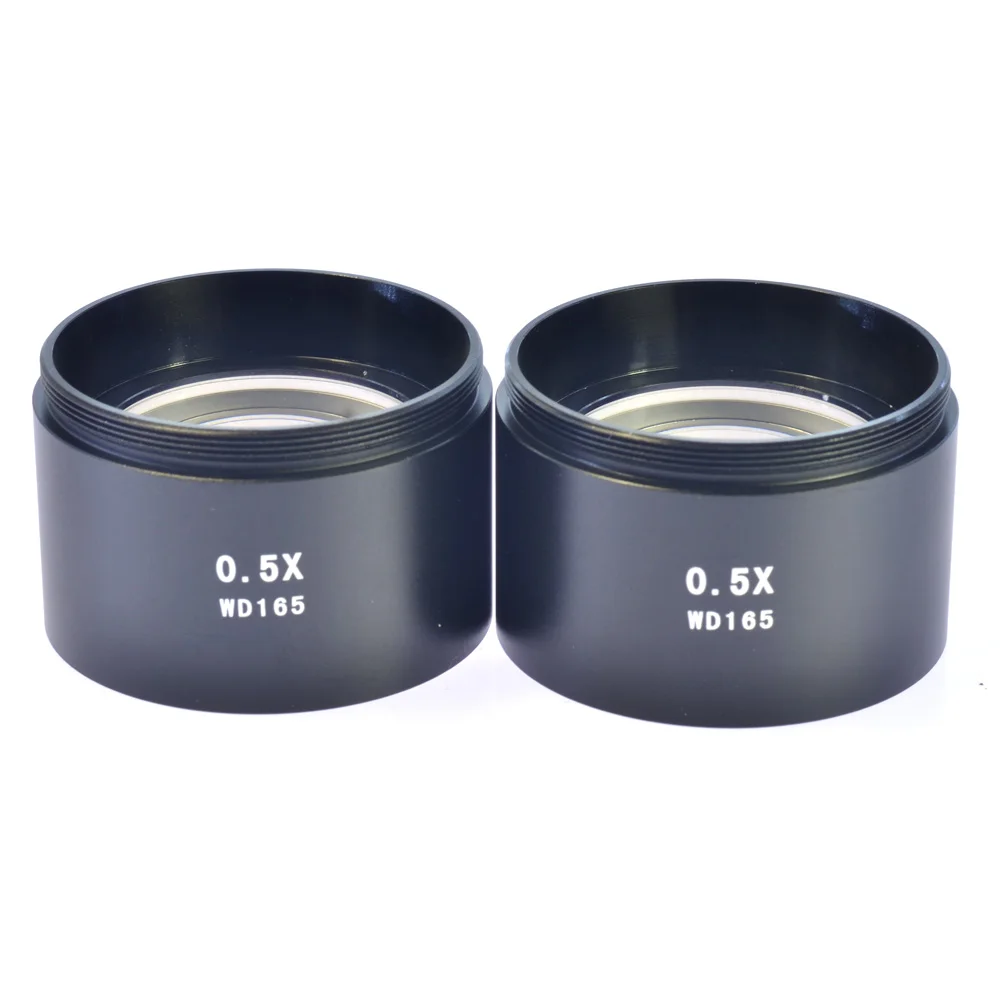

1 x 0.5X Barlow  auxiliary objective lens

1 x Double-Arm Boom Stand

1 x Focus Rack

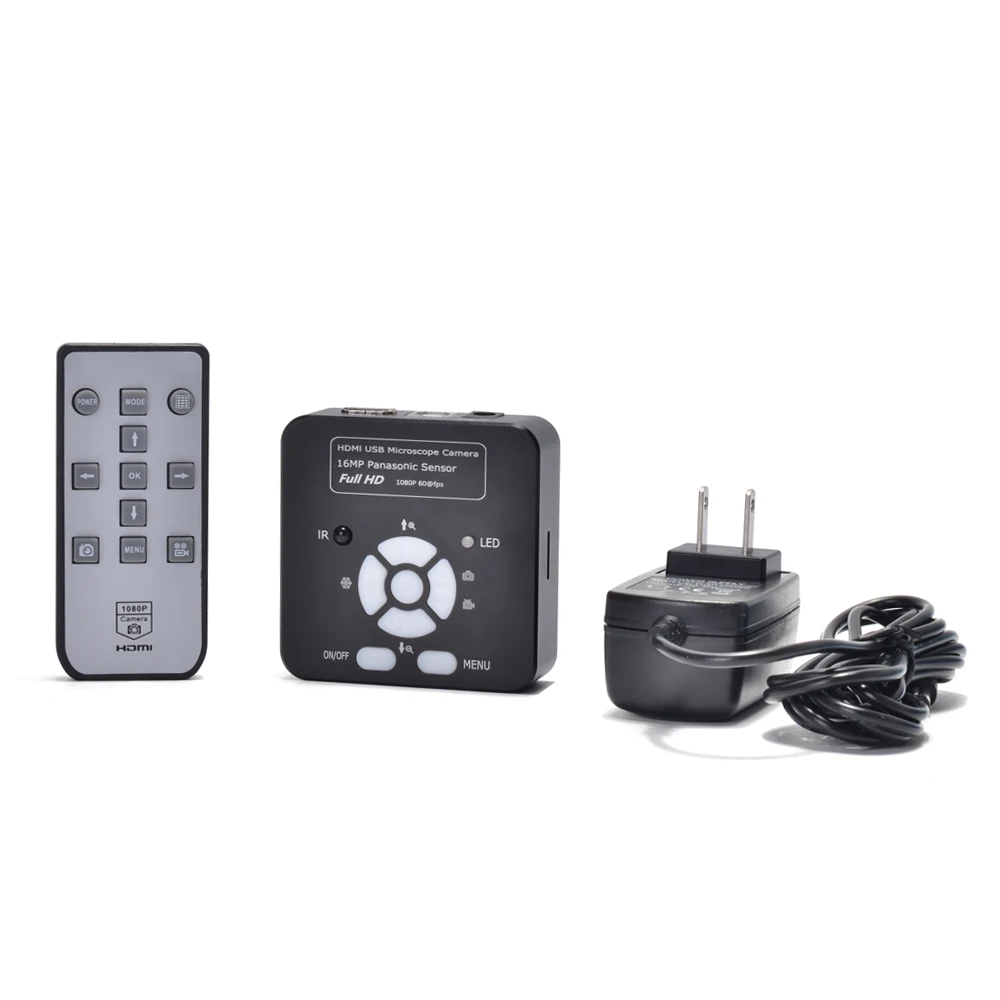

1 x 16MP Microscope camera

1 x USB Cable

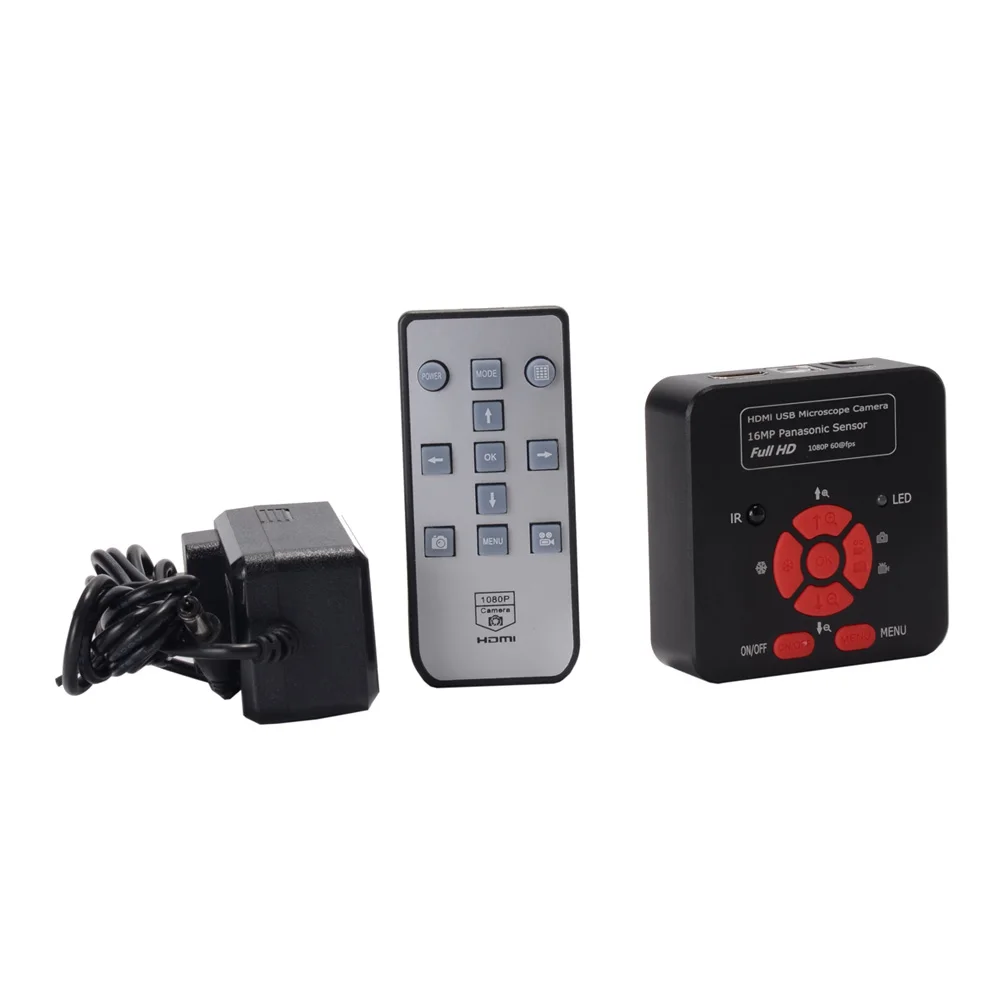

1 x Remote control

1 x User manual

1 x 144 Led light

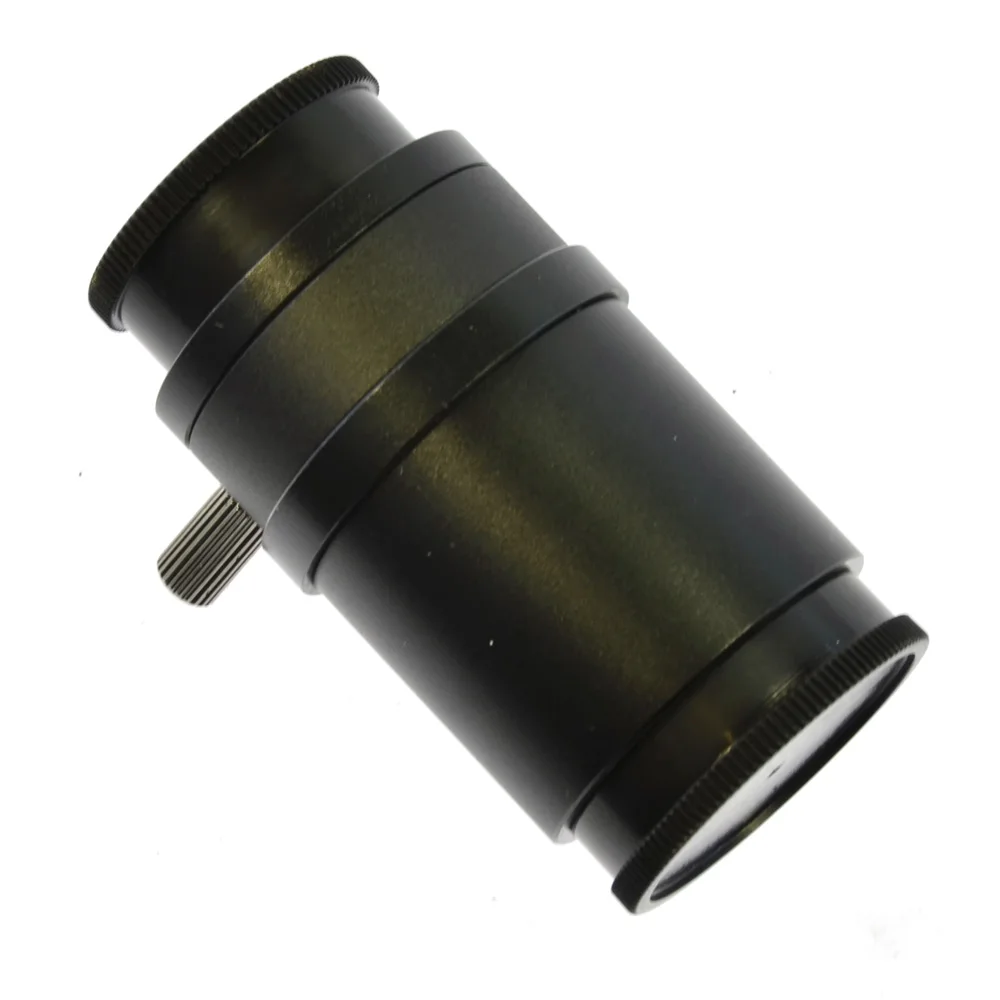

1 x 1/1 CTV C-mount Adapter

2 x Power supply (EU/US/UK/AU)

16MP00.5X 22X 2Adapter
