Microscope Camera Kit >> HDMI USB Digital Industry Video Microscope Camera Set + Big Stand Universal bracket +300X C-MOUNT Lens+ 8" inch LCD Monitor
View Larger Image
Share your images of this product

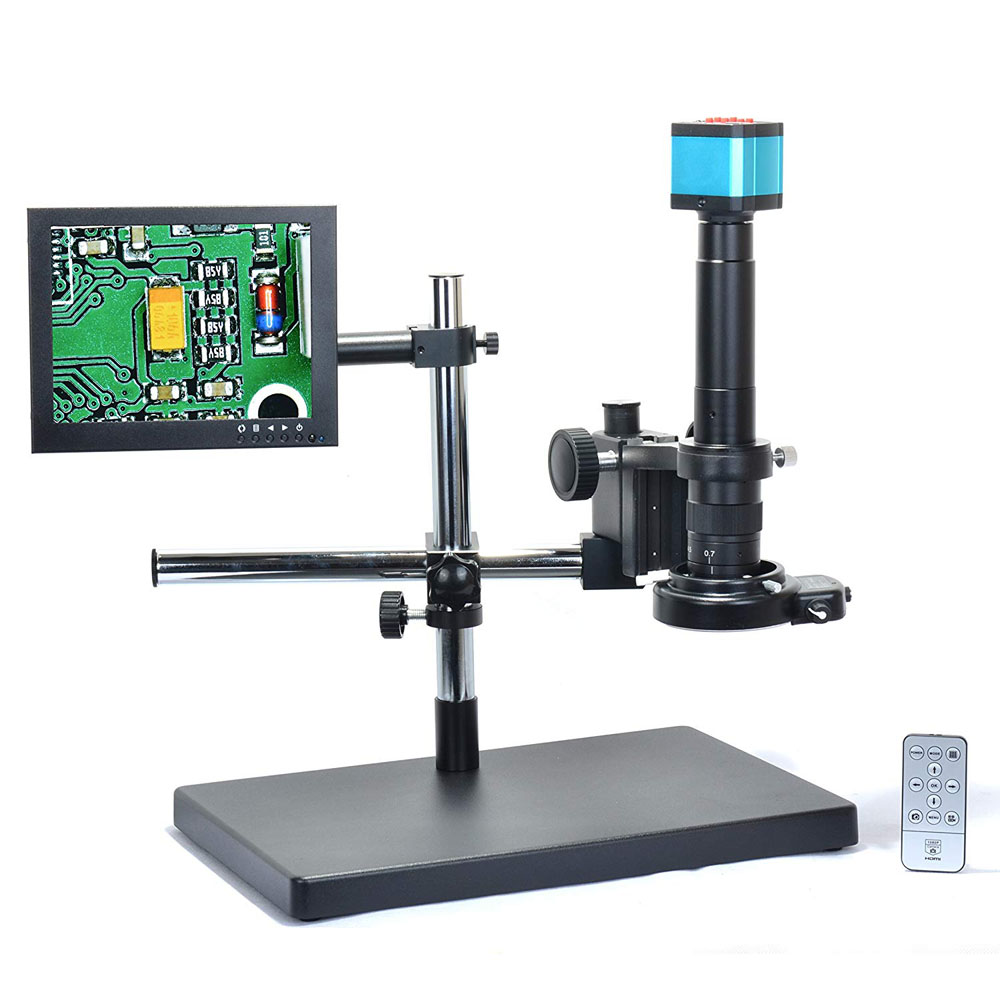

HDMI USB Digital Industry Video Microscope Camera Set + Big Stand Universal bracket +300X C-MOUNT Lens+ 8" inch LCD Monitor
Price : US $ 338.65 398.74

SKU : 0911180447
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.

Note:

For USB output, the white balance, exposure and color adjustment are automatic. They can't be adjusted.
For HDMI output, the functions can only be adjusted while connecting with monitor. If you connect the camera with computer, the functions also can not be adjusted.



Features:

Model: Camera with HDMI USB2.0 two output

Image format: jpg
Image resolution: 4608*3456 (for TF card)  1920*1080@60FPS(for TF card)
Video format: MOV(for TF card)
Video recorder: 1920*1080 @ 60FPS (for TF Card)
USB Video resolution:1920*1080 @ 30FPS
White Balance: Auto
Light: Auto
Color: Color
Negative: Support
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Portuguese
Line: different color,5 horizontal line , 5 vertical line,any positions

Specification:

Image sensor:16 megapixel Panasonic sensor 1/2.3 inch
Effective pixel:16 megapixel
Pixel size:1.43x1.43um
Frame rate:60fps
Definition:FULL HD
Housing:metal
Lens:CS for test, custom provide
Video format: MP4, AVI
Encode: H.264 (High Profile)
Digital magnification:5 times digital zoom
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, movable
Different color,5 horizontal line , 5 vertical line,any positions
SNR:Support
TF card interface:Max 64G
HDMI interface:Standard HDMI output (Type A)
Lens:C/CS
USB interface:Standard usb2.0 interface (Type B)


Stereo Table Stand Feature:

    Need a Sturdy Boom Stand for reduced Vibration and Optimal Versatility? This stand provides what is needed!
    This stand has a dual arm system with a counterweight on the opposite end of arm to counter the weight of your microscope head. This gives more stability compared with a common type of boom stand.
    The multi-axis rotation feature allows this boom stand to locate your microscope head to most any position or angle. This can be a greatly needed tool when you have a hard-to-see location such as inspecting and searching for cracks on the solder of a circuit board.
    We provide the boom stand only. This is not a complete system. A microscope head with optics is needed. You provide the head. We have several types of adapters to fit a variety of microscope heads. Contact us for details about your specific requirements so we can assist with a smooth fit.
    Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
    Steel Gears on Focusing Holder.
    Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mm
    Item size: see the 4th picture
    Weight: 3.3kg

    C-MOUNT Lens:

    Working distance: 100mm-110mm
    zoom c-mount Lens
    1X C-mount adapter
    zoom ratios: 6.5:1
    Objective Magnification Power by 0.7 - 4.5X(about 10 - 300X on the display)
    Size: 245mm(L) * 50mm(DIA)
    Weight: 750g

    144 Bulbs Microscope LED Ring Light:

    144 bright white LED bulbs
    100,000 hours of life
    Intense and focused shadow-free illumination
    The brightness of 0-100%Adjustable,high brightness
    Variable intensity control
    Power input: 100-240V, 50-60HZ

    Suit for the dia of the lens: 30mm-63mm


    8" LCD Display Monitor
    Multi video input supported (RCA, VGA, BNC)
    Support 15-pin VGA input , connect with PC (1024*768)
    Screen Resolution : 1024 x 768 pixels
    Aspect Ratio : 4 : 3
    Video Input : HDMI, AV-in, VGA, BNC
    Dimensions : 195 (W) x 160 (H) x 32 (D) mm

    Package Content:

    1 x Camera
    1 x 300x C-MOUNT Lens
    2 x Power supply
    1 x 8" inch LCD Monitor
    1 x USB line
    1 x Software DISC
    1 x LED Ring light
    1 x Digital Microscope Table Stand
