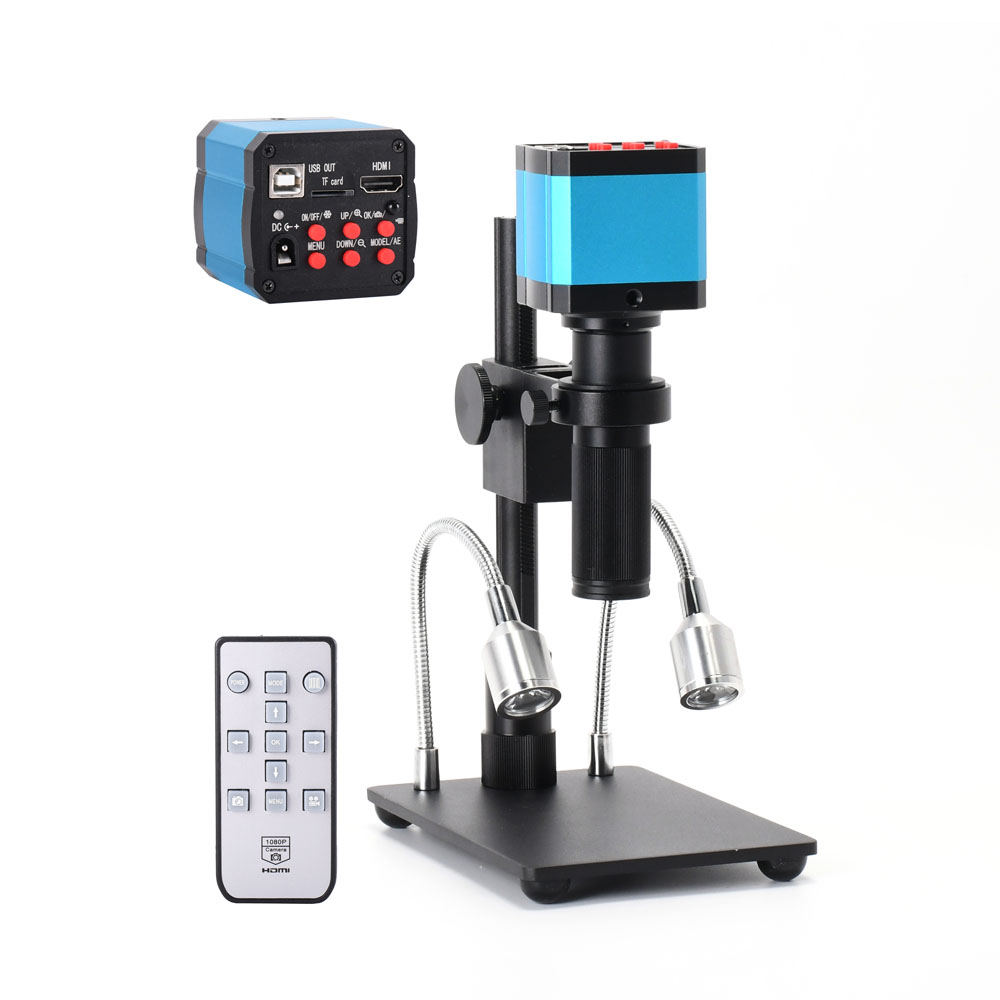

HAYEAR Full Set 16MP HDMI 1080P HD USB Digital Microscope Camera with 150X-300X Lens HY-2307X
Price : US $ 198.64 289.87
SKU : 1811124954
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.


1: for USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted.

2: for HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.

3: TF card storage is only for HDMI output. USB output will be storaged in PC.

Model: Camera with HDMI USB2.0 two output
Image format: jpg
Image resolution: 4608*3456 (for TF card)  1920*1080@60FPS(for TF card)
Video format: MOV(for TF card)
Video recorder:  1920*1080@60FPS (for TF Card)
USB Video resolution: 1920*1080 @ 30FPS
White Balance: Auto
Light: Auto
Color: Color
Negative: Support
Morror: Left/right, Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Portuguese
Line: different color,5 horizontal line , 5 vertical line, any positions

Image sensor:16 megapixel Panasonic sensor 1/2.3 inch
Effective pixel:16 megapixel
Pixel size:1.43x1.43um
Frame rate:60FPS
Definition: FULL HD
Housing: metal
Lens: CS for test, custom provide
Video format: MP4, AVI
Encode: H.264 (High Profile)
Digital magnification:5 times digital zoom
Brightness control: Auto/manual
Color: R/G/B adjustable
Film and record: Support
Cross cursor: Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, movable
Different color,5 horizontal line , 5 vertical line, any positions
SNR: Support
TF card interface: Max 32G
HDMI interface: Standard HDMI output (Type A)
Lens: C
USB interface: Standard usb2.0 interface (Type B)

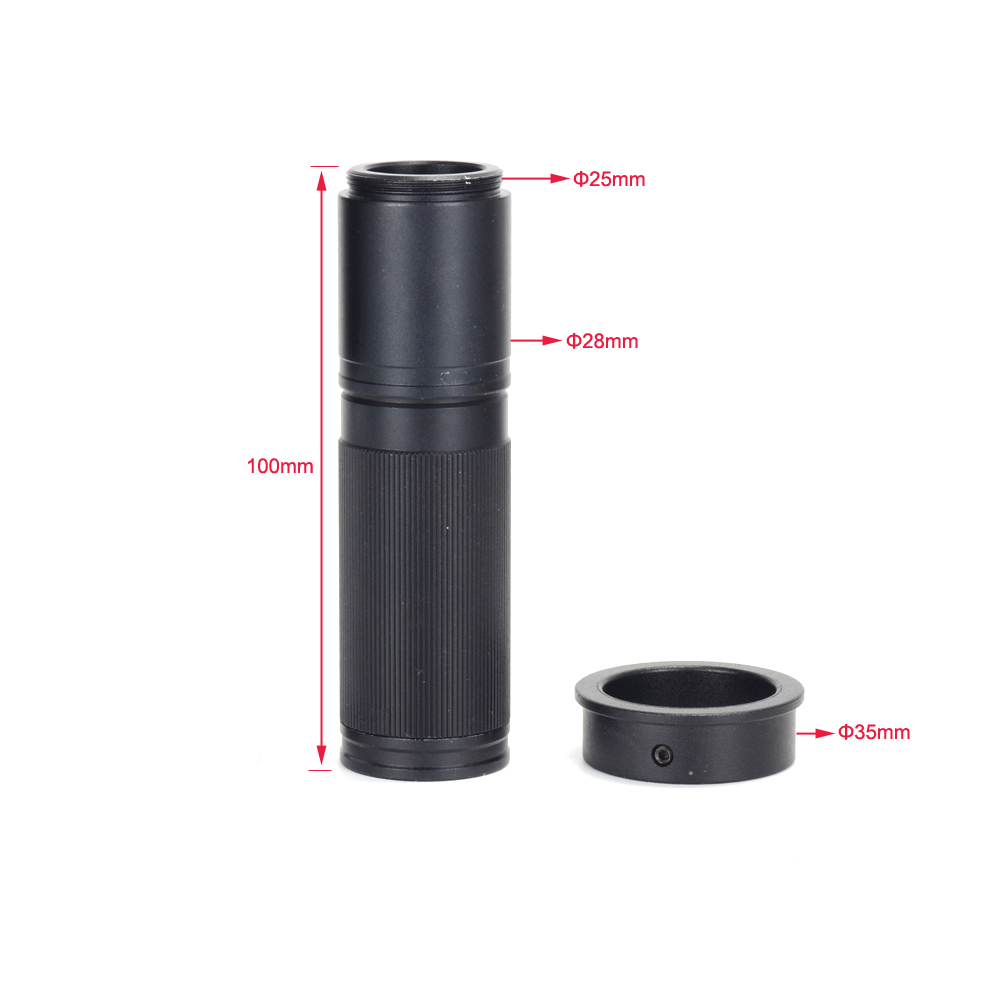

C-mount Lens:

zoom c-mount lens

zoom ratio: 5:1

magnification: 0.11X-2X ( about 5X-150X on the 21 inch display)

visual field: 3.1mm-66mm

working distance: 55mm—680mm


Package including:

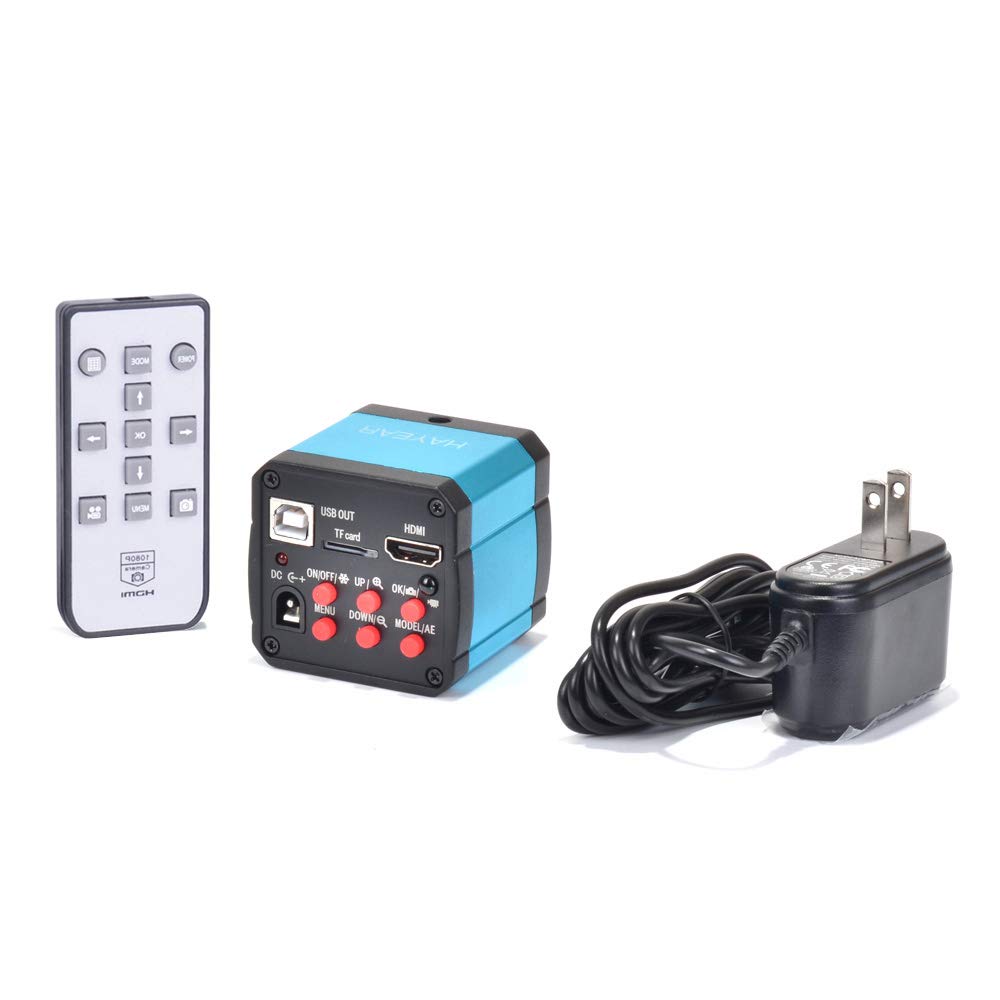

1 x HDMI microscope camera

1 x 12V power supply

1 x remote control

1 x USB line

1 x 150 zoom c-mount lens

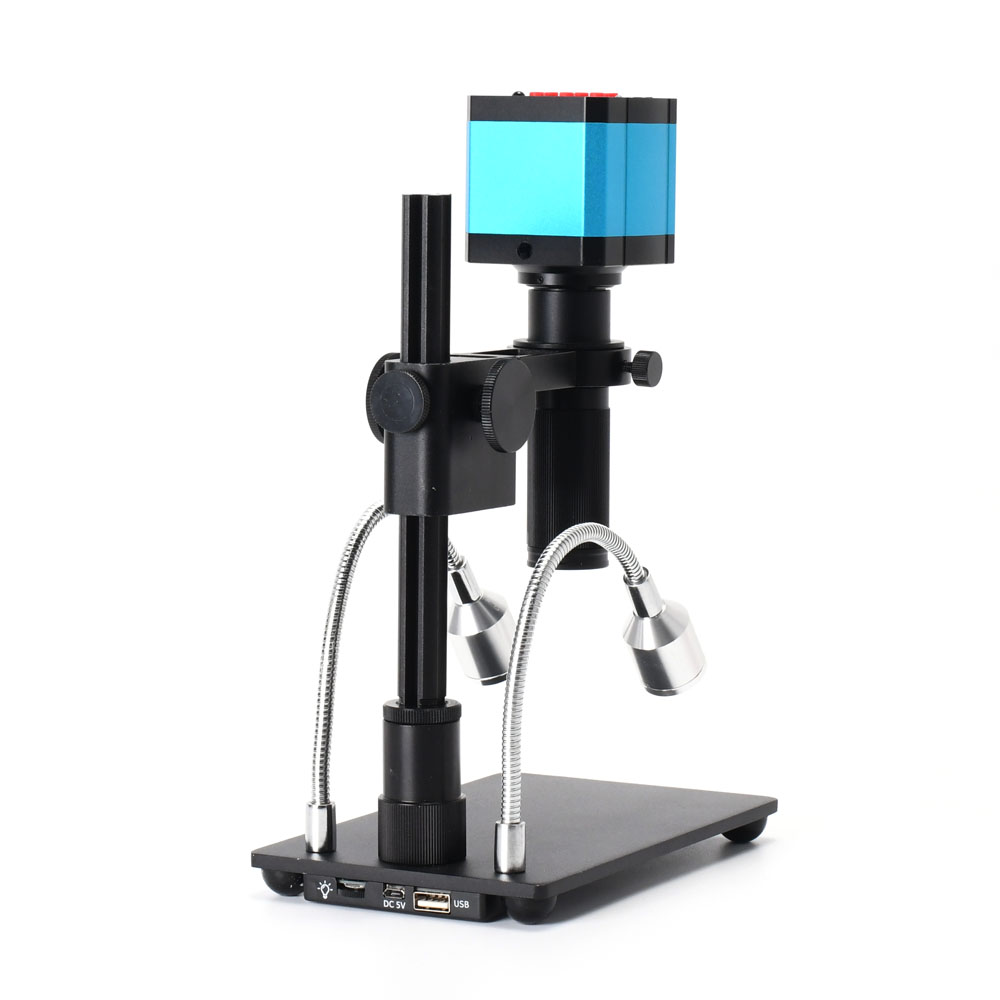

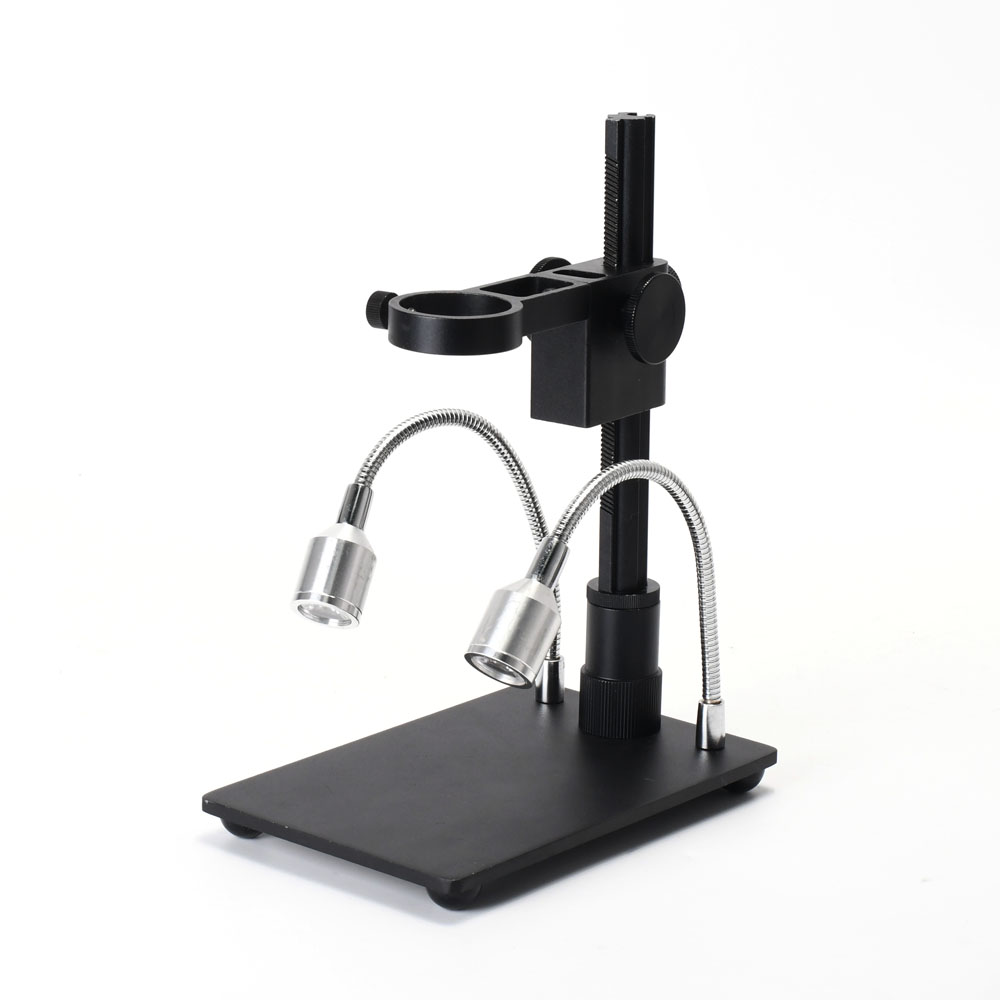

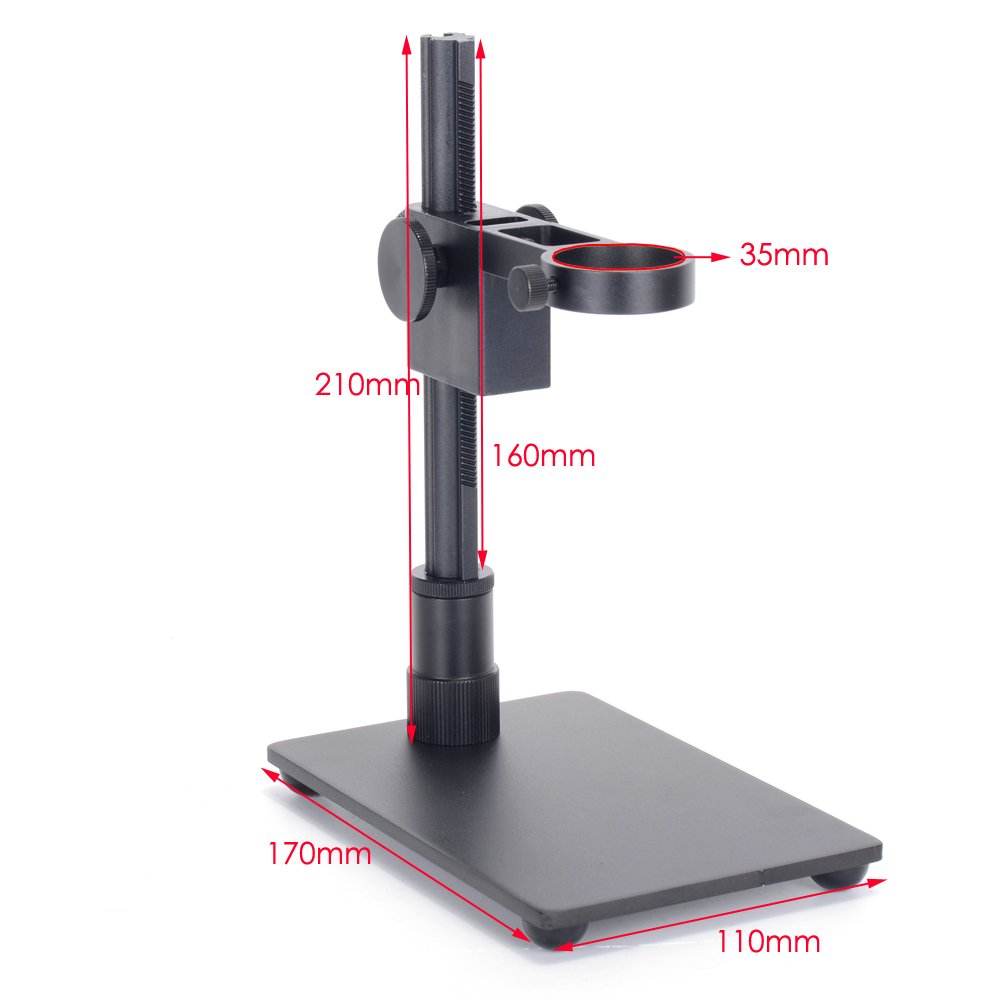

1 x camera stand with ring light
