High Quality, High Resolution, Clear Images
Certificate:CE,FC,RoHS
Industry Cmos Camera. It can Show the live image directly on any VGA monitor or Projector.
Control function: Brightness, Contrast and color balance,saturation,sharp degrees,Cb(blue)offset,Cr(red) offset,cursor,vertical,horizontal,negative
Supply VGA or CVBS output ports.
We sell much to the industy factory, then the works can see the problems directly in the Monitor.
Specification:
Model: Camera with VGA AV output
Sensor: 2.0mp,1/3 inch
Full Resolution: 1600X1200 (UXGA)
800 lines Definition
VGA output: 1024X768 60Hz,1280X1024 60Hz,1600X1200 60Hz
White Balance: Auto
C-MOUNT Lens:
Zoom C-mount Lens
Magnification Power by 0.12 - 2X (about 8 - 100X on the display)
Work distance:55mm-130mm
Visual field :2.4mm-32mm
Size: 115mm(L) * 40mm(DIA)
Weight: 210g
7 inch TFT Color LCD Car Rear View Camera Monitor
Display Screen:
Screen Size: 7 inch
Display Component: Color TFT LCD
Screen ratio 16:9/4:3 adjustable
Resolution: 800 x 480 Pixels
Contrast Ratio: 100:1
Housing Material: ABS
Video Frequency: PAL/NTSC
Power supply: DC 12V
Working Temperature:
Work: 0 to 80 degrees C
Storage: -10 to 80 degrees C
Product Dimensions(L x W x D): 193 x 135 x 25mm
40 LEDs Ring Light
40 bright white LED bulbs ,6W, 100,000 hours of life
Power input: 100-240V, 50-60HZ, auto switching
with Female thread M28x0.75
Suit for the dia of the lens: 16mm-46mm

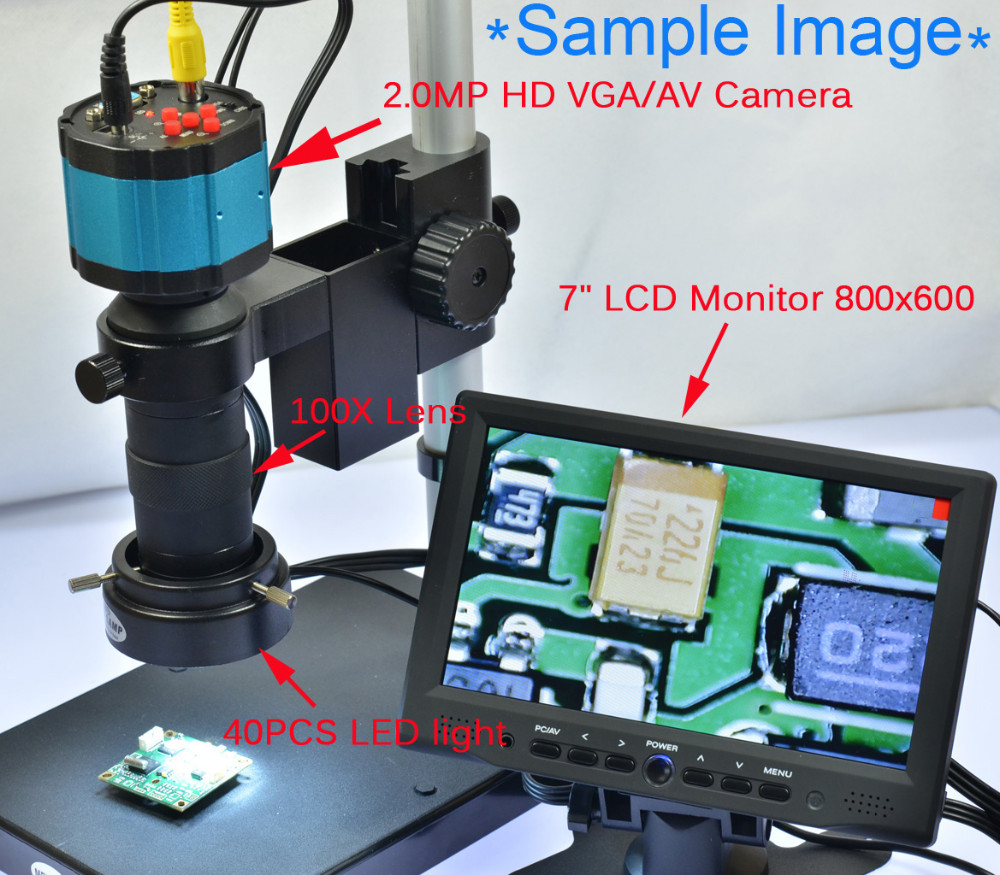

Package include:
1 x Microscope Camera Body
1 x 100X Industry Zoom C-mount Lens
1 x Table stand
1 x 40 LED ring light
1 x 7" AV/VGA monitor
1 x 100V-240V Power Supply
Microscope Lens
