HDMI Camera Set >> 16MP HDMI 1080P HD USB Digital Industry Video Inspection Microscope Camera + 180X C-mount Lens +60LED Ring Light
View Larger Image
Share your images of this product


16MP HDMI 1080P HD USB Digital Industry Video Inspection Microscope Camera + 180X C-mount Lens +60LED Ring Light
Price : US $ 238.41 347.63

SKU : 1812042226
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.

Noting:1:PC Support : Windows XP/7/8/10 system

2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.


Feature:

High Quality, High Resolution, Clear Images

Model: Camera with HDMI USB2.0 two output

Image format: JPG

Image resolution: 4608*3456 (for TF Card) 1920 *1080 @ 60FPS(for TF card);1920x1080 (for USB)

Video format: MP4(for TF card)

Video recorder: 1920 *1080 @ 60fps (for TF Card)

USB Video resolution: 1920 *1080 @ 30FPS


Specification:

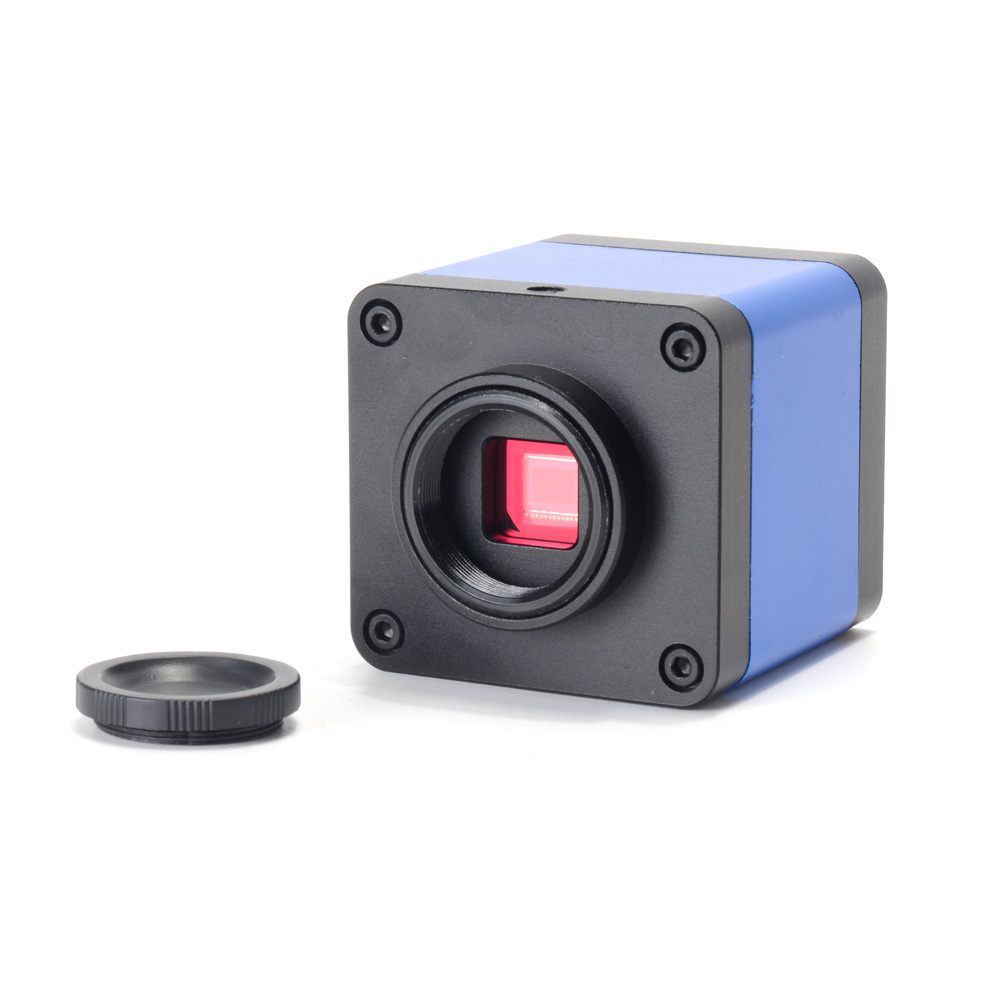

Image sensor: 16 megapixel Panasonic sensor 1/2.3 inch

Effective pixel: 16 megapixel

Pixel size: 1.43*1.43um

Frame rate: 60fps

Definition: FULL HD

White balance: Auto/manual

Digital magnification: 5 times digital zoom

Brightness control: Auto/manual

Color: R/G/B adjustable

Freeze: Support

OSD: English/Chinese/French/Spanish/Portuguese

Film and record: Support

Cross cursor: Support multi-color, size adjustable

Transverse and vertical line: Support multi-color, 5 pcs of transverse lines/vertical lines, movable

SNR: Support

TF card interface: Max 64G

HDMI interface: Standard HDMI output (Type A)

Lens: C/CS

USB interface : Standard USB 2.0 interface (Type B)

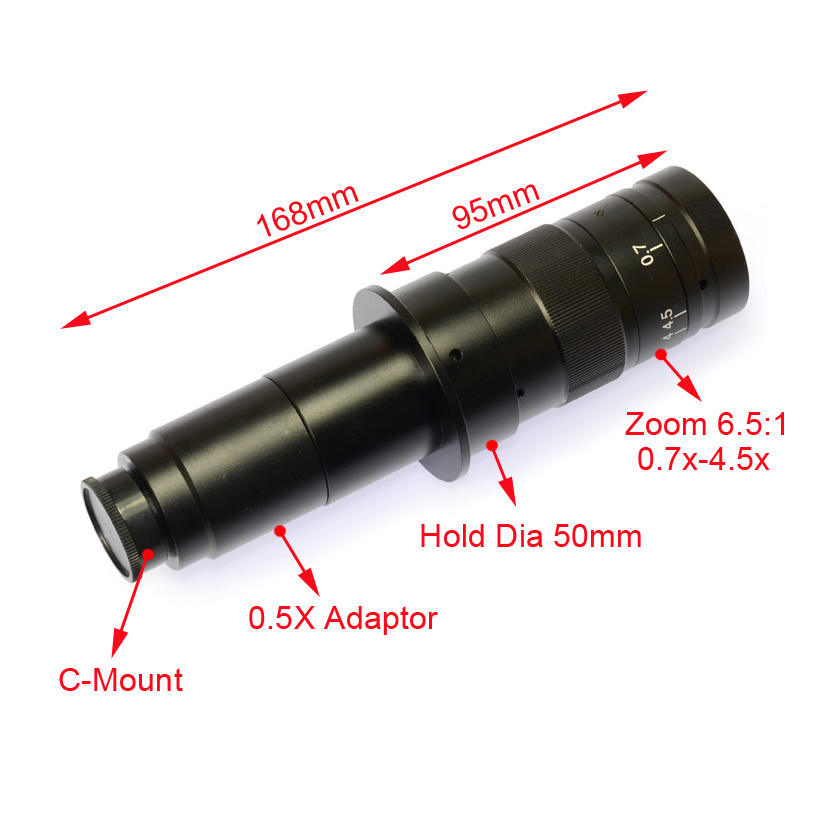

C-mount Lens:

Objective Lens: continual zoom 0.7-4.5X,

zoom ratio: 6.5:1

eyepiece lens:0.5X

amplification range:about 10X—180X on 21 inch screen

working distance:95-125mm

focusing mechanism:Focusing handwheel tightness is adjustable,focusing range 63mm & 50mm

Material: Iron metal

Weight: 500g


Package Content:

1 x Microscope Camera

1 x Remote Control

1 x Power Supply

1 x Software DISC

1 x 180X C-mount Lens

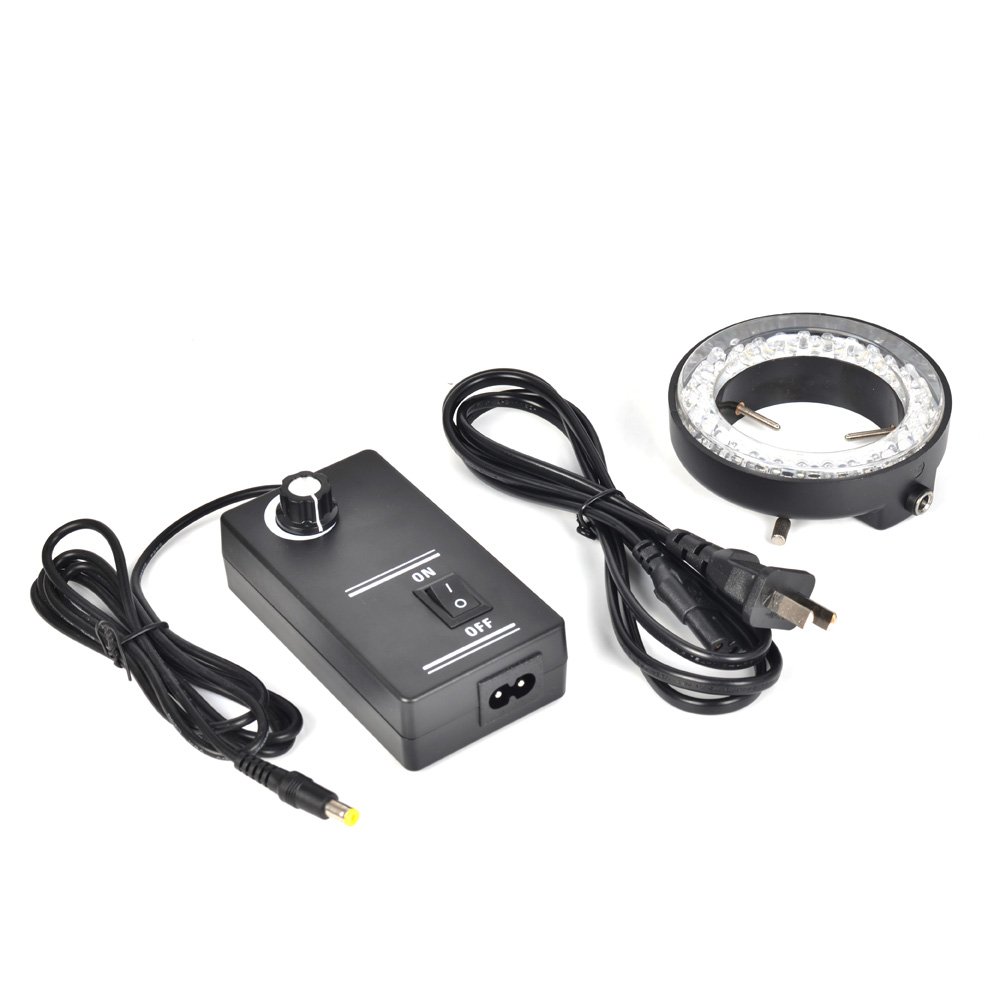

1 x 60 LED Light

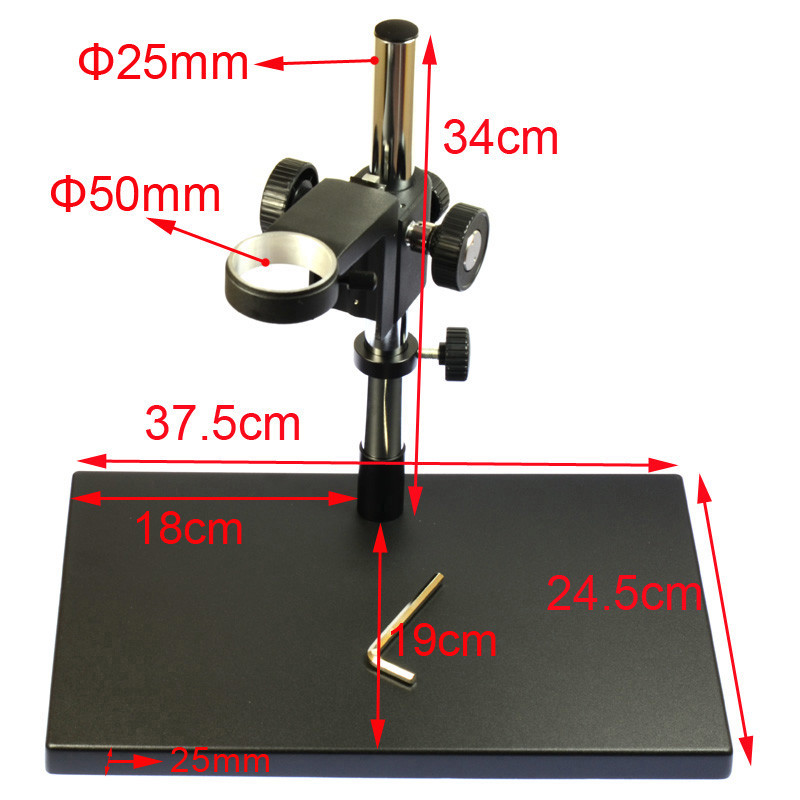

1 x camera stand
