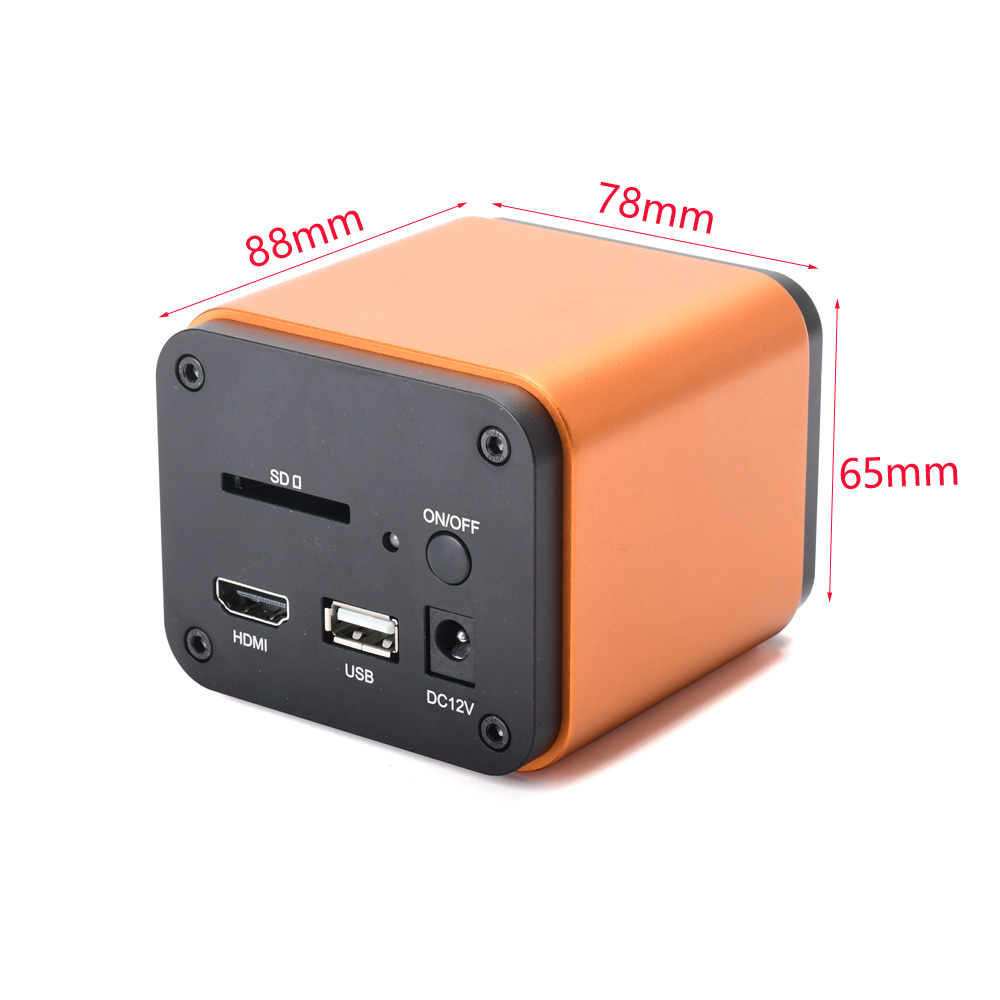

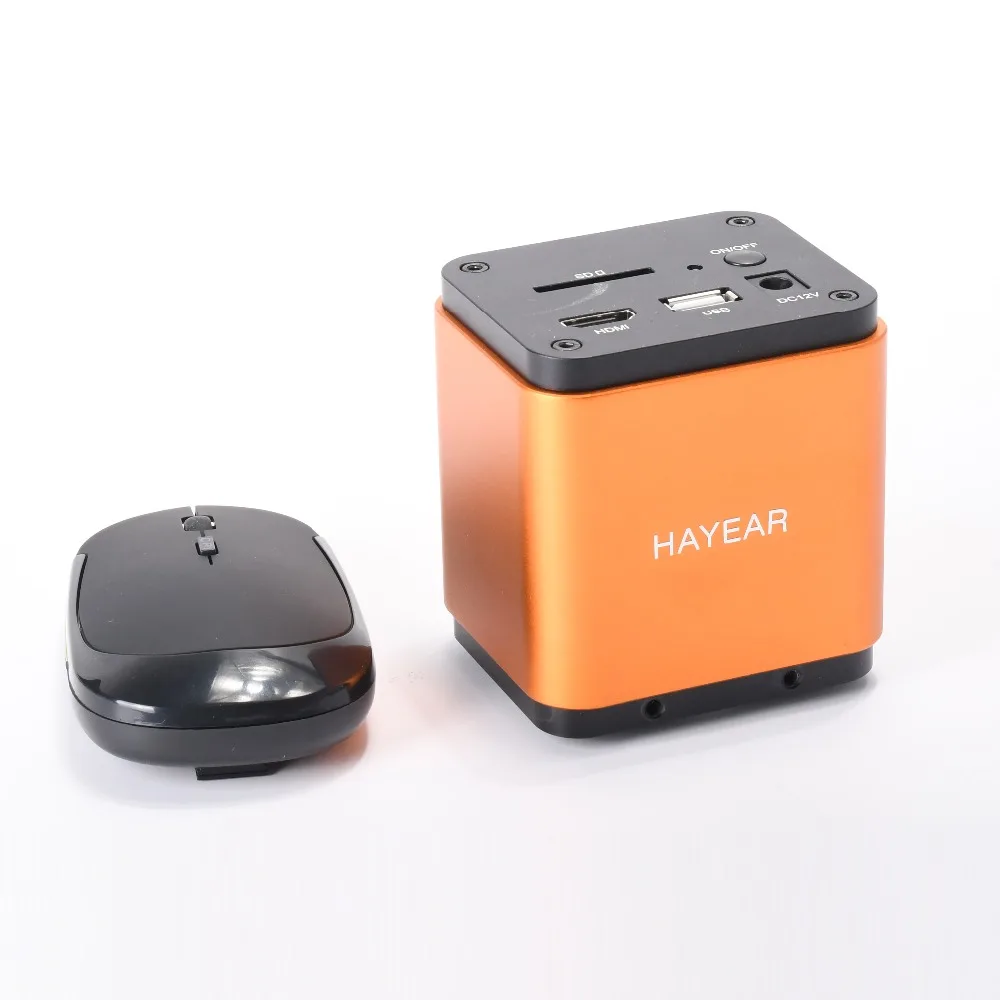

Interface & Function:

USB:  USB Mounse / USB WIFI Adapter
HDMI: HDMI output
DC12V: power in

SD: SD Card Slot

ON/OFF: power on/off
LED: power indicator

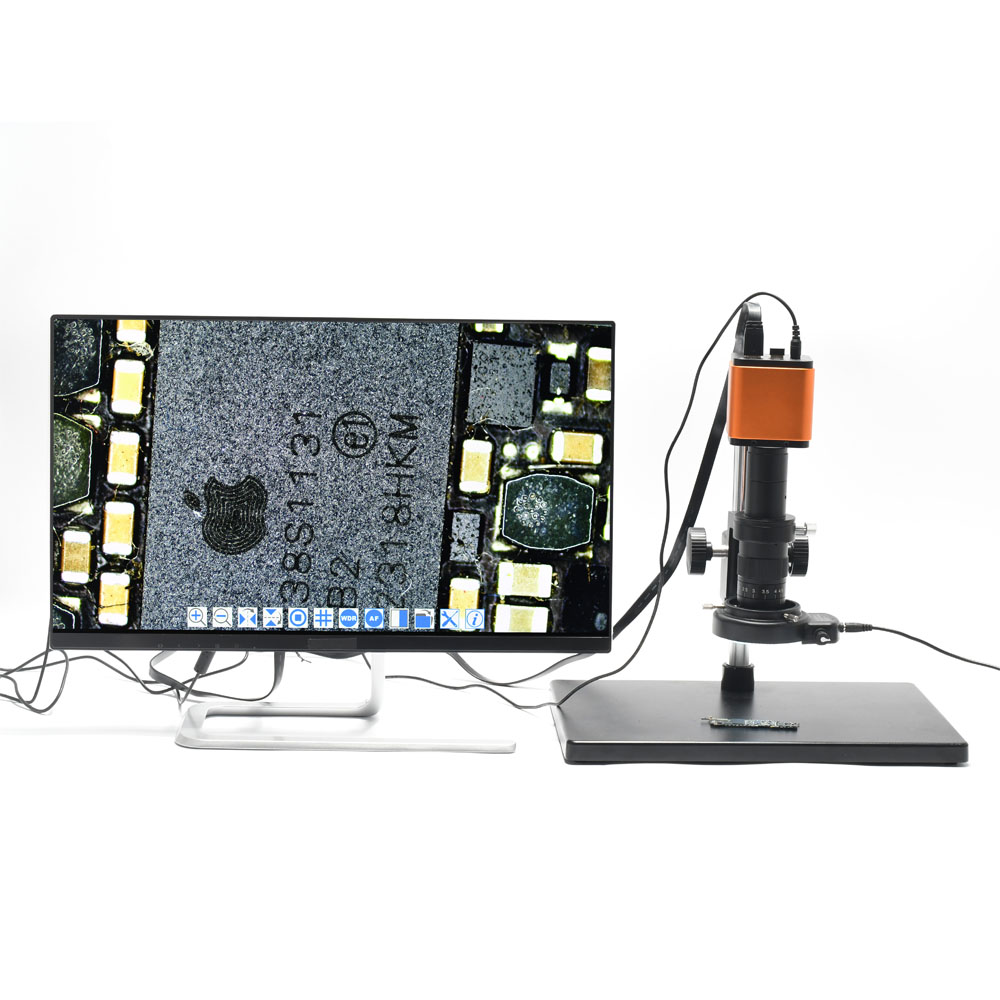

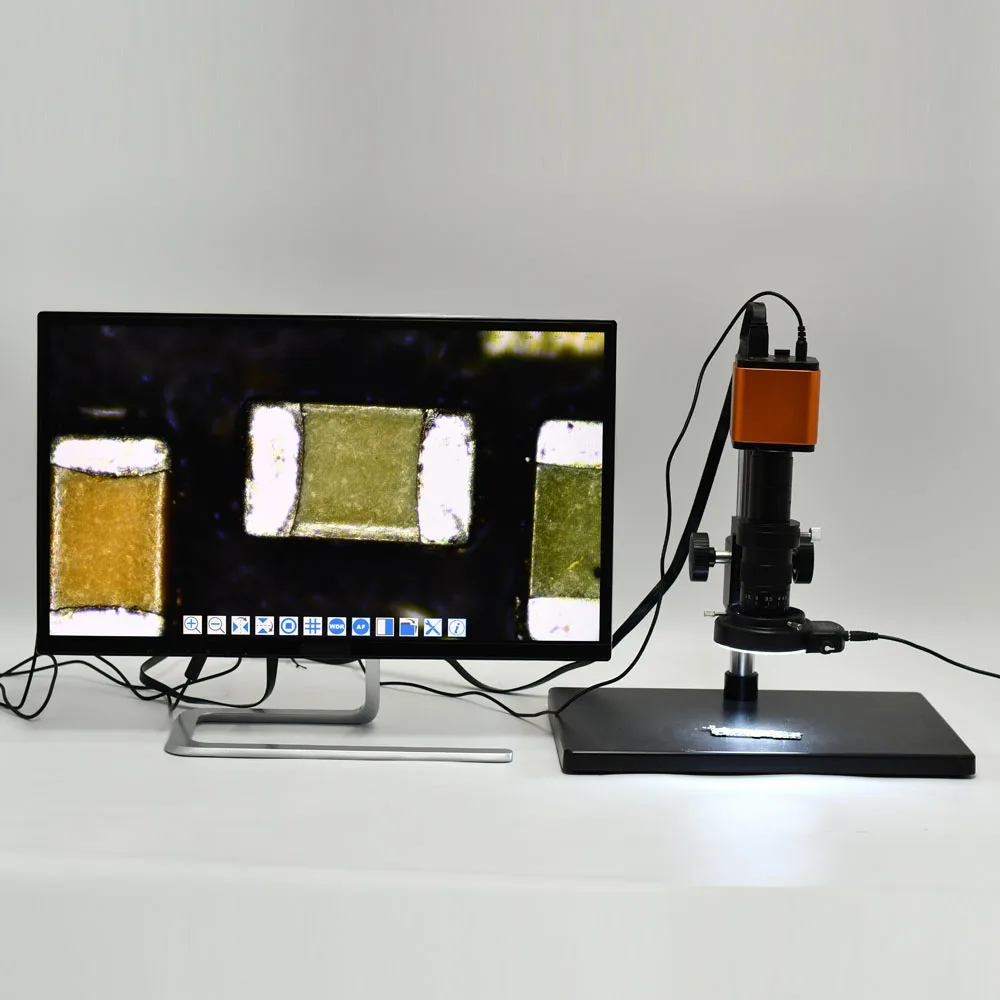

HDMI output:

UI operation: with usb mouse to operate the embedded XCam View

Image capture: JPEG format with 5MP resolution in SD card

camera control panel: exposure, gain, white balance, color adjustament; sharpness and denoising control

toolbar: zoom, mirror, comparision, free, cross, browser function, multi-language and XCam View version information

WIFI output:

UI operation: toupview or touplite on windows / linux / android platform

wifi performance: 802.11n 150Mbps; RF power power 20dBm(maximum)

maximum connected devices: 3-6 ( according to the environment and connection distance)

white balance: auto

color technique: ultra-fine TM color engine(wifi)

capture / control API: standard SDK for windows / linux / mac (wifi)

recording system: still picture or movie(wifi)

software environment ( for USB2.0 output ):

operating system: Microsoft® Windows® XP / Vista / 7 / 8 / 8.1/10(32 & 64 bit); OSx(Mac OS X); Linux

PC Requirements: CPU: Equal to Intel Core2 2.8GHz or Higher

                              Memory:4GB or More

                              USB Port:USB2.0 High-speed Port(As Power Only, not as the USB Data Transfer)

                             Display:19” or Larger

                             CD-ROM

Operating Environment:

Operating Temperature(in Centidegree): -10~ 50

Storage Temperature(in Centidegree): -20~ 60

Operating Humidity: 30~80%RH

Storage Humidity: 10~60%RH

Power Supply: DC 12V/1A Adapter

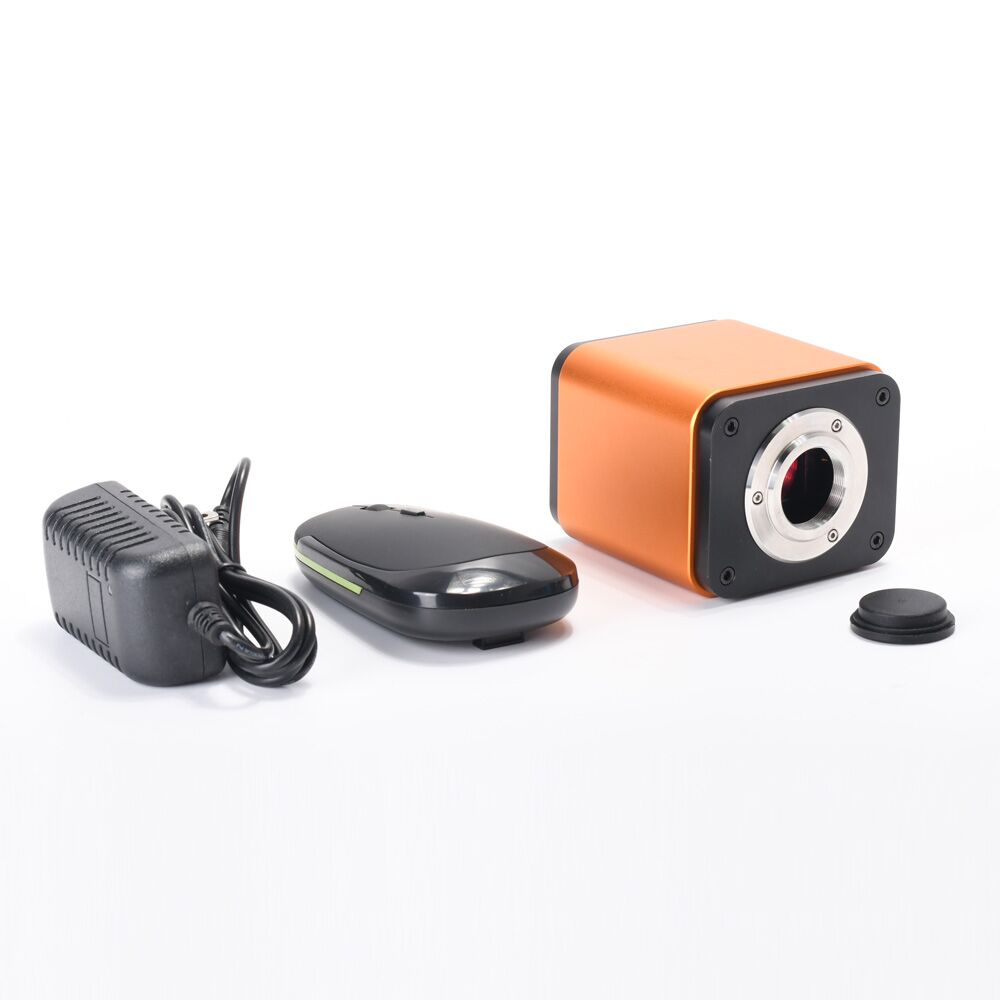

Package including:

1 x Microscope Camera

1 x Power supply

1 x USB Mouse

1 x WiFi module

1 x CD
