Microscope Lens >> HAYEAR HD 1000X Inspection Zoom Monocular C-mount Lens + Coaxial Light + Stereo Stand for PCB SMD Industrial Microscope Camera
View Larger Image
Share your images of this product


HAYEAR HD 1000X Inspection Zoom Monocular C-mount Lens + Coaxial Light + Stereo Stand for PCB SMD Industrial Microscope Camera
Price : US $ 286.32 475.25

SKU : 1901084231
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.

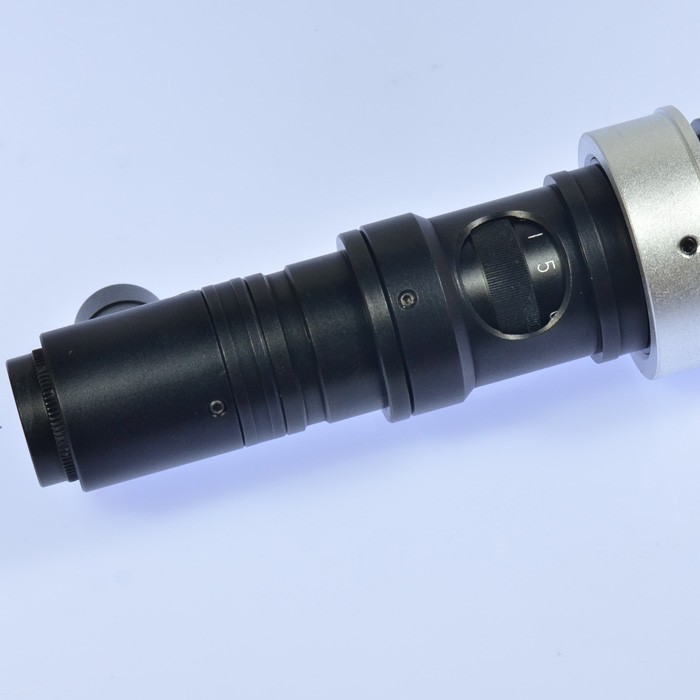

Coaxial C-mount Lens Features:

Shadow-free coaxial light
C-mount lens
Long working distance 30mm to 34mm
Sharp images over a super wide field view
Large Metal stand and framework

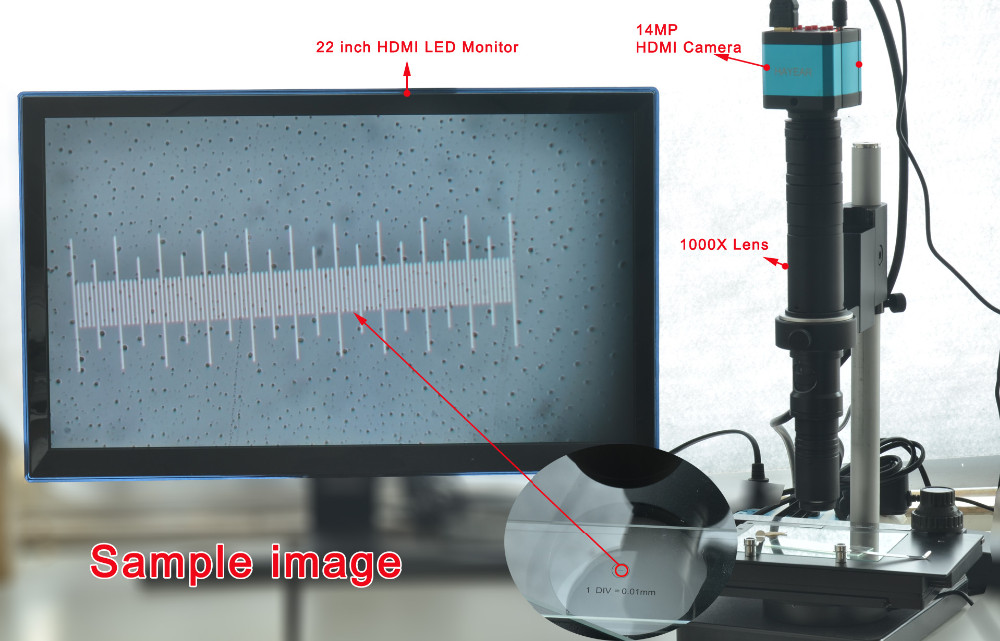

0.63X-3.5X zoom objective ( about 62 - 1000X on the display( CCD/COMS Size: 1/3 ", display Size: 20 ") )

Coaxial C-mount Lens Specification:

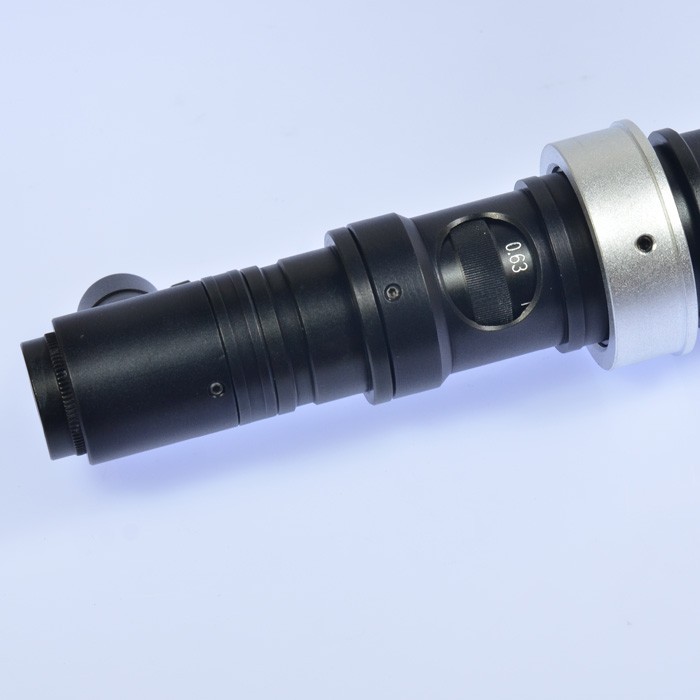

Zoom microscope objective: 0.63X-3.5X
Mount: C-mount for PC or TV camera connection (camera sold separately)
Working distance: 9.3mm-10mm
Field of view: 1mm-6.5mm
Illumination: coaxial light
Light Power input: 110 - 240V, 50 - 60HZ, auto switching
Pillar: 260mm long

Stereo Table Stand Feature:

Need a Sturdy Boom Stand for reduced Vibration and Optimal Versatility? This stand provides what is needed!
We provide the boom stand only. This is not a complete system. A microscope head with optics is needed. You
provide the head. We have several types of adapters to fit a variety of microscope heads. Contact us for details
about your specific requirements so we can assist with a smooth fit.
Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
Steel Gears on Focusing Holder.
Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mm
Weight: 1.6kg

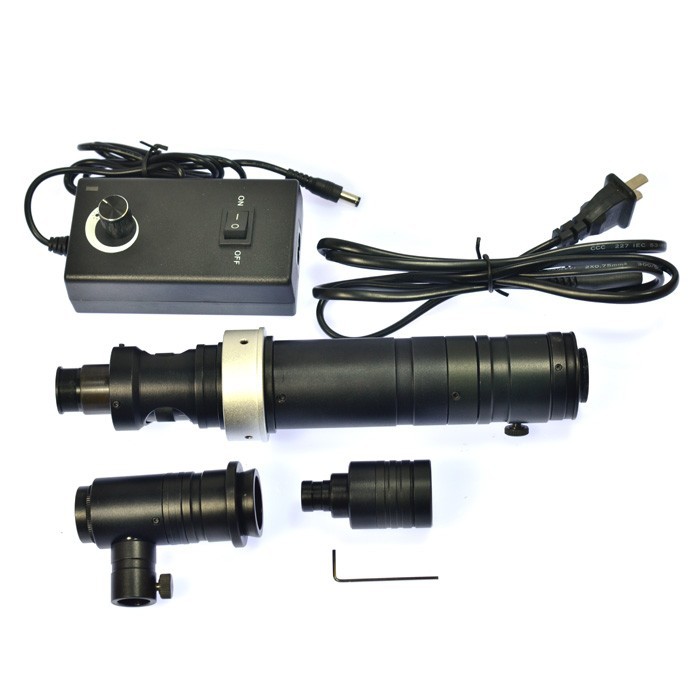

Package Content:

1 x Coaxial C-mount Lens
1 x Coaxial Light
1 x Light power supply
1 x 50mm Ring Adapter
1 x Stereo Table Stand
