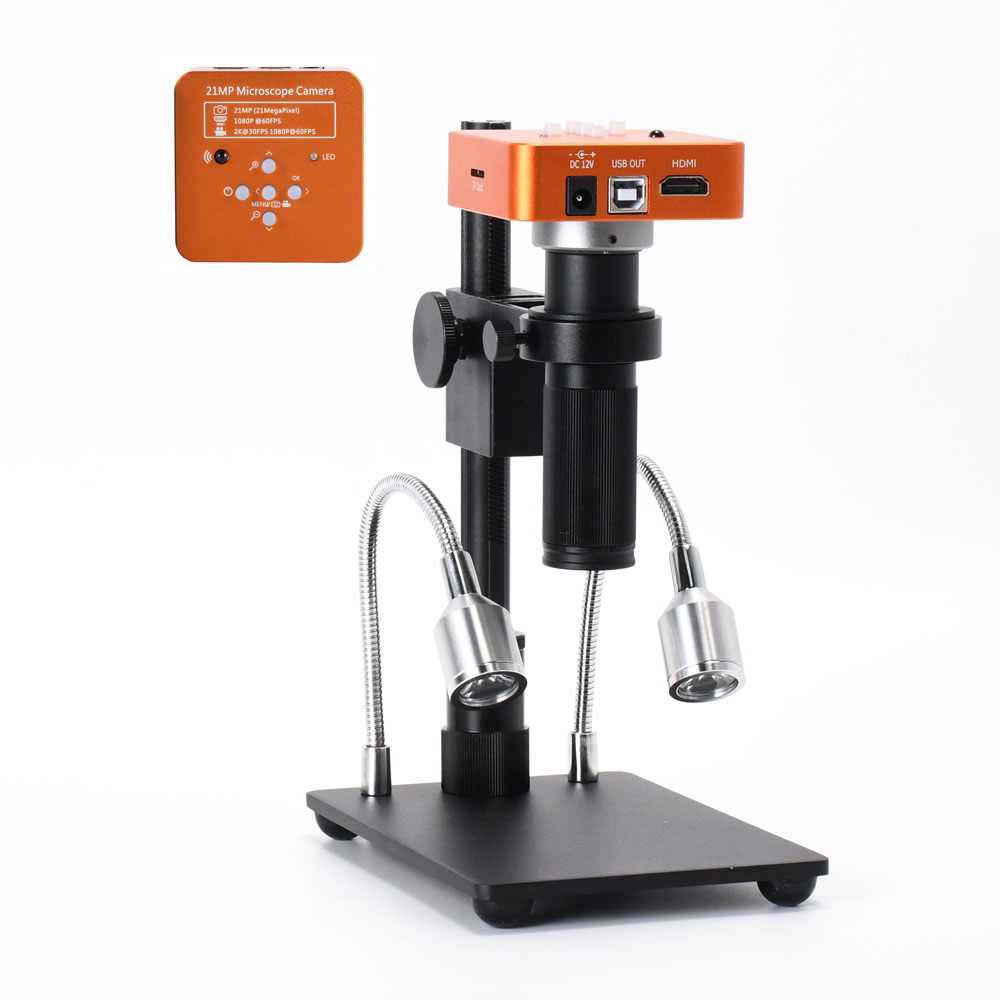

HAYEAR Full Set 21MP 2K 1080P 60FPS Full HD HDMI USB C-mount Electronic Industry Microscope Camera Kit for PCB Repair Portable
Price : US $ 162.98 308.88

SKU : 1903182340
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.
Noting:
1:PC Support : Windows XP/7/8/10 system
2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.
3:When use USB connection, please make sure no TF card in the camera.

Feature:
Camera with HDMI USB2.0 two output
Image resolution: 5200*3900 (for TF card) 1920*1080 @ 60FPS(for TF card)

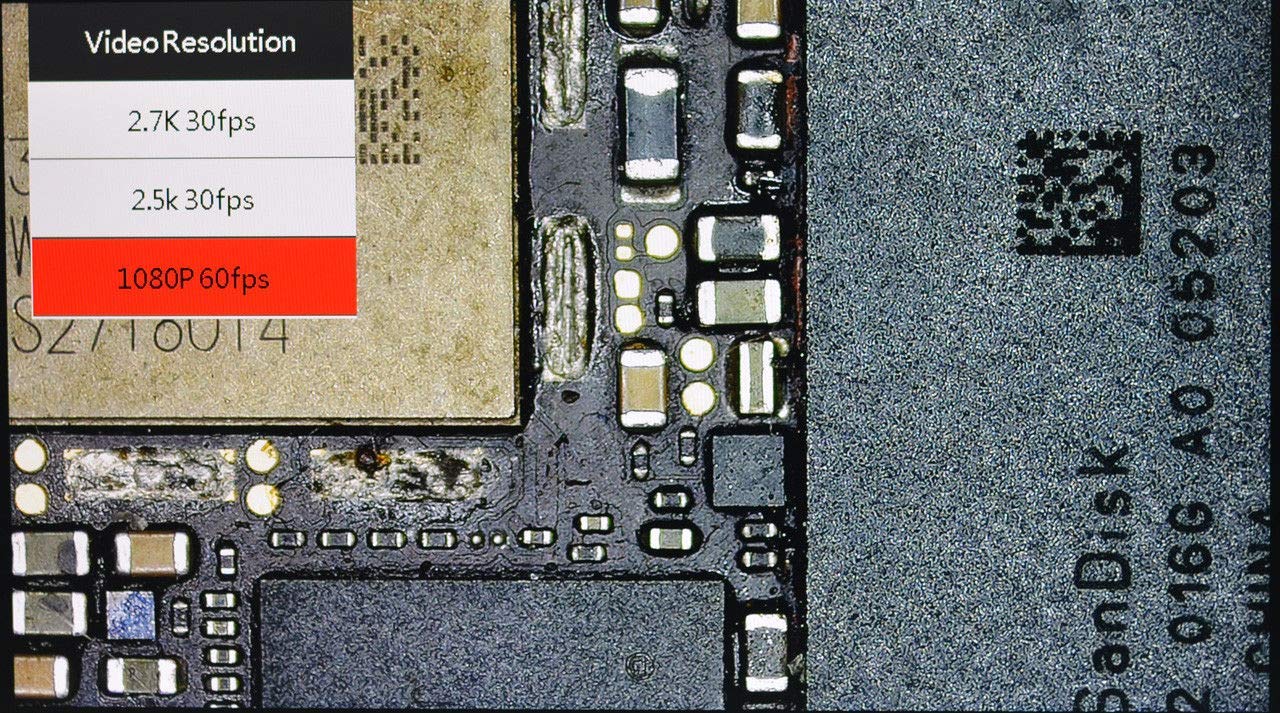

HDMI Video resolution: 2K @ 30FPS ,1920*1080 @ 60FPS; USB Video resolution: 1920*1080 @ 30FPS

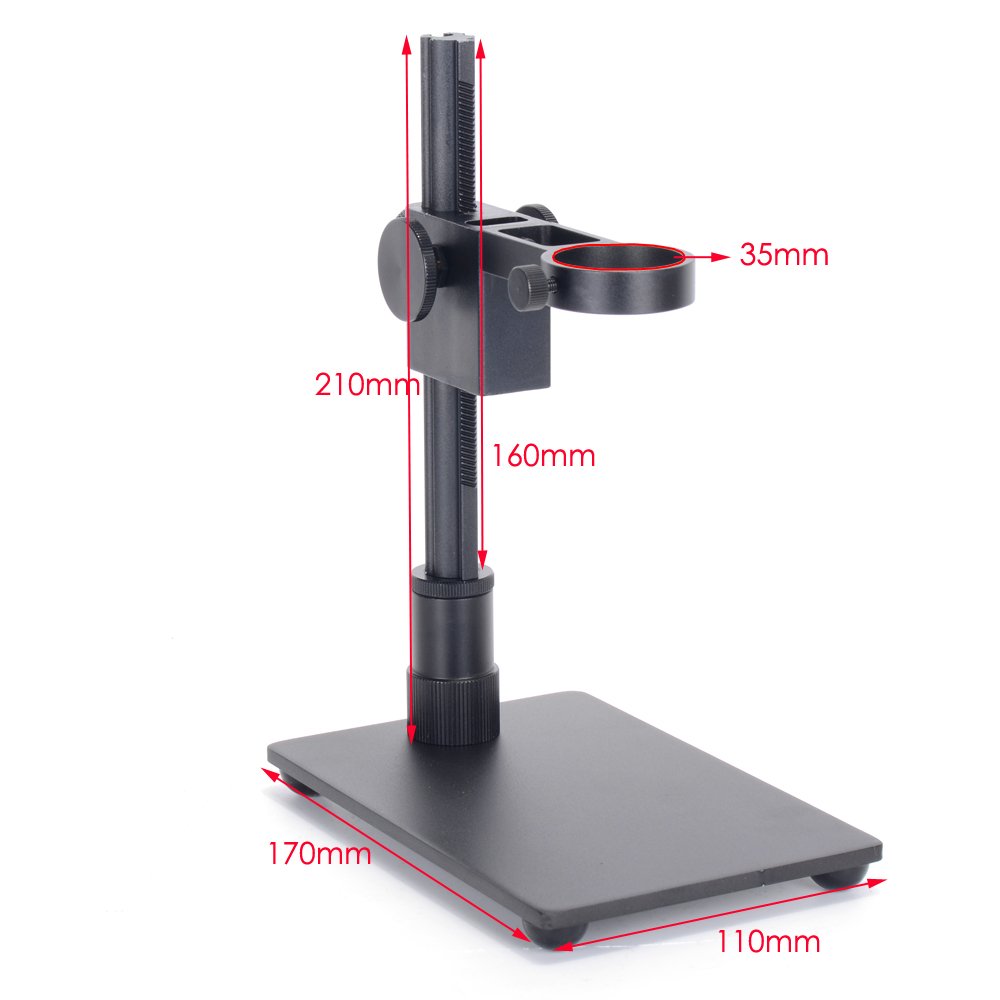

table stand is all alloy aluminum, solid base plate, very high quality and easy to carry

Specification:
Image sensor:21 megapixel Panasonic CMOS sensor 1/2.33 inch
Effective pixel:21 megapixel
Pixel size:1.335μm × 1.335μm
Frame rate:60fps
Definition: FULL HD
Housing: metal
Lens :C/CS
Video format: MP4
Digital Zoom: Support
Brightness control: Auto/manual
Color: R/G/B adjustable
Film and record: Support
Cross cursor: Support multi-color, size adjustable
Transverse and vertical line:Support multi-color, 5 pcs of transverse lines/vertical lines, movable
TF card interface: Max 64G
HDMI interface: Standard HDMI output (Type A)
USB interface: Standard usb2.0 interface (Type B)
Input Voltage: DC 12V

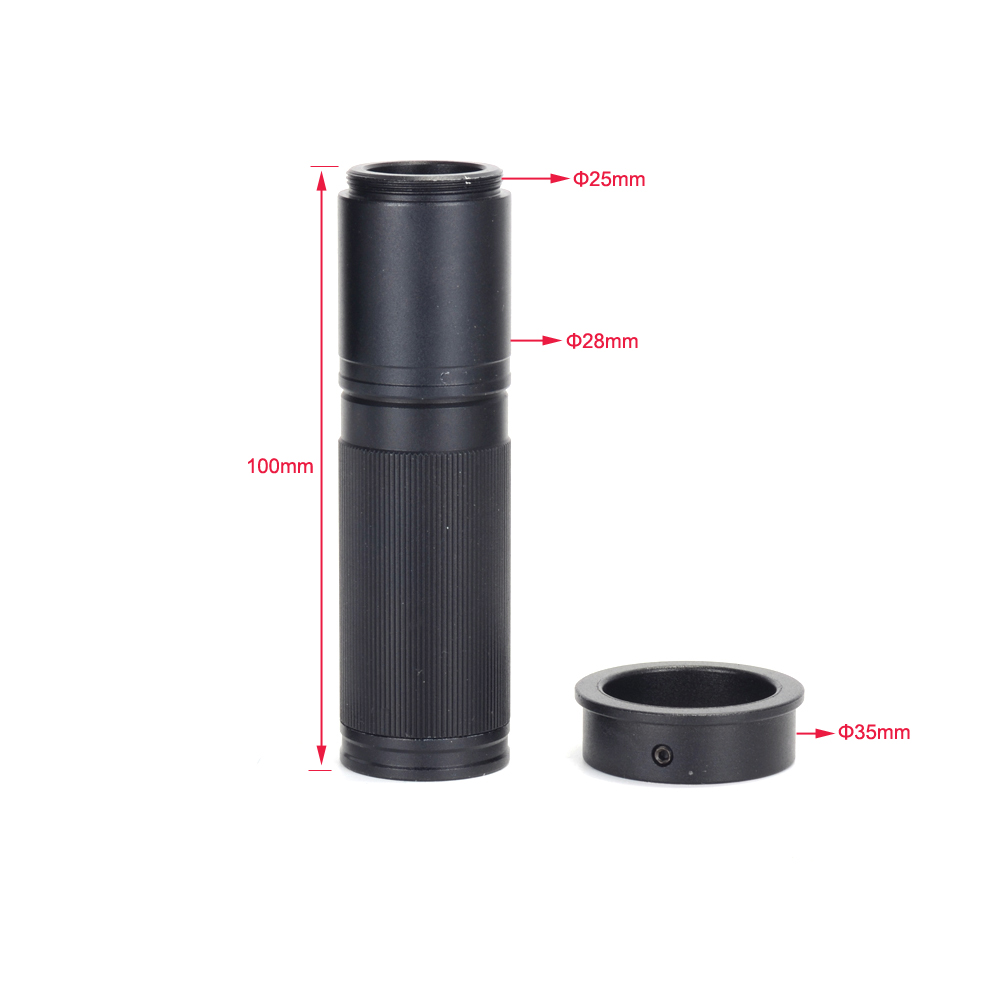

zoom c-mount lens
magnification: 0.11X-2X ( about 5x-150x on the 21 inch display )
visual field: 3.1mm-66mm
working distance: 55mm—68000mm

Package Including:
1 x Microscope Camera with power supply
1 x USB line
1 x Software DISC

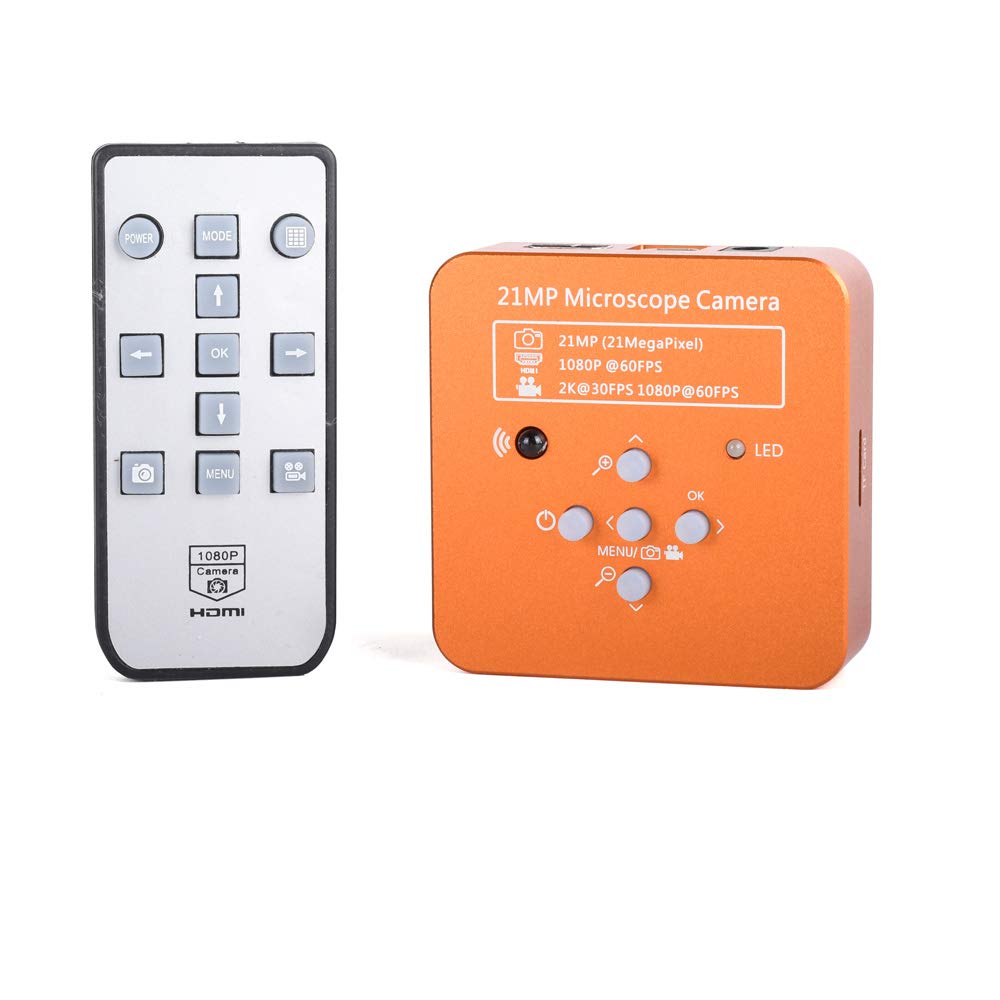

1 x Remote Control
1 x C-mount Lens

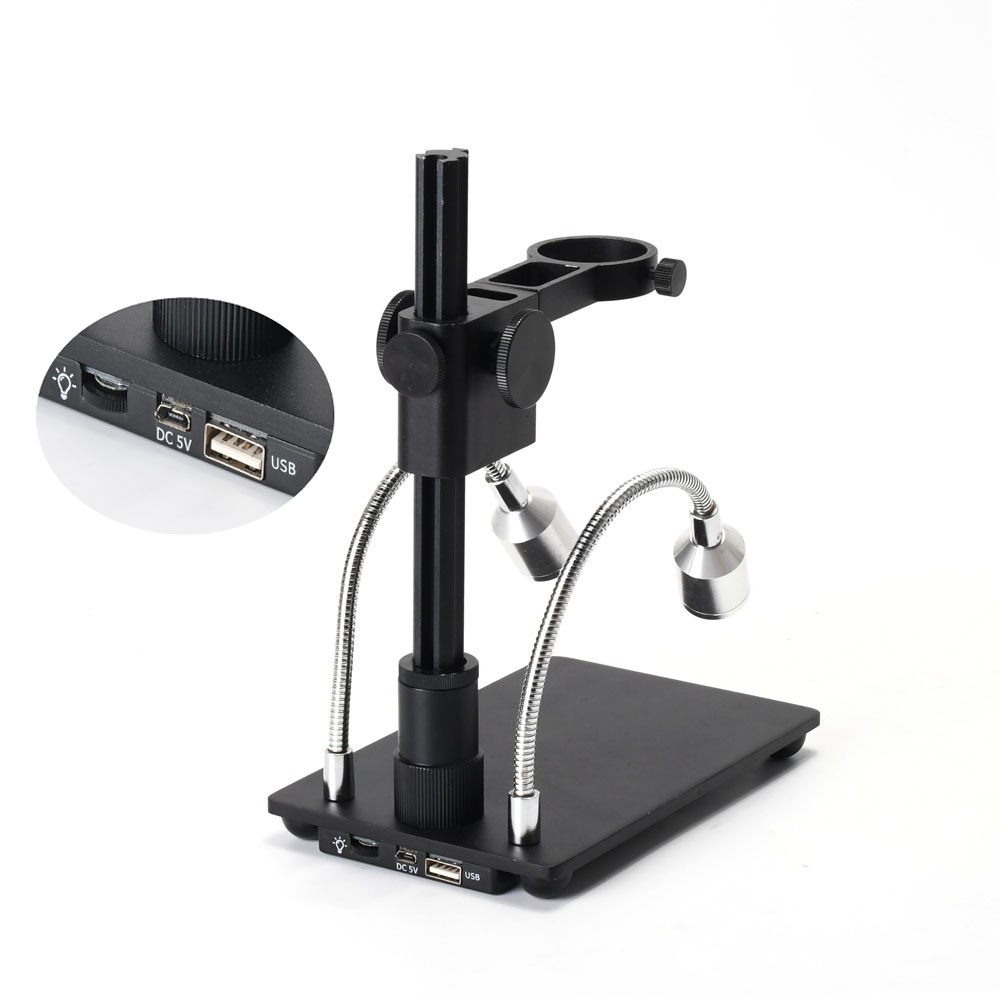

1 x Camera Stand with LED Lights
