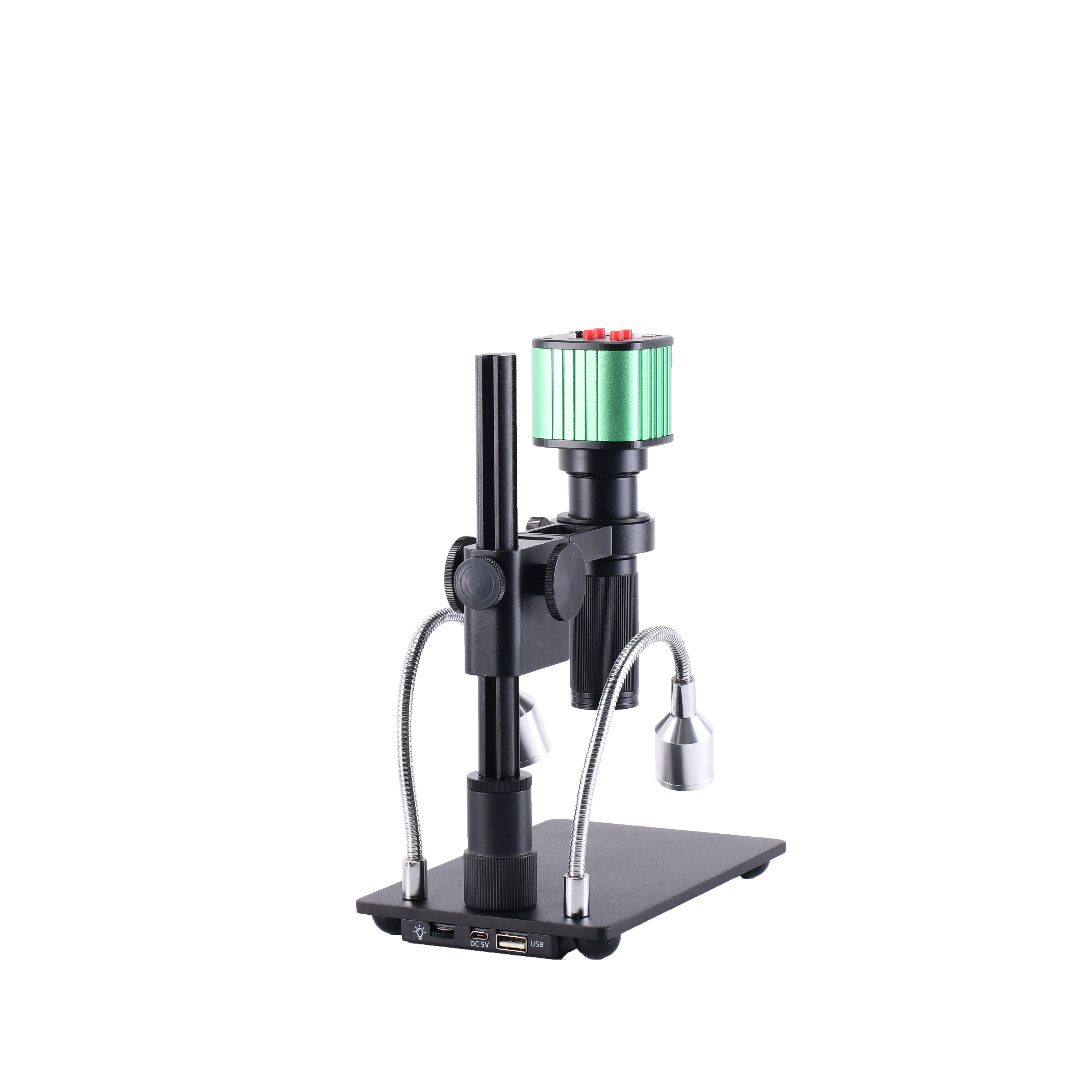

HAYEAR Full Set CCD Camera Full HD 1080P HDMI USB Industrial Video Soldering Microscope Camera for Phone PCB Board Repair
Price : US $ 139.22 279.61

SKU : 1906274346
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.


Specification:

Image sensor: SONY CMOS 1/2.9

Pexil size: 2.85 × 2.85μm

Video output: full hd 1080p ( via HDMI), 720P( vis USB)

Image resolution: 4608*3456( via HDMI)

Video recording: 1080p viaHDMI

Image format: jpeg

Lens: C/CS

Resolution:1920*1080@30fps, 720p 160@fps

TF card interface: max 64G

Pc support: windows XP/7/8/10 system, HAYEAR measure software ( gift)

Digital zoom: 4 times digital zoom

Language: English, Chinese, Japanese, French, Germany, Italy, Korean, Turkey, Russia

Camera dimension: 50mm*50mm*43mm

Package dimension:16cm*10cm*8cm / 0.3kg

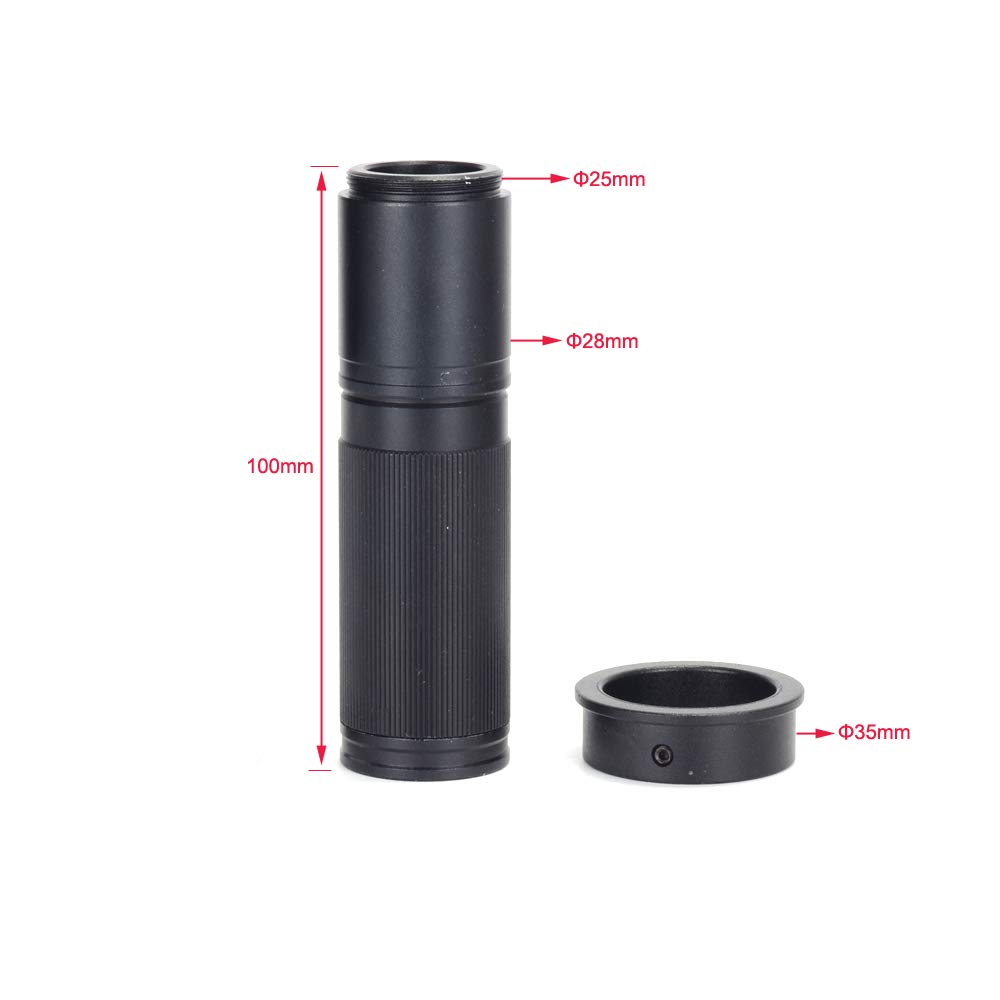

zoom c-mount lens:

zoom ratio: 5:1

magnification: 0.11X-2X ( about 5x-150x on the 21 inch display )

visual field: 3.1mm-66mm

working distance: 55mm—68000mm

with 35mm ring adapter

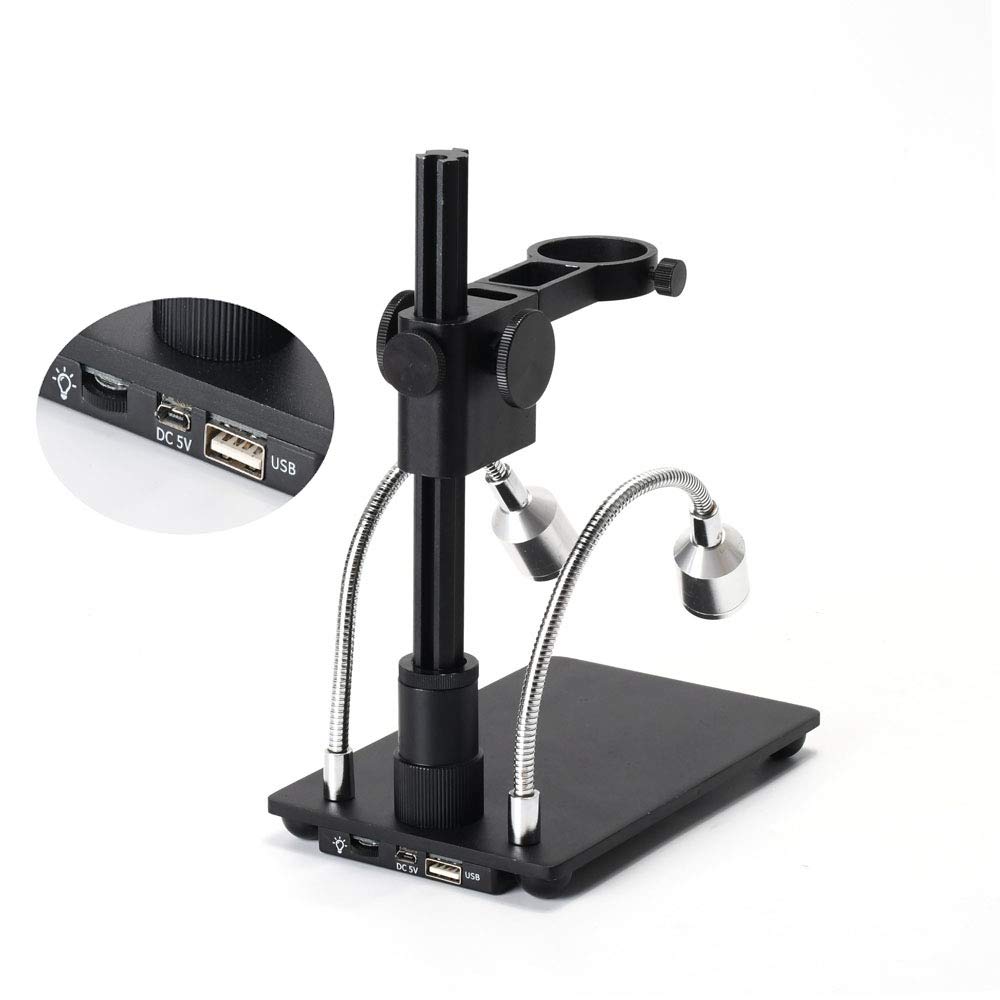

camera stand:

Material: Alloy Aluminu

Ring Diameter:35mm(diameter)

solid base plate, high quality

simple design, beauty appearance

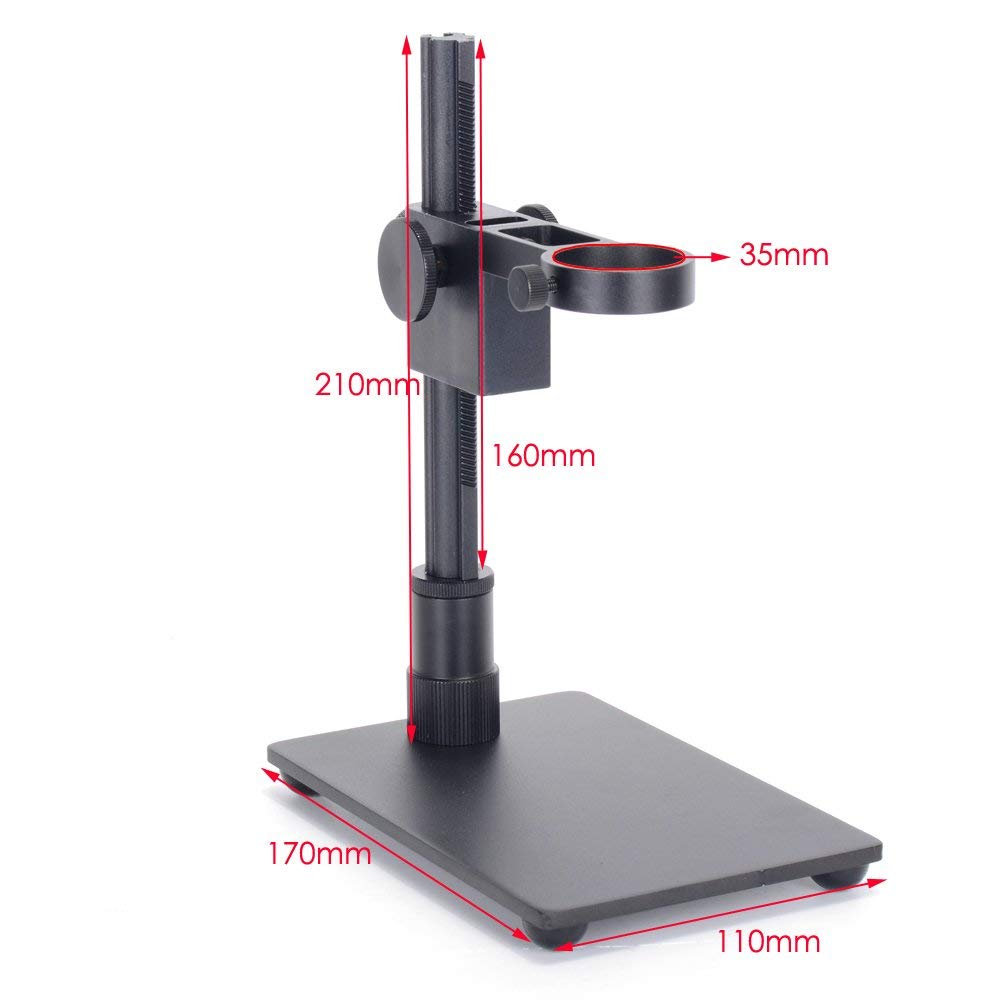

Demension: please check the picture

with adjustable illumilation


Package including:

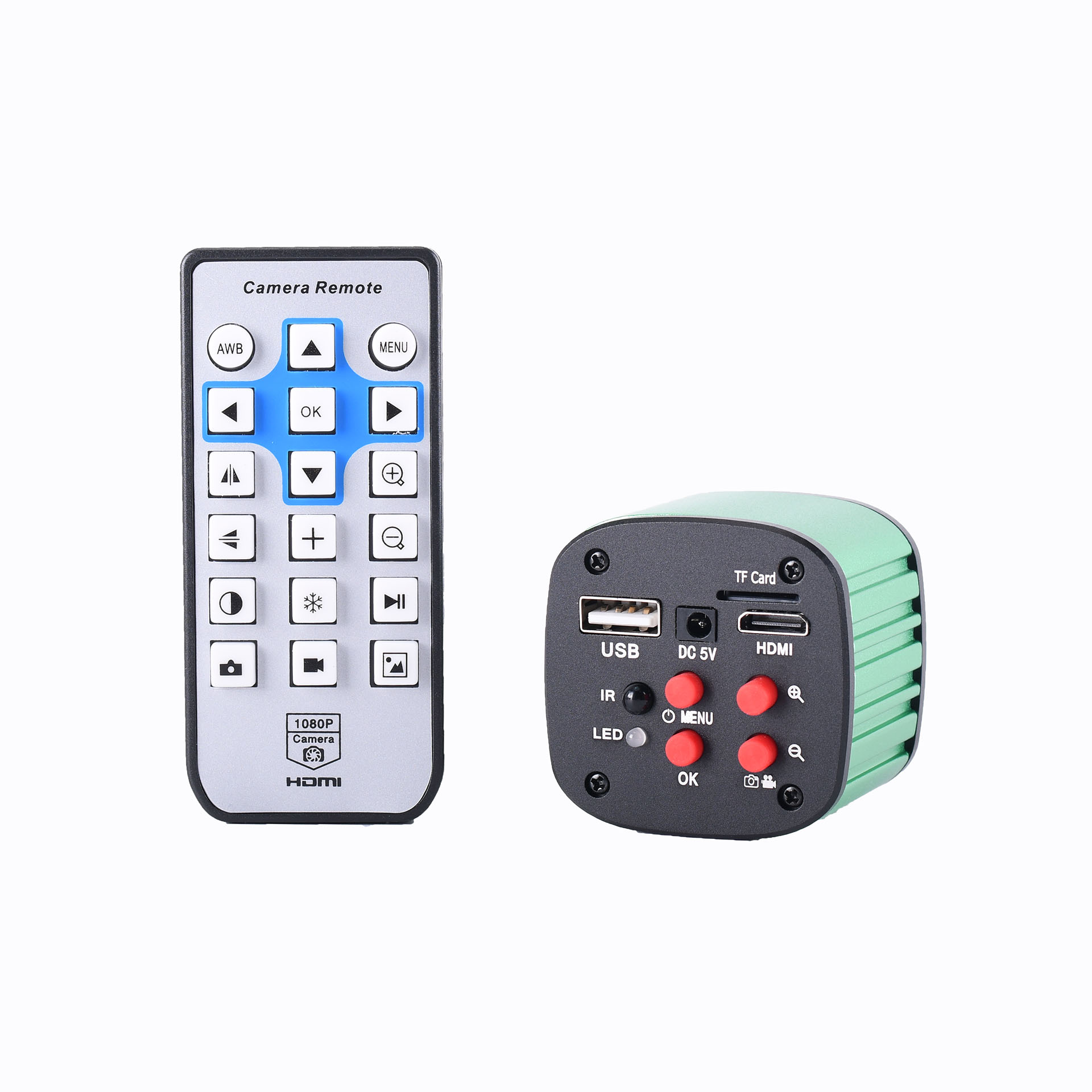

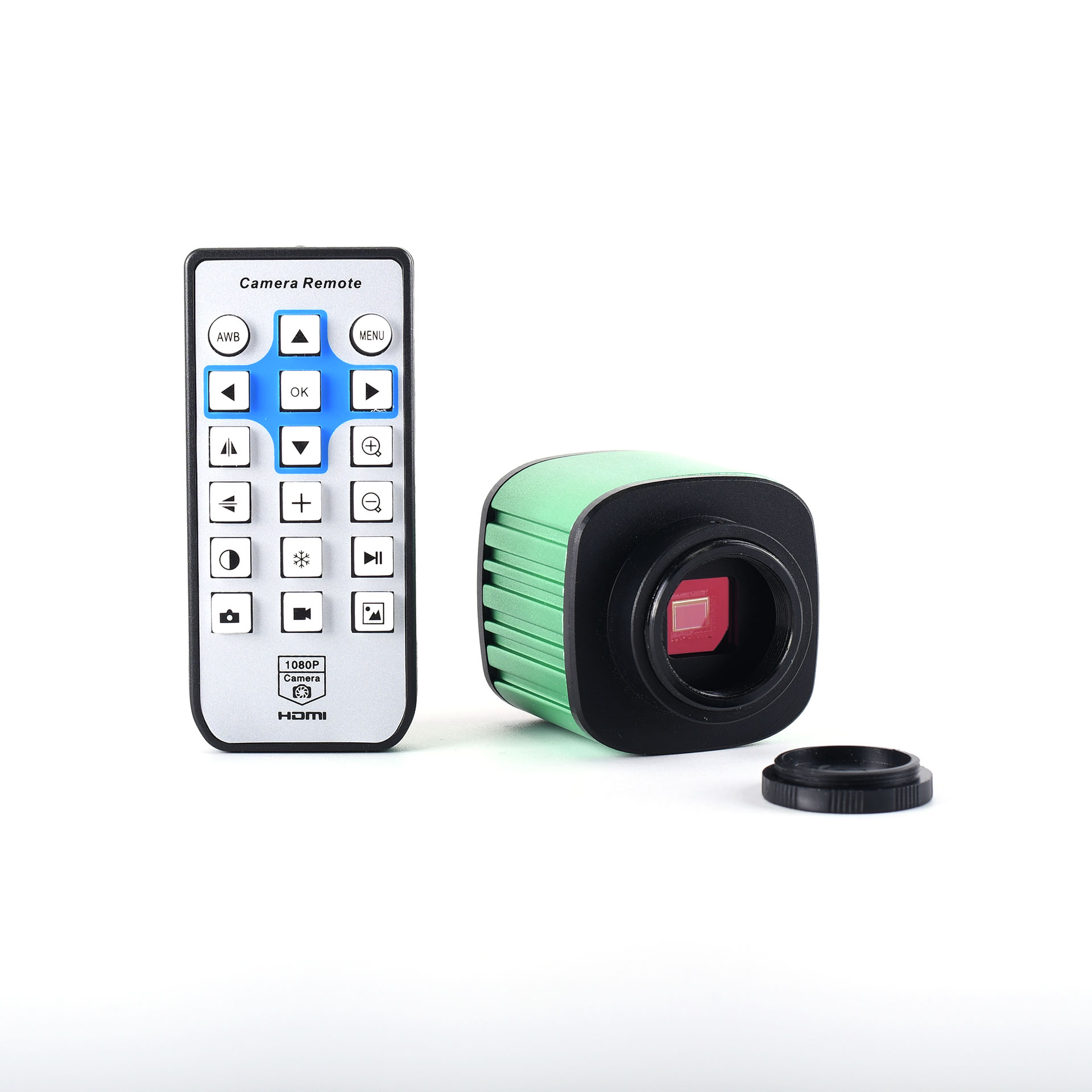

1 * camera with power supply

1 * usb cable

1*  remote control

1* software disk

1 * 150X lens

1* camera stand with adjustable illumination
