USB Camera >> 12MP HD USB C-mount Camera 1080p 30fps High Speed Free Driver 0.5X Eyepiece Reducing Lens 30mm/30.5m Adapter
View Larger Image
Share your images of this product
12MP HD USB C-mount Camera 1080p 30fps High Speed Free Driver 0.5X Eyepiece Reducing Lens 30mm/30.5m Adapter
Price : US $ 239.33 298.88
SKU : 1908051929
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.

Video reference: http://download.hayear.com/content/?266.html

Model: USB Output
Sensor: 12MP,1/2.3 inch
Image equipment: SONY IMX CMOS
Sensor: 12.0MP
Full Resolution: 3840 x 2880
Frame rate:(MJPEG)3840x2880@15FPS ;3840x2160@25FPS ; 3264x2448@15FPS ;2592x1944@25FPS; 1920x1080@25FPS;1024x768@30FPS; 800x600@30FPS;640x480@30FPS
Frame rate:(YUV)3840x2880@1FPS ;3840x2160@1FPS ; 3264x2448@1FPS ; 2592x1944@1FPS;1920x1080@5FPS;1600x1200@5FPS; 800x600@20FPS;640x480@30FPS
Pixel size: 1.55μmm x 1.55μm
Programmable control:The size of the image, image photographing, exposure time, gain, GAMMA,
White Balance: Auto / Adjustable
Data output:16bit
Light: Auto
Electronic shutter:20-100000
White balance (dB):38.1 dB,
Color: Auto/Adjustable
Sensitivity: 1.4V/lux-sec@550nm
Spectral response:400nm~1000nm

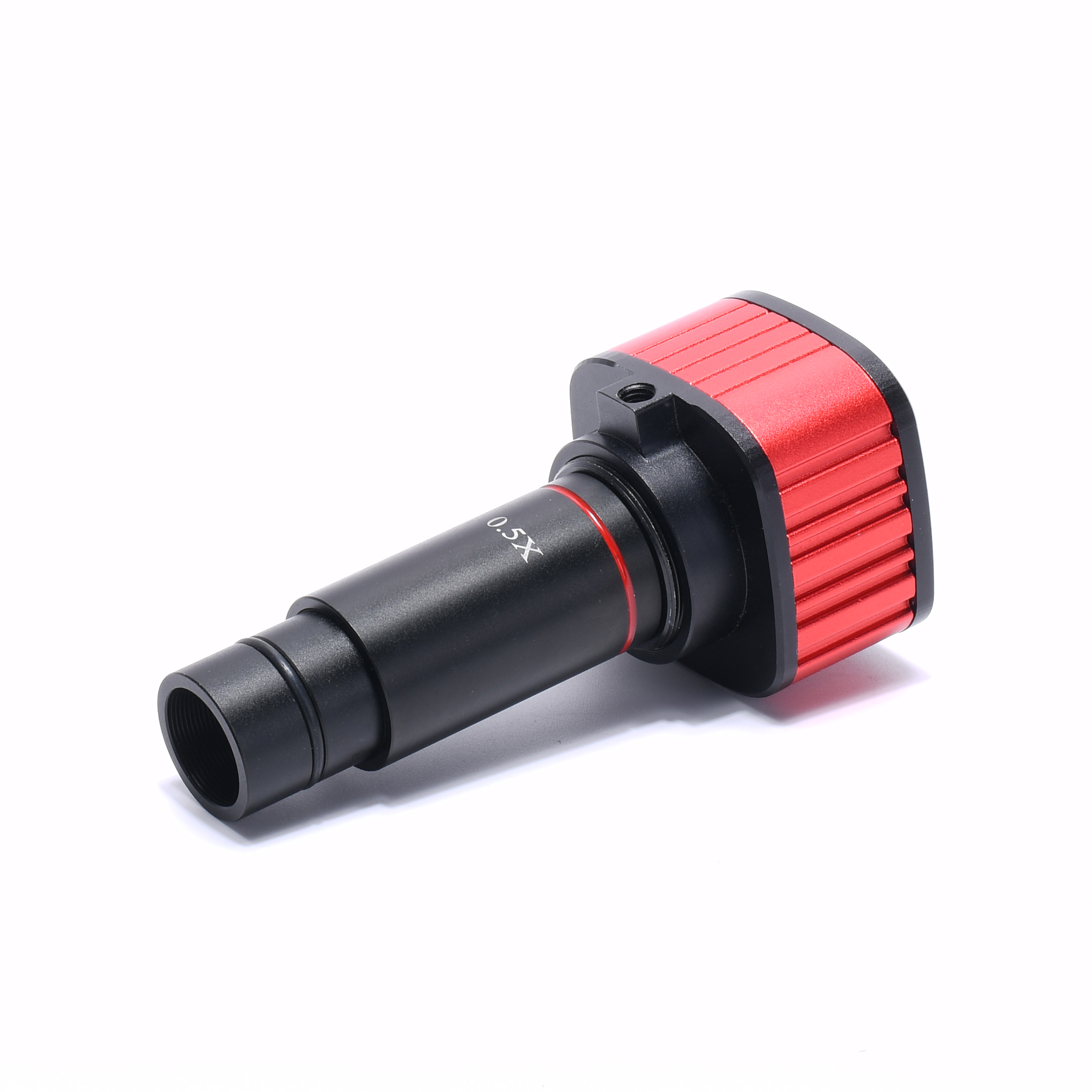

This microscope camera is a 0.5x Reducing lens, which expands the camera's field of view. It can be used with C-Mount or CS-Mount camera in any pixel and placed in a binocular or trinocular microscope to expand its field of view. Can be installed directly in the biological or stereo eyepiece camera.
Magnification: 0.5X
Mounting Size: 23.2mm, 30mm ,30.5mm
C-mount Thread: 32TPI-UN-2A
Suit Microscope: biological microscope and stereo microscope
0.5X magnification to get a more wide view of microscope
C-MOUNT adapter to connect CCD camera or Digital eyepiece to microscope

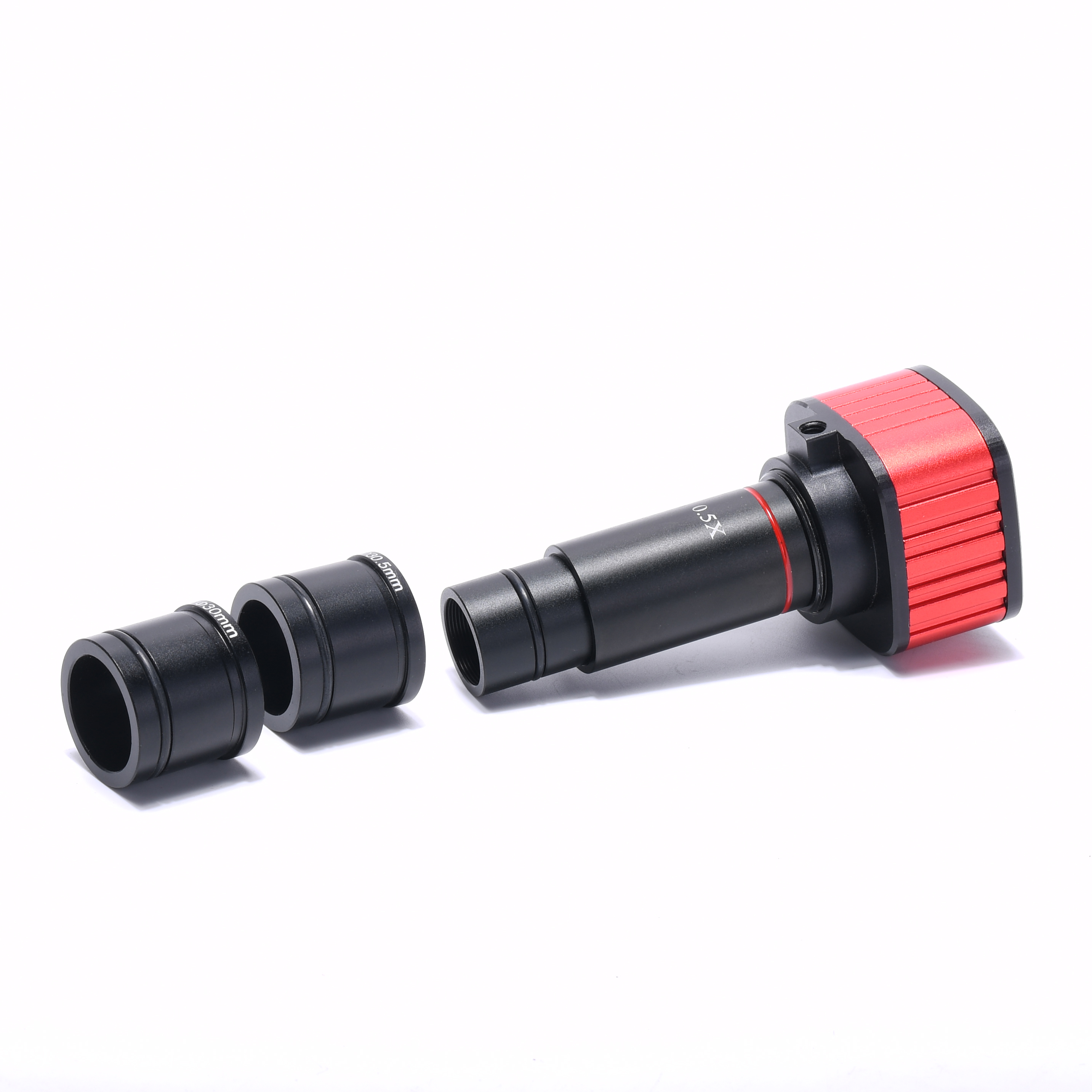

Package including:

1 x 12MP Microscope Camera
1 x 0.5X Reducing Lens
1 x 30/30.5mm Adapter
1 x USB Cable
1 x Software Disk
