HDMI Camera >> 21MP 1080P 60FPS HDMI USB Industrial Camera C-mount Digital Video Soldering Microscope 23.2mm 30mm/30.5m Ring Adapter
View Larger Image
Share your images of this product

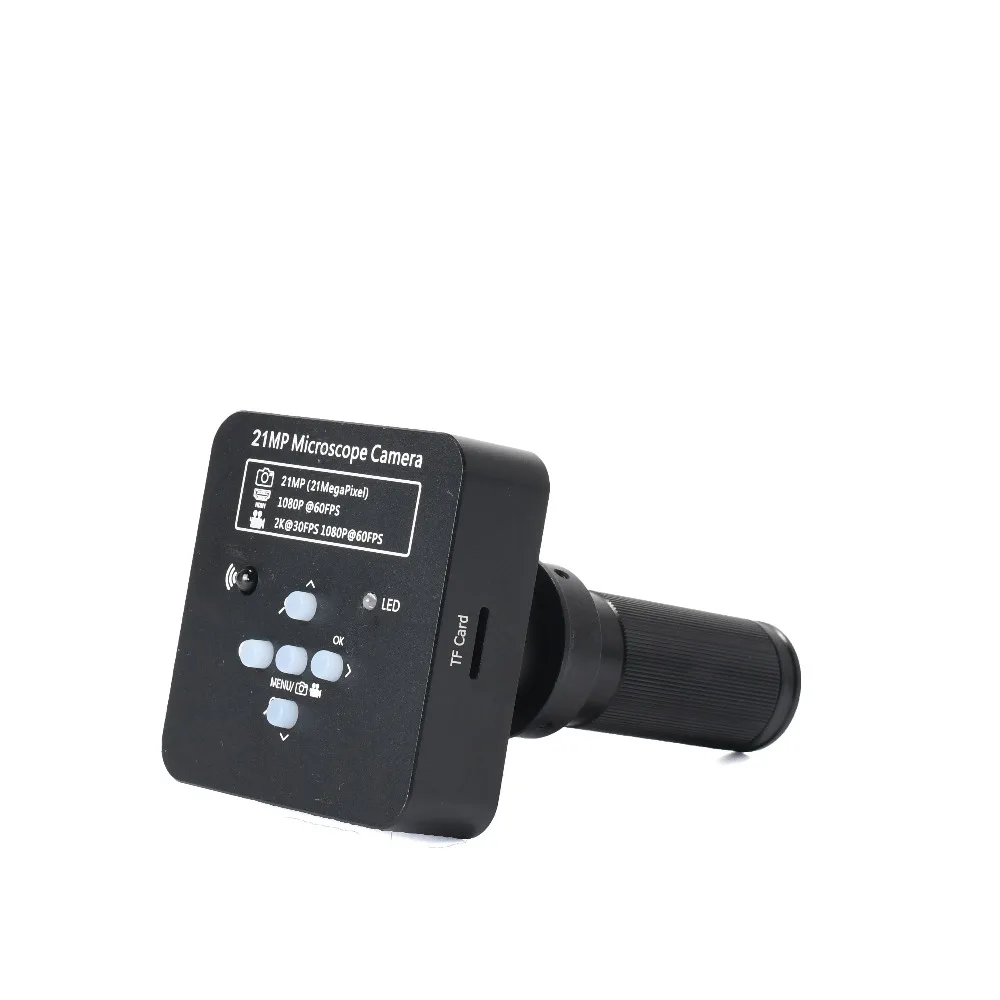

21MP 1080P 60FPS HDMI USB Industrial Camera C-mount Digital Video Soldering Microscope 23.2mm 30mm/30.5m Ring Adapter
Price : US $ 149.22 249.22

SKU : 1908051939
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.
Noting:
1:PC Support : Windows XP/7/8/10 system
2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.
3:When use USB connection, please make sure no TF card in the camera ,TF card storage is only for HDMI output. USB output will be storage in PC.
4:when connect the camera with computer, just plug the USB line is OK ( no need to use the power supply)


Features:
Model: Camera with HDMI USB2.0 two output
Image format: jpg
Image resolution: 21 MegaPixel
Video format: MP4(for TF card)
Video recorder: 2K@30FPS, 1080P@60FPS
HDMI Video resolution: 1920*1080 @ 60FPS
USB Video resolution: 1920*1080@30FPS; 1280*720@30FPS; 640*480@30FPS; 320*240@30FPS
White Balance: Auto/Manual
Light: Auto/Manual
Exposure: Auto/Manual, value adjustable
Color: Color
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Japanese/German
Line: different color,5 horizontal line , 5 vertical line,any positions

Specification:

Image sensor: 21 megapixel Panasonic CMOS sensor 1/2.33 inch
Effective pixel: 21 megapixel
Pixel size:1.335μm × 1.335μm
Frame rate:60fps
Definition:FULL HD
Housing:metal
Lens:C/CS
Video format: MOV
Digital Zoom:Support
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, movable
Different color,5 horizontal line , 5 vertical line,any positions
TF card interface:Max 64G
HDMI interface:Standard HDMI output (Type A)
USB interface:Standard usb2.0 interface (Type B)
Input Voltage: DC 12V

Zoom Lens:
 Field of view: 3.1mm-66mm
zoom c-mount Lens
zoom ratios: 5:1
Magnification Power by 0.11X - 2X

Size: 100mm(L) * 28mm(DIA)

with 35mm ring adapter


Package including:
1 x 21MP Microscope Camera
1 x Power supply
1 x USB line
1 x HDMI line
1 x Software DISC
1 x Remote Control

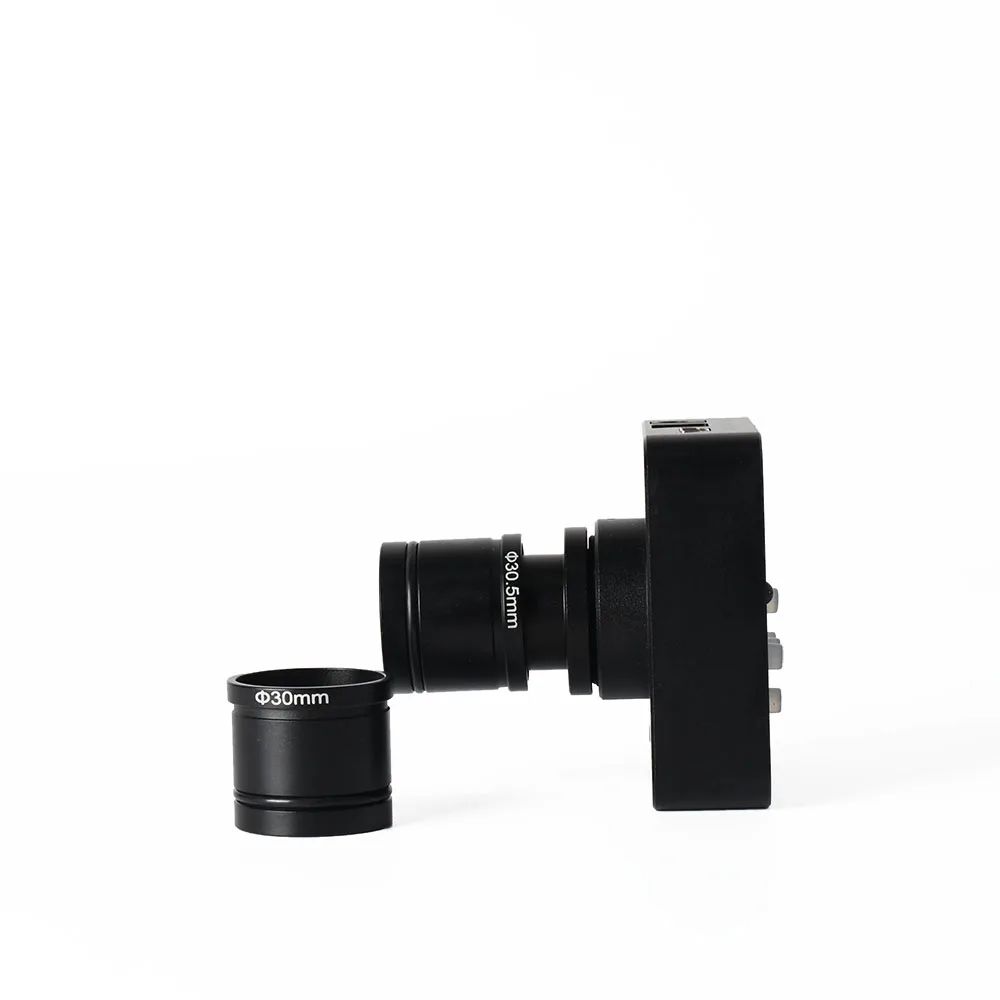

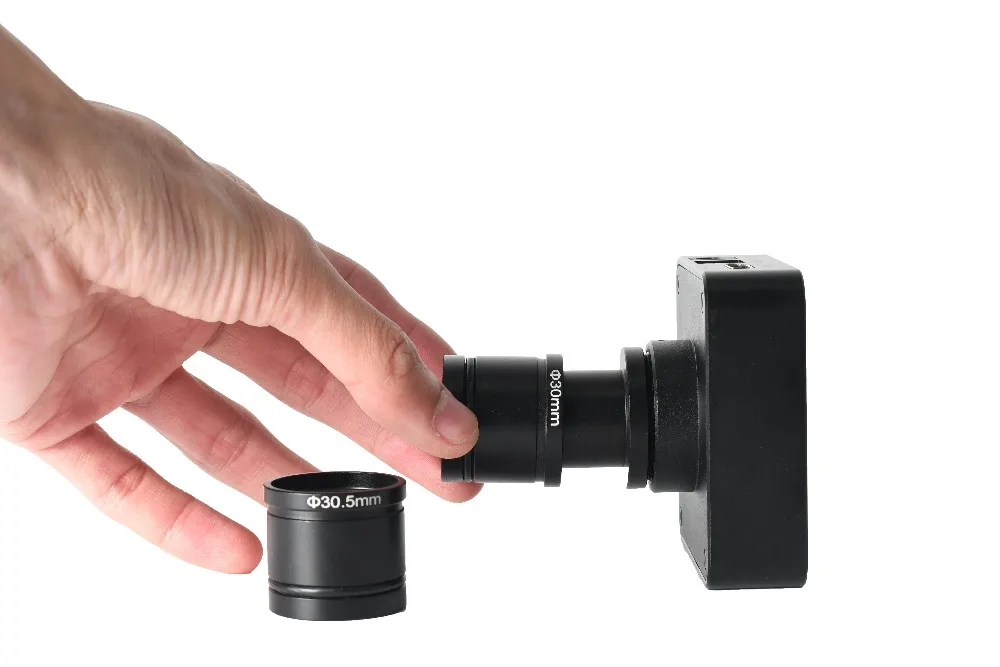

1 x 23.2mm  adapter ring
1 x 23.2mm to 30mm adapter ring
1 x 23.2mm to 30.5mm adapter ring
1 x 150x Zoom Lens with 35mm ring adapter
