HAYEAR Industrial Microscope Camera 16MP HDMI Camera USB 10.1 inch LCD Monitor 180X Optical Zoom Lens Heavy Duty Big Boom Stand Universal Up and Down Adjustable 144 LED Light Source
Price : US $ 299.00 320.00

SKU : 2110121507
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.
Product description

Specification:
Image sensor: SONY CMOS 1/2.9
Pexil size: 2.85 × 2.85μm
Video output: full hd 1080p ( via HDMI), 720P( vis USB)
Image resolution: 4608*3456( via HDMI)
Video recording: 1080p viaHDMI
Image format: jpeg
Lens: C/CS
Resolution:1920*1080@30fps, 720p 160@fps
TF card interface: max 64G
Pc support: windows XP/7/8/10 system, HAYEAR measure software ( gift) Digital zoom: 4 times digital zoom
Language: English, Chinese, Japanese, French, Germany, Italy, Korean, Turkey, Russia
Camera dimension: 50mm*50mm*43mm
Package dimension:16cm*10cm*8cm / 0.3kg

Objective: continuous zoom 0.7-4.5X,
Zoom ratio: 6.4:1
Eyepiece: 0.5X
Zoom range: 10X-180X. Optional Barlow Objective: 0.3X, 0.5X, 0.75X, 1.0X, 2.0X (Excluding)
Working distance: standard working distance 100mm, can be to 100mm to 200mm by adding barlow lens
Focusing mechanism: adjustable focusing hand wheel, focusing range 63mm and 50mm

10.1 inch monitor Specification:
Screen Size : 10.1"
Aspect Ratio : 16 : 9
Display Model: IPS
Screen Resolution: 1920*800
Screen Brightness : 350 cd/m^2(Typ.)
Screen Contrast : 800 : 1 (Typ.)
Response Time : <10ms
Viewing Angle: 85/85/85/85(Typ.)(CR>10)(L/R/U/D)
Video Input : VGA,BNC,HDMI
Audio : PC audio in Earphone speaker out
Menu Language :English / French / German / Chinese Simplified / Italian / Spanish / Portuguese / Japanese/ Korean
Operating Temperature : 0 ~ 45 degree celsius
Power Supply :Input: AC 100~240V, 50~60Hz (worldwide voltage) Output: DC 12V, 2A
Material : ABS
Dimensions : approx. 250 (W) x 165 (H) x 32 (D) mm approx.

Package Including:

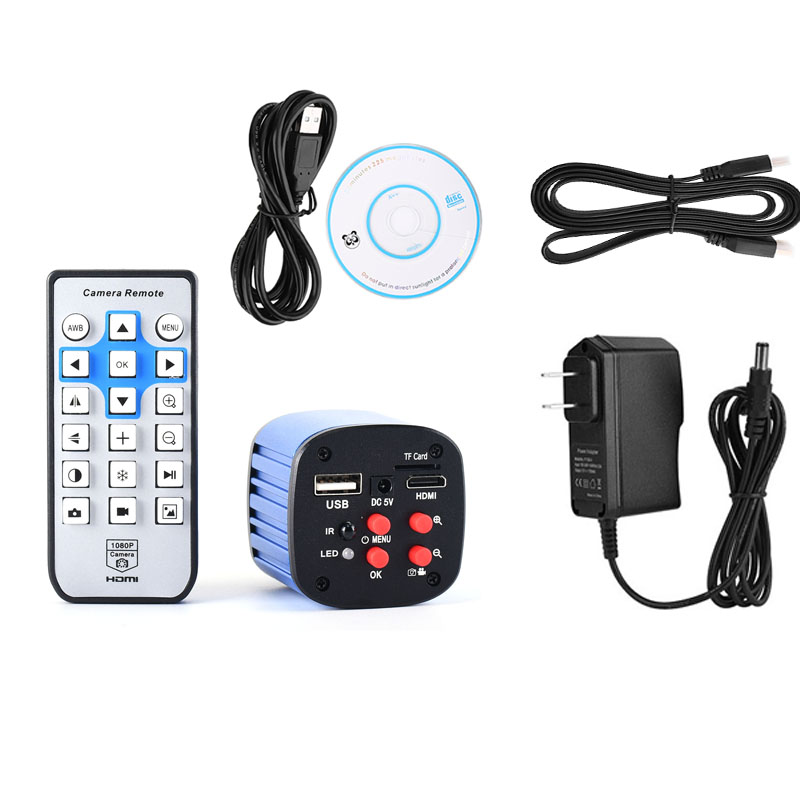

1 x 16MP camera with full set of accessories (USB cable/remote control/power supply/disk)
1 x 180X zoom lens
1 x 10.1 inch monitor and power supply
1 x full set of stand
1 x 144 LED ring light
1 x monitor holding bar
