Stereo Microscope >> 48MP HDMI Digital USB Microscope Camera 3.5X-90X Simul-Focal Trinocular Stereo Microscope Soldering PCB Jewelry Repair Kit
View Larger Image
Share your images of this product

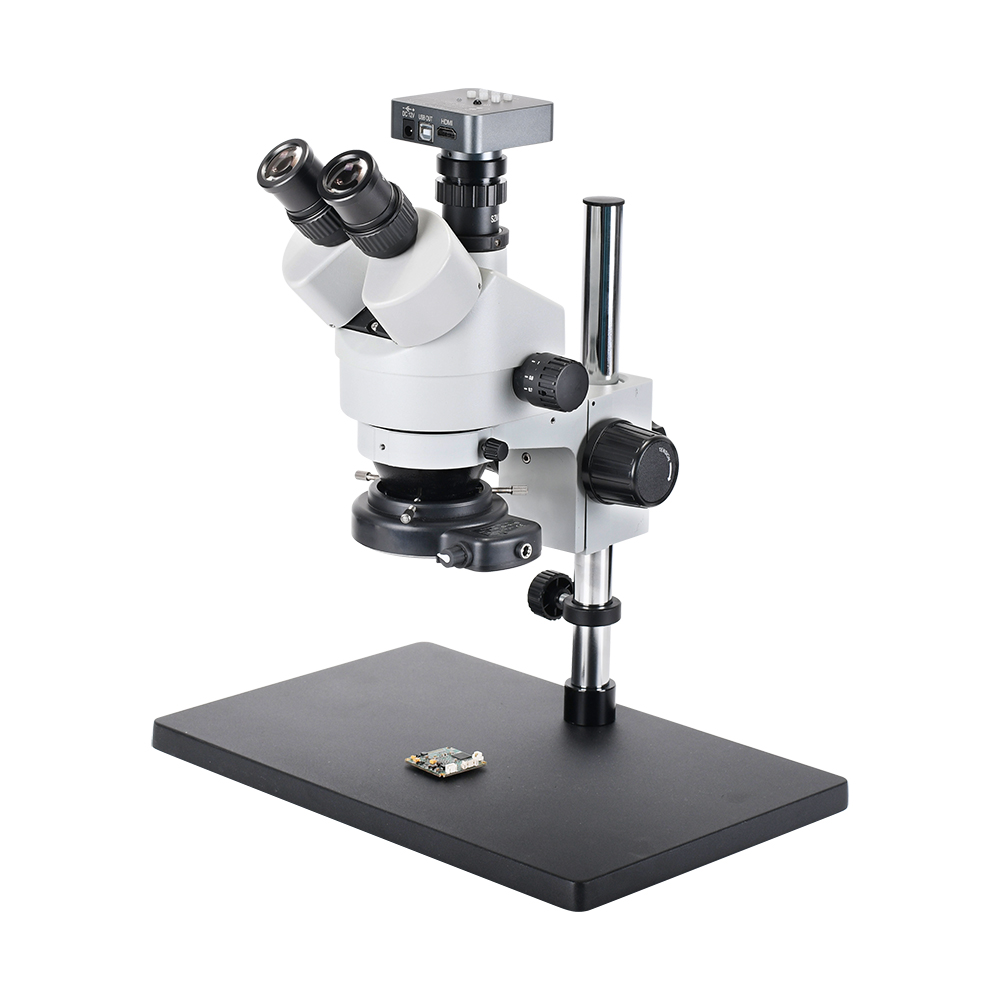

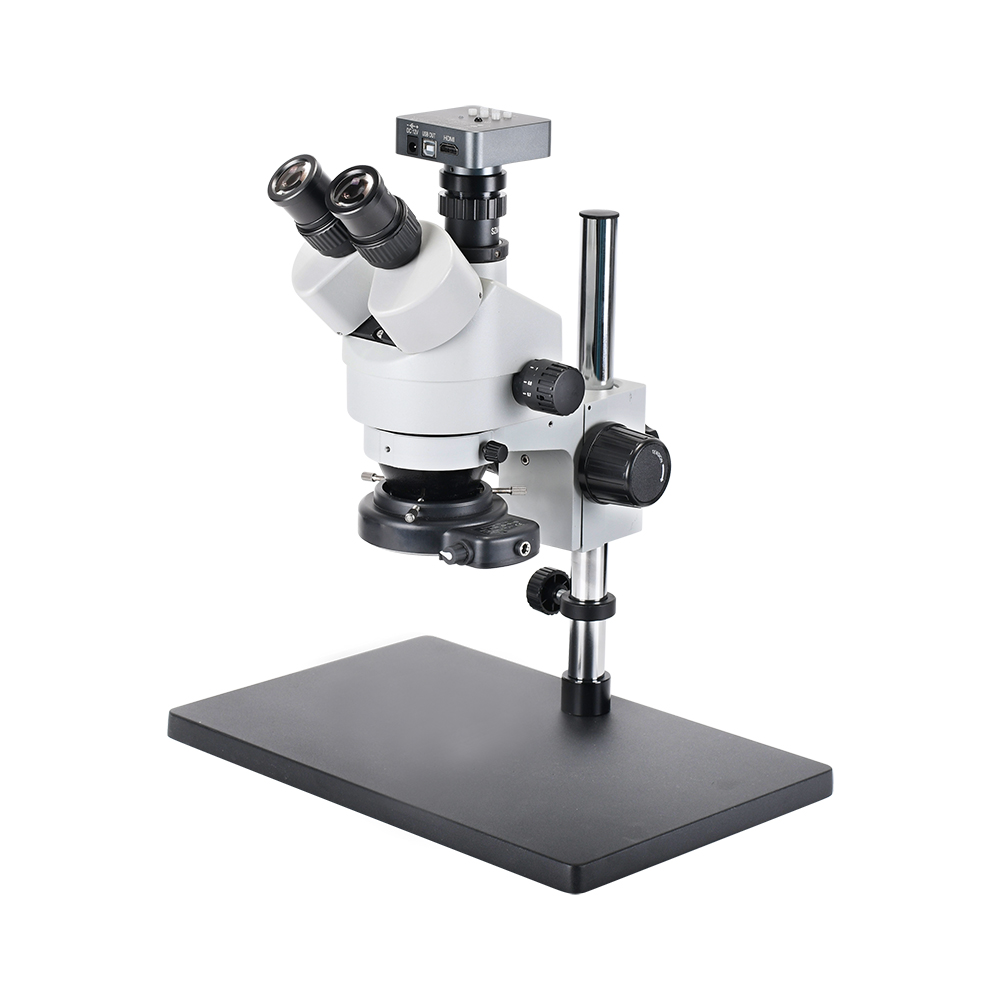

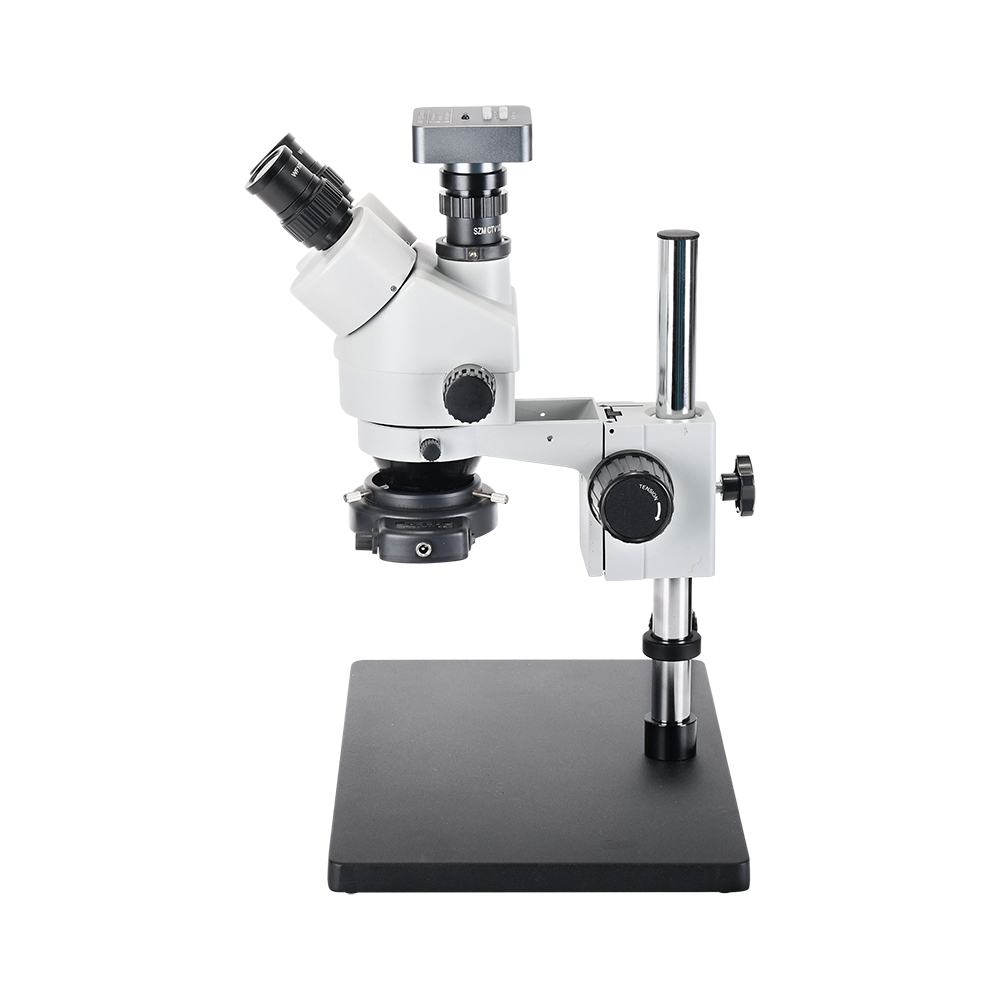

48MP HDMI Digital USB Microscope Camera 3.5X-90X Simul-Focal Trinocular Stereo Microscope Soldering PCB Jewelry Repair Kit
Price : US $ 389.00 569.00
SKU : 2110143601
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.
key Feature:

  3.5X-90X zoom magnification power with crisp sharp images
Sturdy all-metal pillar stand
Powerful 144-LED ring light with dimmer
This stereo microscope has a 144-LED ring light that offers super widefield optics and 7X-90X zoom magnification power with a cool light illumination system. It is an ideal instrument for industrial inspection and/or biological lab applications. This microscope is perfect for gemologists , manufacturing engineers, dental lab technicians, and anyone in electronic and semiconductor industries.

Key Feature:

An excellent stereo inspection microscope with intensity-adjustable 144-LED ring light
3.5x-90x super wide zoom magnification power
Bright cool light 144-LED illumination system
High resolution with great flatness and contrast, giving sharp and clear images
Binocular head with 45 degree inclined 360 degree swiveling eye tubes
Sharp stereo erect images with a wide field of view
Crystal clear original true color microscope images
Dual eye tubes with adjustable diopters
Large working distance
Sturdy all-metal table stand
Accurate alignment reduces eye strain for longer periods of viewing
Full optical glass elements
Precise ground glass lenses
Full metal chrome-plated mechanical components
Adjustable interpupillary distance
Rubber eye-guards included

Head: 360 degree rotatable 45 degree inclined binocular
Eyepieces: 30mm super widefield high-eyepoint WF10X/20MM
Objective Zoom Range: 0.35X-9.0X, using the Barlow lenses
Working Distance: 4" (100mm)
Diopter Adjustment: +/- 5dp
Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
Round Plate: 3-3/4" (95mm) in diameter
Stand: 10" x 7-7/8" x 10.75" (254 x 200 x 275mm)
Illumination: 144-LED Ring Light
Power Input: 110-240V, 50-60HZ, Automatic Switching
Accessories: Paired eye-caps
Weight: 5.9kg

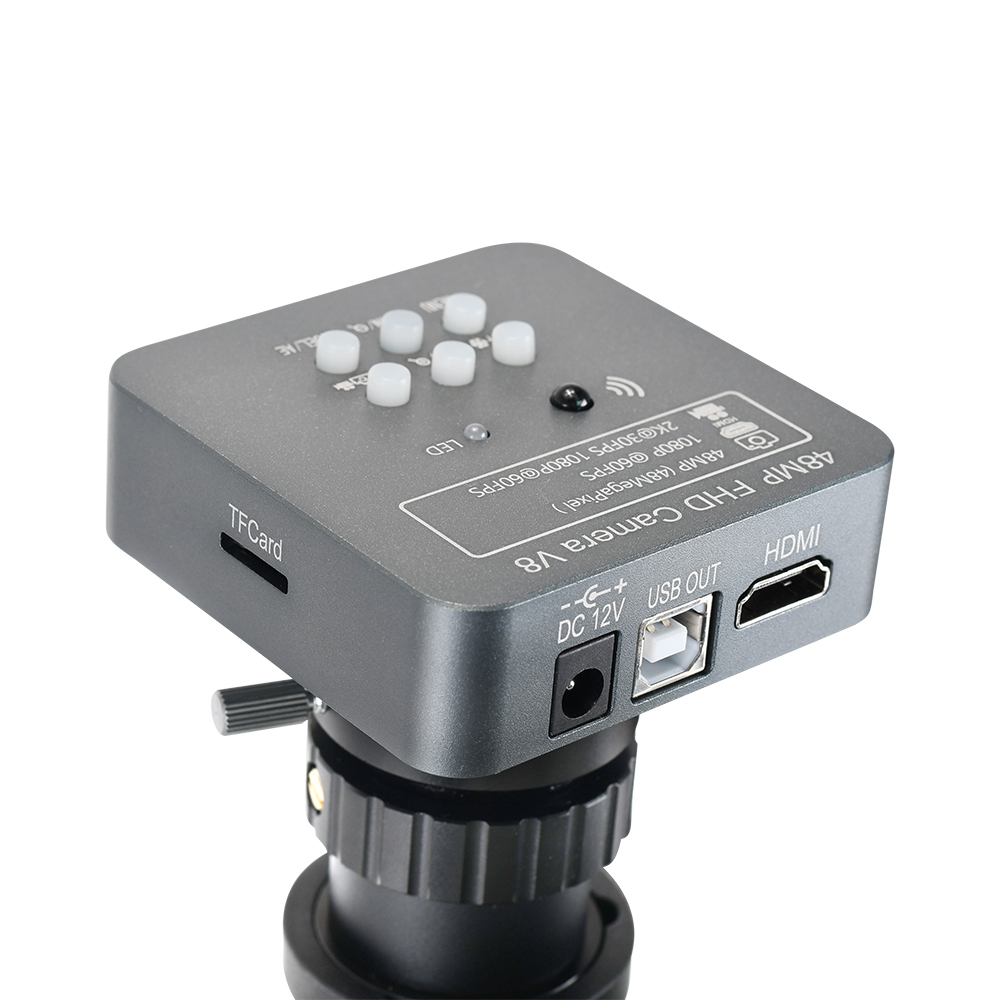

Camera's Features:

Camera Specification:

Condition: 100% Brand New
Item Type: Microscope Camera
Model: High Definition Multimedia Interface USB2.0 Dual Output Camera
Image Format: jpg
Image Resolution: 48MP
Video Format: MP4 (for Memory Card)
Video Recorder: 1080P at 60FPS
High Definition Multimedia Interface Video Resolution: 1920x1080 at 60FPS (For HDMI)
USB Video Resolution: 1920x1080 at 30FPS; 1280x720 at 30FPS; 640x480 at 30FPS; 320x240 at 30FPS
White Balance: Automatic / Manual
Light: Automatic / Manual
Exposure: Automatic / Manual, Value Adjustable
Direction: Left / Right, Up / Down
Freeze: Support
OSD: English / Chinese / French / Spanish / Japanese / German
Lines: Different colors, 5 horizontal lines, 5 vertical lines, any position
Image Sensor: 48MP CMOS Sensor 1/2.33 Inches
Effective Pixels: 48MP
Pixels Size: 1.335μm x 1.335μm
Frame Rate: 60fps
Definition: Full High Definition
Housing: Metal
Lens: C/CS
Video Format: MOV
Digital Zoom: Support
Brightness Control: Automatic / Manual
Color: R / G / B Adjustable
Film and Records: Support
Cross Cursor: Support multi-color, adjustable size
Horizontal and Vertical Lines:
Support multi-color, 5 horizontal / vertical lines, movable
Different colors, 5 horizontal lines, 5 vertical lines, any position
Memory Card Interface: up to 64G (Not Included)
High Definition Multimedia Interface: Standard High Definition Multimedia Interface Output (Type A)
USB Interface: Standard USB2.0 Interface (Type B)
Input Voltage: DC 12V

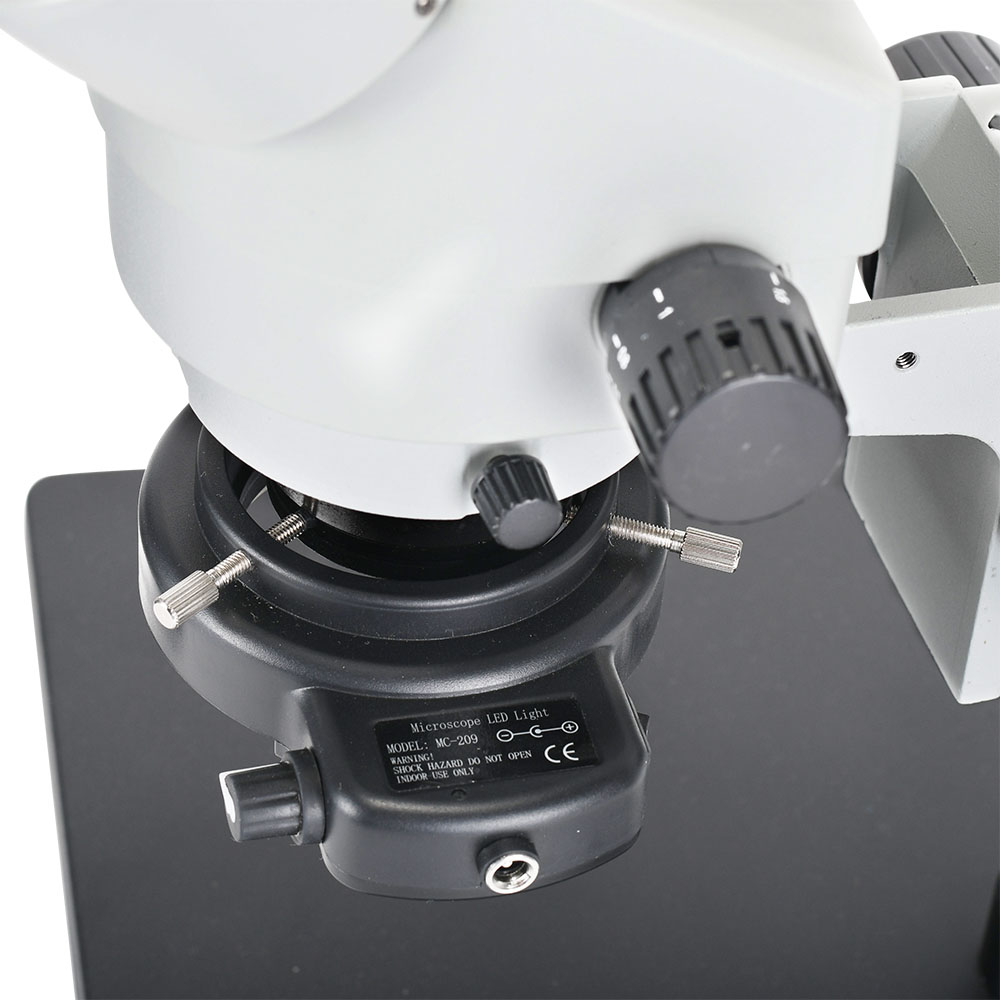

144 LED Adjustable Compact Microscope Ring Light
Provides intense and focused shadow-free illumination
144 bright white LED bulbs
Lighting direction changeable
Variable intensity control
Intense and focused shadow-free illumination
100,000 hours of life
Power input: 100-240V, 50-60HZ, auto switching
Inside diameter of the ring light: 1.0" (27mm)
Overall outside diameter: 1.77" (45mm)
Working Distance: 27mm-45mm

Package incluede:
1 x Trinocular Stereo Zoom Head
1 x 48MP Microscope camera
1 x Pair of Super WF 10X20mm Eyepieces
1 x 144-LED Ring Light with Adapter
1 x Pillar Table Stand
1 x Focusing Rack
1 x Pair of Eye-Guards
1 x Dust Cover
1 x 1/2 C-mount Adapter
1 x 2X objective Lens
1 x 0.5X objective Lens
2 x Power Supply
1 x USB Cable
1 x High Definition Multimedia Interface Cable
1 x Software CD
1 x Remote Control (Battery Not Included)
