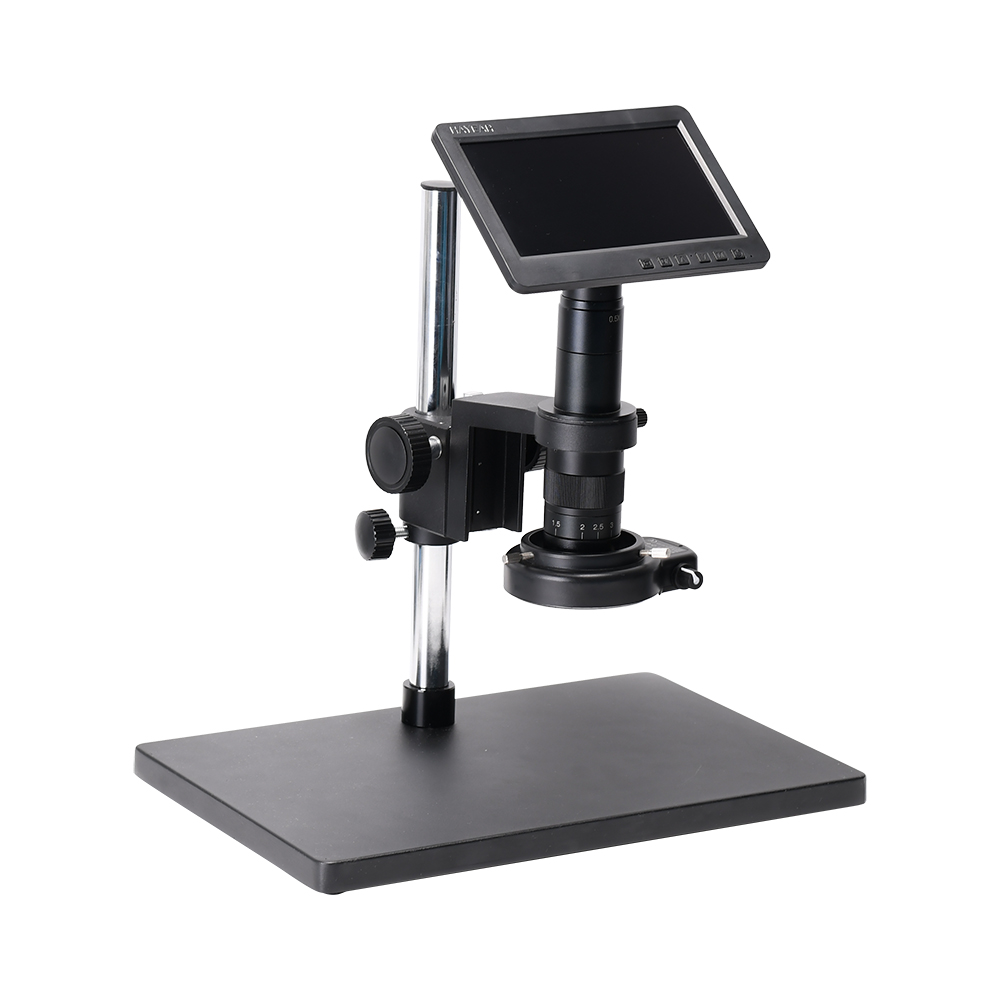

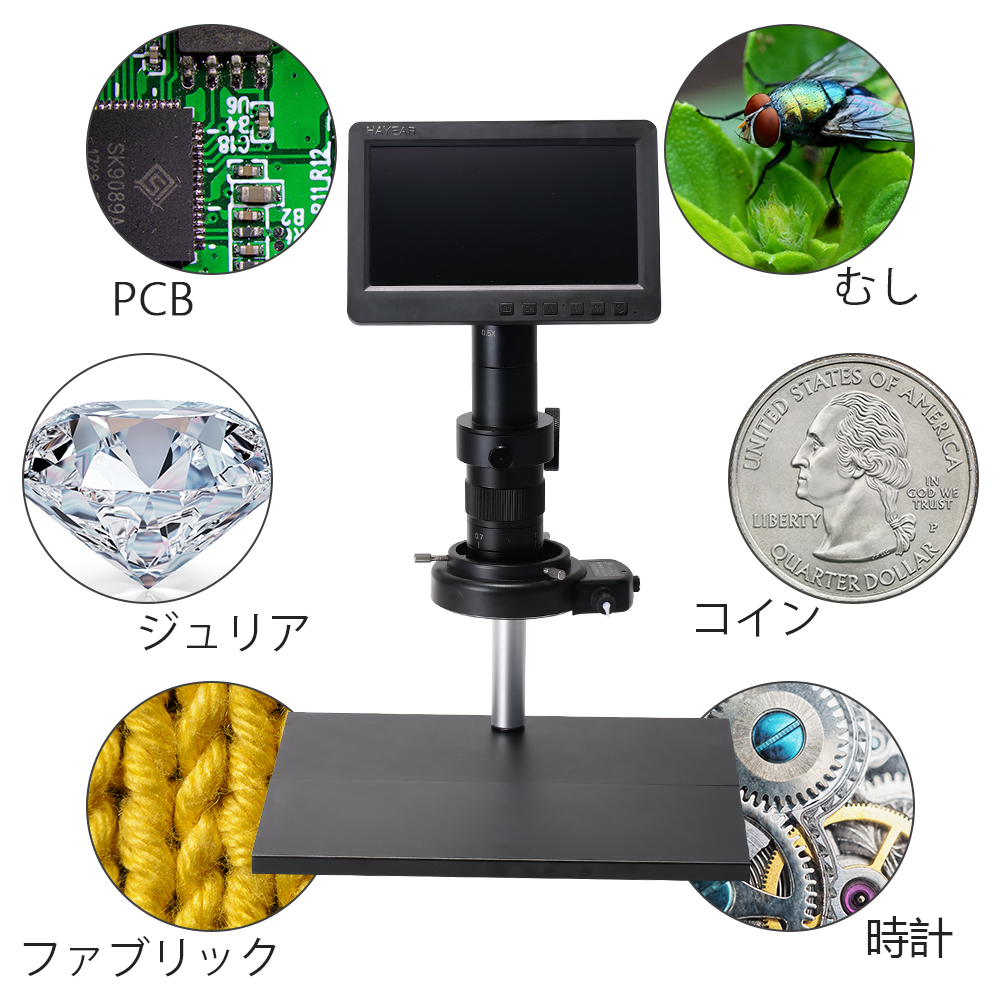

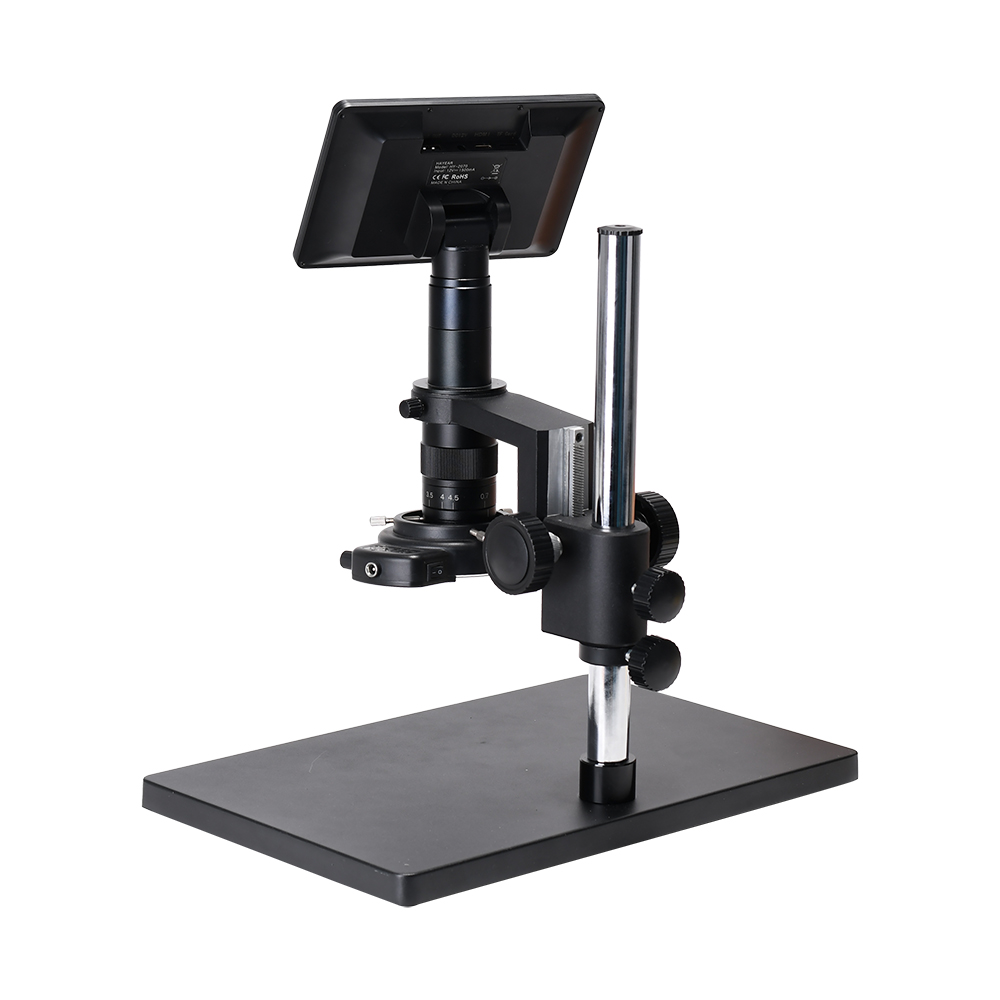

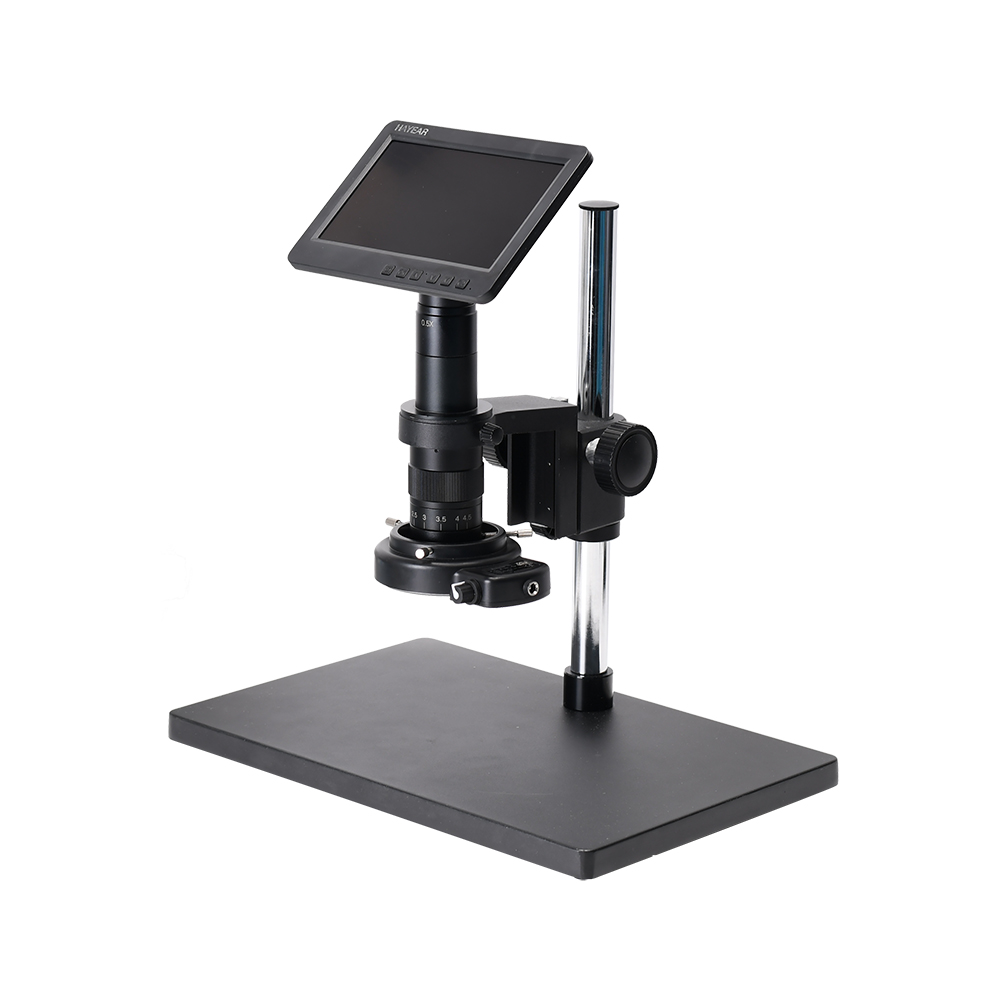

HAYEAR 26 MP 7 inch screen digital microscope with 180 X C mount lens and 144 LED ring light, set with universal bracket that can be adjusted up and down Applies to the fields of education, scientific research, laboratory, Julia certification, PCB repair, etc.


Valid pixels: SONY 26MP SONY IMX sensor
Pixel size: 2.9 x 2.9 μm
Sensor size: 1 / 2.8 ”

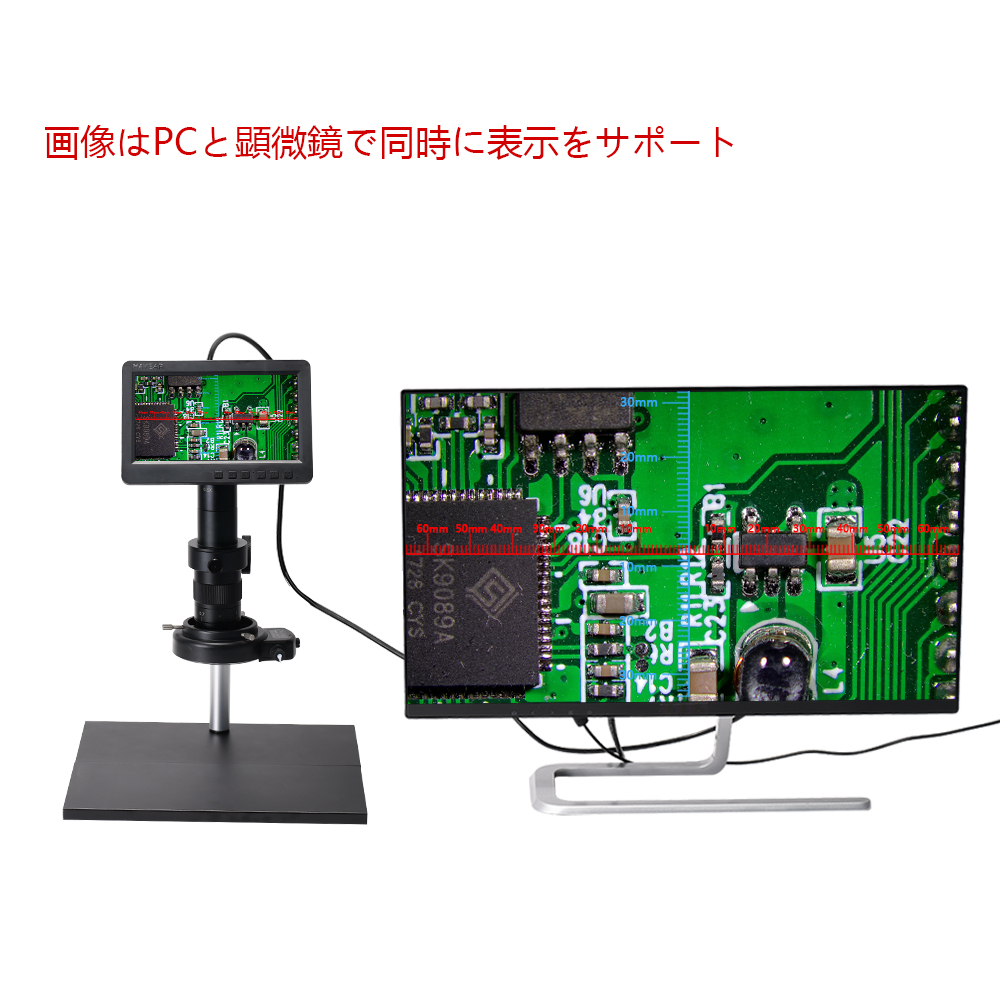

Output interface: HDMI / USB Standard USB2.0 interface (Type B)
Resolution: 1920x1080 @ 60FPS (HDMI) 1920x1080 @ 30FPS (USB)
Screen size: 7.1 inch
Resolution output: 16: 9, 4: 3
Image resolution: 4608 x 2592
Frame rate: 60 @ FPS Iro: R / G / B
Horizontal and vertical lines: Multicolor compatible, 5 horizontal / vertical lines, movable; different colors, 5 horizontal lines, 5 vertical lines, any position,
Image scaling: 8x zoom
Magnification: 50X-1200X
Focus range: 5cm to 35cm
Range type: C / CS
Lens focus range: 5cm ~ 8cm


Objective lens ;: 0.7 --4.5 x Zoom
Zoom ratio: 6.4: 1
Eyepiece: 0.5 x
Zoom range: 10 x --180 x, Optional Barlow Barlow objective lens: 0.3 x, 0.5 x , 0.75 x, 1.0 x, 2.0 x (excluding)
Working distance: Standard working distance 100 mm, working distance can be from 100 mm to 200 mm by adding Barlow lens.
Focus frame: Adjustable hand ring, focus range is 63 mm, 50 mm


Package Includes:
7 inch screen microscope camera X1
180 x Zoom Lens X 1
Full set stand X1
CD software X1
Power Adapter X2
144 LED Ring Light X1
USB Cable X1
Remote control X1
