Specifications

Model: hy-500b3

Image sensor: 1 / 2.5 "color CMOS image sensor

Pixel size μ M (H) × 2.20 μ M (V)

Spectral response: 400 nm to 1000 nm

Scan method: progressive scan, pure hardware 5 million pixel image sensor, no compression, no interpolation

Resolution: 2592x 1944; 2084 x 1536; 1920 x 1080; 1280 x 720

Frame data: MJPEG

5MP: 2592 x 1944 HDR @ 30fps; 3MP: 2084 x 1536 HDR @ 30fps;

2MP: 1920 x 1080 HDR @ 30 FPS; 2MP: 1600x1200 HDR @ 30fps

1mp: 1280x720 HDR @ 30fps

Output image format: MJPEG / yuv2 (yuyv)

Dynamic range: 74 dB (linear) 85 dB (HDR)

Sensitivity: 2400 MV / Lux sec

White balance: automatic / manual

Image output: USB 2. 0480 MB / S

Usage temperature

Adjustable storage parameters: brightness, contrast, saturation, hue, sharpness, gamma, gain, white balance, backlight contrast, exposure

Drive free protocol support: USB video class (UVC)

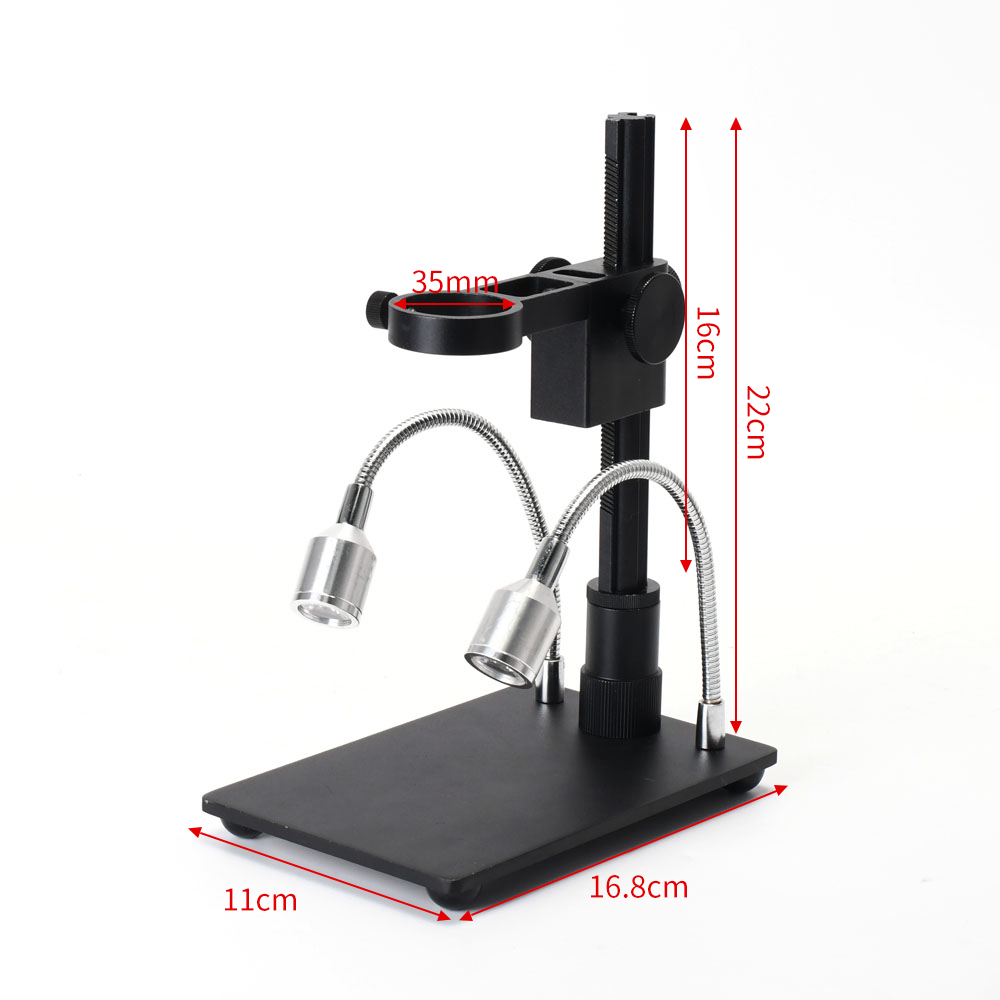

Industrial camera mount

Model: hy-07a

Matching monocular industrial camera mount model

1. Height: 210 mm

Column diameter: 18 mm

Lens interface diameter: 40 mm

Height adjustable range: 10-170 mm

Base size × 5 × 110 (CM)

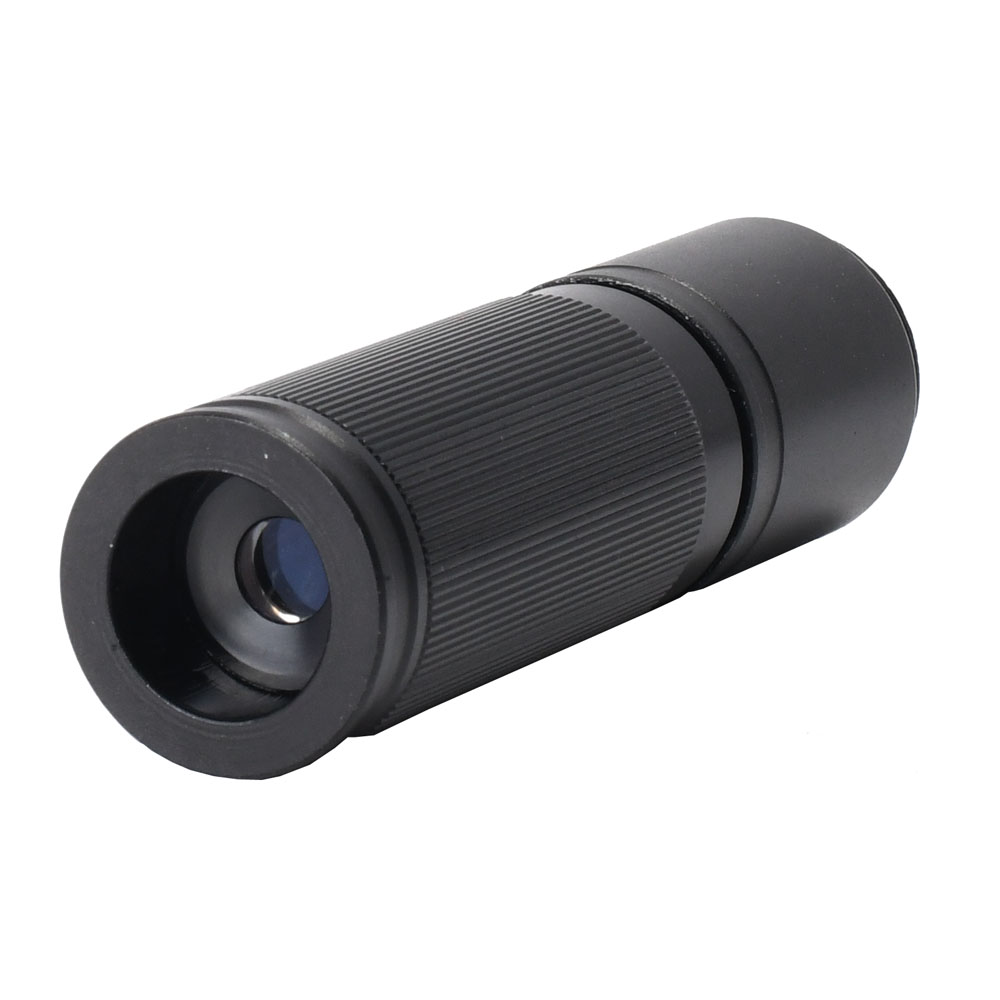

C mount lens

Zoom ratio: 15: 1 < br >

Magnification: 0.13x to 2x < br >
Field: 4mm - 100mm

Working distance: 55 mm



Package include:

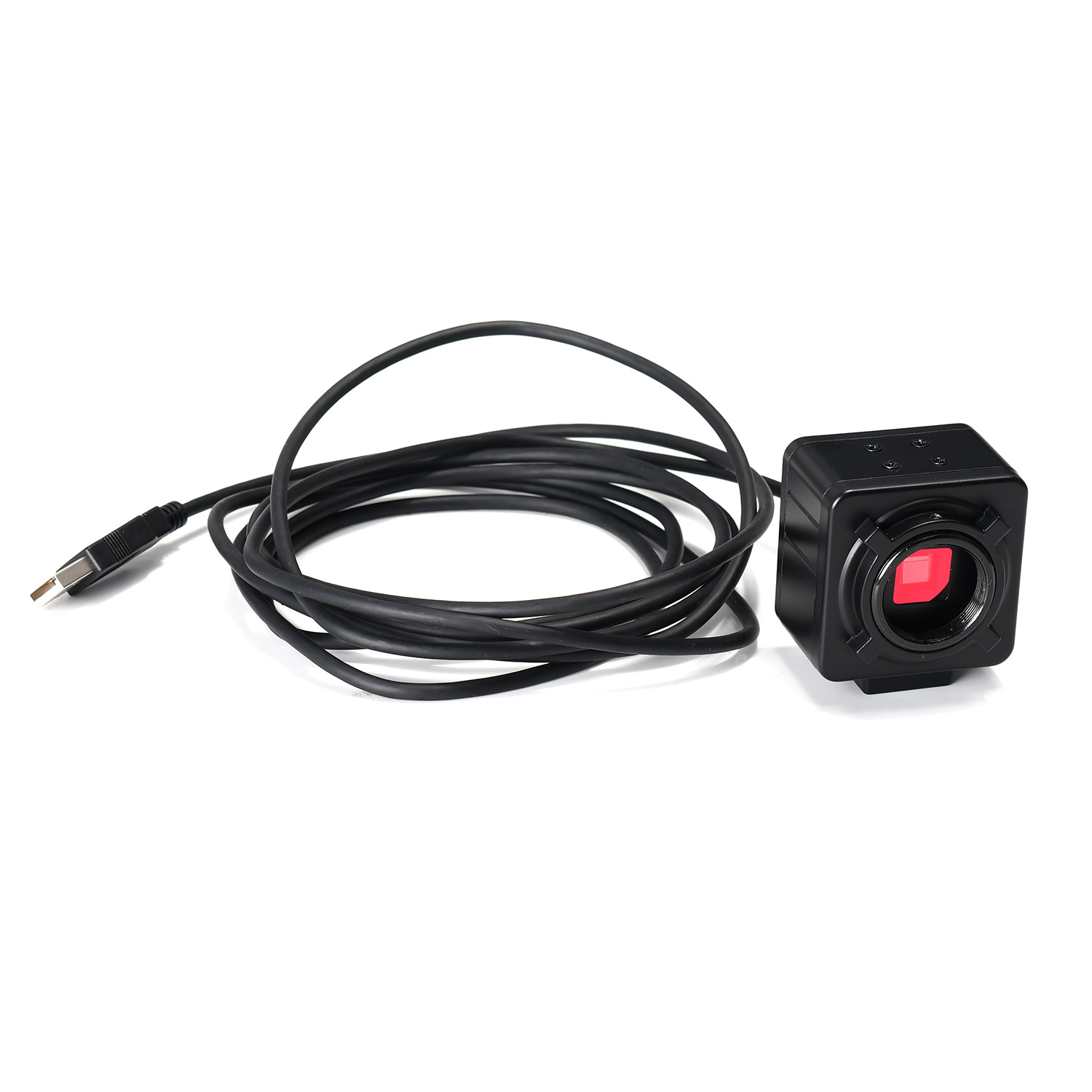

1xusb microscope camera (with 3m USB cable)

1X Software CD

1X table stand
