HDMI Camera Set >> 2022 New Ultra HD 4K 1080P USB HDMI Digital Microscope Camera +180X C-Mount zoom Lens+144LED Ring Ligh+ 2X objective lens set
View Larger Image
Share your images of this product

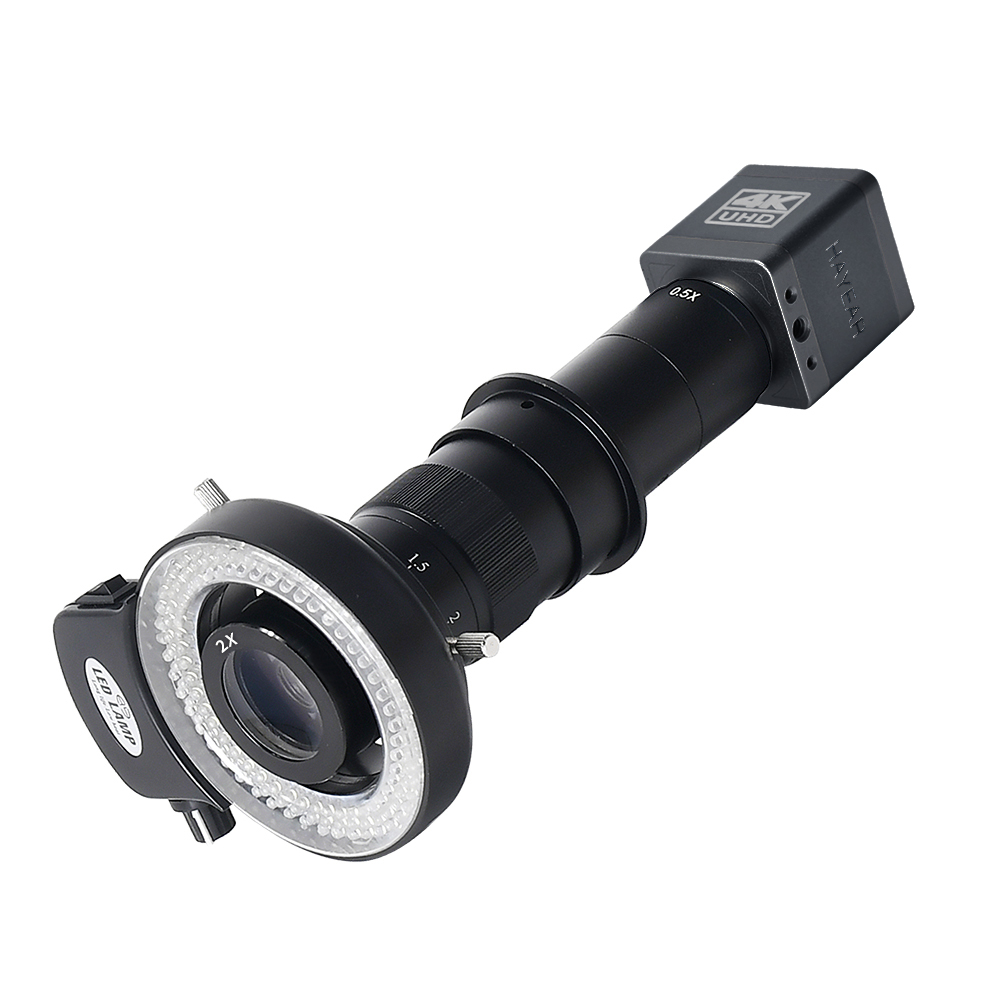

2022 New Ultra HD 4K 1080P USB HDMI Digital Microscope Camera +180X C-Mount zoom Lens+144LED Ring Ligh+ 2X objective lens set
Price : US $ 268.16 303.00

SKU : 2207253133
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.
This is UltraHD 4K industrial camera,The resolution is 3840 x 2160 pixels,,Adopt standard HDMI interface,It can be used as education, scientific research, laboratory, demonstration, maintenance and inspection,Use HDMI splitter to project to a large FHD TV for the best display.

Model: HY-6110

Sensor: SONY CMOS 1/1.8 IMX334 Sensor
Video Output Interface: Camera with HDMI type-C USB2.0 two output
HDMI OutPut Resolution: 4K@30FPS / 1080p@30FPS
USB-PC OutPut Resolution: 3840x2160 @30FPS; 2592x1944 @40FPS;2592x1944 @40FPS;2084X1536 @60FPS; 1920x1080P @60FPS
Pixel size: 2.0μm × 2.0μm
Housing: metal
HDR: Support HDR,Multiple exposure HDR, Digital overlap HDR
Definition: FULL HD
Housing: metal
Lens: C / CS
Video format: MOV
Digital Zoom: Support
Brightness control: Auto / manual
Color: R / G / B adjustable
Film and recor d: Support
Cross cursor: Support multi-color, size adjustable
PC Support:Windows / Miac / Linux System PC Software with Measuring Function
Image Measurement:Support Measurement
Language:EN /FR /ES /Portugues /Deutsch /Italiano /CN/Pyccknn/ JP Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines / vertical lines, moveable
Different color, 5 horizontal line, 5 vertical line, any positions TF card interface: Max 512G
HDMI interface: Standard HDMI output (Type A)
USB interface: Standard usb2.0 interface (Type B)
Input Voltage: DC 12V

180X C-MOUNT Lens
Working distance: 95mm
Zoom c-mount Lens
0.5X C-mount adapter
Zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 180mm(L) * 50mm(DIA)
Working distance: 11cm

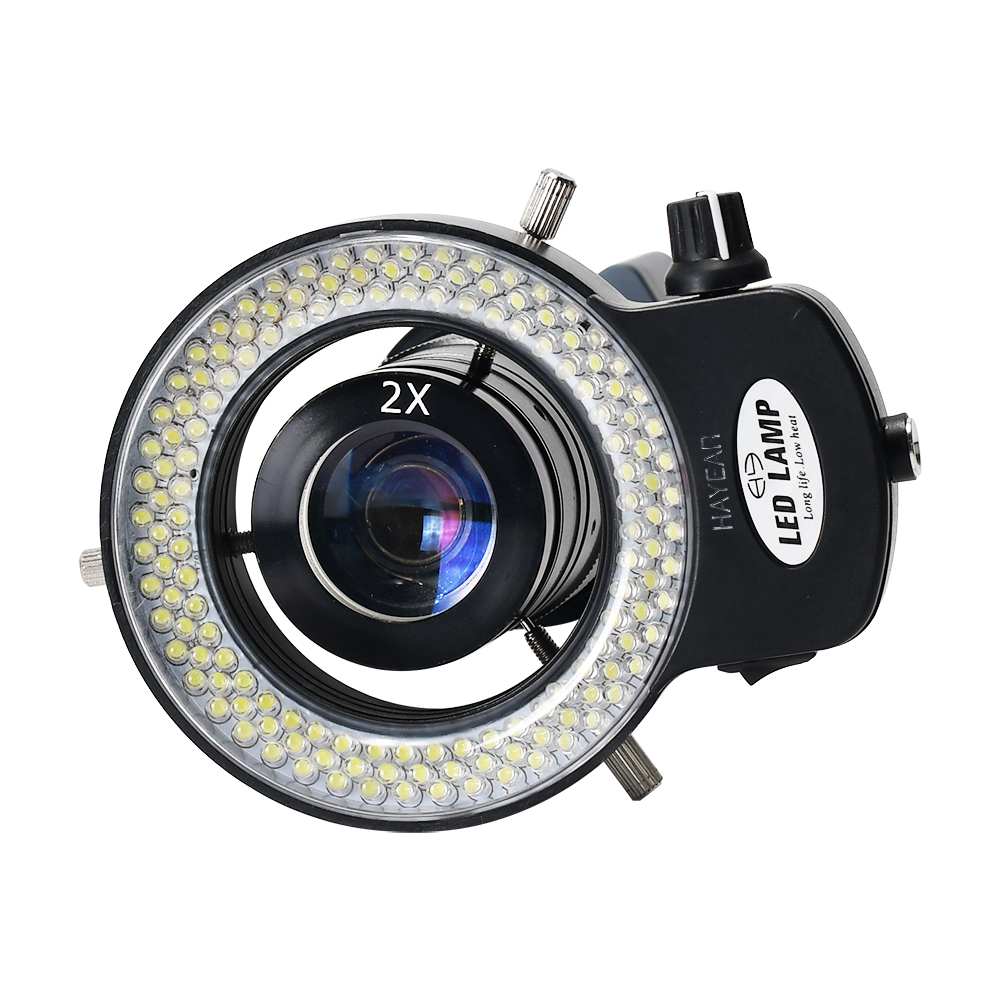

144 LED Adjustable Compact Microscope Ring Light
Provides intense and focused shadow-free illumination
144 bright white LED bulbs
Lighting direction changeable
Variable intensity control
Intense and focused shadow-free illumination
100,000 hours of life
Power input: 100-240V, 50-60HZ, auto switching
Inside diameter of the ring light: 1.0" (27mm)
Overall outside diameter: 1.77" (45mm)
Working Distance: 27mm-45mm

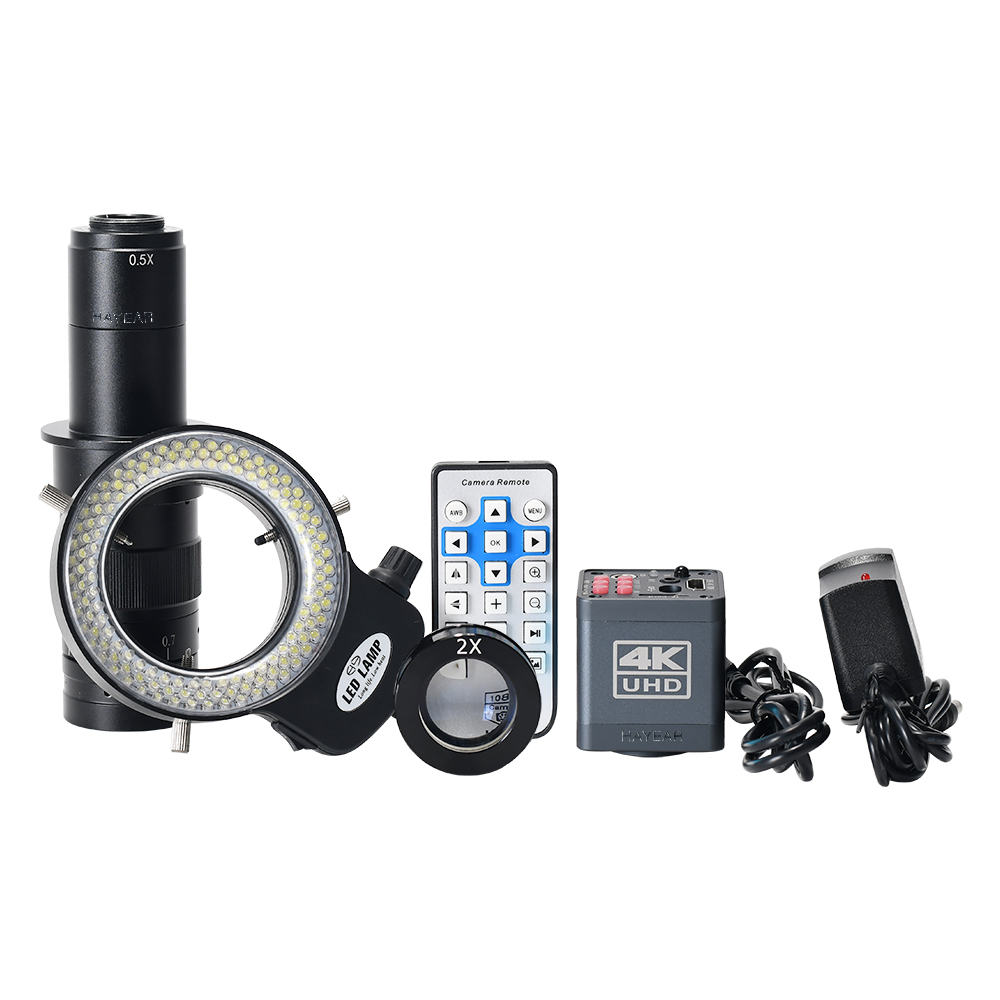

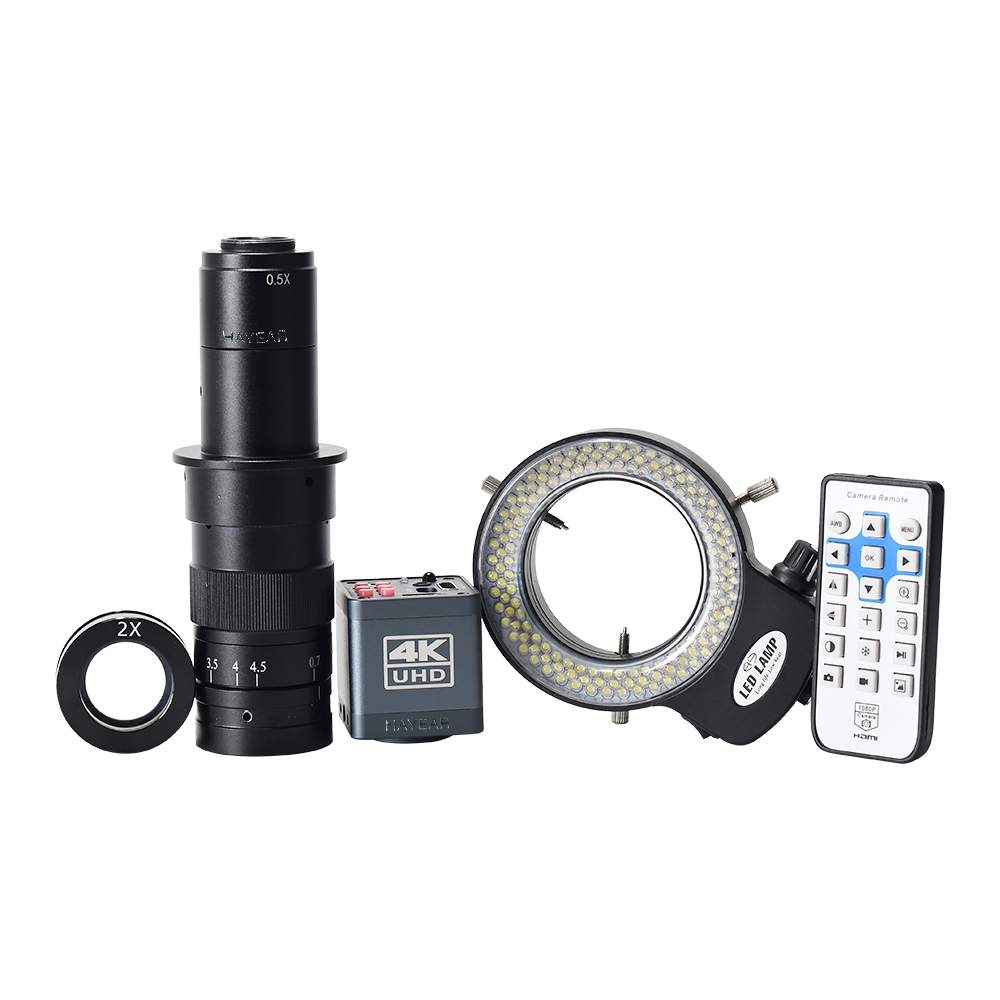

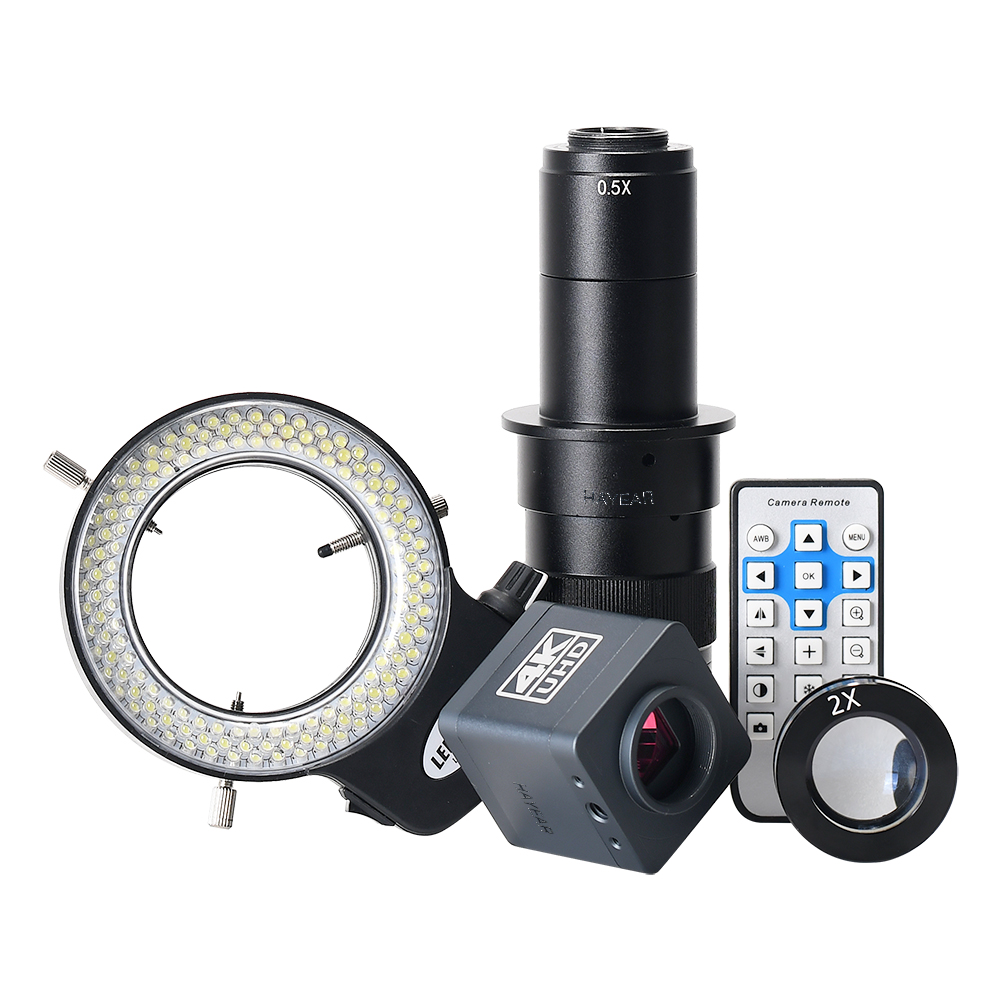

Package Includes:

1 x 4K Microscope Camera
1 x Power Supply
1 x Type-C USB Cable
1 x Remote Control (Battery Not Included)
1 x180X Lens
1 x 144LED Microscope light source
1 x 2X objective lens
