Microscope Camera Kit >> HAYEAR 51MP Industrial Digital Video Microscope Camera + 180X C Mount Lens +144 LED Ring Light + Stand For PCB Repair
View Larger Image
Share your images of this product

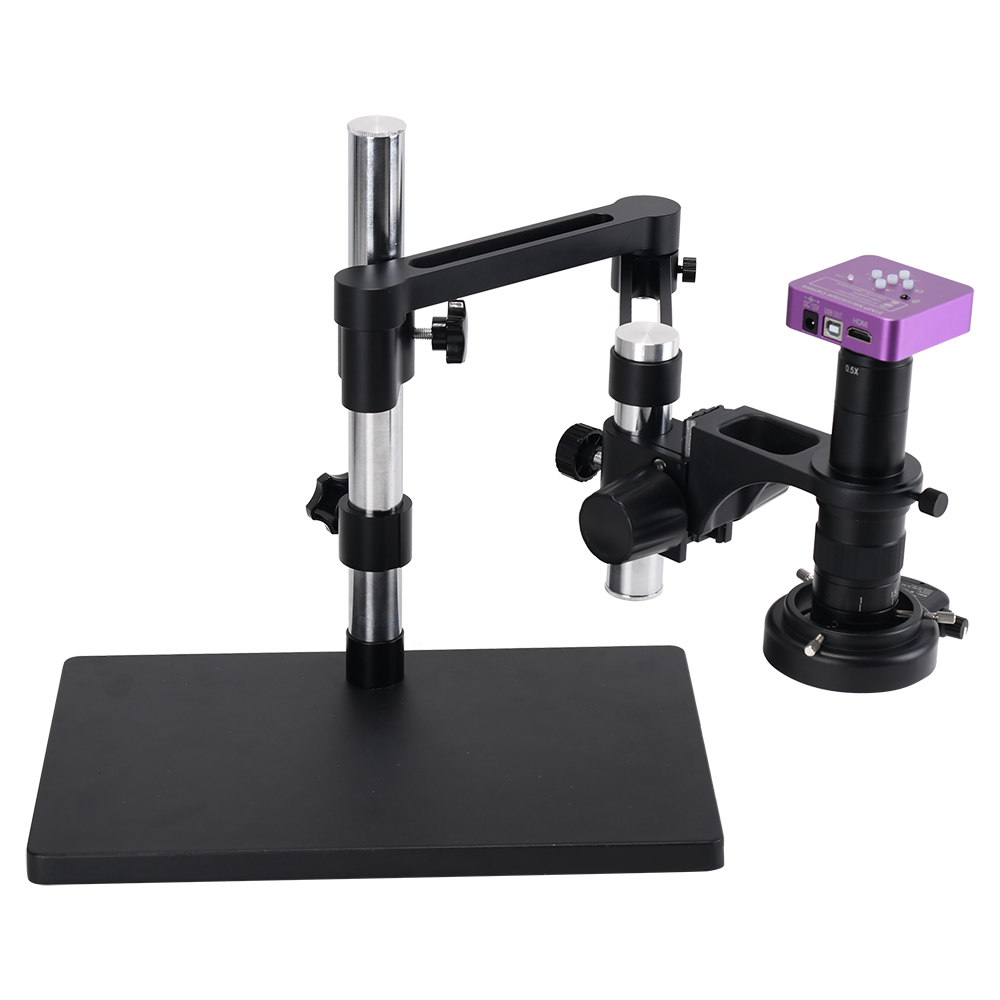

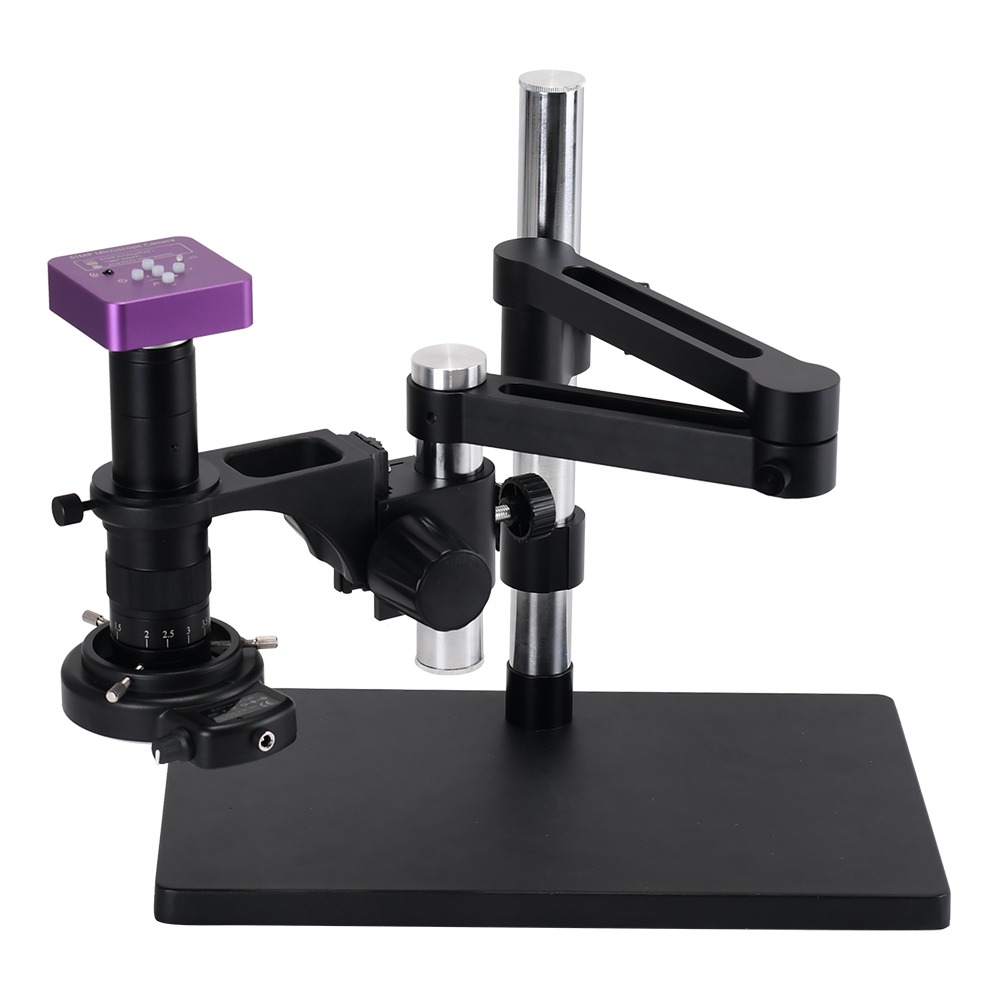

HAYEAR 51MP Industrial Digital Video Microscope Camera + 180X C Mount Lens +144 LED Ring Light + Stand For PCB Repair
Price : US $ 350.19 379.87

SKU : 2208115832
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.
Feature:

1. PC supports for multiple system, supports for Windows XP/7/8/10 system.
2. Comes with a 180X C-mount zoom lens for industrial microscope camera.
3. This 51MP industrial microscope camera is suitable for repairing industry.
4. Adopts high quality metal housing, sturdy, durable and has long life.
5. High resolution and dual output, which makes it more convenient to use.


Specification:

Condition: 100% Brand New
Item Type: Microscope Camera
Model: High Definition Multimedia Interface USB2.0 Dual Output Camera Image Format: jpg
Image Resolution: 51MP
Video Format: MP4 (for Memory Card)
Video Recorder: 1080P at 60FPS
High Definition Multimedia Interface Video Resolution: 1920x1080 at 60FPS (For HDMI)
USB Video Resolution: 1920x1080 at 30FPS; 1280x720 at 30FPS; 640x480 at 30FPS; 320x240 at 30FPS
White Balance: Automatic / Manual
Light: Automatic / Manual
Exposure: Automatic / Manual, Value Adjustable
Direction: Left / Right, Up / Down
Freeze: Support
OSD: English / Chinese / French / Spanish / Japanese / German
Lines: Different colors, 5 horizontal lines, 5 vertical lines, any position
Image Sensor: 51MP CMOS Sensor 1/2.33 Inches
Effective Pixels: 51MP
Pixels Size: 1.335μm x 1.335μm
Frame Rate: 60fps
Definition: Full High Definition
Housing: Metal
Lens: C/CS
Video Format: MOV
Digital Zoom: Support
Brightness Control: Automatic / Manual
Color: R / G / B Adjustable
Film and Records: Support
Cross Cursor: Support multi-color, adjustable size
Horizontal and Vertical Lines:
Support multi-color, 5 horizontal / vertical lines, movable
Different colors, 5 horizontal lines, 5 vertical lines, any position
Memory Card Interface: up to 64G (Not Included)
High Definition Multimedia Interface: Standard High Definition
Multimedia Interface Output (Type A)
USB Interface: Standard USB2.0 Interface (Type B)
Input Voltage: DC 12V

180X C-MOUNT Lens
Working distance: 95mm
   Zoom c-mount Lens
   0.5X C-mount adapter
   Zoom ratios: 6.5:1
   Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
   Size: 180mm(L) * 50mm(DIA)
Working distance: 11cm


144 LED Adjustable Compact Microscope Ring Light
Provides intense and focused shadow-free illumination
144 bright white LED bulbs
Lighting direction changeable
Variable intensity control
Intense and focused shadow-free illumination
100,000 hours of life
Power input: 100-240V, 50-60HZ, auto switching
Inside diameter of the ring light: 1.0" (27mm)
Overall outside diameter: 1.77" (45mm)
Working Distance: 27mm-45mm

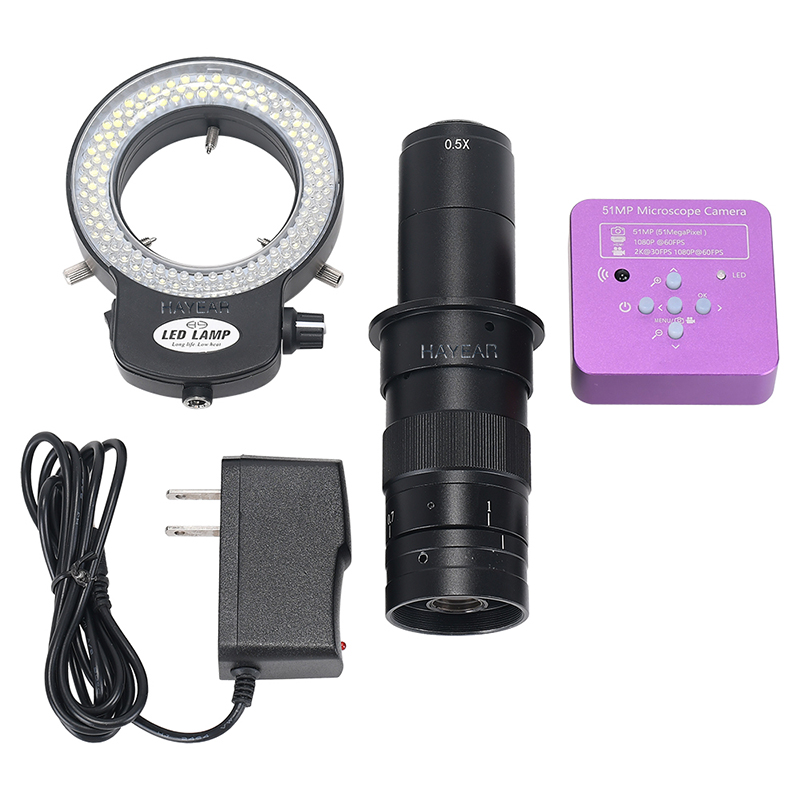

Package Includes:

1 x51MP Microscope Camera
1 x Power Supply
1 x USB Cable
1 x High Definition Multimedia Interface Cable
1 x Remote Control (Battery Not Included)
1 x180X Lens
1 x Microscope light source

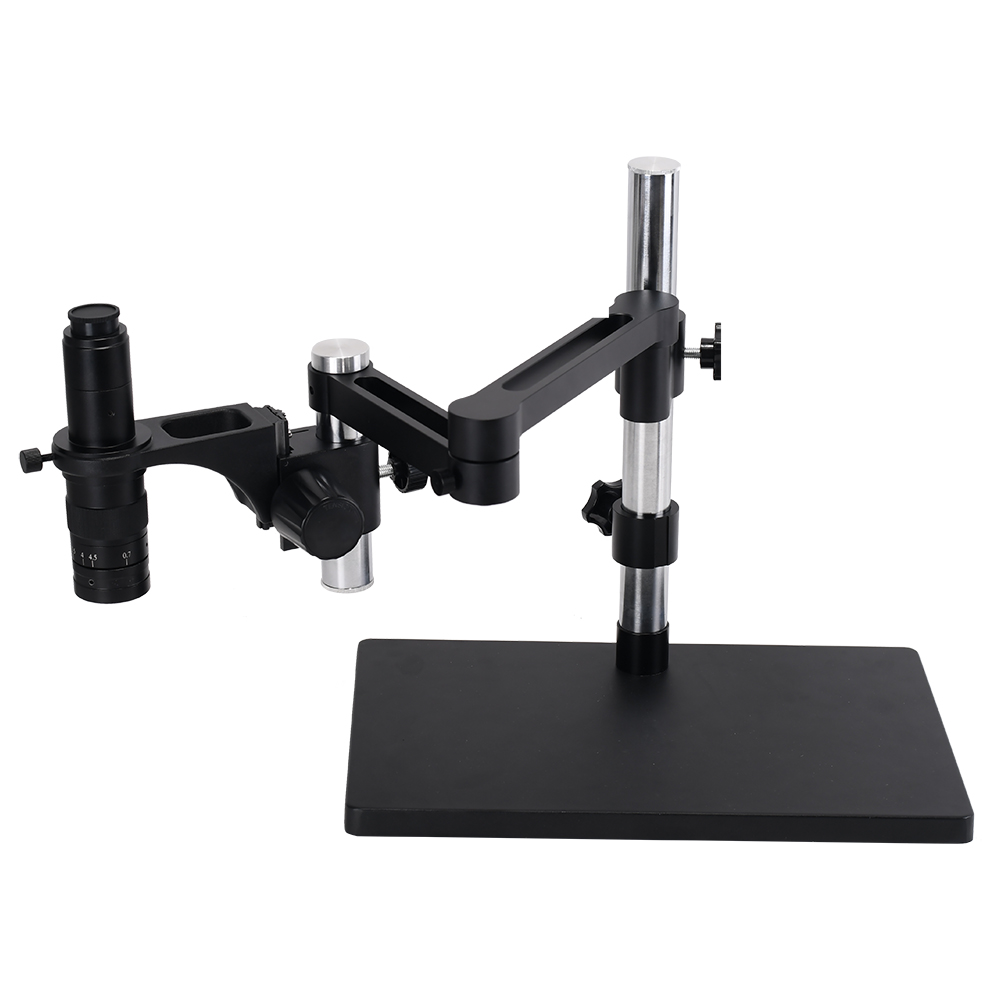

1 x Camera Stand

Note:

1. PC Support: Support for Windows XP/7/8/10 system.
2. For USB output, Software operating white balance, exposure and color adjustment can adjusted. (The camera keys are not available  Remote control cannot operate )
3. For high-definition multimedia interface output, the function can  adjusted when connected to the monitor.(Camera keys available  The remote control can be operated wirelessly)
4. When using USB connection, please make sure that there is no memory card in the camera, memory card storage is just used for high-definition multimedia interface output. The USB output will be stored in the PC.
5. When connecting the camera to the computer, just plug in the USB cable (no need to use power).
