HDMI Camera Set >> HAYEAR 10.1 Inch HDMI LCD Digital Microscope Stand Included,16MP Coin Microscope with Screen for Adults, Micro Soldering Microscope
View Larger Image
Share your images of this product


HAYEAR 10.1 Inch HDMI LCD Digital Microscope Stand Included,16MP Coin Microscope with Screen for Adults, Micro Soldering Microscope
Price : US $ 319.72 355.00

SKU : 2209011443
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.
Feature:

1. Widely used in the fields of microelectronics, molds, jewelry, printing, mobile phone repair schools, etc.
2. Especially suitable for observing the surface microstructure of large objects.
3. Using highquality materials, strong and durable, has a long service life.
4. HD camera with 16 megapixel CMOS sensor 1/2.8 inch, with HDMI USB port.
5. Strict quality control and quality assurance, high safety factor, can be used with peace of mind.

Sensor 16 Megapixel SONY IMX sensor
Pixel Size 2.0 × 2.0μm
Sensor Size 1/2.8 inch
Video Output Interface HDMI / USB (HD Interface)
Resolution 1920x1080@60FPS(HDMI)

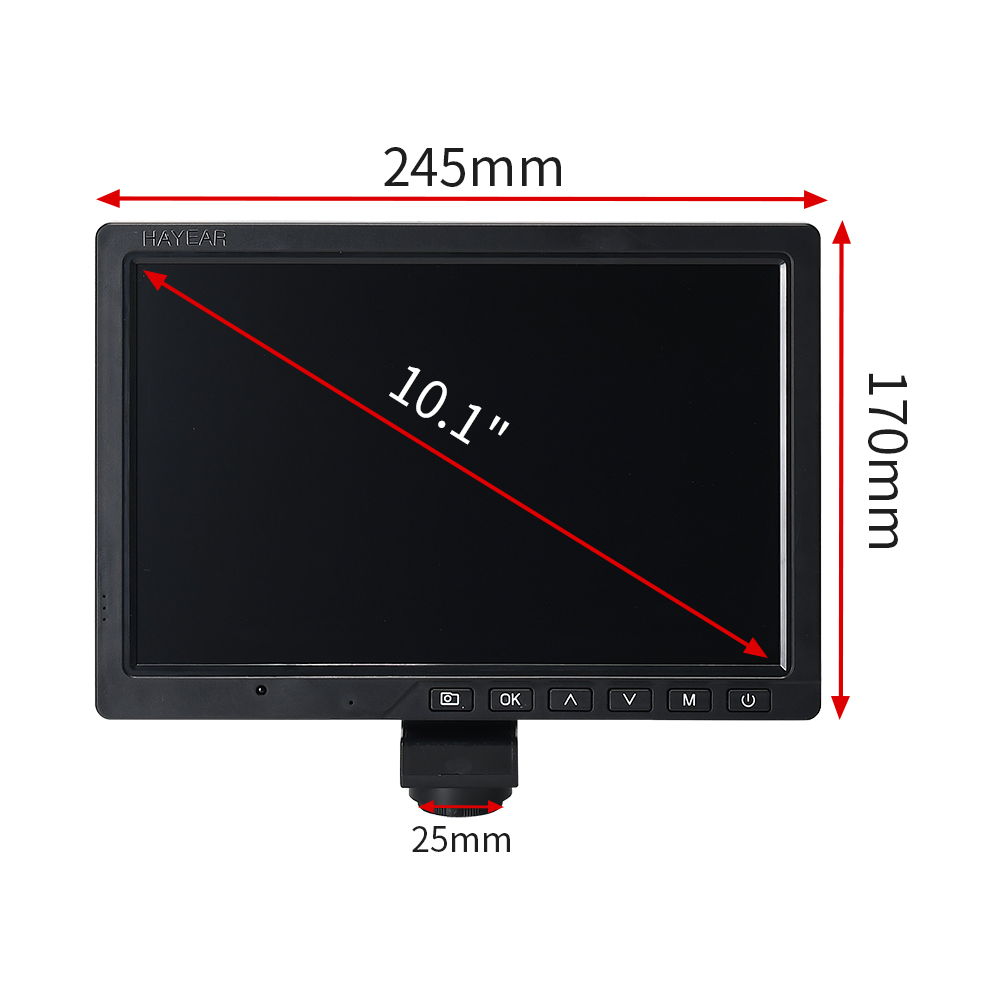

Monitor size 10.1 inches
USB Output 1920x1080@30FPS(USB)
Video Ratio Support 16:9, 4:3 Mode
Picture Resolution 4608 x 3456
Frame Rate 30@FPS
Color R/G/B support manual adjustment
Cross line 5 horizontal/vertical line, Color & size of line can be adjust, cross line with scale
Zoom 7X digital zoom
Magnifier Function Support magnifying in same screen
Sensitivity Level Middle(can be used with extra light source)

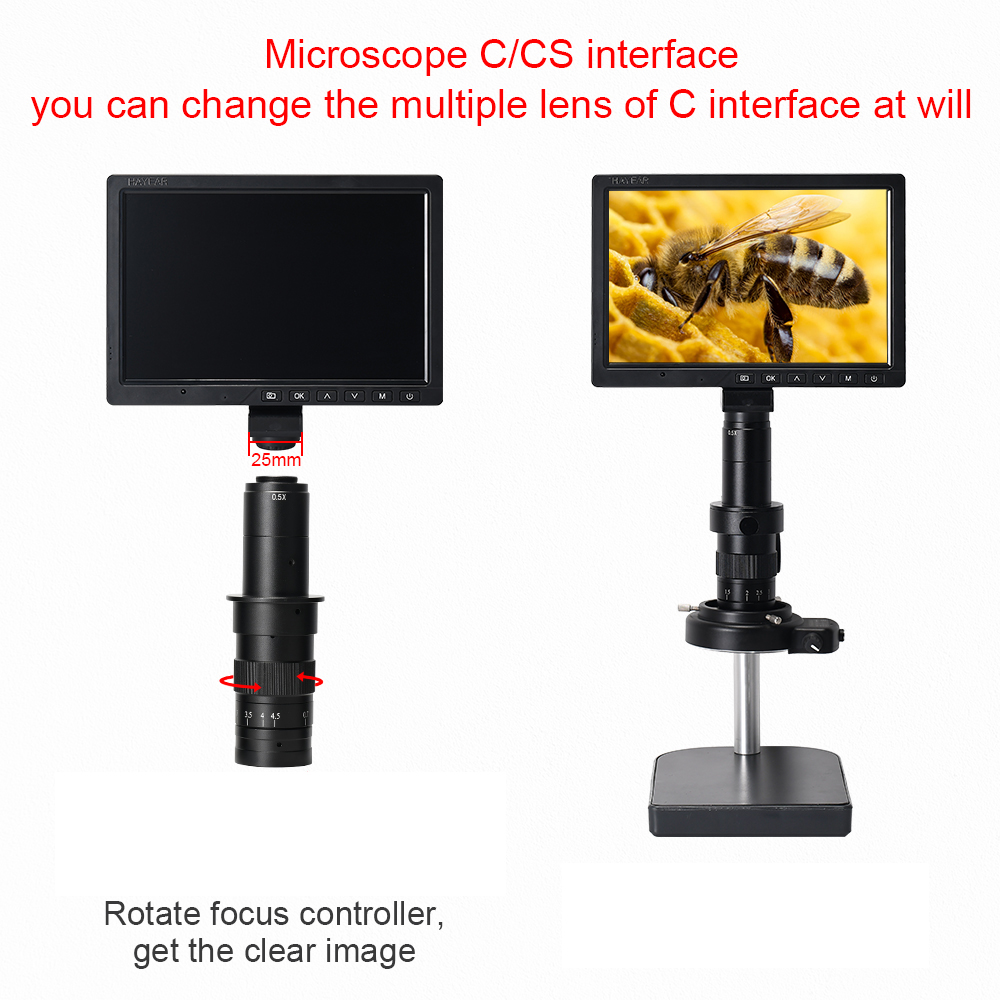

Interface for Lens Standard C/CS Interface
Dynamic Range 40dB

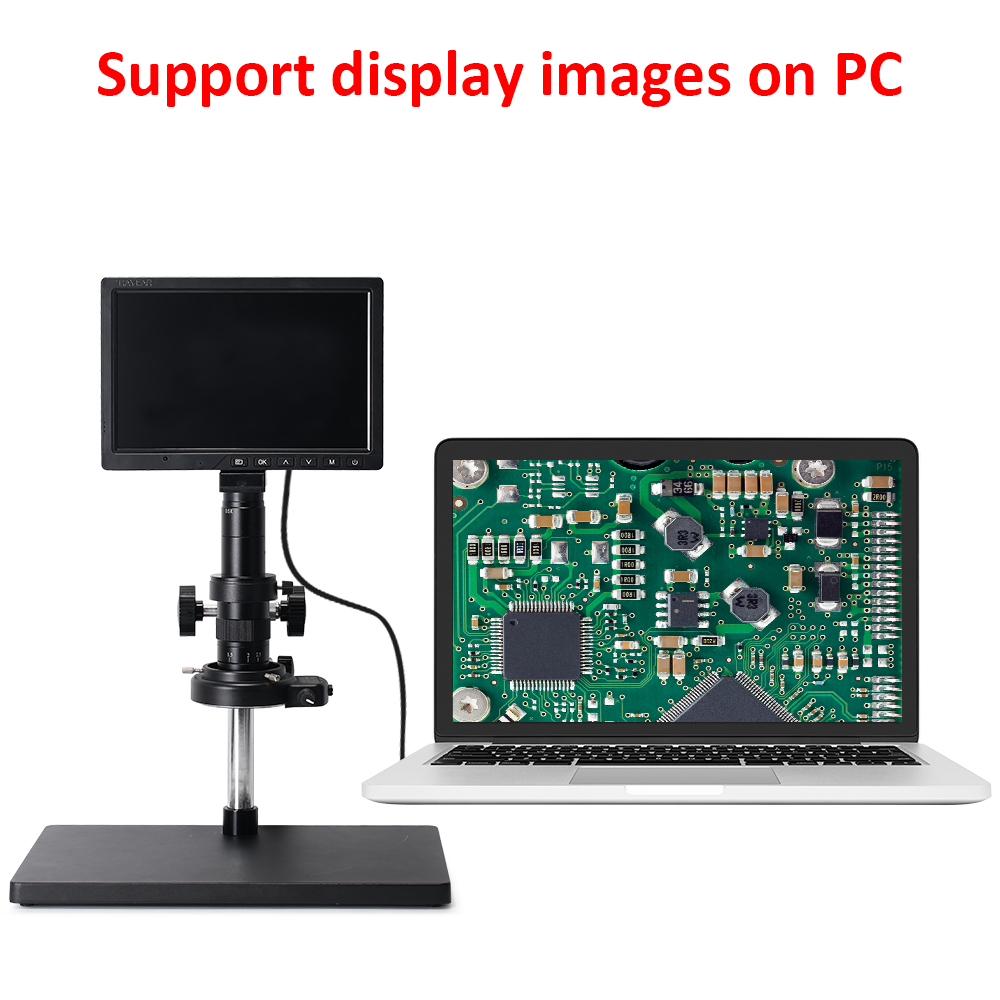

PC Systems Support Windows XP/7/8/10, with measurement
software(gift)
Picture Format JPEG
Language CN, EN, JP, FR, DE, RU, IT, KR, TUR
Working Voltage 12V/1A
Spectral Response (Wavelength) 400nm~700nm (Strong)
White Balance Manual/Auto
SNR 45dB
Mirror Image Support Up/Down, Right/Left
Black & White Mode Support
Storage TF Card, Maximum support 256GB
Working Temperature -40°C~70°C


180X C lens
Working Distance: Approx.95mm / 3.7in
Zoom C mount lens
0.5X Type C adapter
Scaling Ratio: 6.5: 1
Objective lens magnification 0.7-4.5X (approximately 10-180X on the screen)
Size: L X DIA: Approxc.180 x 50mm / 7.1 x 2in
(180x maximum working distance approx.11.5cm / 4.5in)

144 LED Adjustable Compact Microscope Ring Light
Provides intense and focused shadow-free illumination
144 bright white LED bulbs
Lighting direction changeable
Variable intensity control
Intense and focused shadow-free illumination
100,000 hours of life
Power input: 100-240V, 50-60HZ, auto switching
Inside diameter of the ring light: 1.0" (27mm)
Overall outside diameter: 1.77" (45mm)
Working Distance: 27mm-45mm

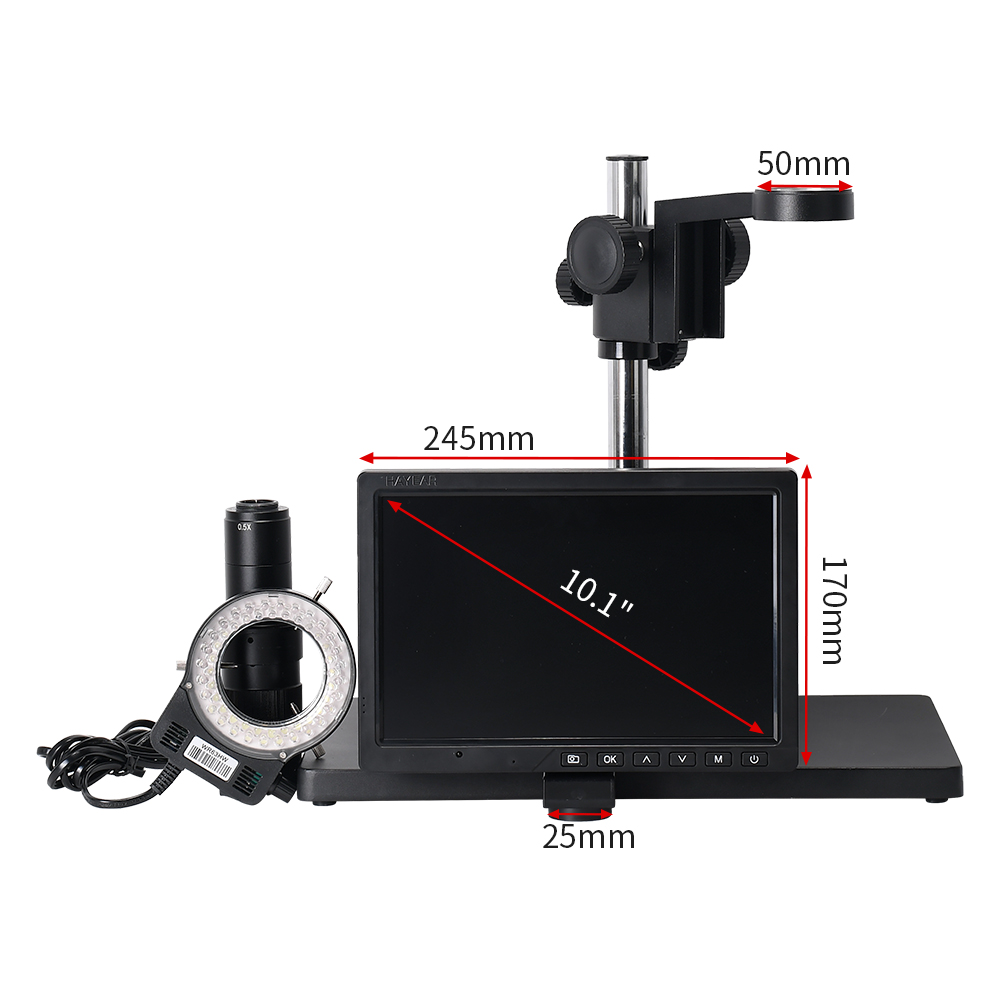

Package included:

1 X 10.1-inch Microscope Camera
1 X 180X C-MOUNT Lens
1 X 144LED Microscope Ring Light
1 X Adjustable bracket
2 X Power supply
1 X USB cable
1 X Remote control
1 X HDMI cable
