HDMI Camera >> USB HDMI Dual Output Live All-in-one Camera Large Field View Industrial Video Microscope For Phone PC PCB Soldering Repair
View Larger Image
Share your images of this product
USB HDMI Dual Output Live All-in-one Camera Large Field View Industrial Video Microscope For Phone PC PCB Soldering Repair
Price : US $ 192.63 219.00
SKU : 2211292903
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.
1.SONY 1/2.8’’ CMOS 5M Image Sensor
IMX335LQN-C Progressive Scan
The high pixel CMOS sensor provides superb clarity and resolution image quality with low noise, and enables camera video with high signal-to-noise performance.
2.Image Processor
High-performance image processor integrates advanced ISP image
processing algorithm and has built-in 3D noise reduction algorithm for detailed and vivid realistic image reproduction. It not only
provides the best image quality with high color reproduction, but also provides smooth video and extreme detailed rendering.
3.Video signal output
USB2.0 : MJPG/YUY2 format, can output 9:16 vertical screen resolution, such as 1080x1920、720x1280
HDMI:1080P and 720P
Support USB2.0 and HD dual output.
4.Focus mode
TOF recognition, precise auto-focus
5.10X optical zoom lens
High precision 10x optical magnification lens, 67.5 degrees without distortion F1.76~F3.0
6.Image 3A processing
Auto exposure, Auto white balance and Auto focus

Image sensor: SONY 5M 1/2.8” Progressive CMOS (IMX335LQN-C)
Sensor size: 2.0um x2.0um
Scan system: 4:3/16:9 progressive scanning
Synchronization System: Inner Synchronization
Effective pixel: 2592(H) x 1944(V)
Minimum Illumination: 1Lux
Horizontal Resolution: 1100TVL
Lens: 10X optical magnification, F=4.32~40.9mm, F1.76 ~ F3.0
Zoom range: 10x optical magnification
Zoom speed: Wide~Tel :3.0S Tel~Wide :2.6S
Focus: Near/Far, Auto/Manual/Semi-Auto (One Touch)
Focus Range: 30cm (wide angle), 1.5m (close angle)
Field of view: Horizontal: 67.5 degrees (wide angle), 7.6 degrees (close angle)
Auto Iris: Auto/Manual
Exposure: Auto/Shutter Priority/Aperture Priority/Brightness/Manual
Electronic shutter: NTSC: 1/30~1/10000, PAL: 1/25~1/10000
White balance: Auto (1,800K ~ 10,000K) / Single Press / Indoor / Outdoor / Manual

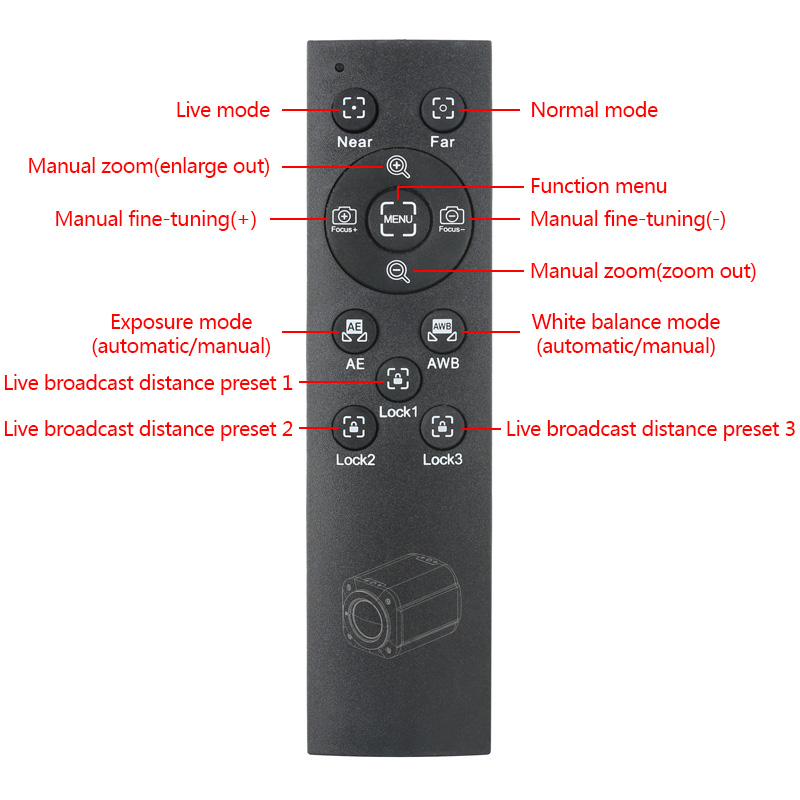

Remote control: Infrared remote control
Menu: Chinese and English menu
De-noise: 2D&3D noise reduction
Other function: Gamma, mirror, flip, electronic amplification, anti-flicker, wide dynamic
Digital Output (HDMI): 1920x1080p@50,60 ;1920x1080p@25,30
;1280x720p@50,60 ;1280x720p@25,30
USB2.0,MJPG, YUY2 format:
Vertical screen:1080x1920@30;720x1280@30
Operating temperature: -10℃ ~ 50℃
Power: 12VDC, Max 5W
Size : 71.8(D) x 45(W) X 48(H) mm

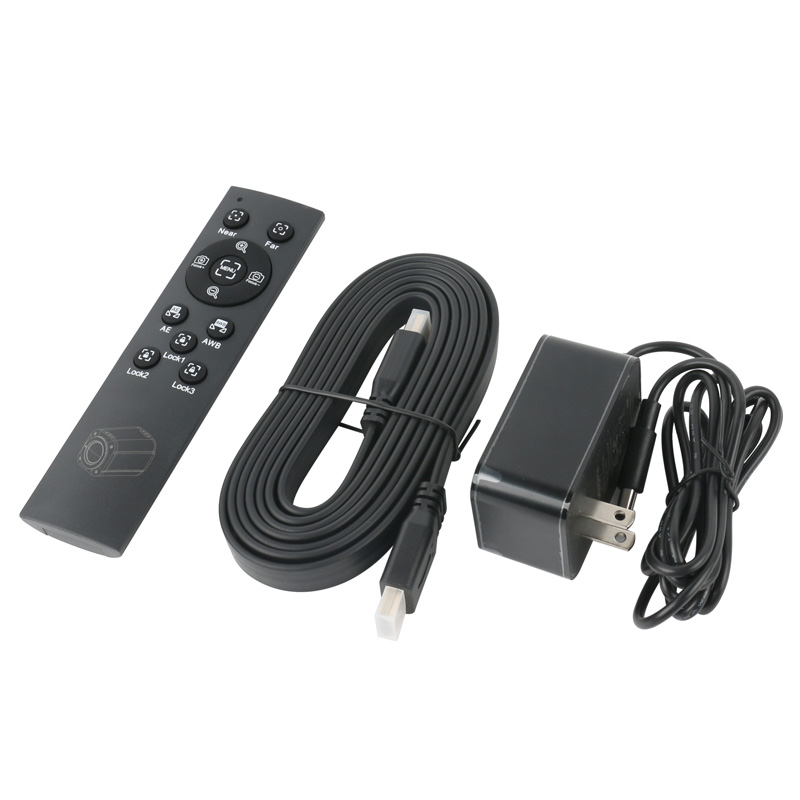

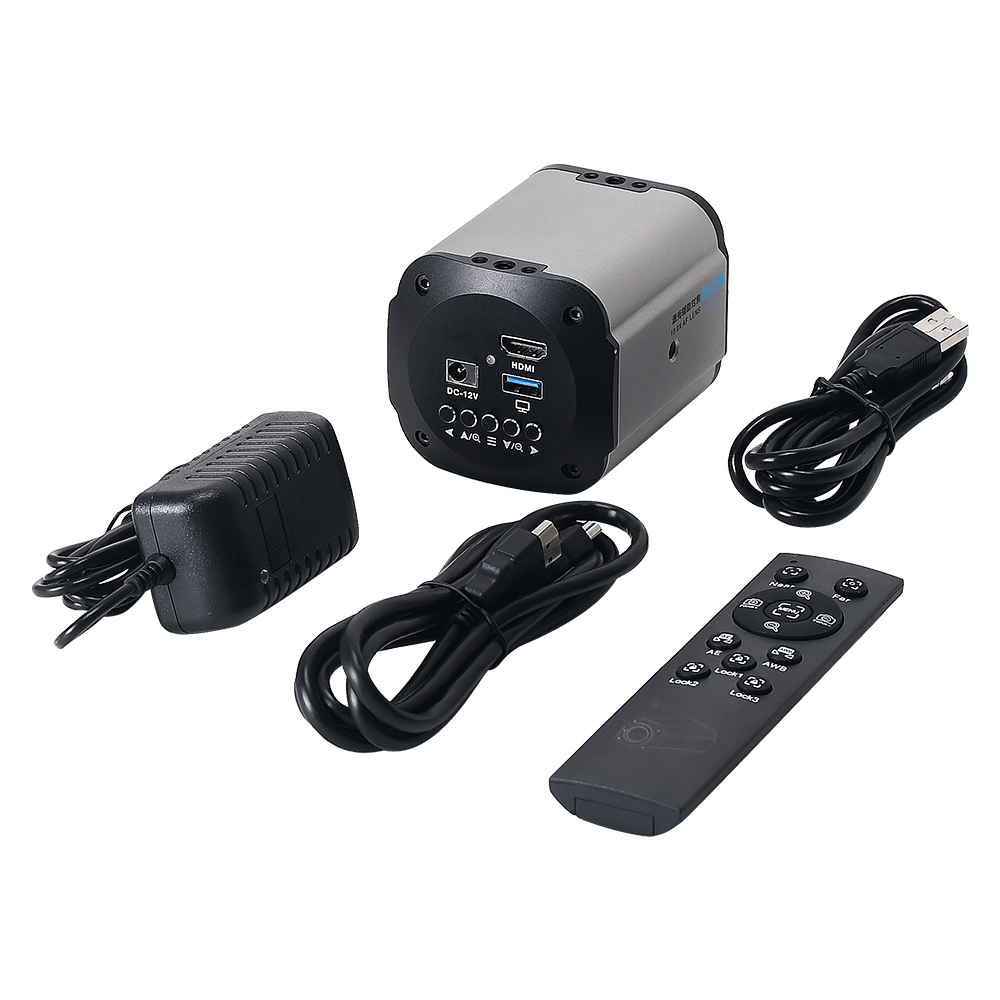

Package incluede:
1 x Live All-in-one Camera
1 x Power supply
1 x HDMI line
1 x Remote control
