Specification:
Model: HY-6110
Sensor: SONY CMOS 1/1.8 IMX334 Sensor
Video Output Interface: Camera with HDMI USB2.0 two output
HDMI OutPut Resolution: 4K@30FPS / 1080p@30FPS
USB-PC OutPut Resolution: 3840x2160 @30FPS; 2592x1944 @40FPS;2592x1944 @40FPS;2084X1536 @60FPS; 1920x1080P @60FPS
Pixel size: 2.0μm × 2.0μm
Housing: metal
HDR: Support HDR,Multiple exposure HDR, Digital overlap HDR
Definition: FULL HD
Housing: metal
Lens: C / CS
Video format: MOV
Digital Zoom: Support
Brightness control: Auto / manual
Color: R / G / B adjustable
Film and recor d: Support
Cross cursor: Support multi-color, size adjustable
PC Support:Windows / Miac  PC Software with Measuring Function
Image Measurement：Support Measurement
Language:EN /FR /ES /Portugues /Deutsch /Italiano /CN/Pyccknn/ JP
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines / vertical lines, moveable Different color, 5 horizontal line, 5 vertical line, any positions
TF card interface: Max 256G
HDMI interface: Standard HDMI output (Type A)
USB interface: Standard usb2.0 interface (Type B)
Input Voltage: DC 12V

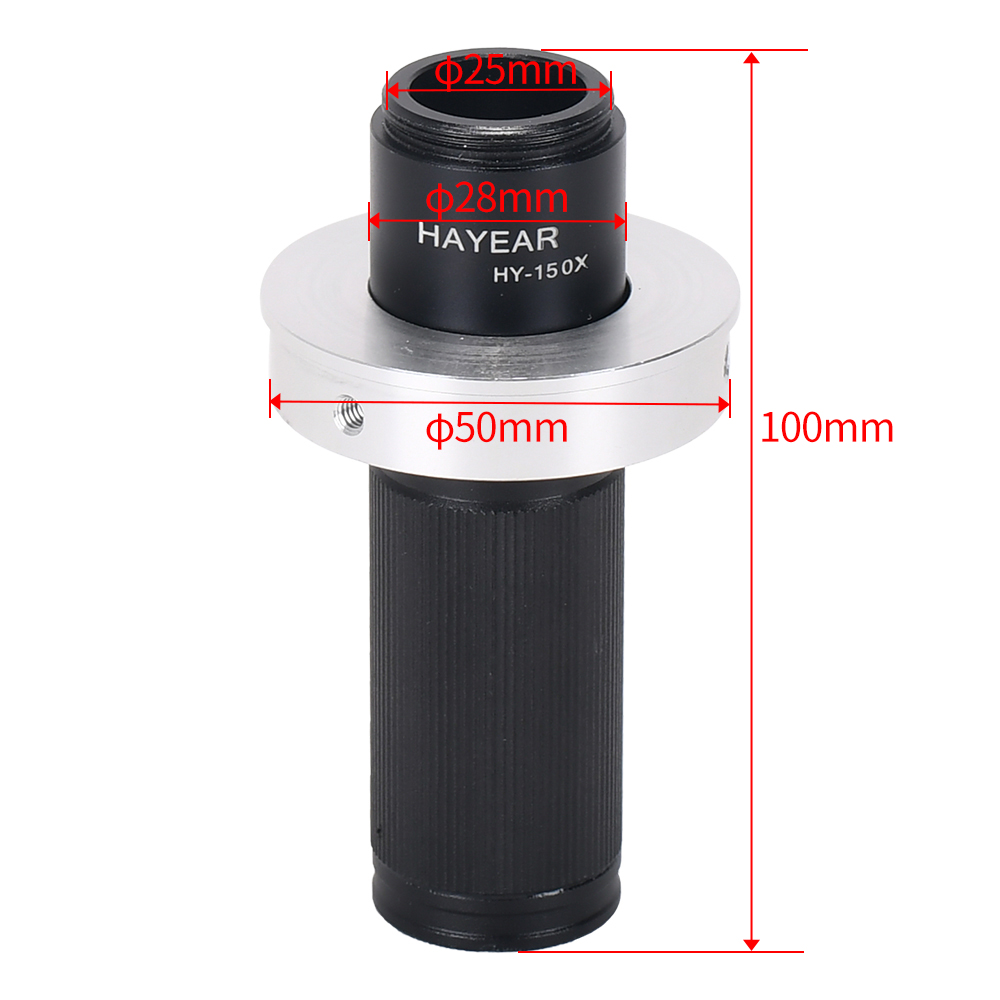

150X Objective Lens:
Working distance: 50mm-350mm
Field of view: 3.1mm-66mm
zoom c-mount Lens
zoom ratios: 5:1
Magnification Power by 0.11X - 2X
Size: 100mm(L) * 28mm(DIA)
Ring adapter: 50mm(default), 42mm, 35mm (optional/Not included) 40 LED Light
Input voltage: AC90-204V,50/60Hz
Luminous color: white 6500K
LED life: > 100000 hours
Inner diameter: φ28mm
Outer diameter: φ60.5mm

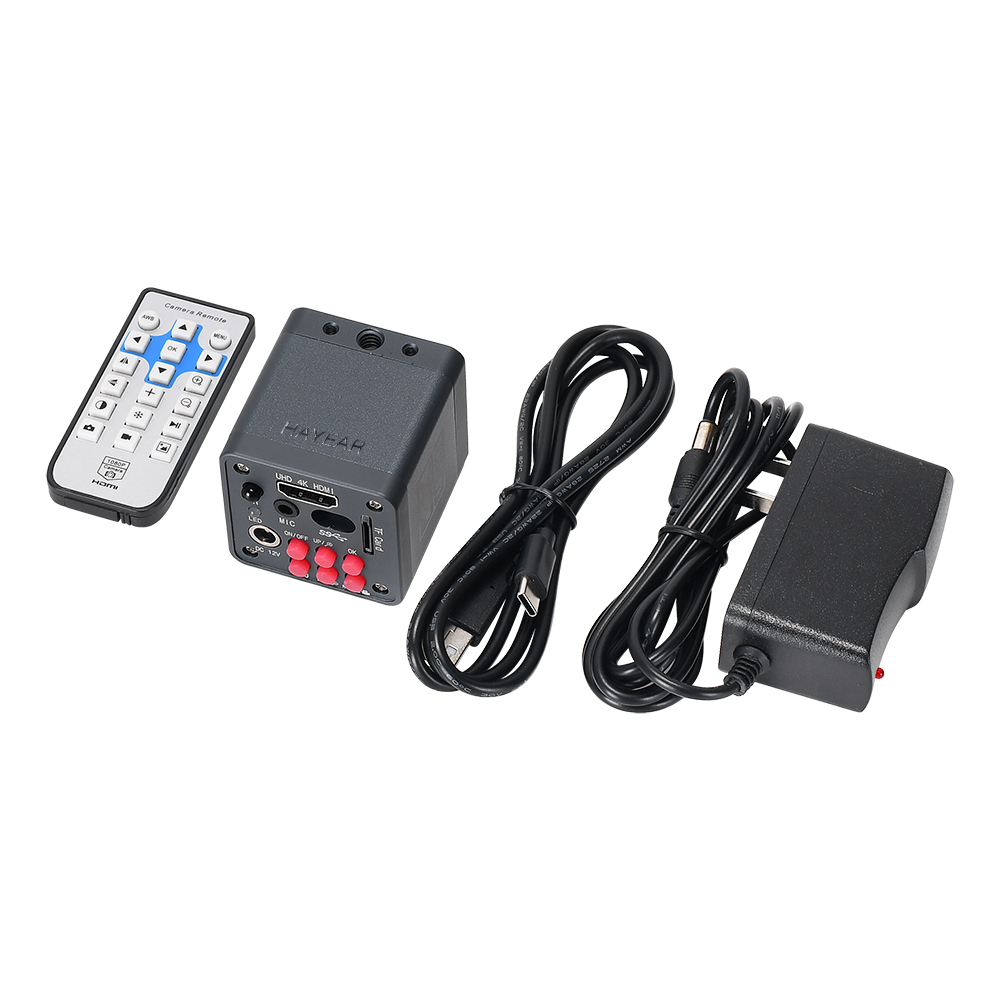

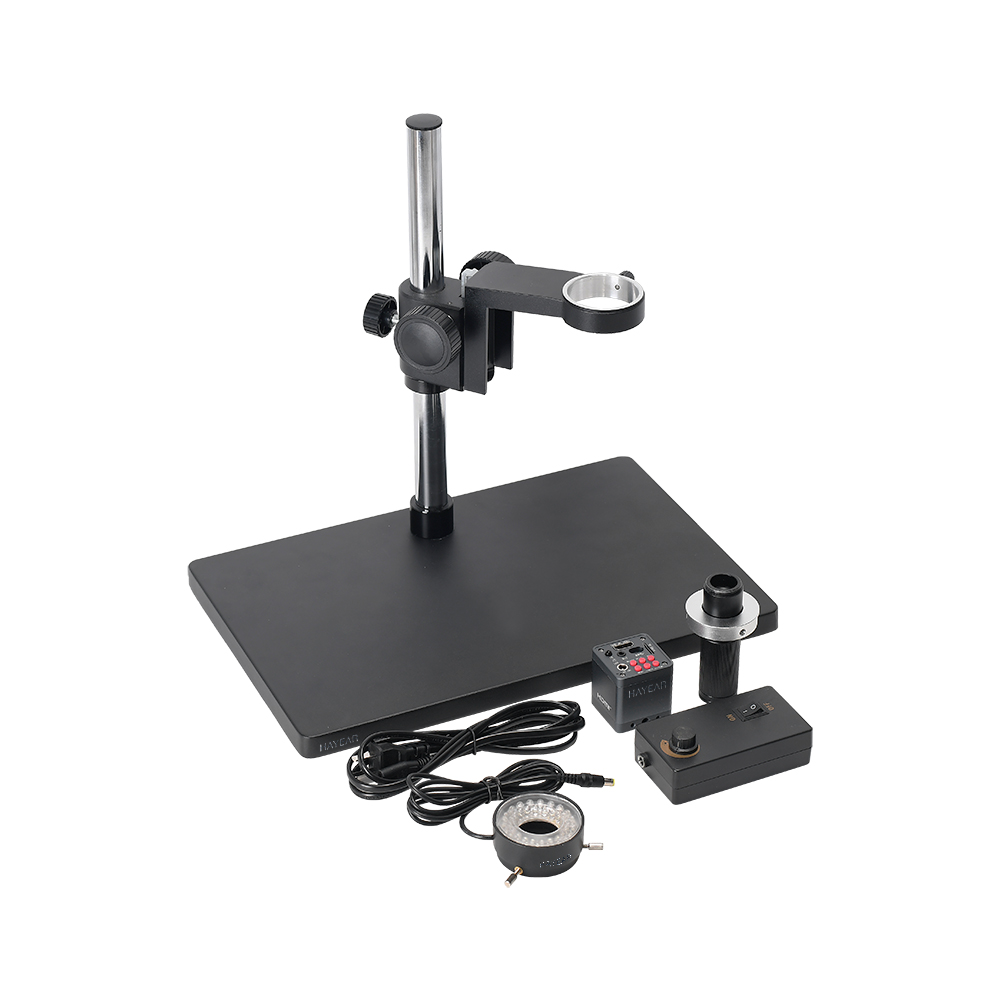

Package include:
1x4k microscope camera
1X power adapter
1X remote control

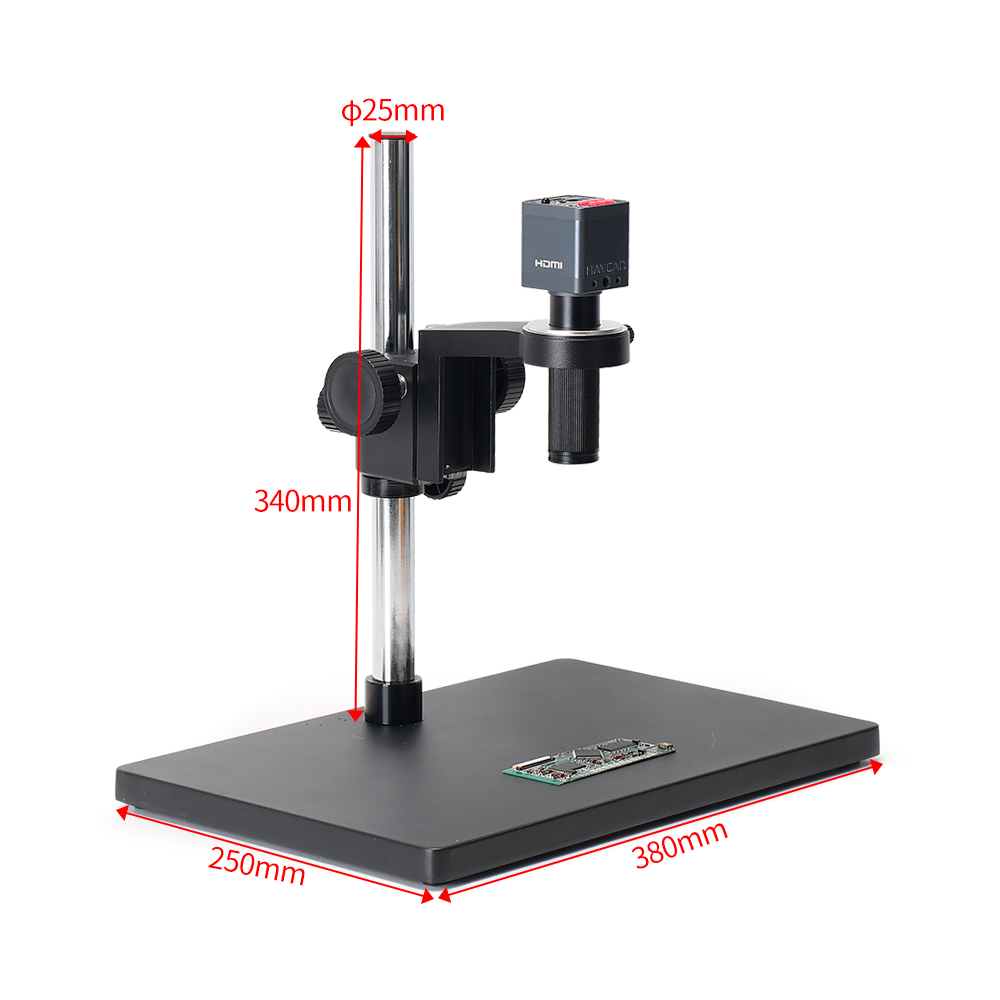

1X stand
1X bracket
1x150 x zoom lens
1x40 LED ring light
