The electronic eyepiece is specially designed and developed for the digitization of traditional optical microscope image.
It has the characteristics of simple installation, strong universality and easy use. Through USB cord connection, microscopic-image can be easily
collected-and stored on PC and mobile-devices.

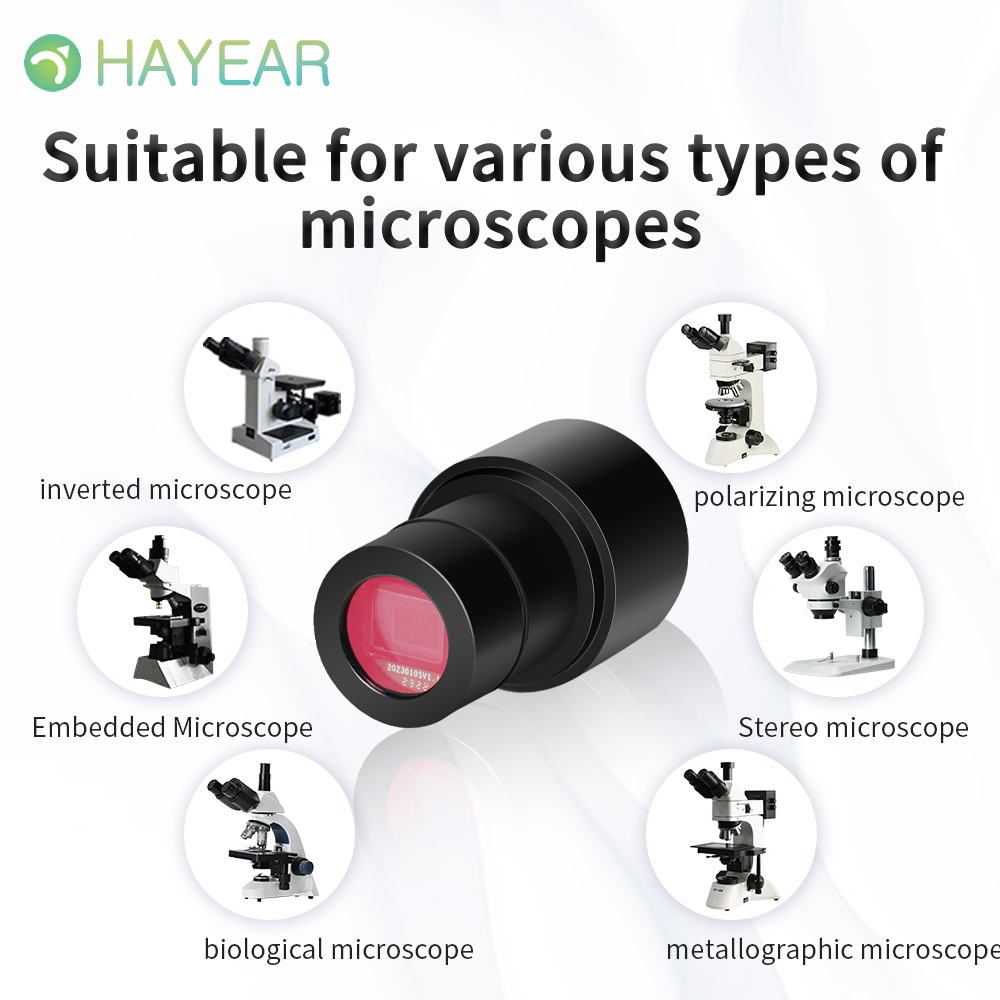

The optical interfaces is the size of standard eyepiece,
which is applicable to all kinds of microscopes with an inner diameter of 23.2mm.

Realistic restoration of slice color.
High frame rate output.
Drive-free, plug-and-play, can support Windows- and other operating-system.


Model :HY-800M
Name :4K USB2.0 color 8MP UVC Digital Camera
Image Sensor :SONY 1/2.3" Color IMX377 CMOS Image sensor
Pixel Size :1.55μm（H）×1.55μm(V)
Frame rate: @25FPS
Spectral response: 400nm～700nm
Scanning method :line by line scanning，Real 8 megapixel image sensor, no compression, no interpolation
Resolution
:3840x2160;2592x1944;2084x1536;1920x1080;1280x720;640x480
Image output format :MJPEG (compressed format)
Video record: 3840x2160 @ 25fps; 2592x1944 @ 25fps;
2084x1536 @ 25fps; 1920x1080 @ 25fps;
1280x720 @ 25fps; 800x600 @ 25fps
640x480 HDR @ 25fps;
YUV422 (compressed format)
3840x2160 @ 1fps; 2592x1944 @ 1fps;
2084x1536 @ 1fps; 1920x1080 @ 5fps;
1280x720 @ 10fps; 800x600 @ 15fps
640x480 HDR @ 15fps;
Dynamic Range :74 dB (Linear) -85 dB (HDR)
Sensitivity :2400 mV/Lux-sec
USB output: Type-C 2.0，480Mb/s
SNR :39dB
Working temperature: -25℃～70℃
Storage temperature :-30℃～60℃
Savable parameter :Brightness; Contrast; Color Saturation; Tint;
Sharpness; Gamma; Gain; White Balance; Backlight Contrast; Exposure
UVC protocol :USB Video Class（UVC）
White balance :Auto/Manual
One-click white balance :Support
Exposure Control :Auto/Manual

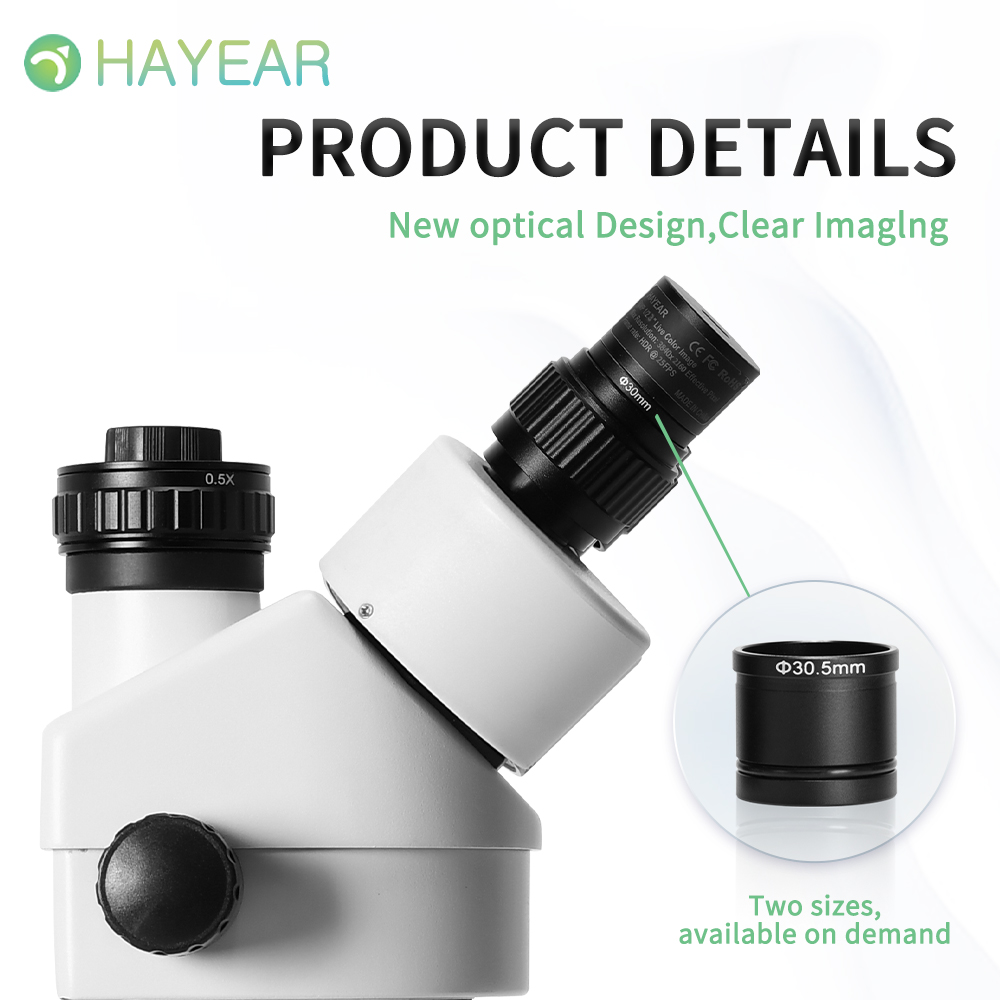

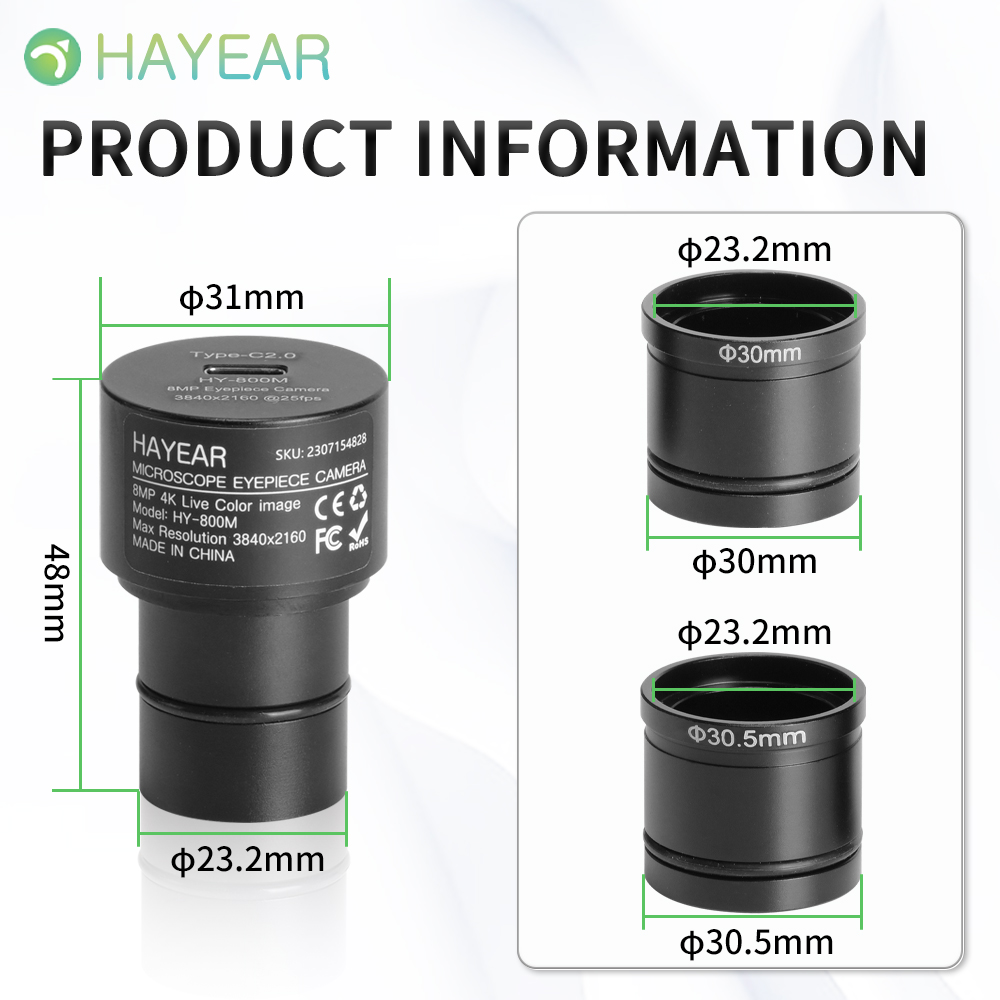

Eyepiece Support :30.0mm/23.2mm diameter
supports output formats :12-/10-bit RAW RGB
supports 2x2 binning
ISP clock up to 240MHz
Support System :WinXP/Win7/Win10/win11 ; Linux / Android (符合UVC协议);
MAC-OS X10.4.8 or later(符合UVC协议)
Support OTG protocol :USB2.0 OTG
Application Areas: Industrial Vision, Visual Inspection,
Microscope, Astronomical Telescope, Intelligent Terminal Equipment,
Face Recognition, Advertisement Machine, Vegetable Recognition,
Intelligent Vending Camera, Electronic Weighing Object Recognition,
USB Raspberry Pi Camera, Code Scanning Camera, and so on...



Note:
Please allow 1mm errors due to manual measurement.
Due to the difference between different monitors, the picture may not
reflect the actual color of the item.

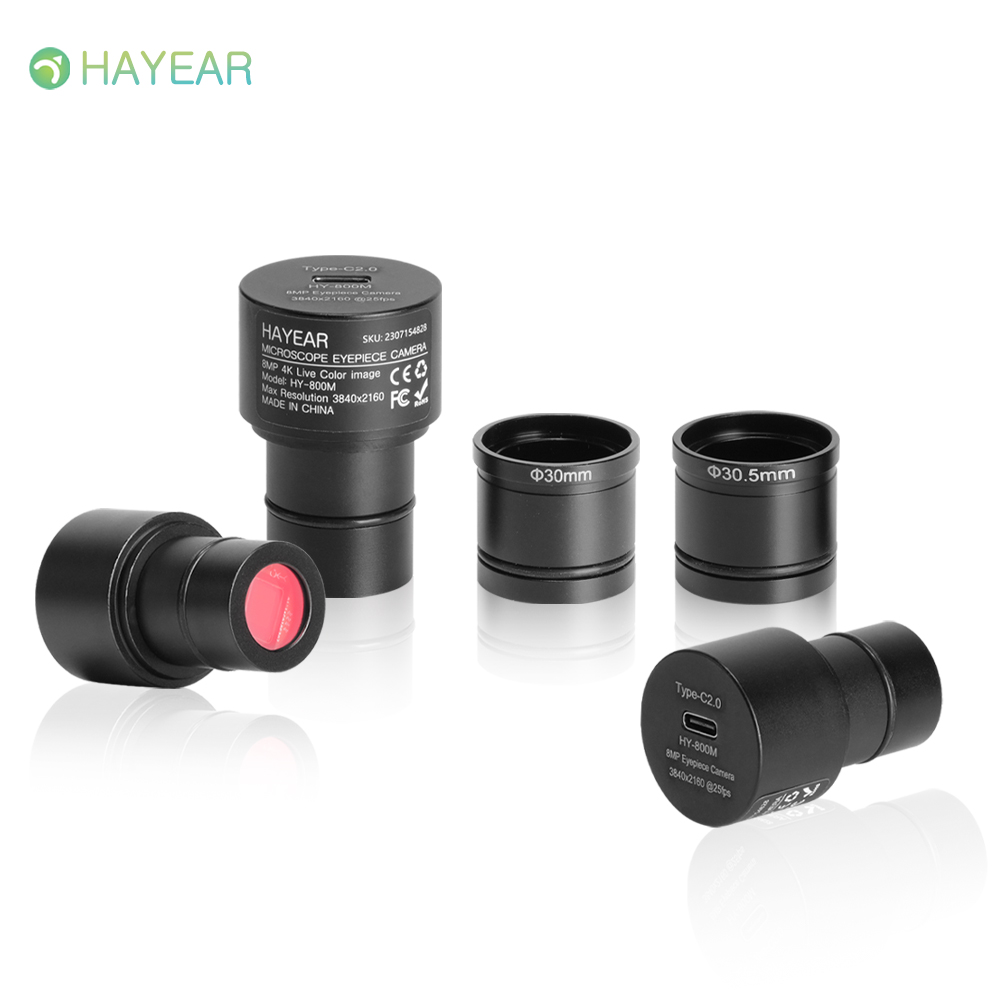

Package including:
1 x 8MP Digital Eyepiece
1 x TYPE -C line
1 x Software DISC
1 x 30/30.5mm Adapter
