HDMI Camera >> 14MP HDMI HD USB Digital Industry Video Microscope Camera + Horizontal Microscope Table Stand + 180X C-MOUNT Lens+144 LED Light
View Larger Image
Share your images of this product

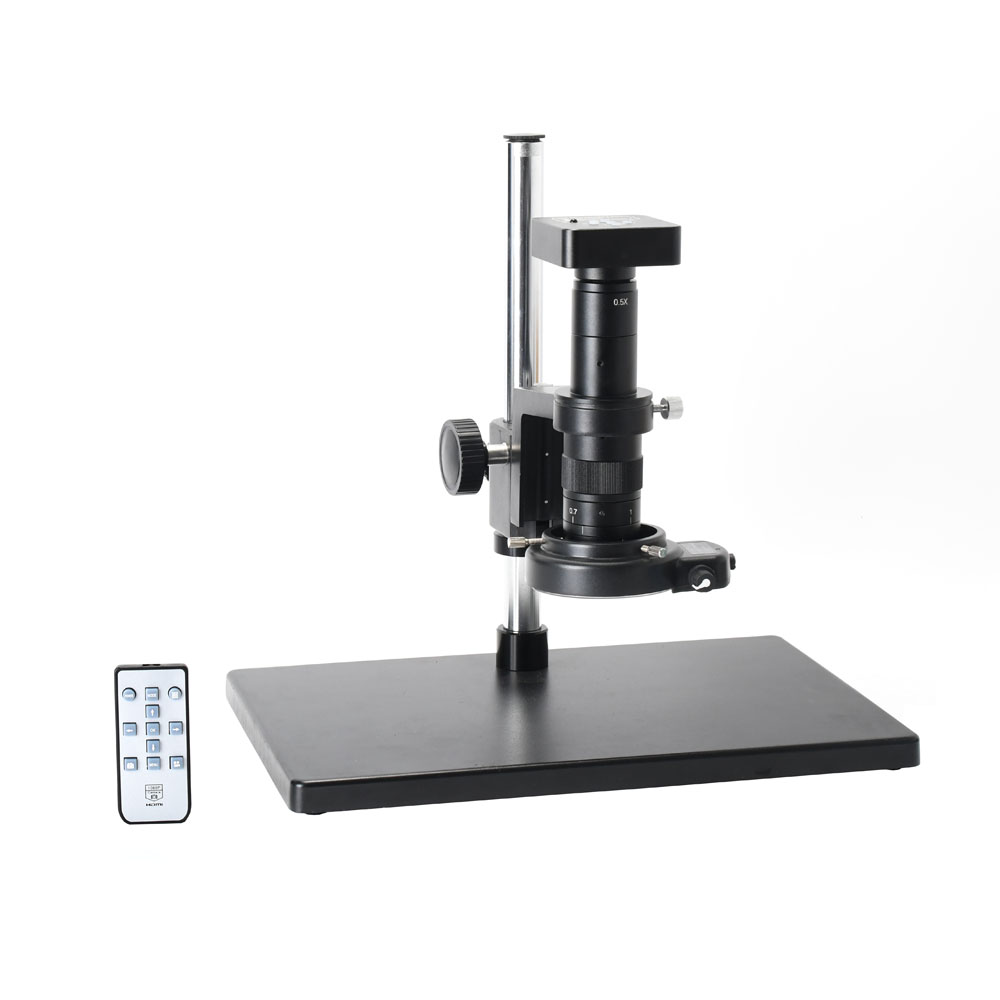

14MP HDMI HD USB Digital Industry Video Microscope Camera + Horizontal Microscope Table Stand + 180X C-MOUNT Lens+144 LED Light
Price : US $ 331.12 399.99

SKU : 1801263022
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.


Note:

For USB output, the white balance, exposure and color adjustment are automatic. They can't be adjusted.
For HDMI output, the functions can only be adjusted while connecting with monitor. If you connect the camera with computer, the functions also can not be adjusted.


14MP HDMI HD USB Digital Industry Video Microscope Camera + Horizontal Microscope Table Stand + 180X C-MOUNT Lens+144 LED Light

Features:
Model: Camera with HDMI USB2.0 two output
Image format: JPG
Image resolution: 4320*3240 (for TF card) 1920*1080@60FPS(for TF card)
Video format: MOV(for TF card)
Video recorder: 1920*1080@60FPS (for TF Card)
USB Video resolution: 1920*1080 @ 30FPS
White Balance: Auto
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese
Line: different color,4 horizontal line , 4 vertical line,any positions
Specification:
Image sensor:14 megapixel Panasonic sensor 1/2.3 inch
Effective pixel:14 megapixel
Pixel size:1.43x1.43um
Frame rate:60FPS
Definition:FULL HD
Housing:metal
Lens:CS for test, custom provide
White balance:Auto/manual
Video format: AVI
Encode: H.264 (High Profile)
Digital magnification:5 times digital zoom
Brightness control:Auto/manual
Color:R/G/B adjustable
Freeze:Support
OSD:Support
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 4 pcs of transverse lines/vertical lines, moveable
different color,4 horizontal line , 4 vertical line,any positions
SNR:Support
TF card interface:Max 32G
HDMI interface:Standard HDMI output (Type A)
Lens:C
OSD: English/Chinese/French/Spanish/Portuguese
USB interface:Standard usb2.0 interface (Type B)

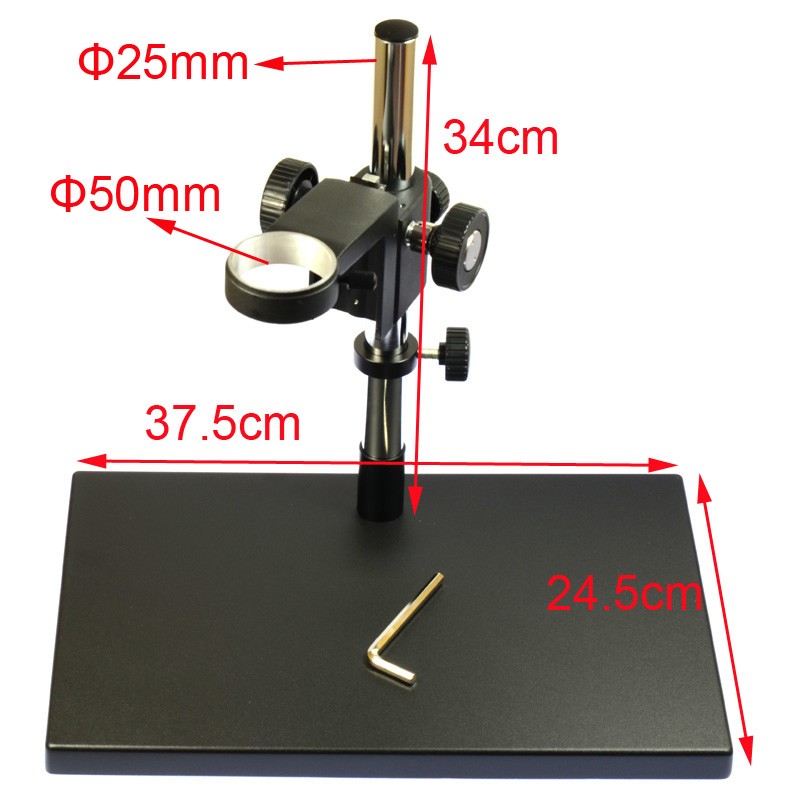

Horizontal Microscope Table Stand

- We provide the boom stand only. This is not a complete system. A microscope head with optics is  needed. You provide the - head. We have several types of adapters to fit a variety of microscope heads. Contact us for details about your specific   requirements so we can assist with a smooth fit.
- Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
- Steel Gears on Focusing Holder.
- Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mm
- Floor size: 380mm X 250mm
- Frame diameter: 50mm
- Load table size: 180mm X 120mm,
- Load table adjustable stroke: X: 70mm , Y: 40mm
- Weight: 3.9kg

C-MOUNT Lens:

Working distance: 100-125mm
zoom c-mount Lens
0.5X C-mount adapter
zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 180mm(L) * 50mm(DIA)
Weight: 450g

144 Bulbs Microscope LED Ring Light:

144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm
NOTED!!!
TF card storage is only for HDMI output. USB output will be storaged in PC.

Package Content:

1 x Microscope Camera
1 x C-MOUNT Lens
2 x Power supply
1 x USB line
1 x Software DISC
1 x LED Ring Light
1 x Horizontal Microscope Table Stand
1 x Remote Control
DSC_4351


DSC_5669DSC_5649DSC_7506DSC_7258DSC_48481

DSC_425622
