HDMI Camera >> 14MP HDMI 1080P HD USB Digital Industry Video Inspection Microscope Camera Set TF Card Video Recorder HY-2307
View Larger Image
Share your images of this product


14MP HDMI 1080P HD USB Digital Industry Video Inspection Microscope Camera Set TF Card Video Recorder HY-2307
Price : US $ 126.23 149.99

SKU : 0911183457
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.

Noting:

1: for USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted.

2: for HDMI output, the functions can only be adjusted while connecting with monitorn if you connect the camera with computer, the functions also can not be adjusted.

3: when connect the camera with computer, it can only compatible with Windows system.

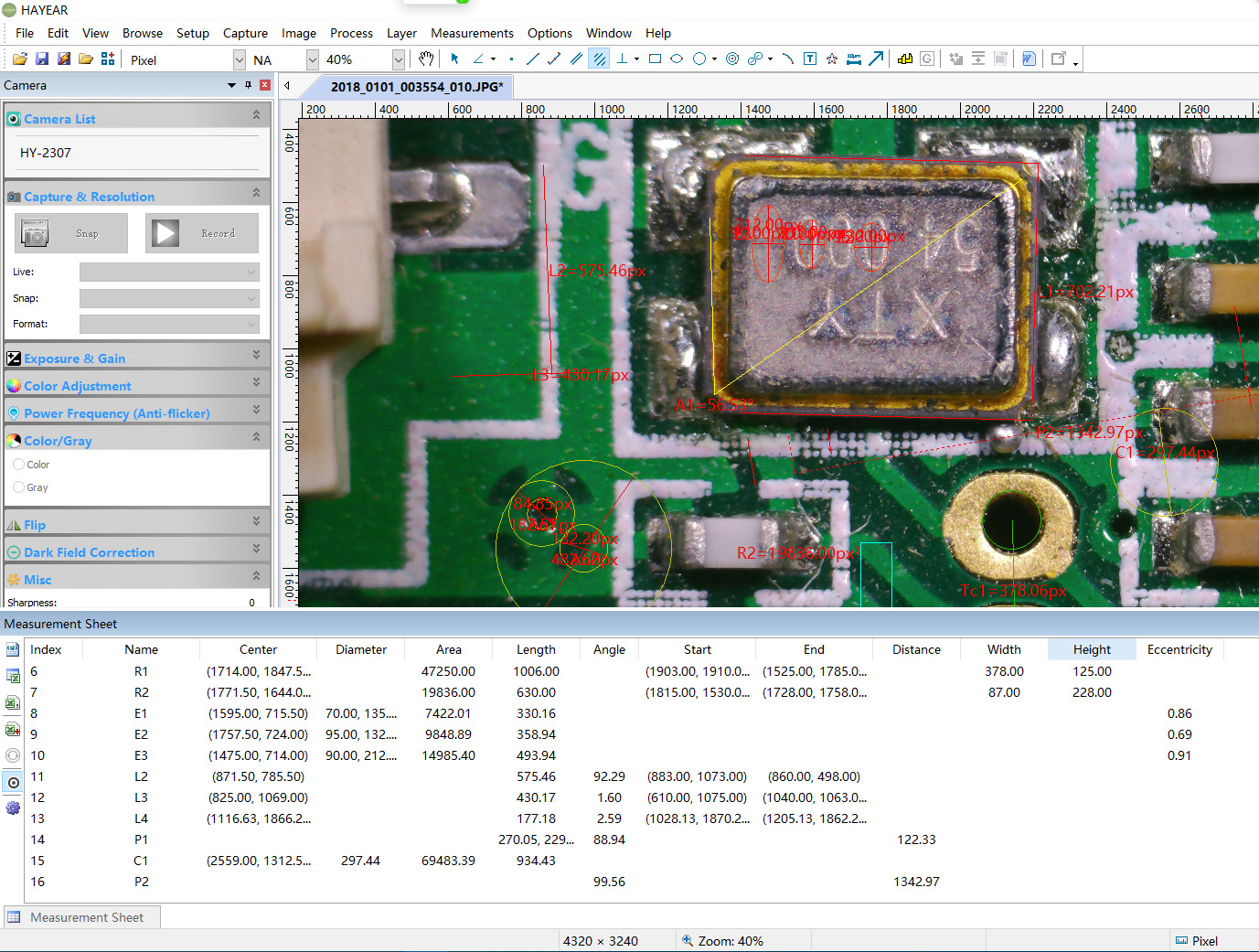

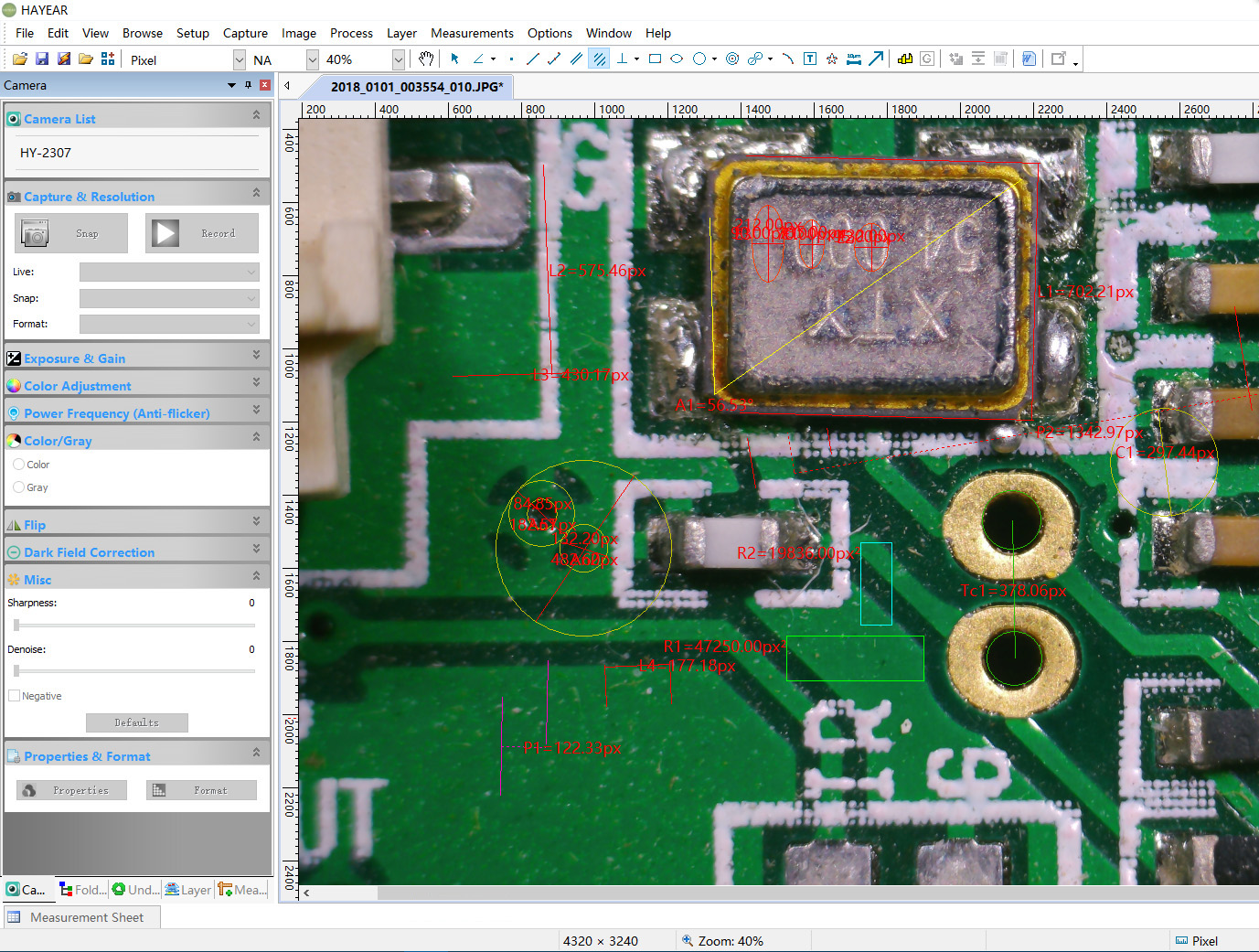

4: software download link:  http://download.hayear.com/content/?207.html


Features:

Model: Camera with HDMI USB2.0 two output

Image format: jpg
Image resolution: 4320*3240 (for
TF card) 1920*1080@60FPS(for TF card)
Video format: MOV(for TF card)
Video recorder: 1920*1080 @ 60FPS (for TF Card)
USB Video resolution:1920*1080 @ 30FPS
White Balance: Auto
Light: Auto
Color: Color
Negative: Support
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Portuguese
Line: different color,5 horizontal line , 5 vertical line,any positions

Specification:

Image sensor:14 megapixel Panasonic sensor 1/2.3 inch
Effective pixel:14 megapixel
Pixel size:1.43x1.43um
Frame rate:60fps
Definition:FULL HD
Housing:metal
Lens:CS for test, custom provide
Video format: MP4, AVI
Encode: H.264 (High Profile)
Digital magnification:5 times digital zoom
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, moveable
Different color,5 horizontal line , 5 vertical line,any positions
SNR:Support
TF card interface:Max 32G
HDMI interface:Standard HDMI output (Type A)
Lens:C
USB interface:Standard usb2.0 interface (Type B)
NOTED!!!
TF card storage is only for HDMI output. USB output will be storaged in PC.


Package including:

1 x HDMI microscope camera

1 x 12V power supply

1 x remote control

1 x USB line
DSC_5033DSC_5023


DSC_24151DSC_24131DSC_24161DSC_24171
