HDMI Camera >> 16MP 1080P 2K HD HDMI USB digital Industry Video Inspection Microscope Camera TF Card Video Recorder for mobile phone PCB repair HY-1137
View Larger Image
Share your images of this product

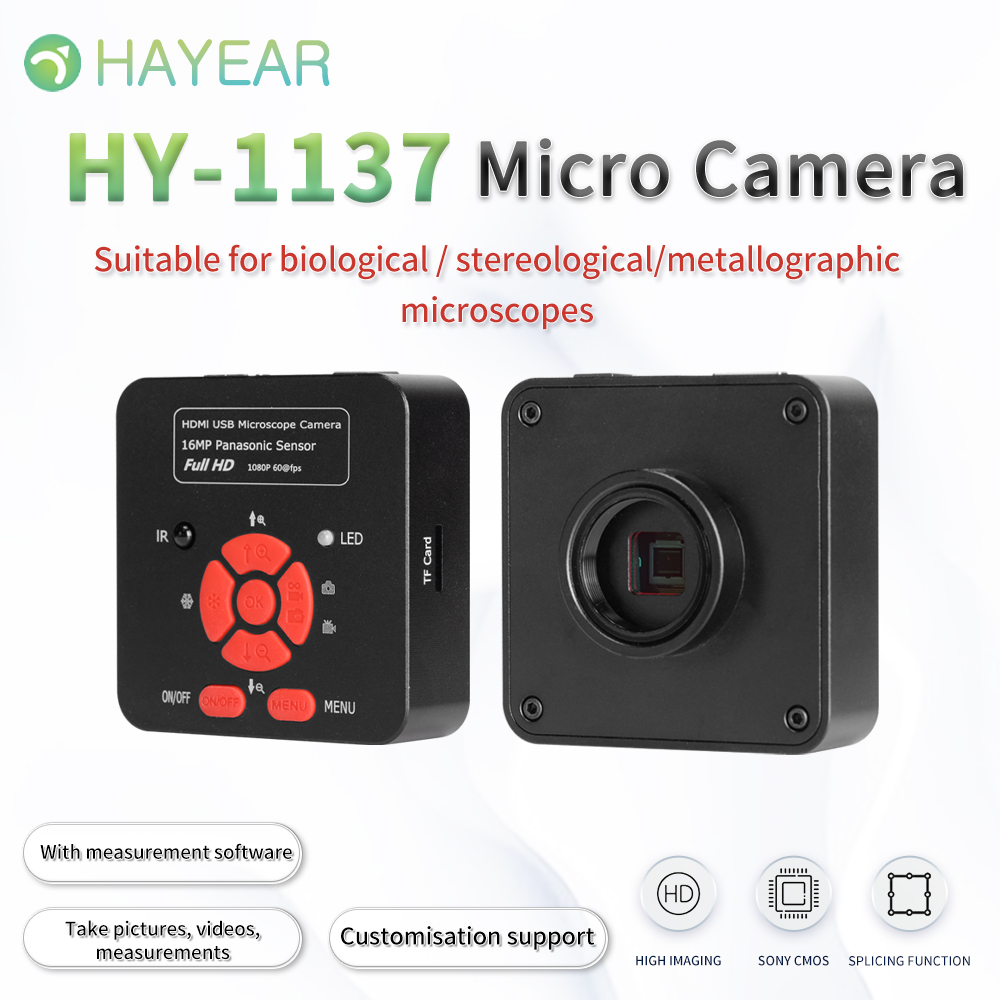

16MP 1080P 2K HD HDMI USB digital Industry Video Inspection Microscope Camera TF Card Video Recorder for mobile phone PCB repair HY-1137
Price : US $ 115.21 179.99

SKU : 1805095249
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.

Noting: 1:PC Support : Windows XP/7/8/10 system
2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.
3:When use USB connection, please make sure no TF card in the camera ,TF card storage is only for HDMI output. USB output will be storage in PC.
4:when connect the camera with computer, just plug the USB line is OK ( no need to use the power supply)



Feature:

Model: Camera with HDMI USB2.0 two output

Image format: jpg

Image resolution: 4608*3456 (for TF card) 1920*1080 @ 60FPS(for TF card)

Video format: MOV(for TF card)

Video recorder: 1920*1080 @ 60FPS (for TF Card)

HDMI Video resolution: 1920*1080 @ 60FPS

USB Video resolution: 1920*1080 1280*720 640*480 320*240 @ 30FPS

White Balance: Auto/Manual

Light: Auto/Manual

Exposure: Auto/Manual, value adjustable

Color: Color

Morror: Left/right,Up/Down

Freeze: Support

OSD: English/Chinese/French/Spanish/Japanese/German

Line: different color,5 horizontal line , 5 vertical line, any positions

Specification:

Image sensor:16 megapixel Panasonic CMOS sensor 1/2.33 inch

Effective pixel:16 megapixel

Pixel size:1.335μm × 1.335μm

Frame rate:60fps

Definition: FULL HD

Housing: metal

Lens: C/CS

Video format: MP4, AVI

Digital Zoom: Support

Brightness control: Auto/manual

Color:R/G/B adjustable

Film and record: Support

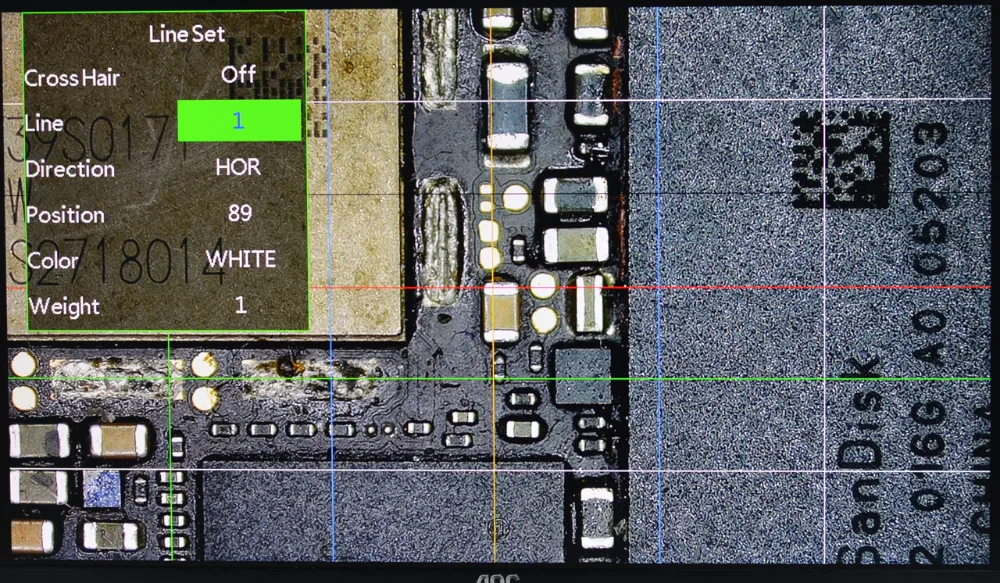

Cross cursor: Support multi-color, size adjustable

Transverse and vertical line:

Support multi-color, 5 pcs of transverse lines/vertical lines, movable

Different color,5 horizontal line , 5 vertical line, any positions

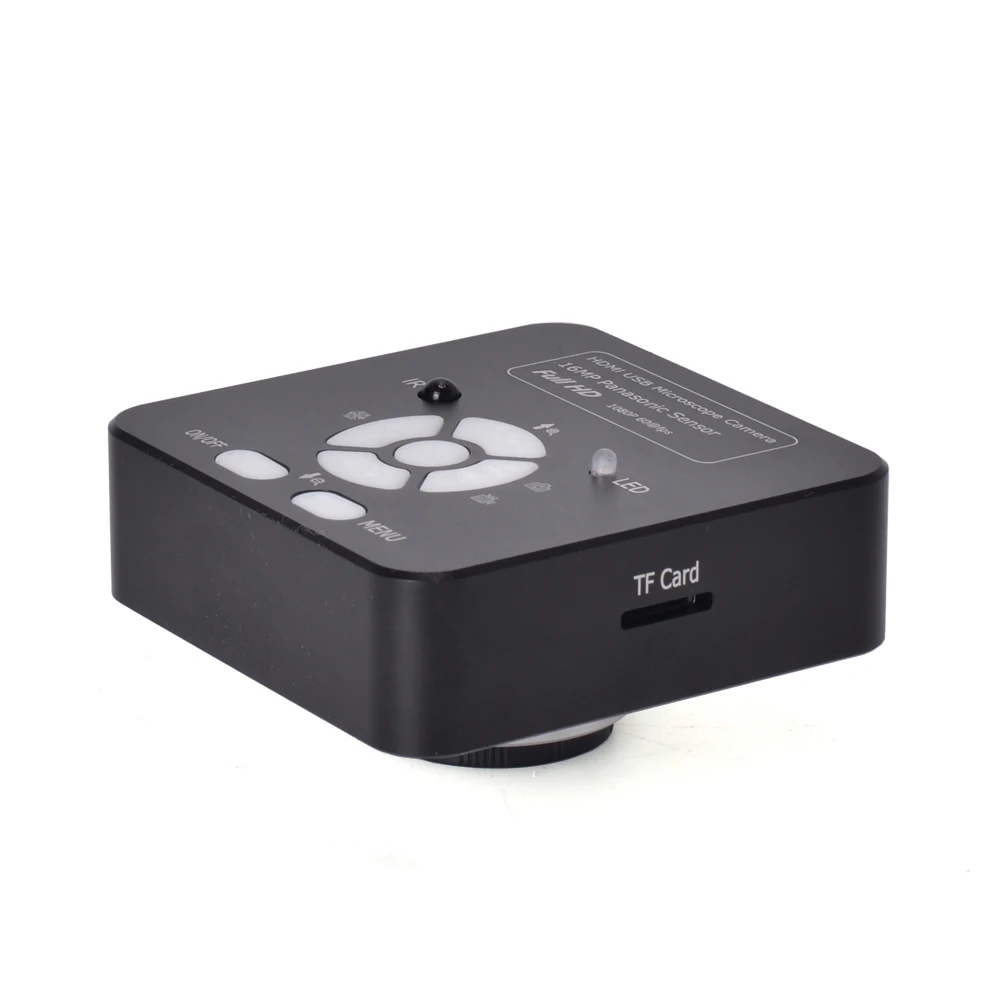

TF card interface: Max 64G

HDMI interface: Standard HDMI output (Type A)

USB interface: Standard usb2.0 interface (Type B)

Input Voltage: DC 12V

TF card interface: Max 64G

HDMI interface: Standard HDMI output (Type A)

USB interface: Standard usb2.0 interface (Type B)

Input Voltage: DC 12V



Package including:

1 X microscope camera

1 X power supply

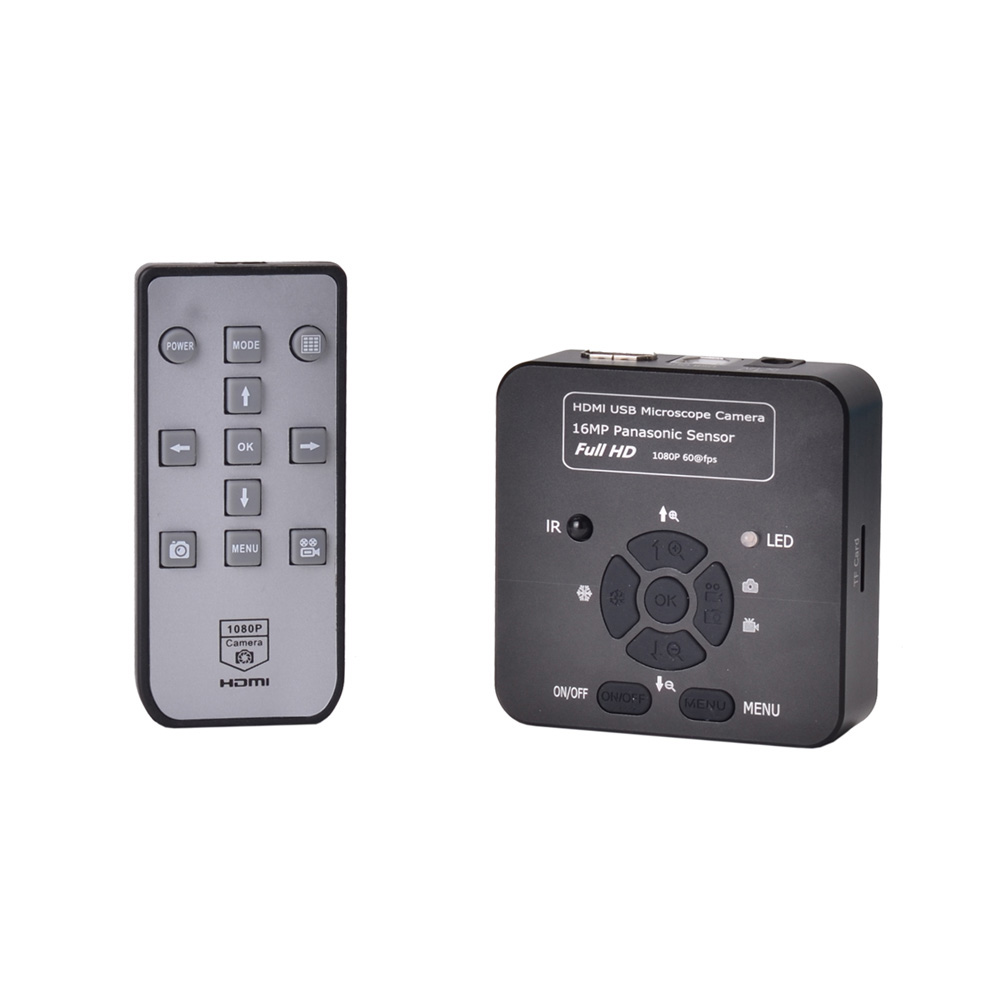

1 X remote control

1 X USB line 14

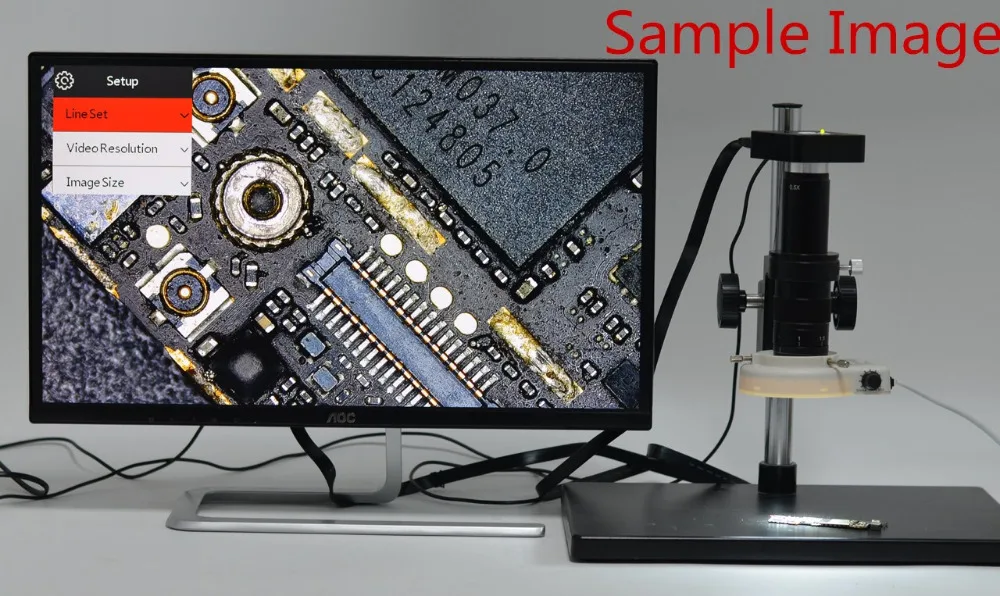

sample1

sample233sample4
