Trinocular Microscope >> HAYEAR Simul-focal 7X-45X Zoom Stereo HDMI 14MP Industry Binocular Microscope Head Camera 144 LED Light 0.5X-2X Auxiliary Objective Lens
View Larger Image
Share your images of this product


HAYEAR Simul-focal 7X-45X Zoom Stereo HDMI 14MP Industry Binocular Microscope Head Camera 144 LED Light 0.5X-2X Auxiliary Objective Lens
Price : US $ 398.54 462.32

SKU : 1811124910
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.

Noting:

For USB output, the white balance,exposure and color adjustment are automatic. They can't be adjusted.
For HDMI ouput, the functions can only be adjusted while connecting with monitor. If you connect the camera with computer, the functions also can not be adjusted.




NOTED!!!

TF card storage is only for HDMI output. USB output will be storaged in PC.





This stereo microscope has a 144-LED ring light that offers super widefield optics and 7X-45X zoom magnification power with a cool light illumination system. It is an ideal instrument for industrial inspection and/or biological lab applications. This microscope is perfect for gemologists, manufacturing engineers, dental lab technicians, and anyone in electronic and semiconductor industries.



Feature:
7X-45X zoom magnification power with crisp sharp images
Super widefield high-eyepoint optics
widefield of view
4" (100mm) working distance
Sturdy all-metal pillar stand
Powerful 56-LED ring light with dimmer


Feature:
An excellent stereo inspection microscope with intensity-adjustable 144-LED ring light
7x-45x super wide zoom magnification power
Bright cool light 144-LED illumination system
High resolution with great flatness and contrast, giving sharp and clear images
Binocular head with 45 degree inclined 360 degree swiveling eye tubes
Sharp stereo erect images with a wide field of view
Crystal clear original true color microscope images
Dual eye tubes with adjustable diopters
Large working distance
Sturdy all-metal table stand
Accurate alignment reduces eye strain for longer periods of viewing
Full optical glass elements
Precise ground glass lenses
Full metal chrome-plated mechanical components
Adjustable interpupillary distance
Rubber eye-guards included

Specification:
Head: 360 degree rotatable 45 degree inclined binocular
Eyepieces: 30mm super widefield high-eyepoint WF10X/20MM
Objective Zoom Range: 0.35X-9.0X, using the Barlow lenses
Working Distance: 4" (100mm)
Diopter Adjustment: +/- 5dp
Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
Round Plate: 3-3/4" (95mm) in diameter
Stand: 10" x 7-7/8" x 10.75" (254 x 200 x 275mm)
Illumination: 144-LED Ring Light
Power Input: 110-240V, 50-60HZ, Automatic Switching
Accessories: Paired eye-caps

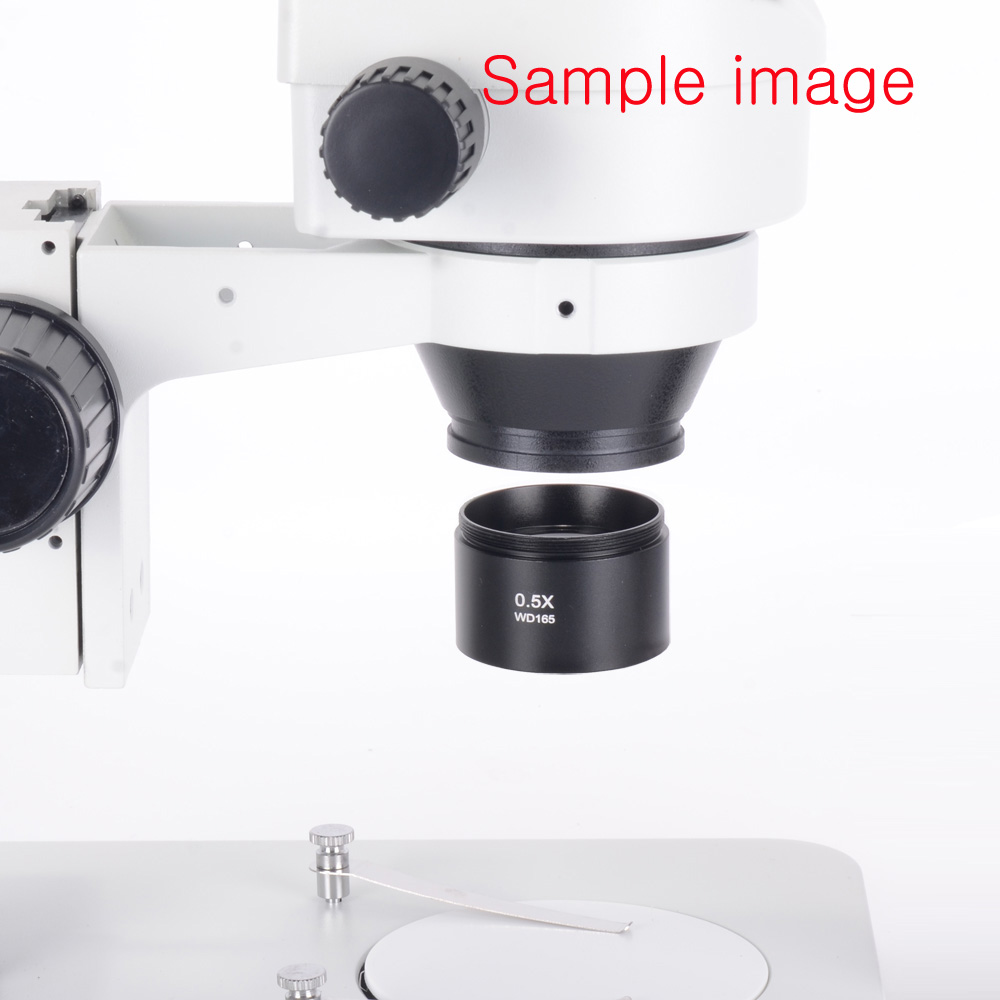

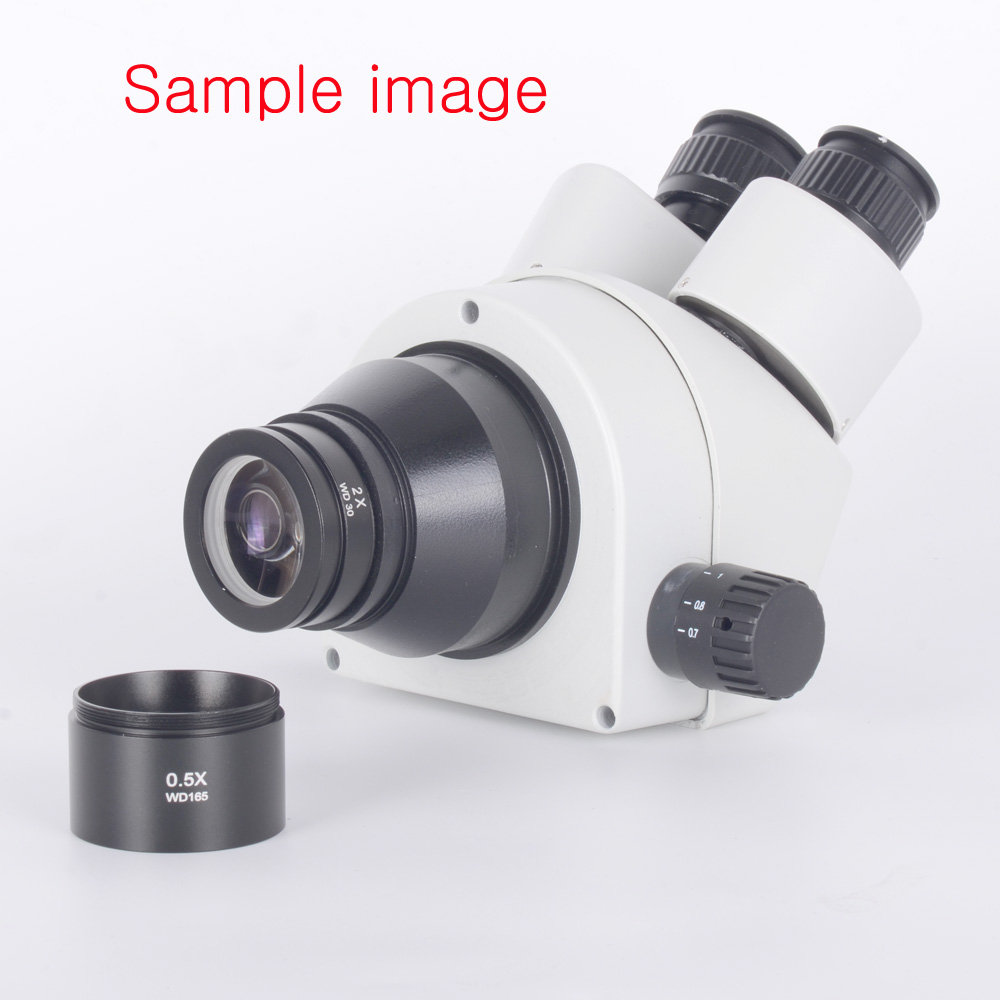

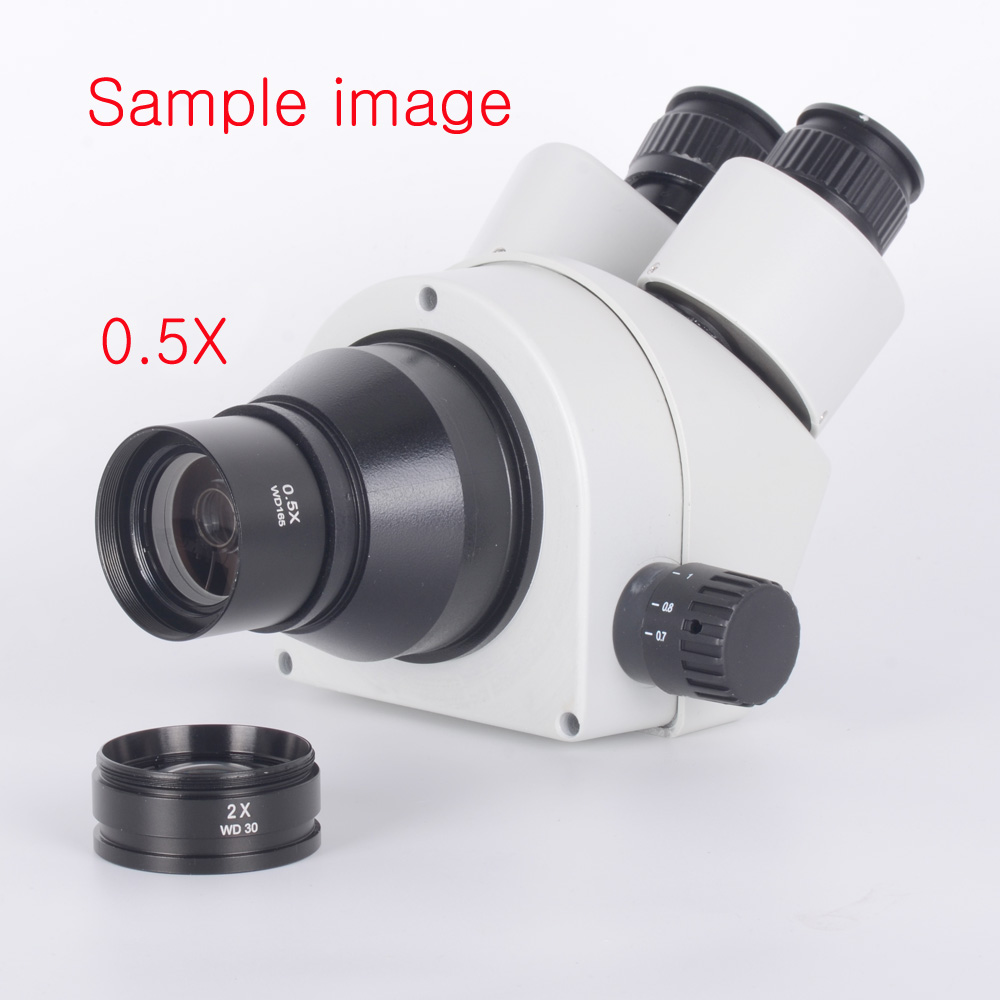

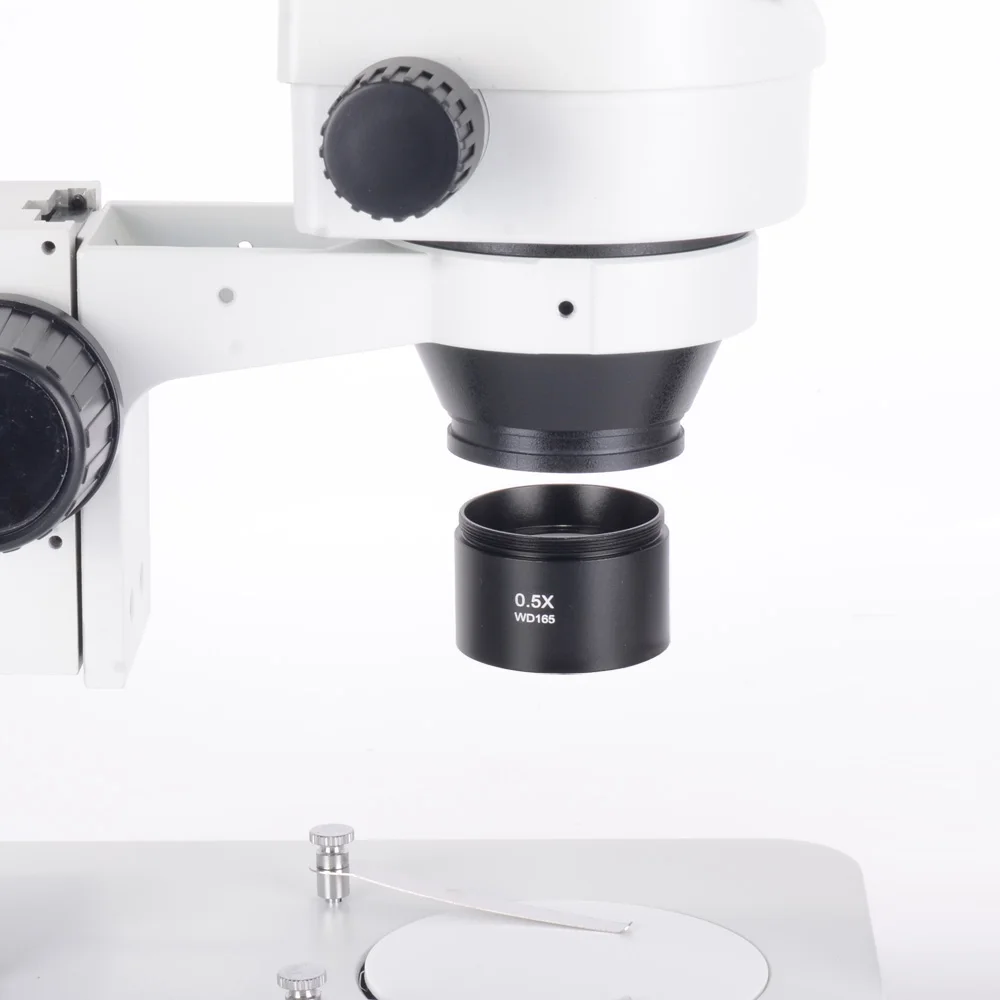

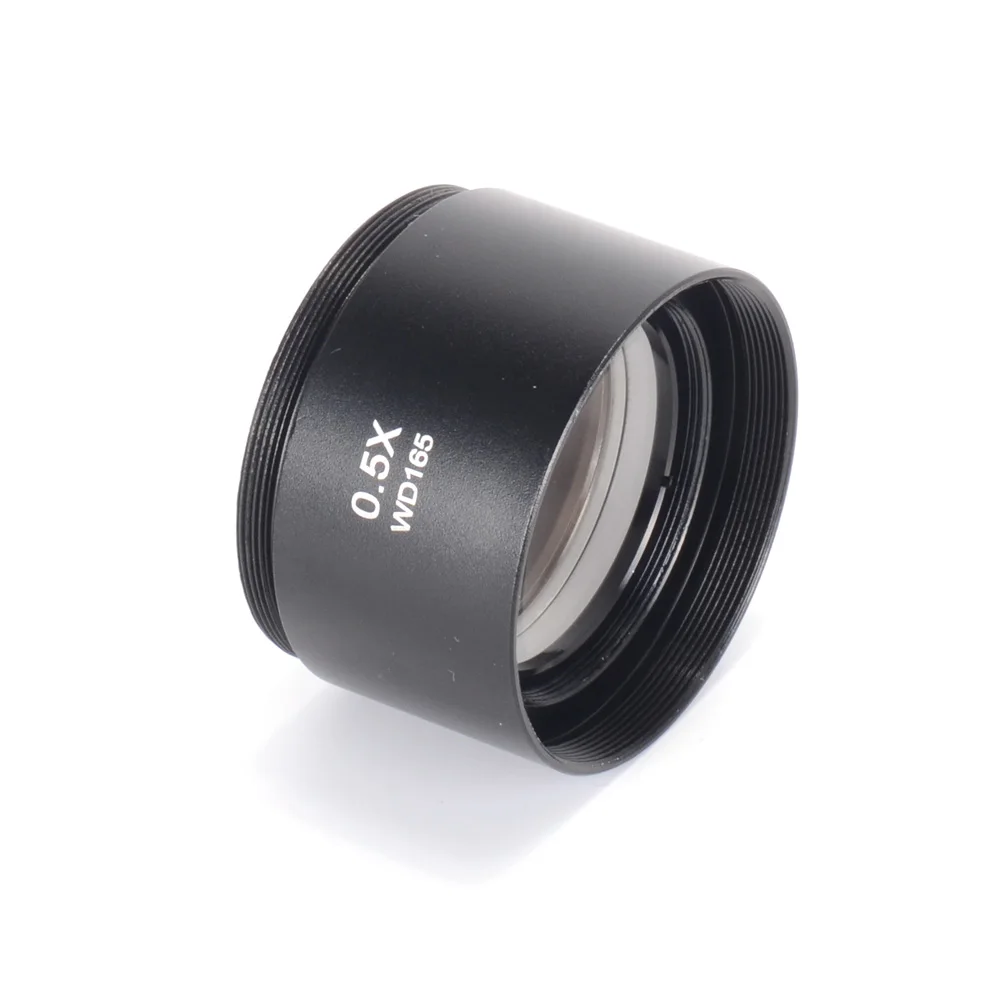

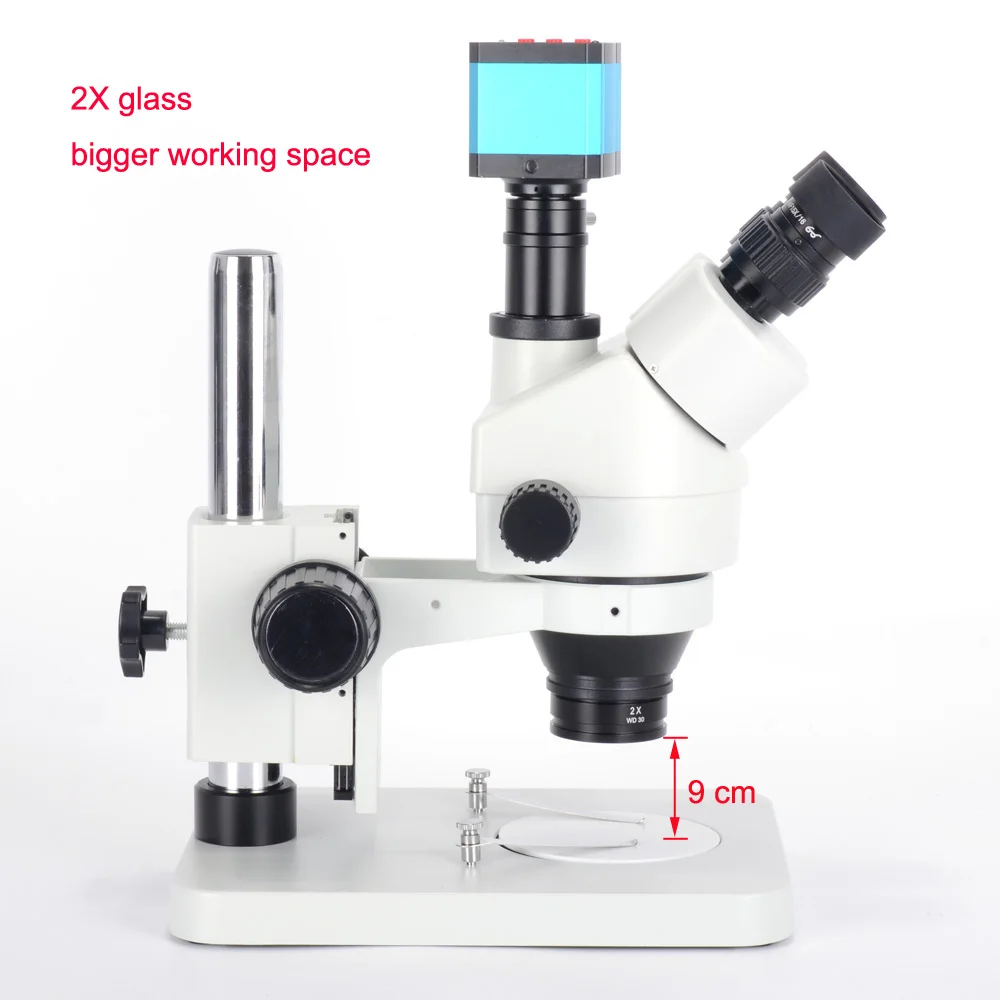

Objective Lens:

0.5X/ 2.0X Magnification Power

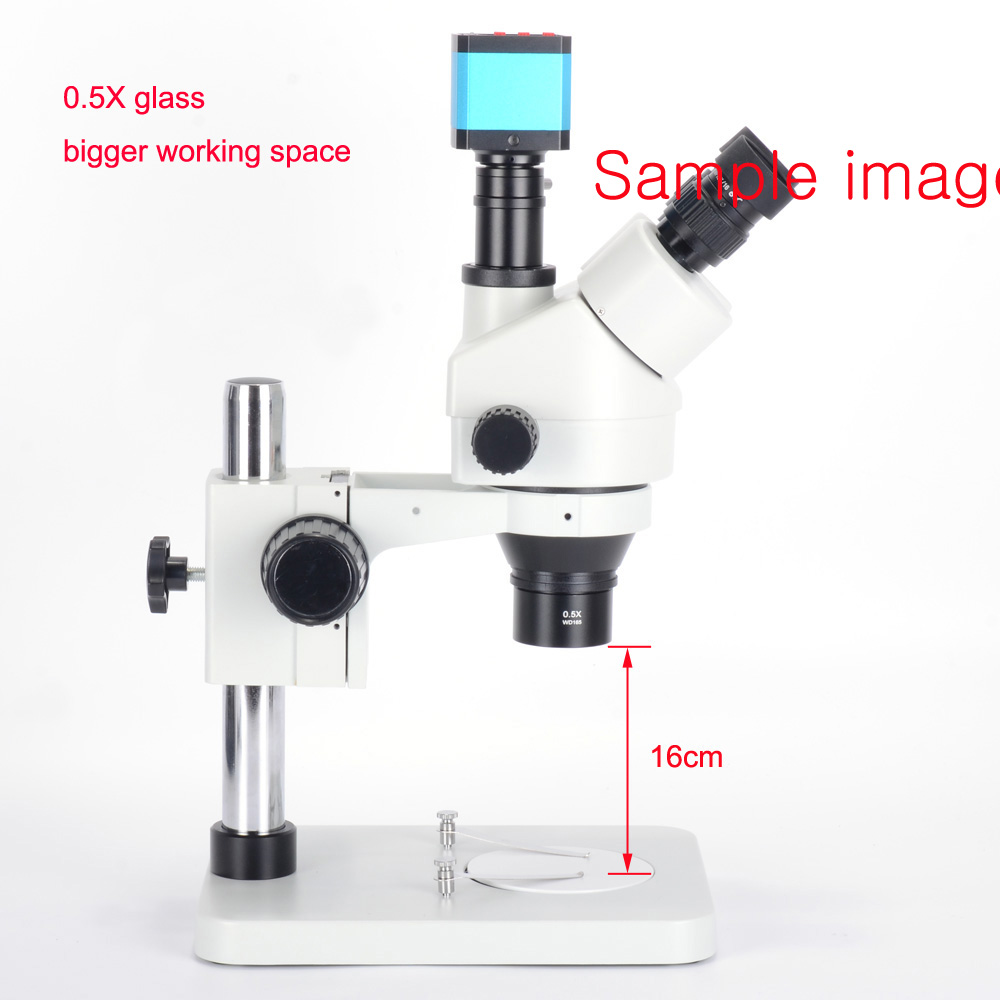

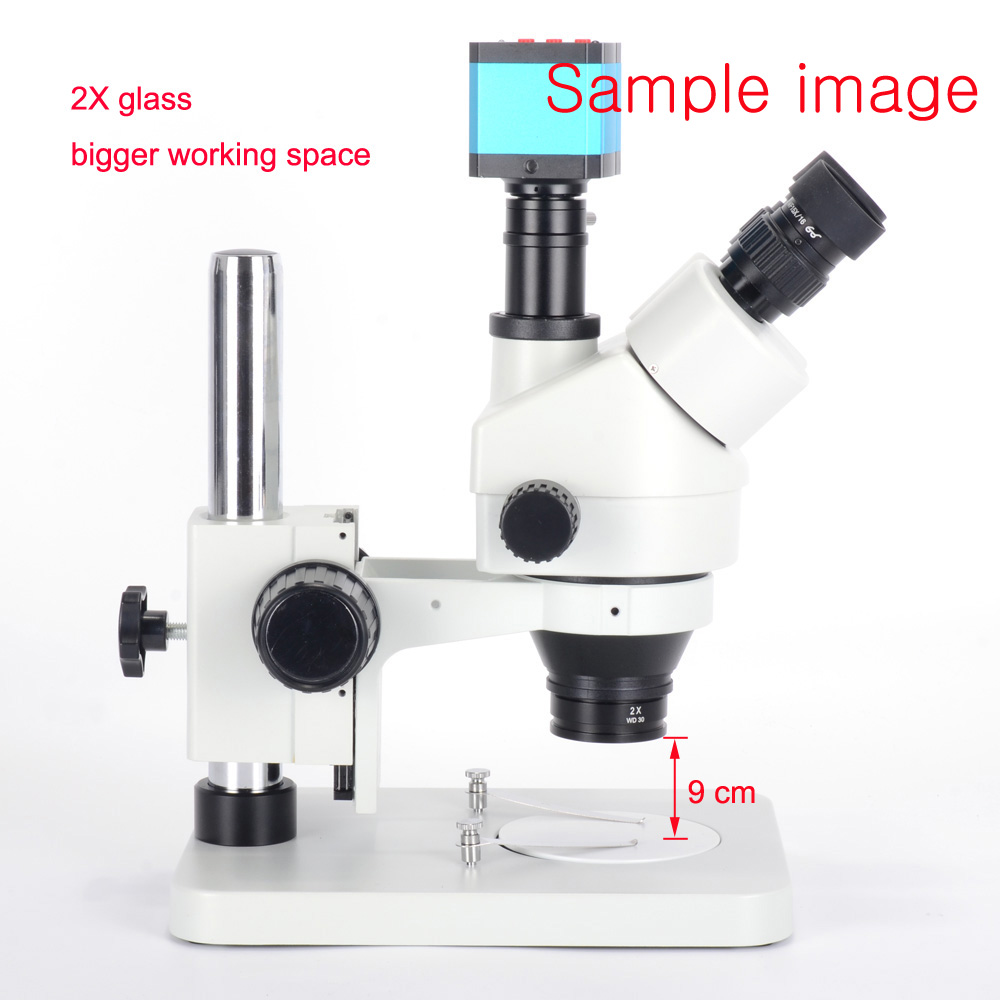

WD 165mm/ WD30mm
Doubling Total Magnification power of your Microscope and reduce the focus length

1-7/8" (48mm) Mounting Thread

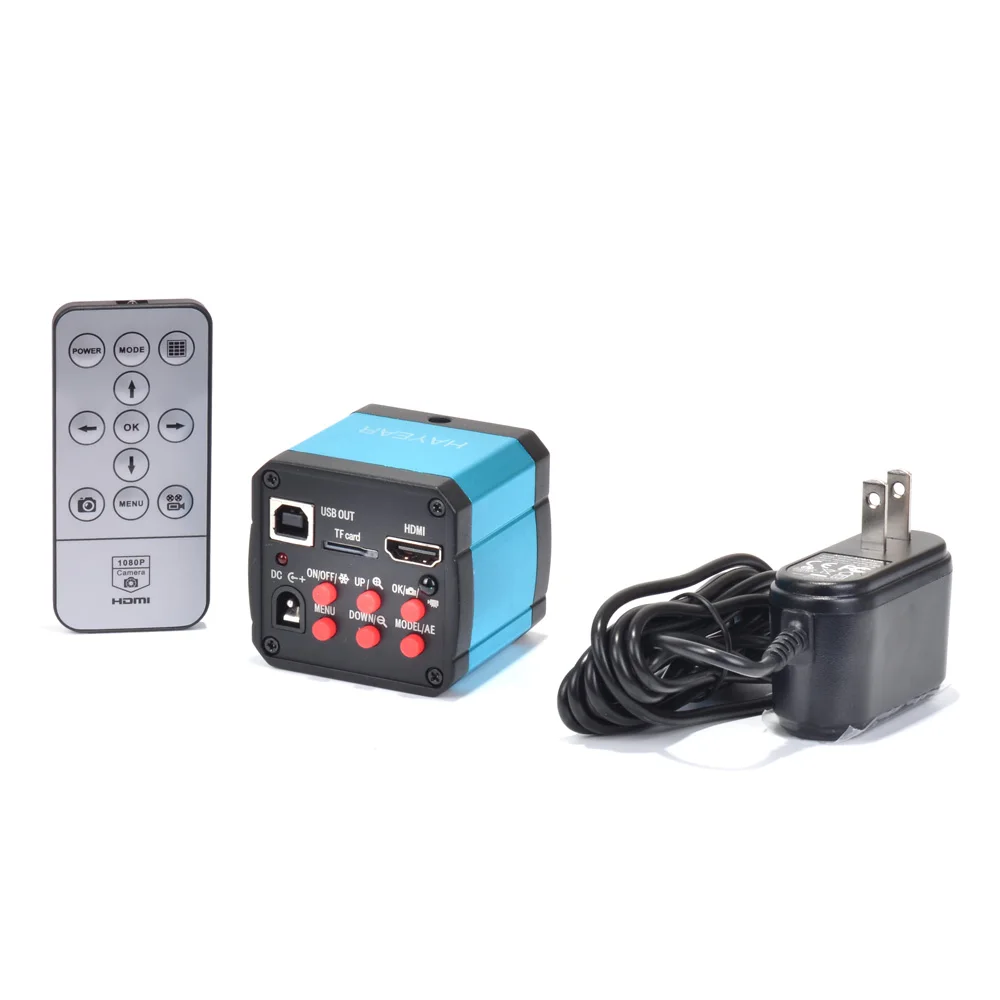

Camera Features:

Model: Camera with HDMI USB2.0 two output
Image format: jpg
Image resolution: 4320*3240 (for TF card) 1920*1080 @ 60FPS(for TF card)
Video format: MP4
Video recorder: 1920*1080 @ 60FPS (for TF Card)
USB Video resolution: 1920*1080 @ 30FPS
White Balance: Auto
Light: Auto
Color: Color
Negative: Support
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Portuguese
Line: different color,5 horizontal line , 5 vertical line,any positions

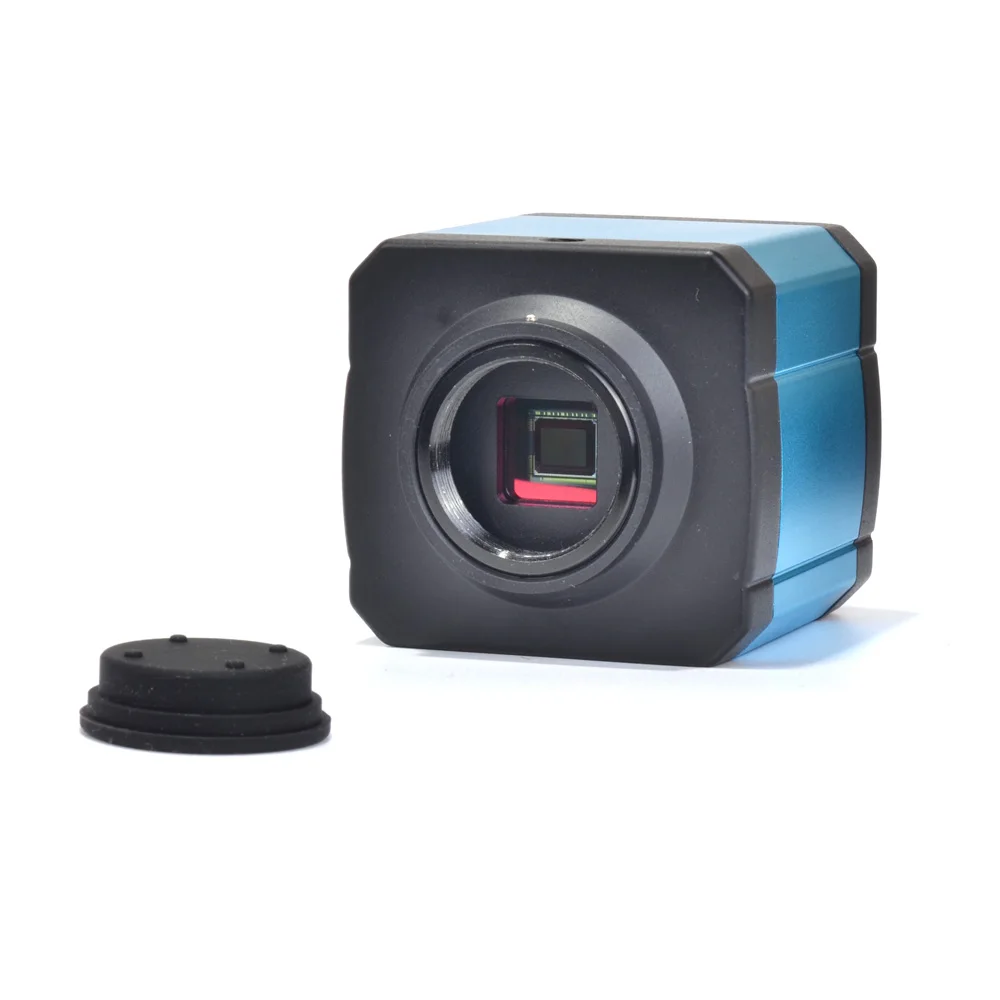

Camera Specification:

Image sensor:14 megapixel Panasonic sensor 1/2.3 inch
Effective pixel:14 megapixel
Pixel size:1.43x1.43um
Frame rate:60fps
Definition:FULL HD
Housing:metal
Lens:CS for test, custom provide
Video format: MP4
Encode: H.264 (High Profile)
Digital magnification:5 times digital zoom
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, movable
Different color,5 horizontal line , 5 vertical line,any positions
SNR:Support
TF card interface:Max 64G
HDMI interface:Standard HDMI output (Type A)
Lens:C
USB interface:Standard usb2.0 interface (Type B)

It build in digital crosshairs and color control, add line in the pictures, freeze

Supply USB2.0,HDMI HD video,Two output ports
We sell much to the industry factory, they can see the problems directly in the Monitor via the camera.

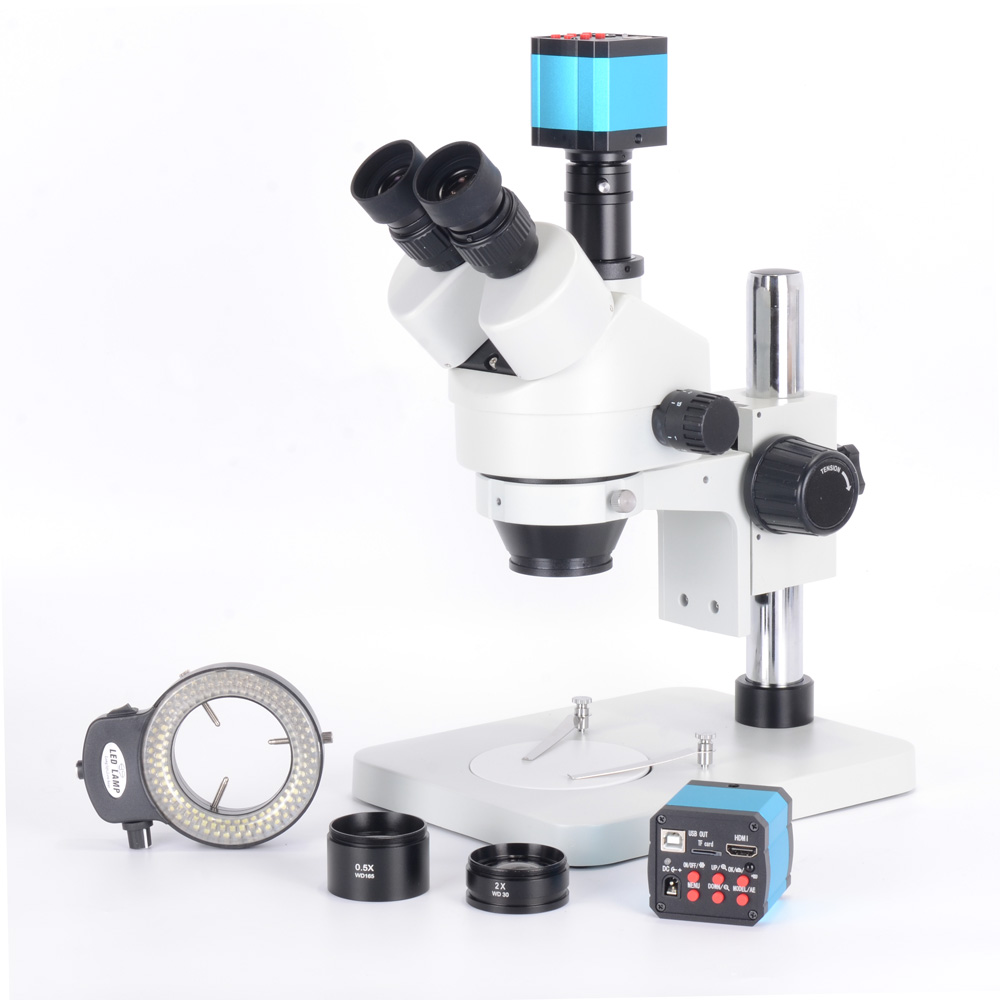

Package including:

1 x binocular stereo zoom head

1 x pair of super WF 10X20mm eyepieces

1 x camera with power adapter

1 x usb cable

1 x remote control

1 x 144-LED ring light with power adapter

1 x pillar table stand

1 x focusing rack

1 x 0.5X objective lens

1 x 2X objective lens
